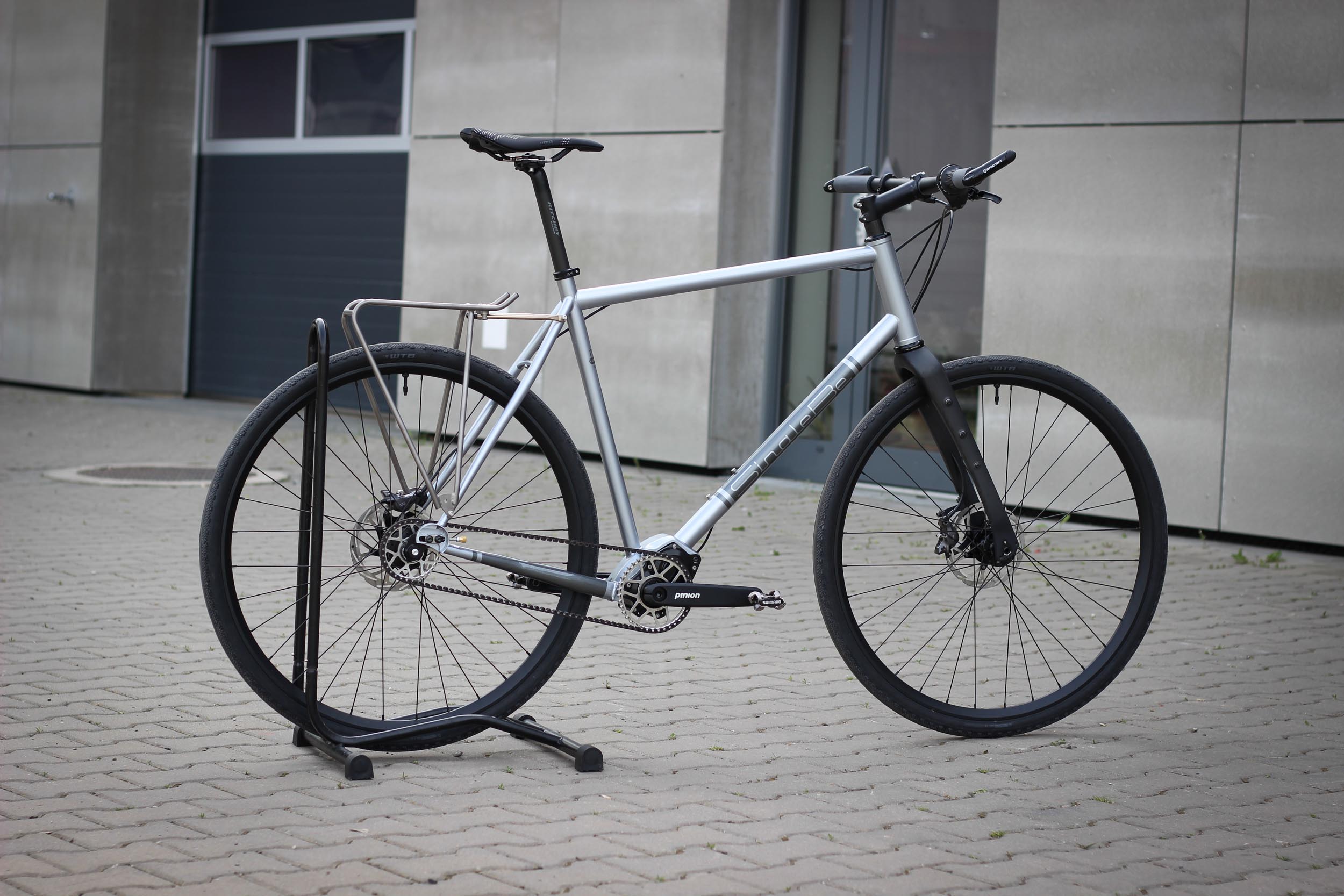

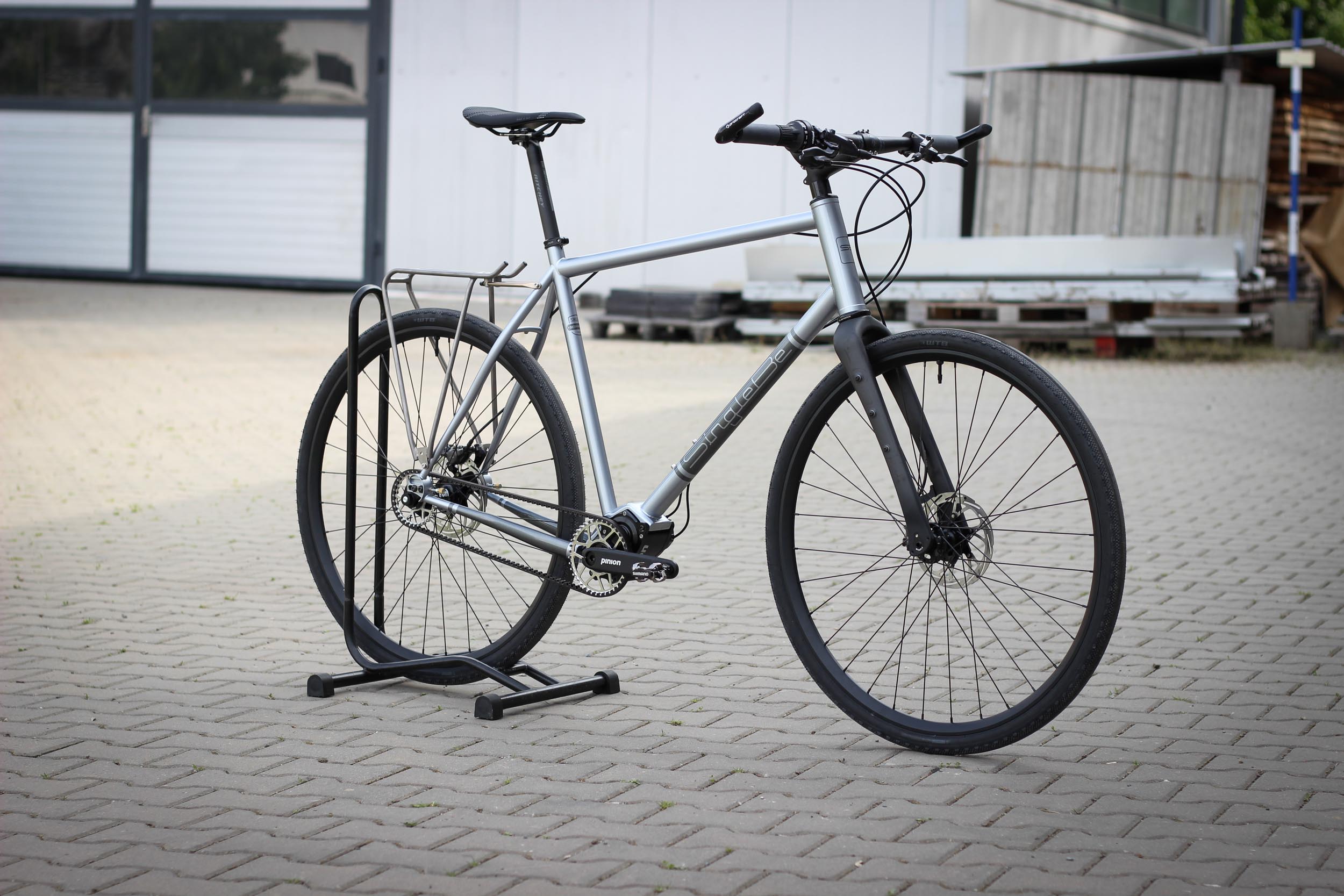

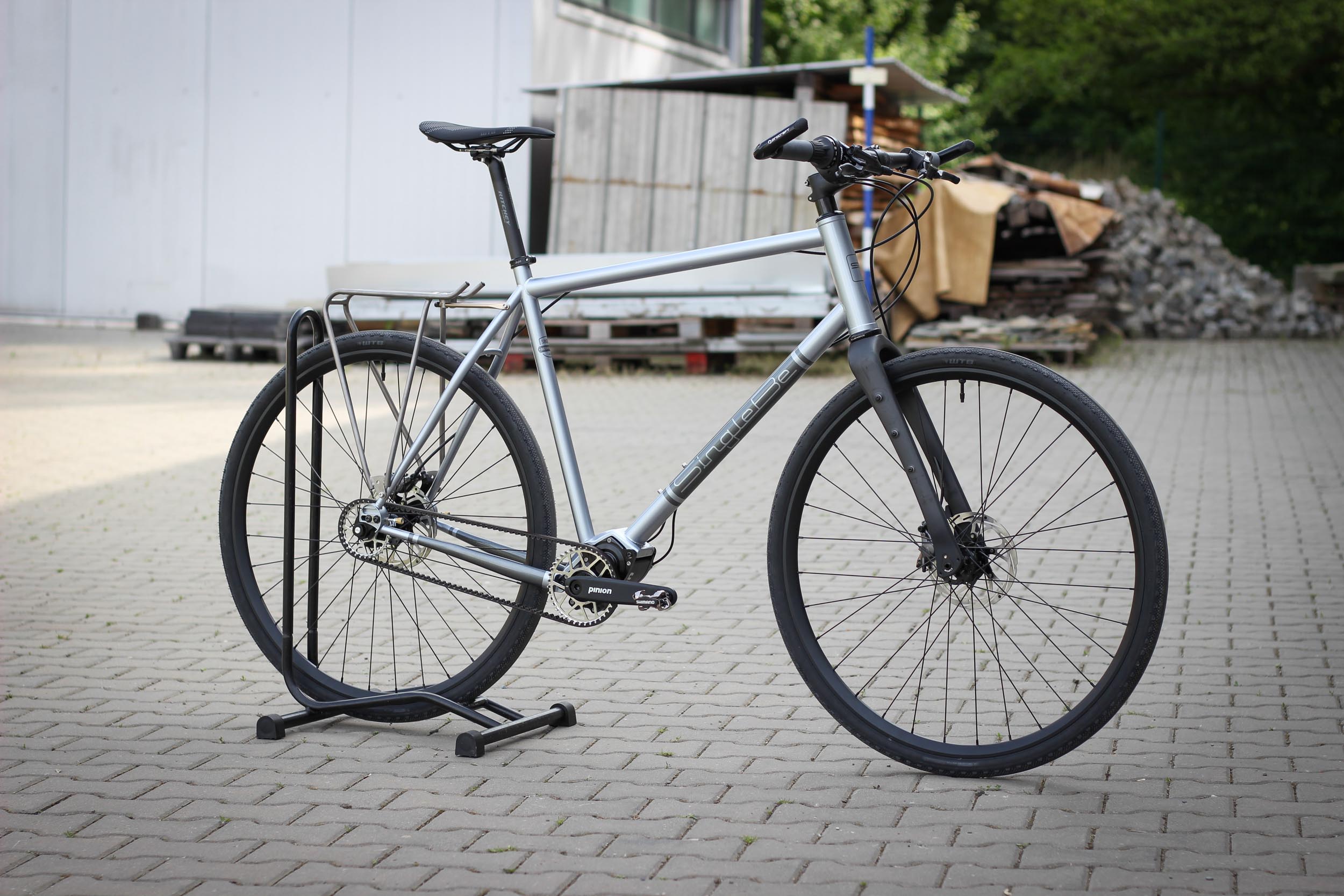

This bike looks very nice, clean and elegant.

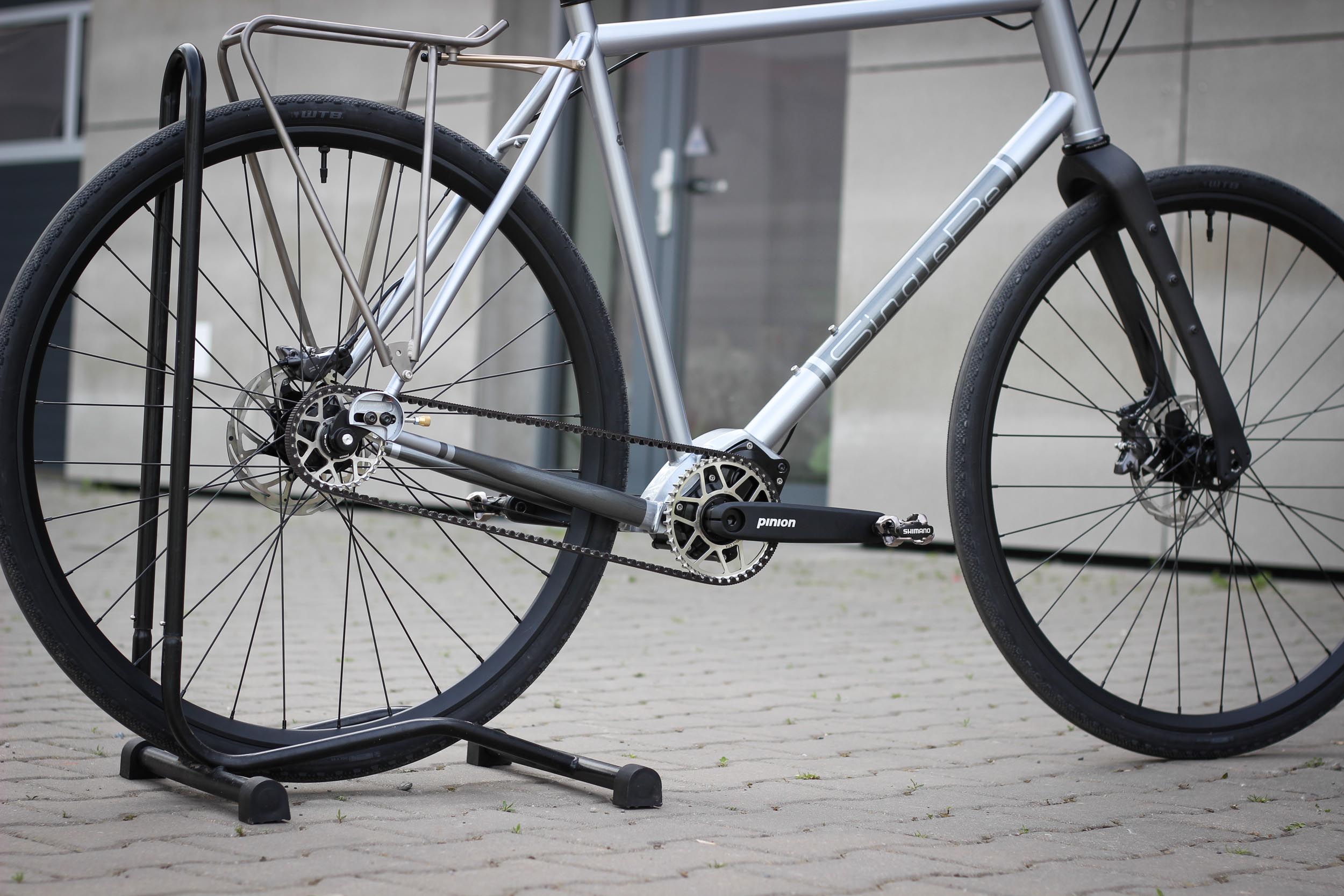

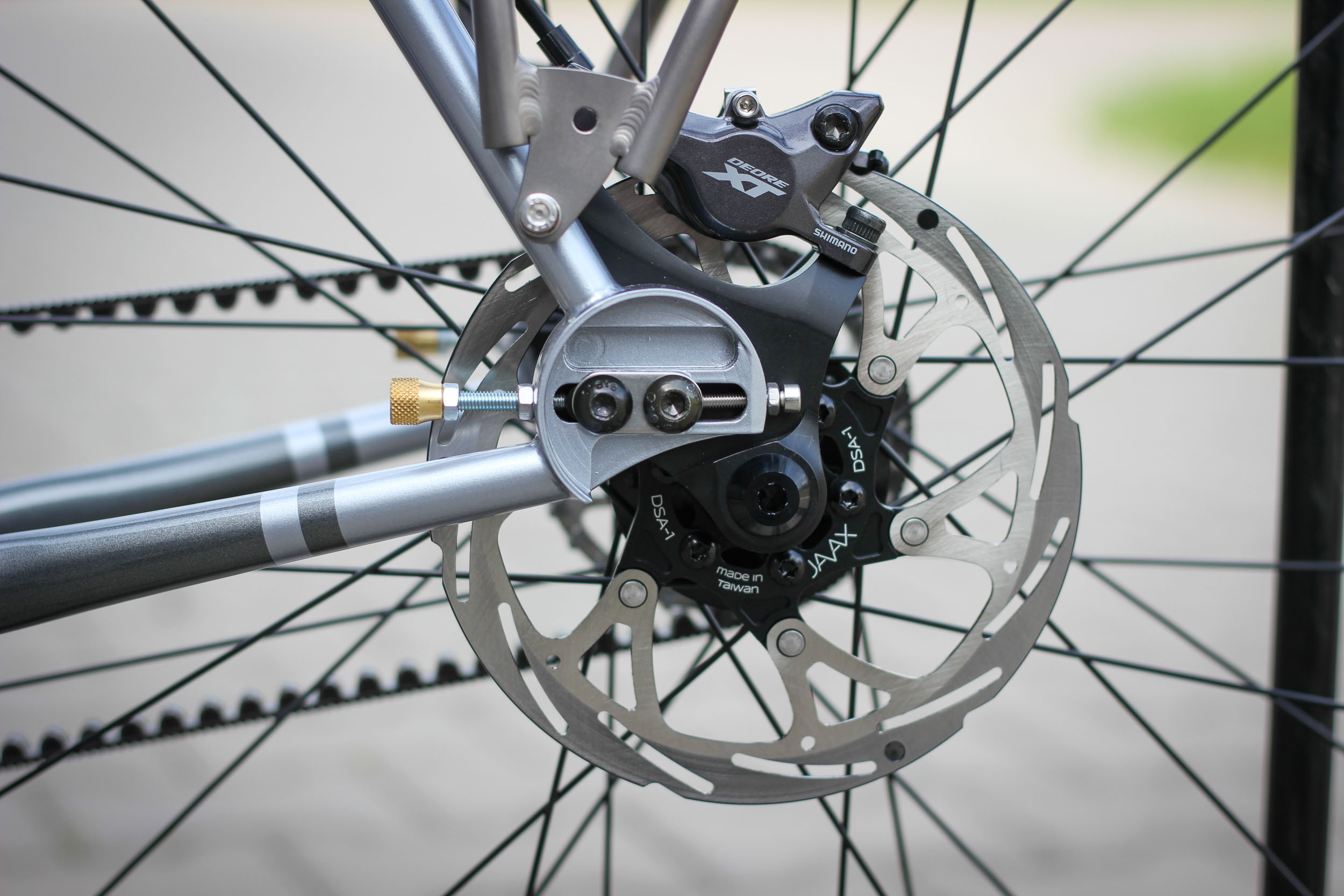

For Gates Carbon drive we use our own sliding dropouts with inner inserts from Paragonmachine works. Good quality rotors Javax brand.

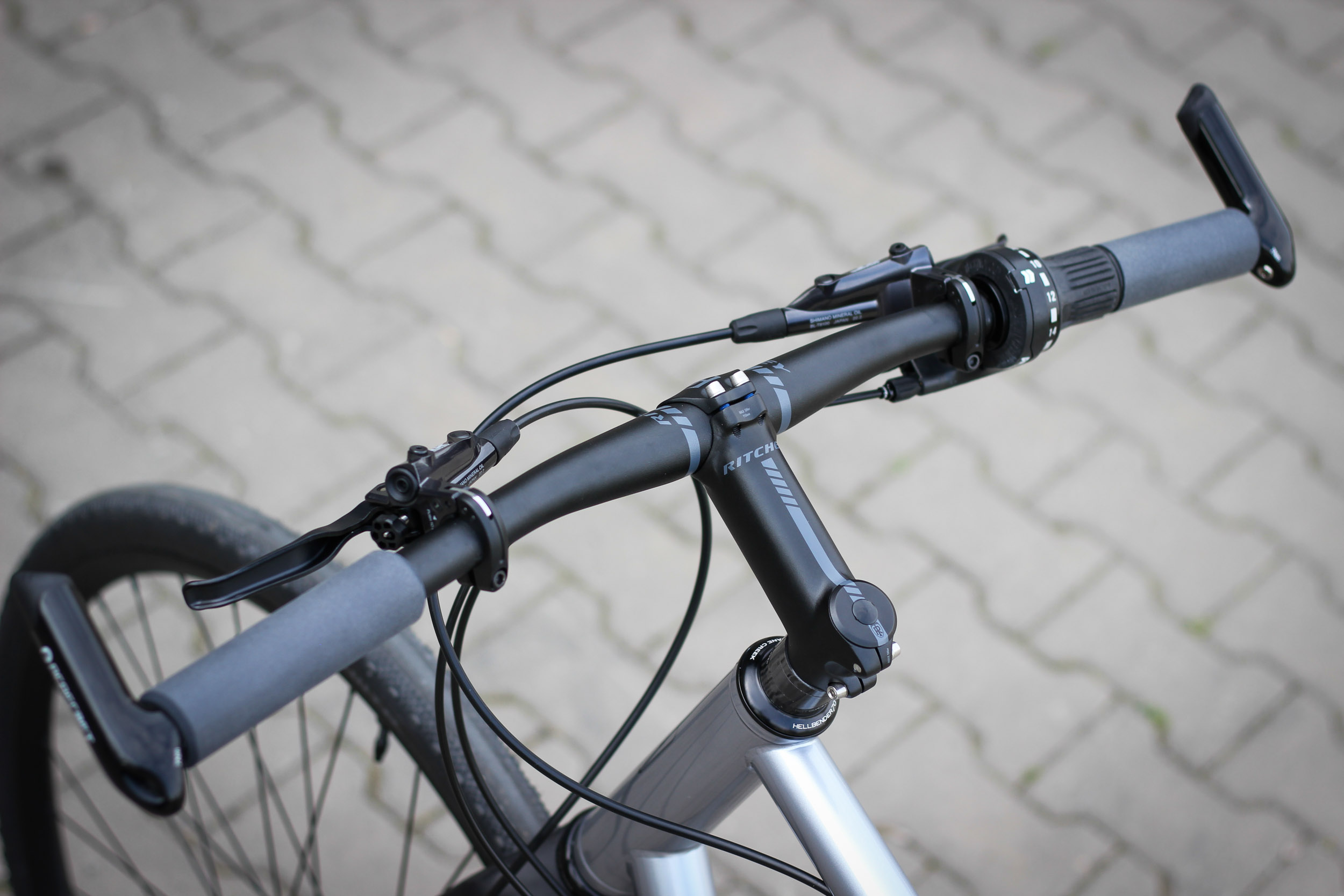

This is treking bike with rotary shifter and thats why we have used XT brakes with longer levers.

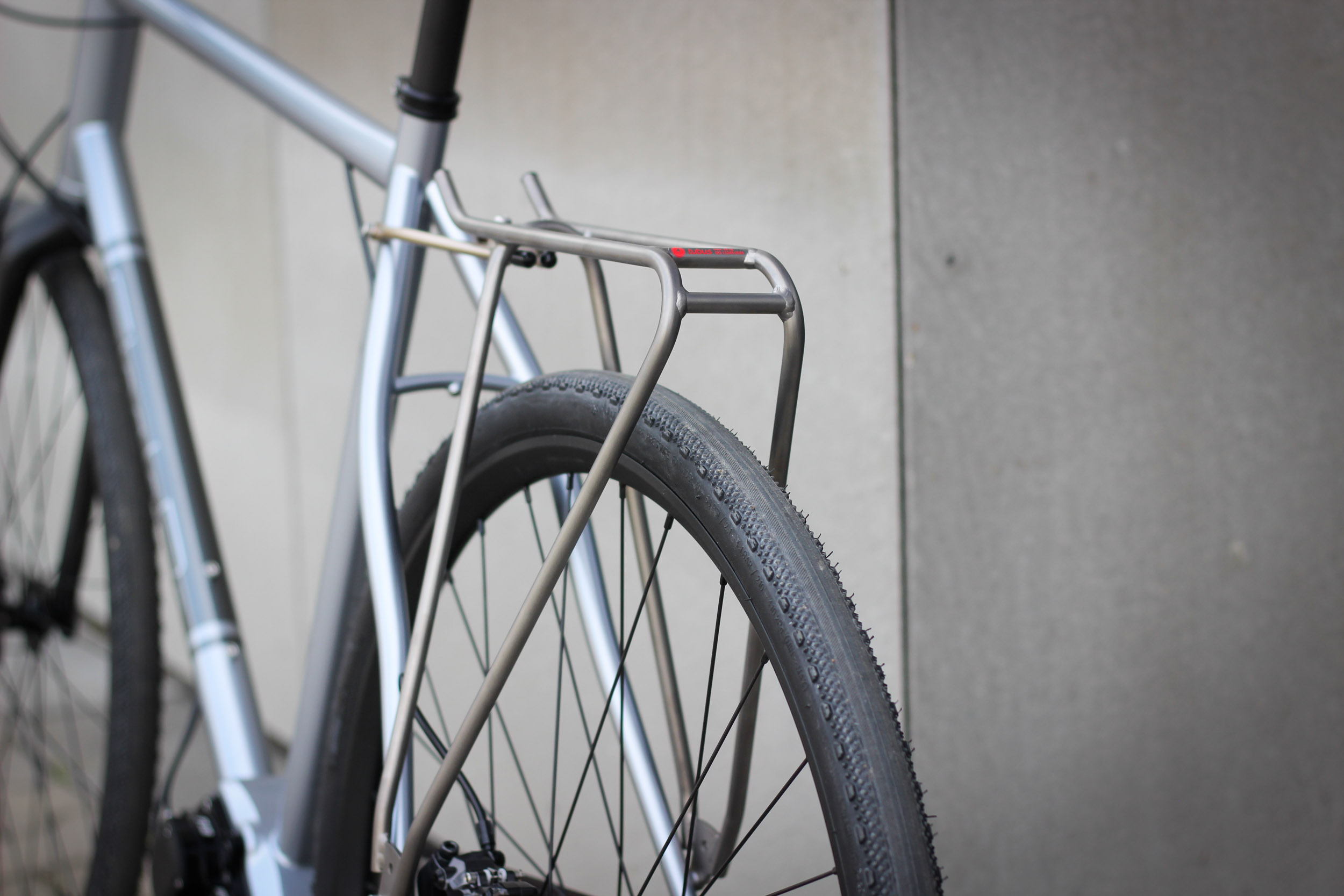

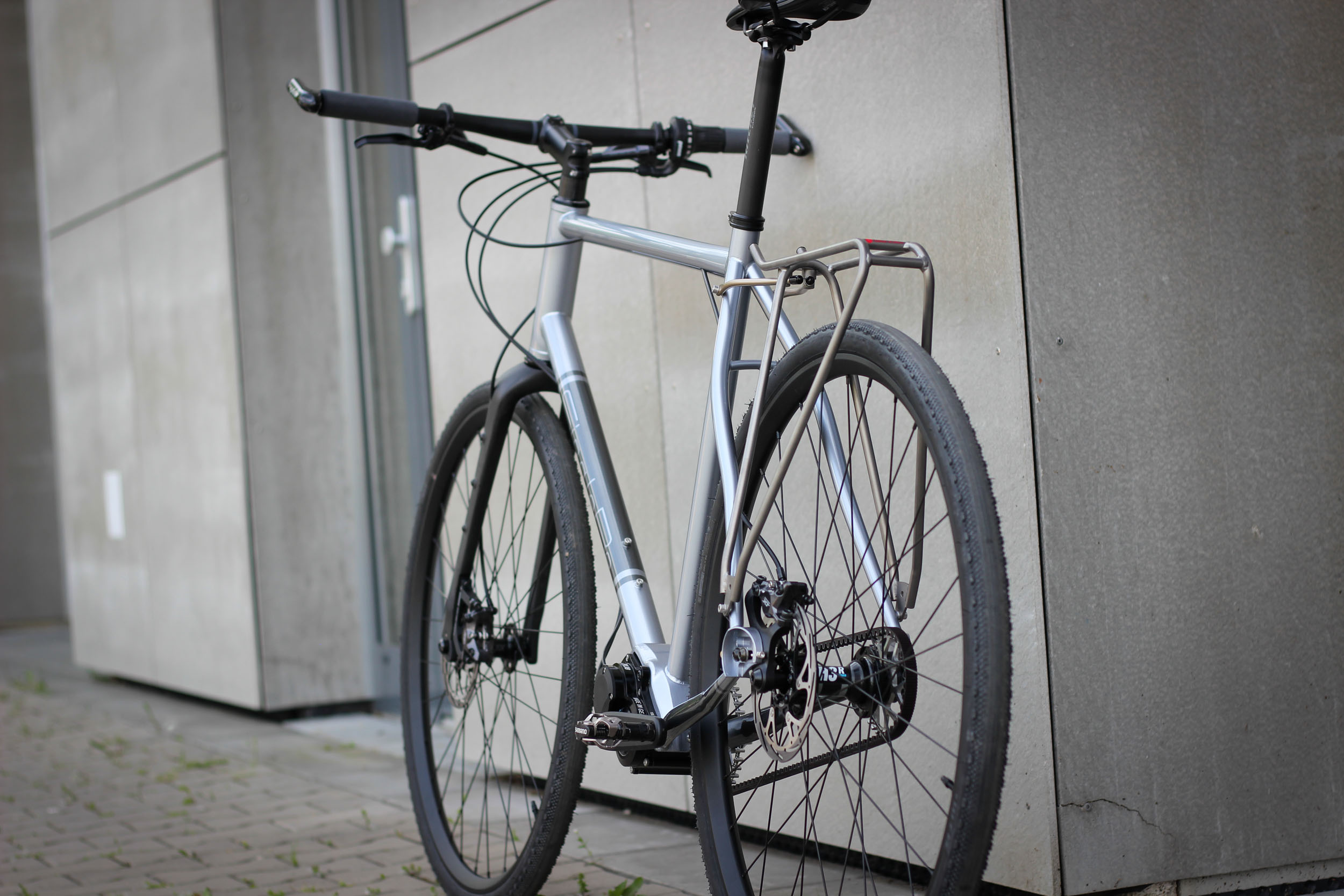

Super light and super strong, it is titanium rack Tubus Airy.

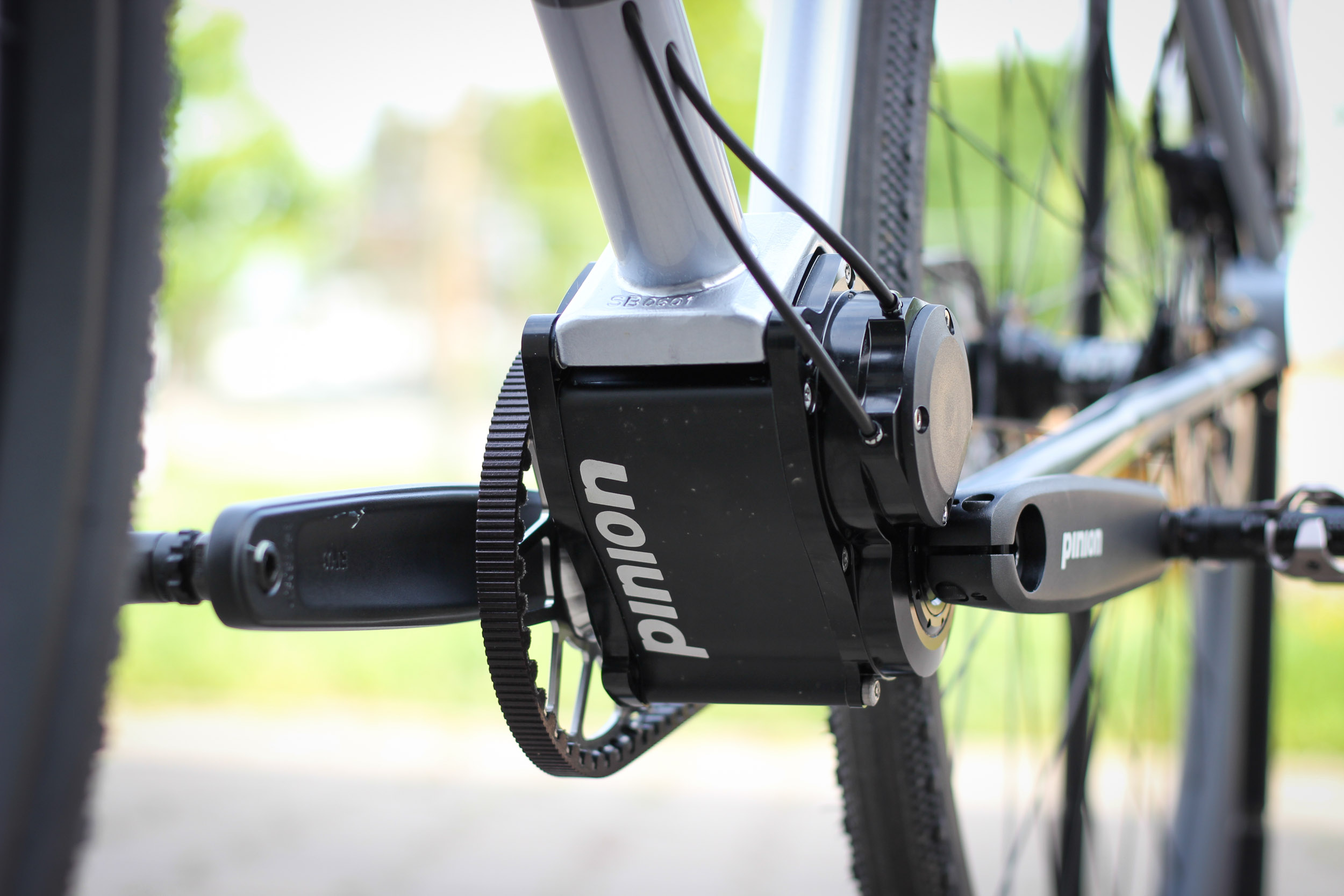

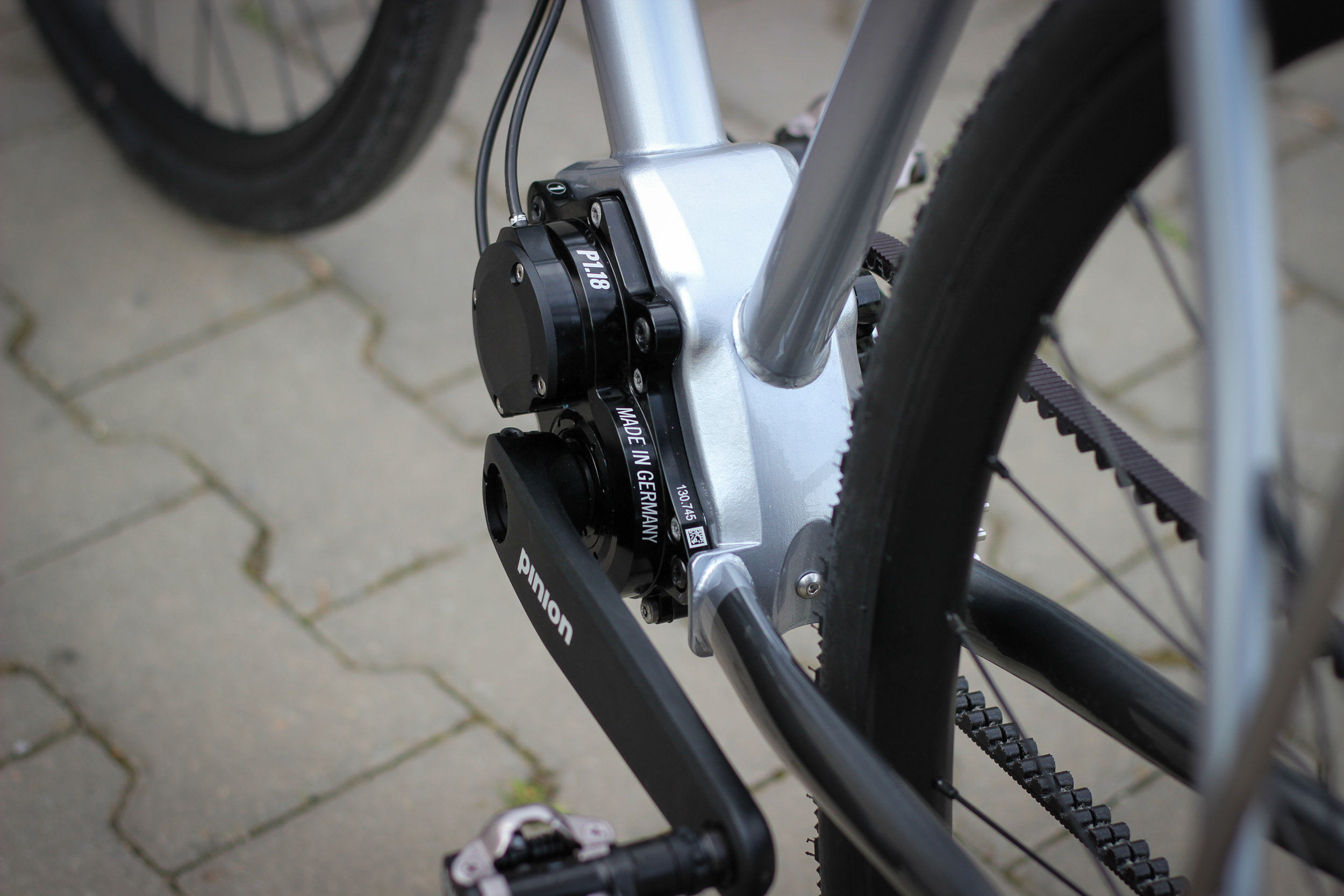

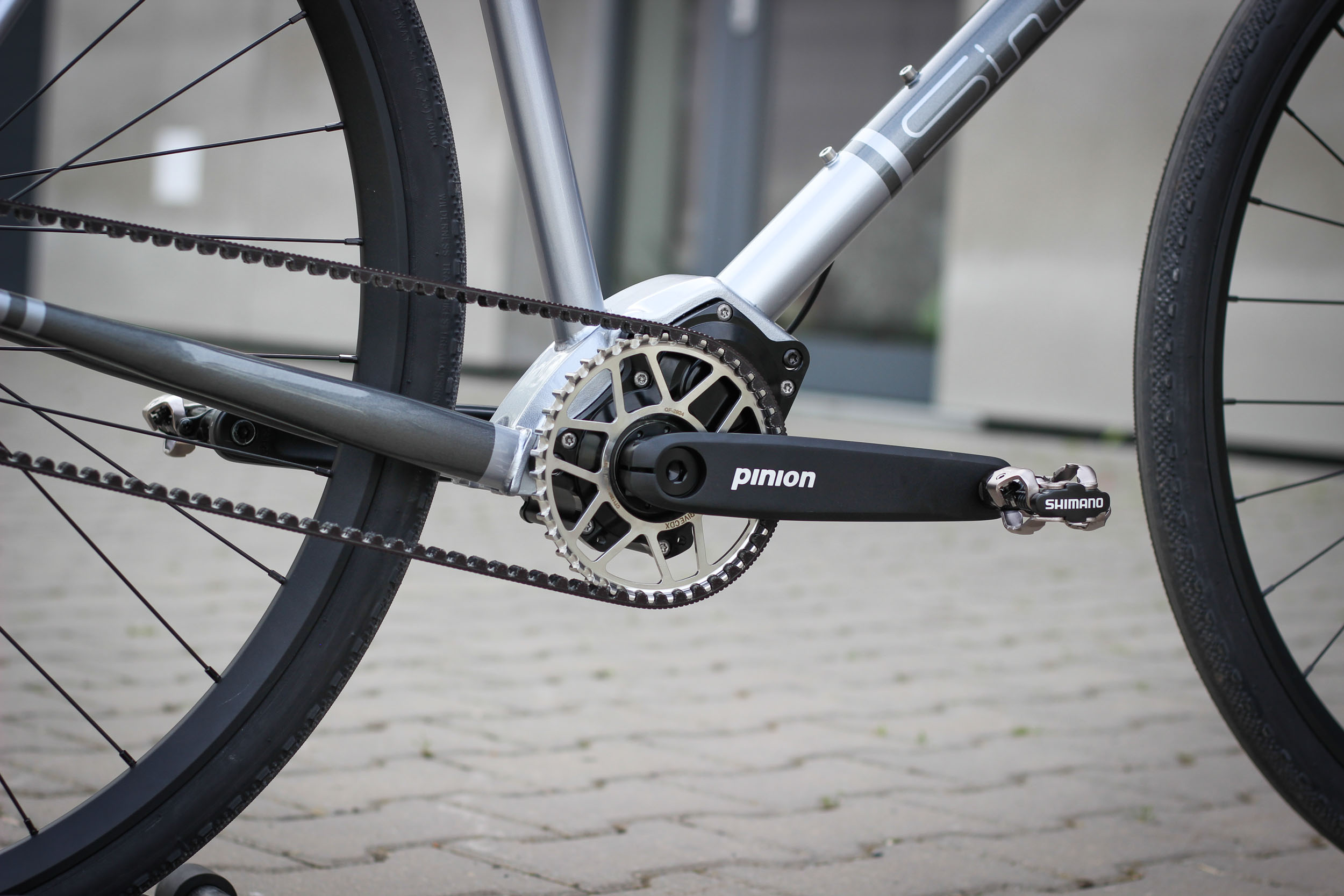

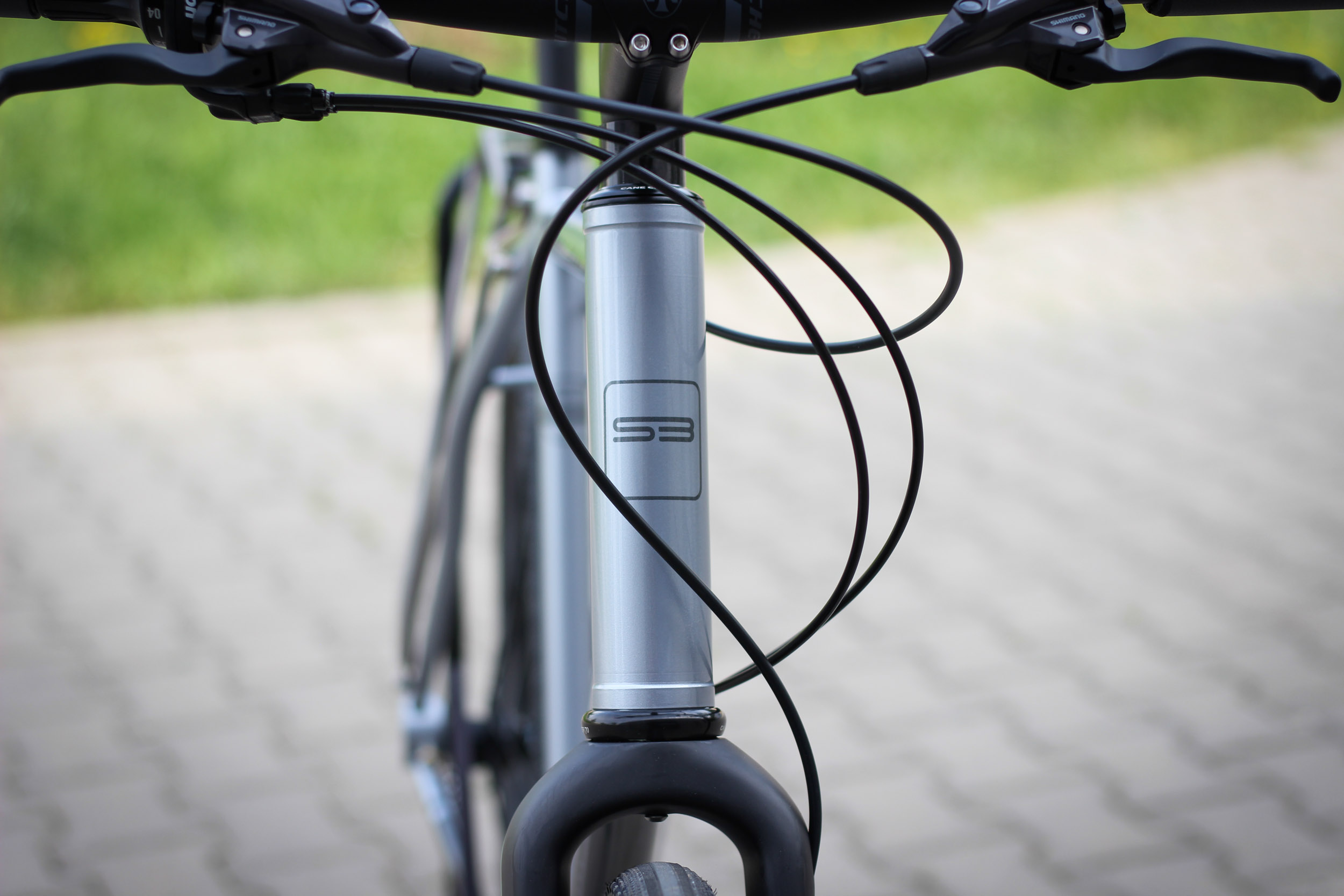

Internal cable routigs for Pinion gearbox…
| Frame | Reynolds 853 / Dedacciai ZeroUno, R725 stays, SB sliding dr., Pinion bridge |
|---|---|
| Headset | Cane Creek Hellbender 70 ZS/EC |
| Fork | Trigon RC93FE 100x12 full carbon, internal, FM |
| Brakes | Shimano Deore XT + BL-T8100 |
| Rotrs | Javax 160 DA-01 160 mm |
| Shifters | Pinion P1.12 DS2 shifter |
| Gearbox | Pinion P1.18 |
| Sprocet rear | Gates CDX 30T |
| Seatpost | Ritchey carbon 27.2x400 1bolt |
| Seatpost clamp | Javax 30.0 |
| Handlebars | Ritchey |
| Stem | Ritchey 110x6 |
|---|---|
| Grips | ESI chunky, silikon |
| Front hub | Javax M219 i6 100x12 |
| Rear hub | Pinion H3 142x12 |
| Tires | WTB byway 60TPI 700x34C |
| Rims | DT Swiss XM421 32h |
| Spokes | Pillar PSR14 |
| Crankset | Pinion 175 mm |
| Front chainring | Pinion-Gates-CDX direct mount, 39T |
| Rack | Tubus Airy Ti |
| Saddle | WTB Gravelier Ti ilustrative |

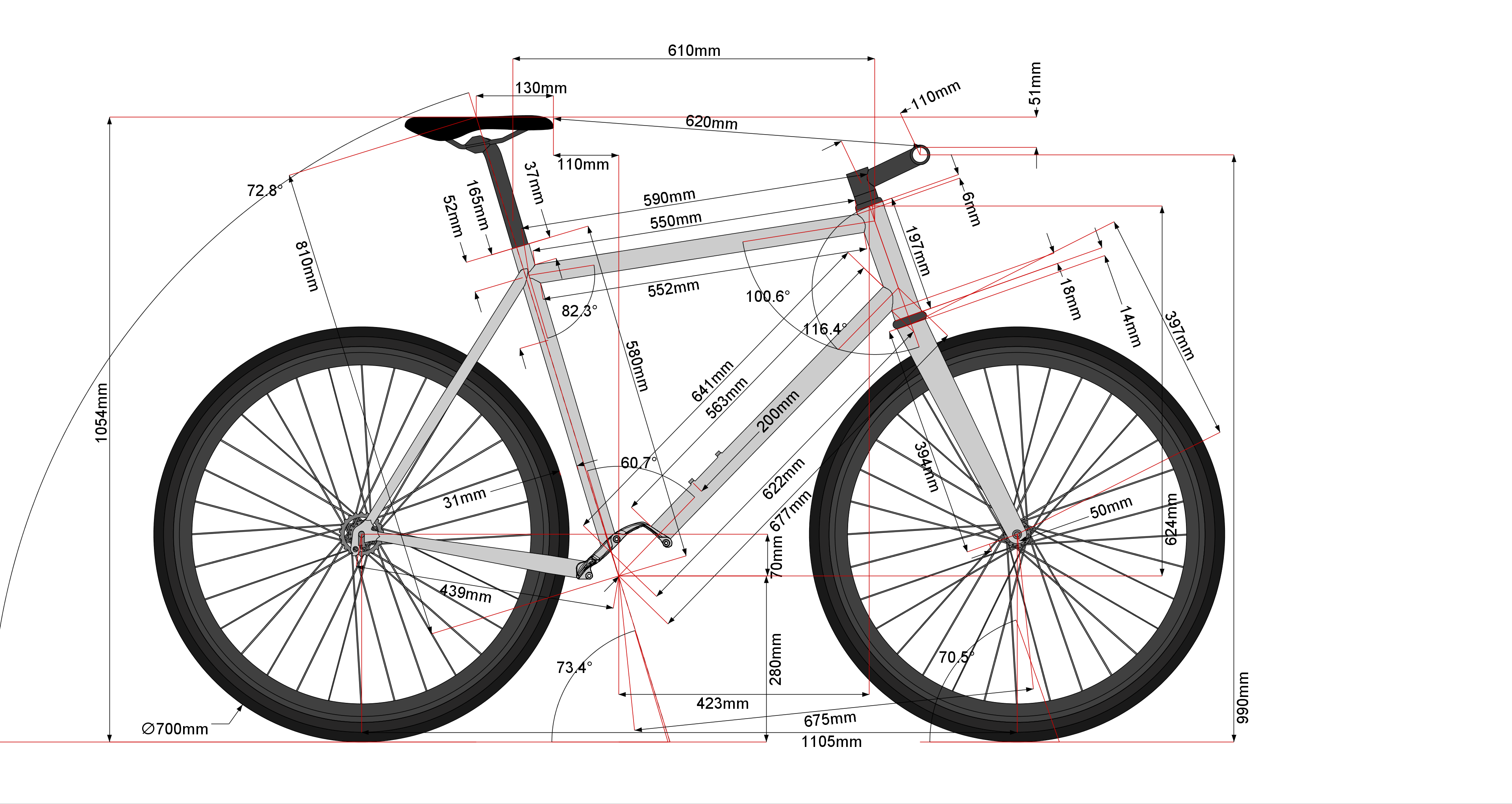

| TTA (B) | 590 mm |
|---|---|
| TTE (C) | 610 mm |
| HT (D) | 197 mm |
| ST (A) | 580 mm |
| CS (E) | 439 min mm |
| HA (G) | 70.5° |
| SA (F) | 73.4° |
| BB drop | - 70 mm |
| BB height | 280 mm |
| Fork ACA | 394 mm |
| W | 1105 mm |
