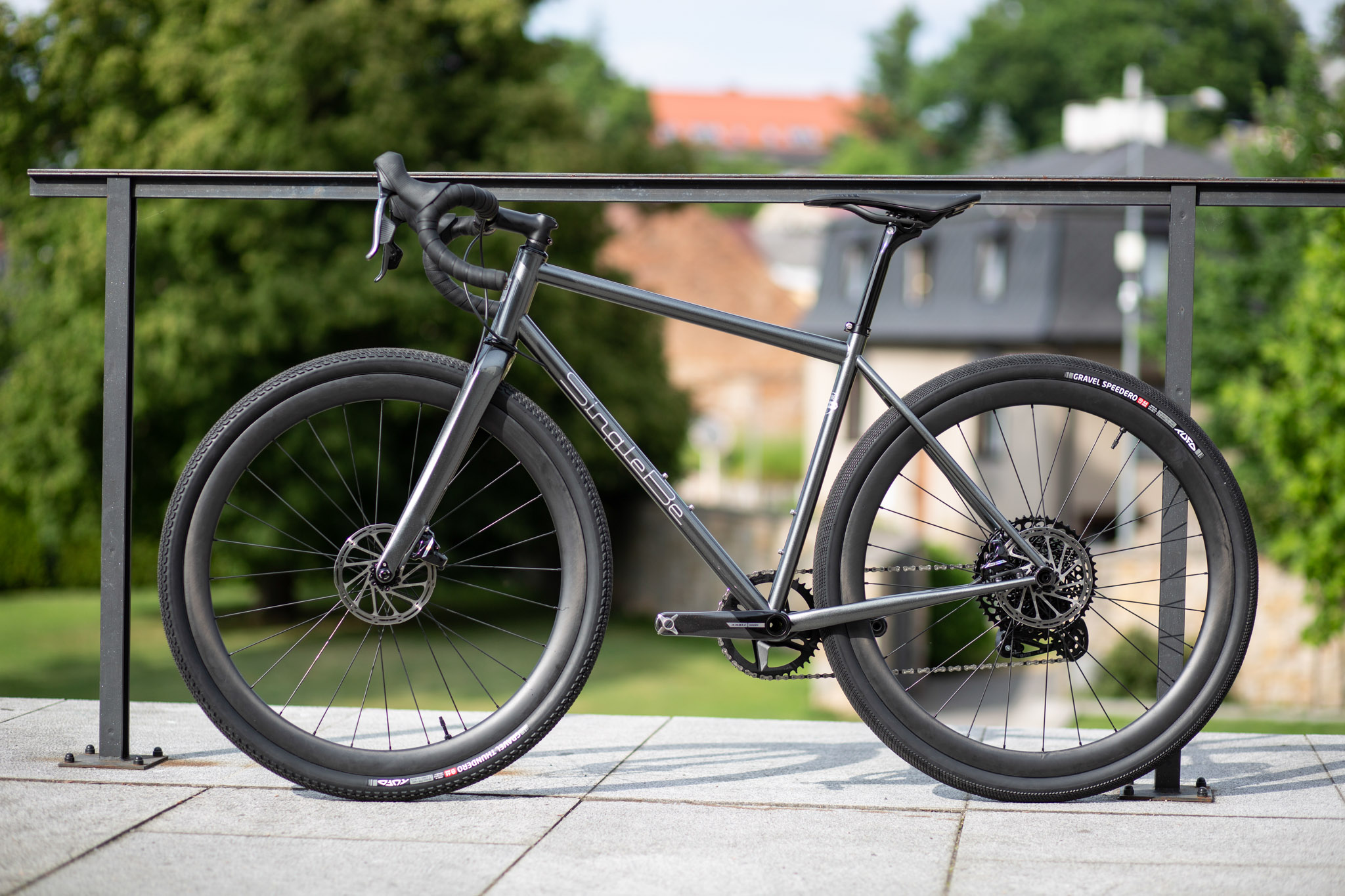

This is super cool gravel bike, with FORD anthracit grey metallic and Sram AXS drive.
Hybrid setup with MTB rear mech and cassette so you have wider gear ratio.

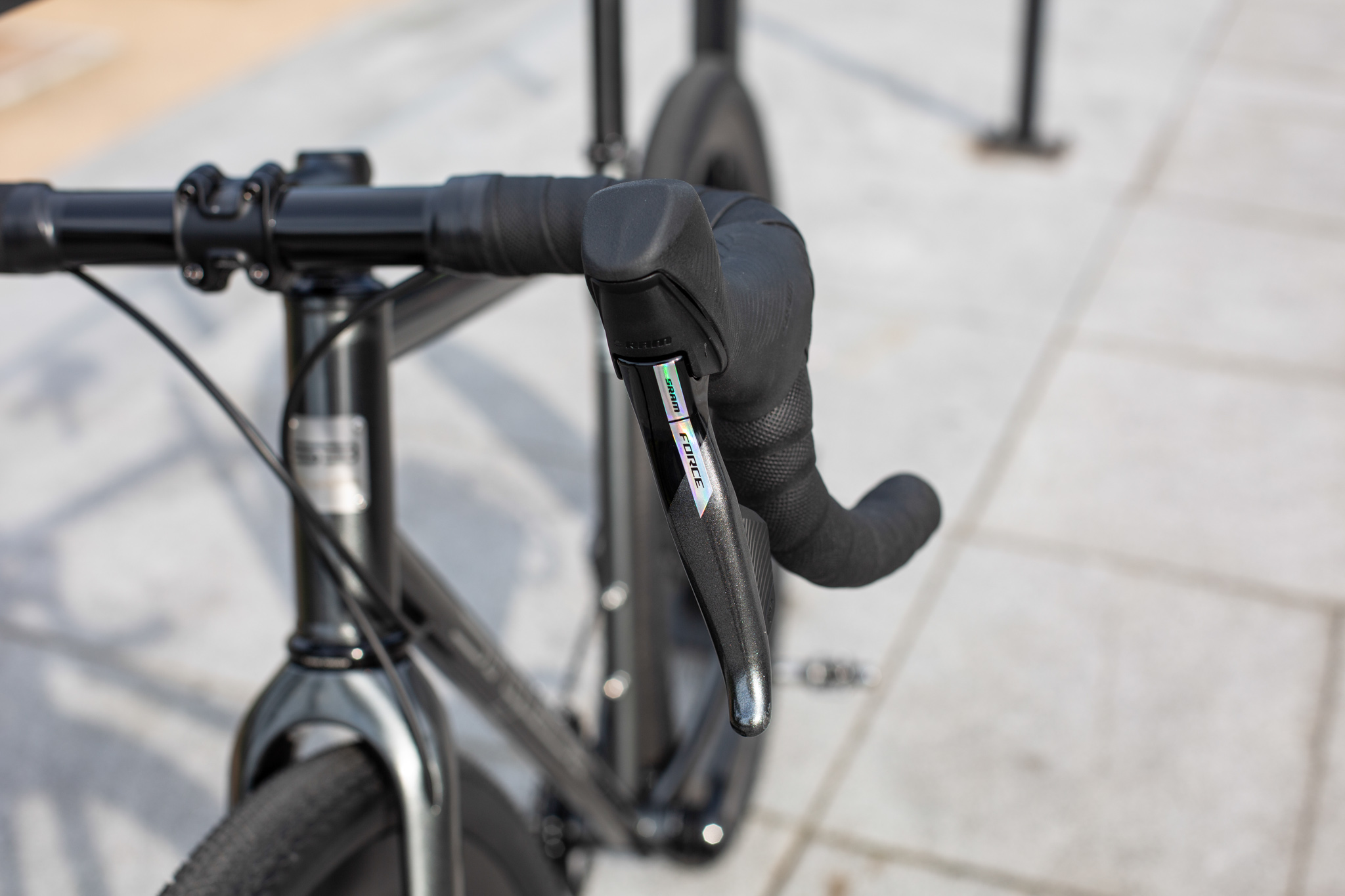

AXS Sram Force levers.
Handmade carbon wheelset, Javax rims and hubs, Pillar wing spokes.. 40 mm in height and Tufo TLR tires in 44 mm width.
MTB hubs are Javax M519 with i6 disk mount and straight pull spokes.
Every detail count… so we removed all logos from carbon Trigon gravel handlebars.

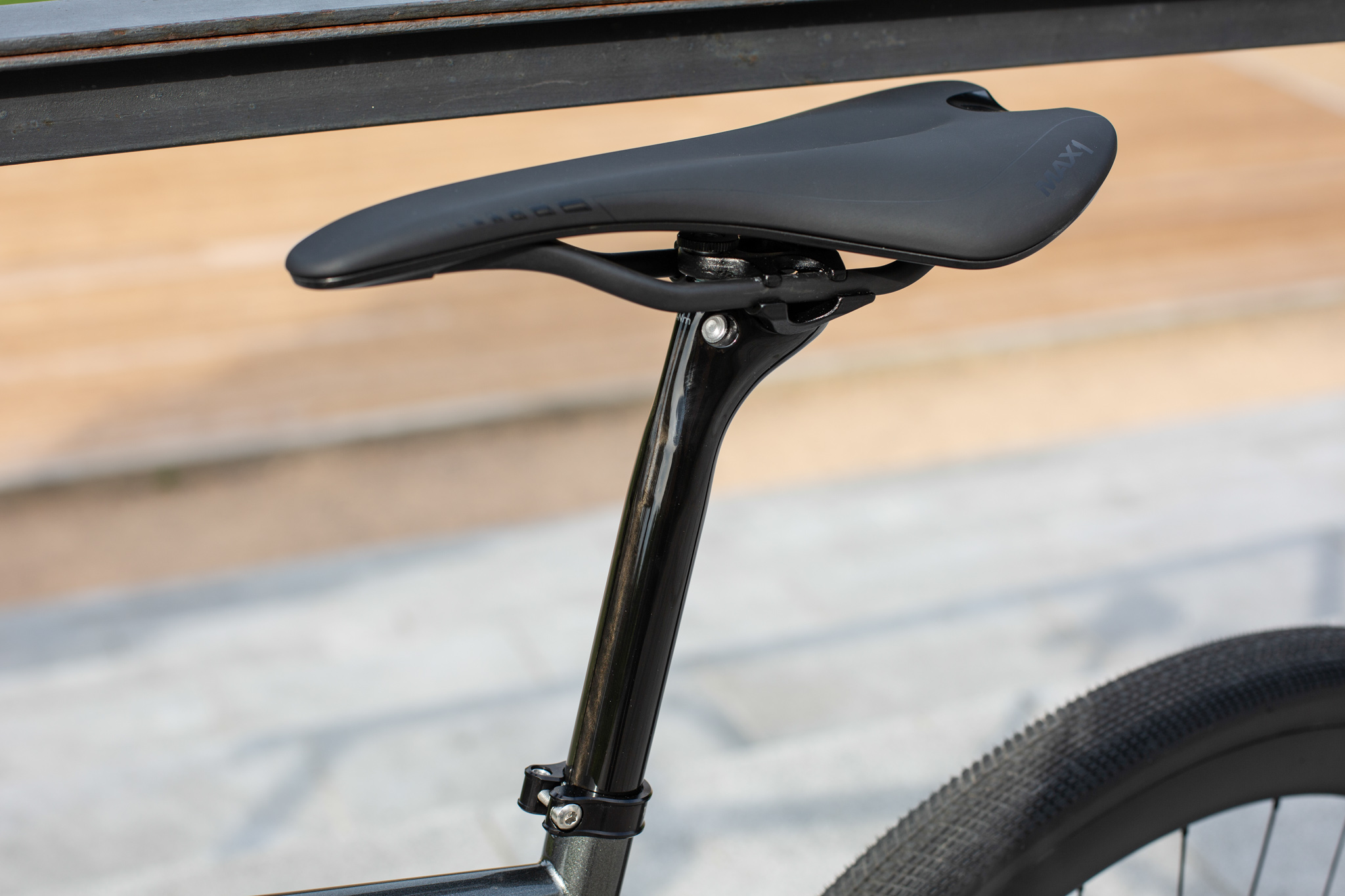

As well as from seatpost… so this is real ghost bike !
| Frame | Reynolds 853 / Dedacciai Zero Uno |
|---|---|

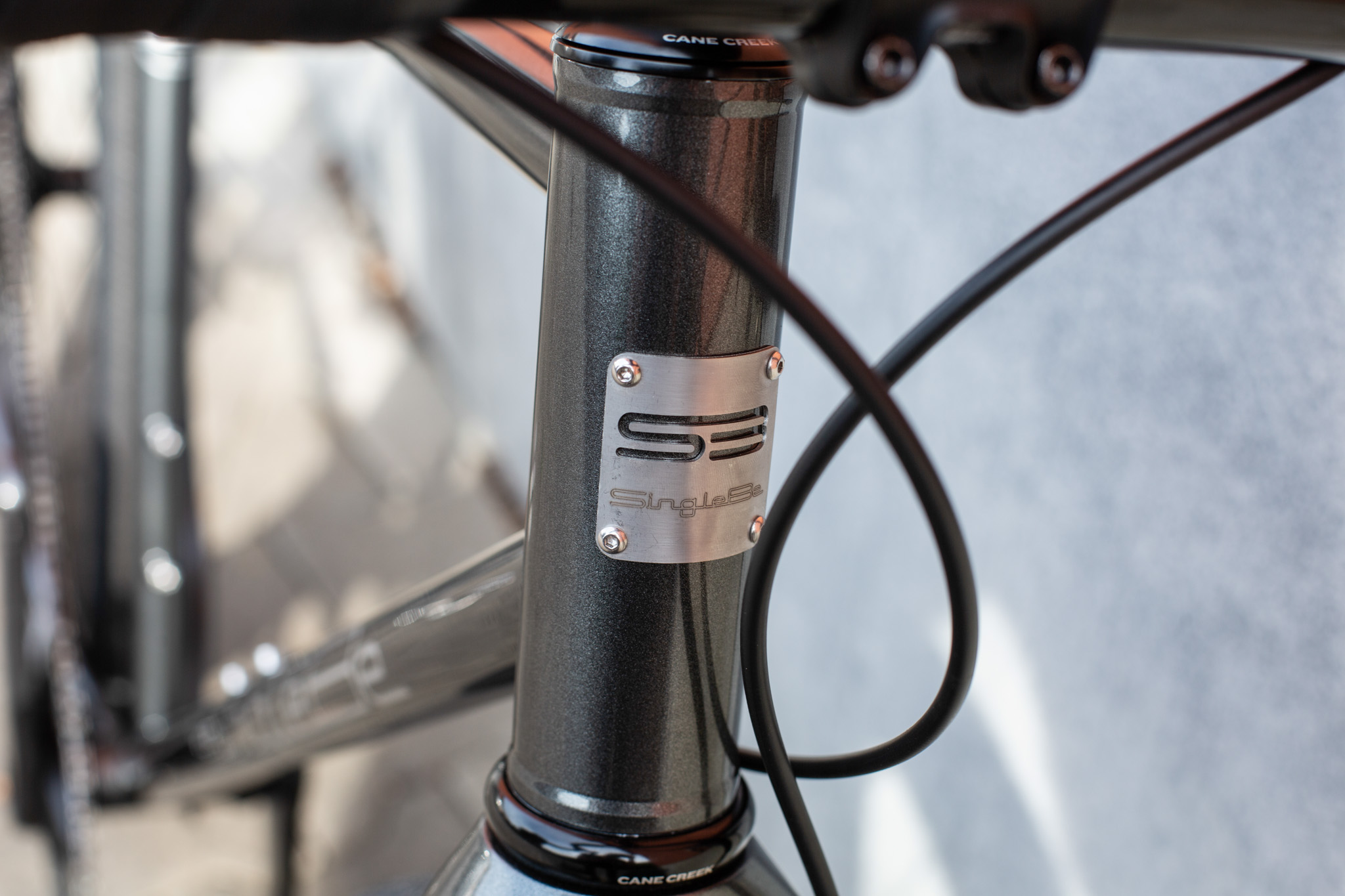

| Headset | Cane Creek Hellbender |
| Fork | Trigon RC93FE 100x12 full carbon, internal, FM |
| Brakes | Sram Force, HRD |
| Shifters | Sram Force 1x12 AXS |
| RD | Sram GX AXS |
| Cassette | Sram GX 10-50 |
| Seatpost | Trigon, carbon, no logo, 27.2 |
| Seatpost clamp | Wolftooth |
| Handlebars | Trigon carbon flair 12 degree |
| Stem | Ritchey WCS 90 mm |
|---|---|
| Bar tape | - |
| Front hub | Javax M519 100x12 i6 28h |
| Rear hub | Javax M519 142x12 XD 28h |
| Tires | Tufo Thundero/Speedero 700x44C |
| Rims | Javax RX409 carbon, 28H |

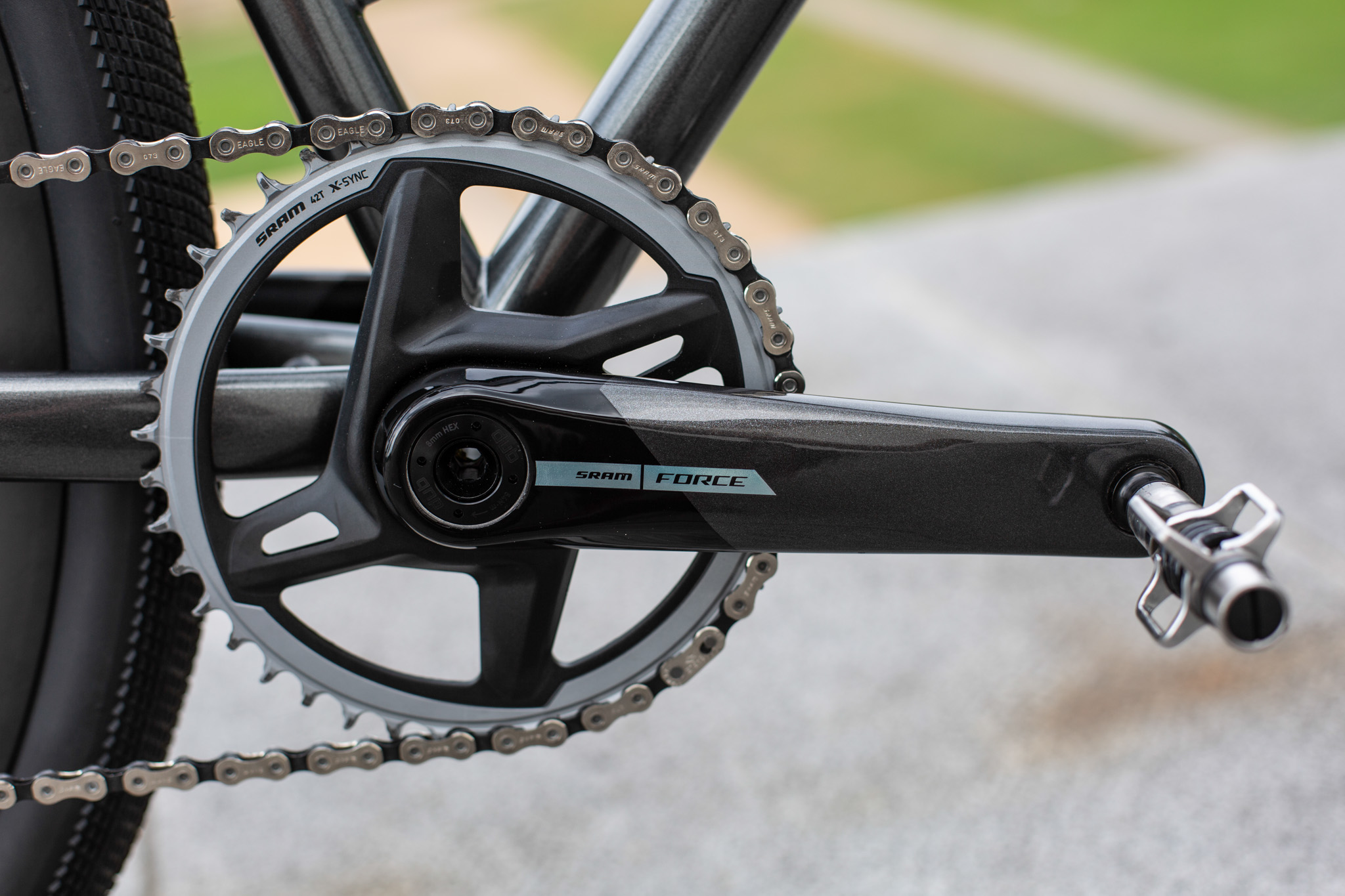

| Crankset | Sram Force AXS 1x12 172.5 |
| Saddle | Max1 carbon rails |
| Spokes | Pillar PSR Wing 22 |

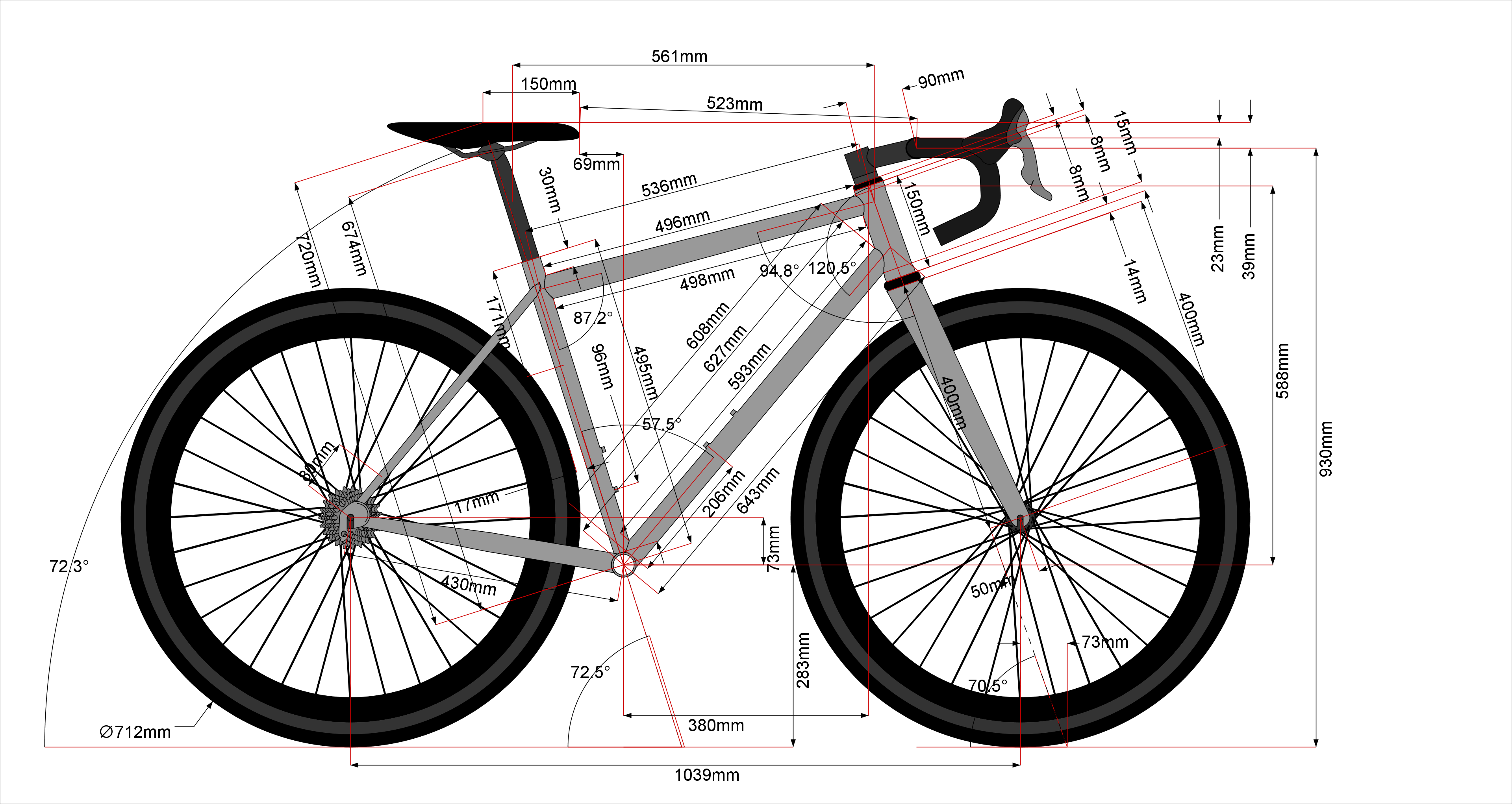

| TTA (B) | 536 mm |
|---|---|
| TTE (C) | 561 mm |
| HT (D) | 150 mm |
| ST (A) | 495 mm |
| CS (E) | 430 mm |
| HA (G) | 70.5° |
| SA (F) | 72.5° |
| BB drop | - 73 mm |
| BB height | 283 mm |
| Fork AC | 400 mm |
| Wheelbase | 1039 mm |
| Reach | 380 mm |
| Stack | 588 mm |
