SingleBe Kinds Gravel Grinder

About project SingleBe Kinds Gravel Grinder

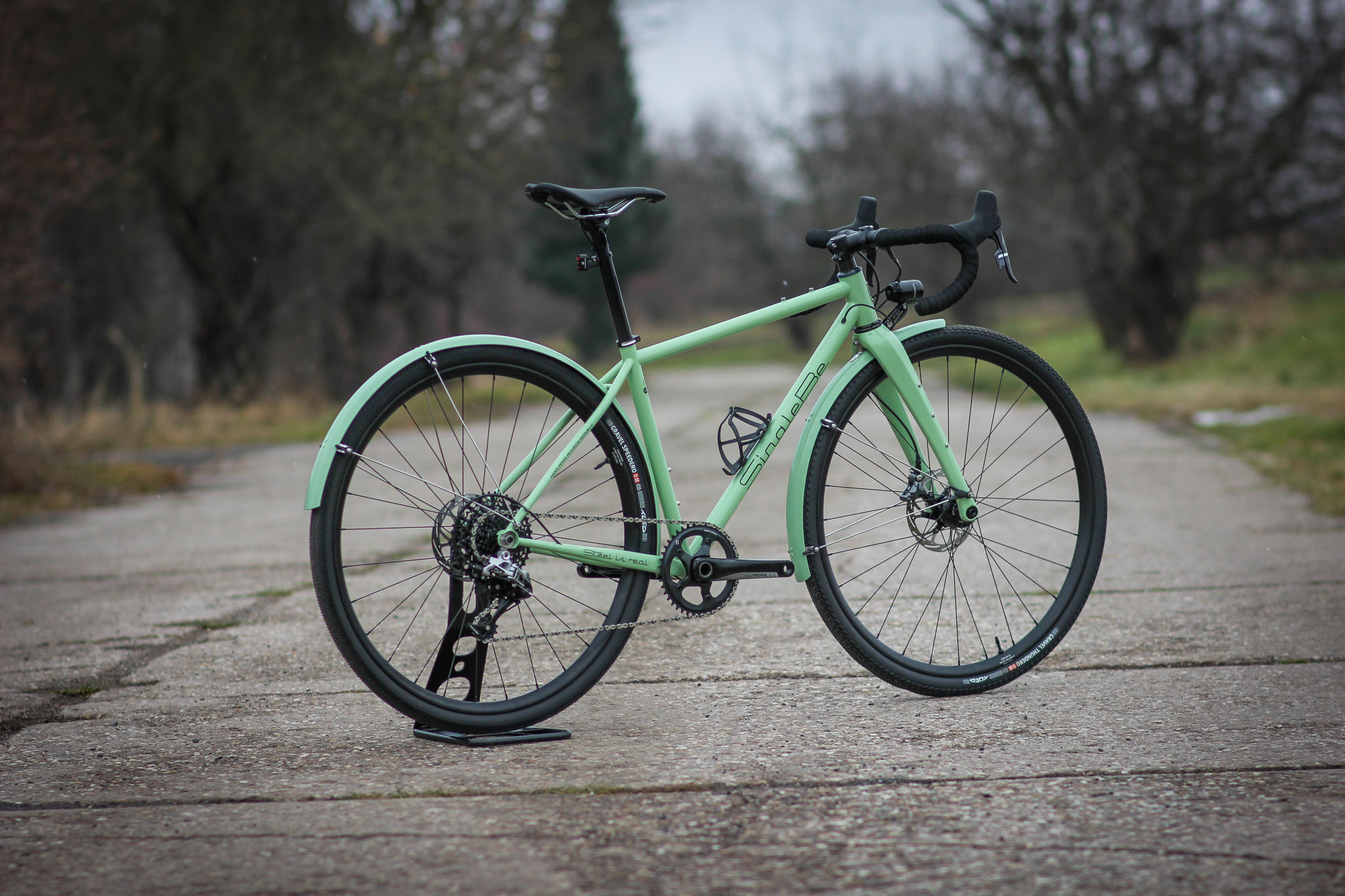

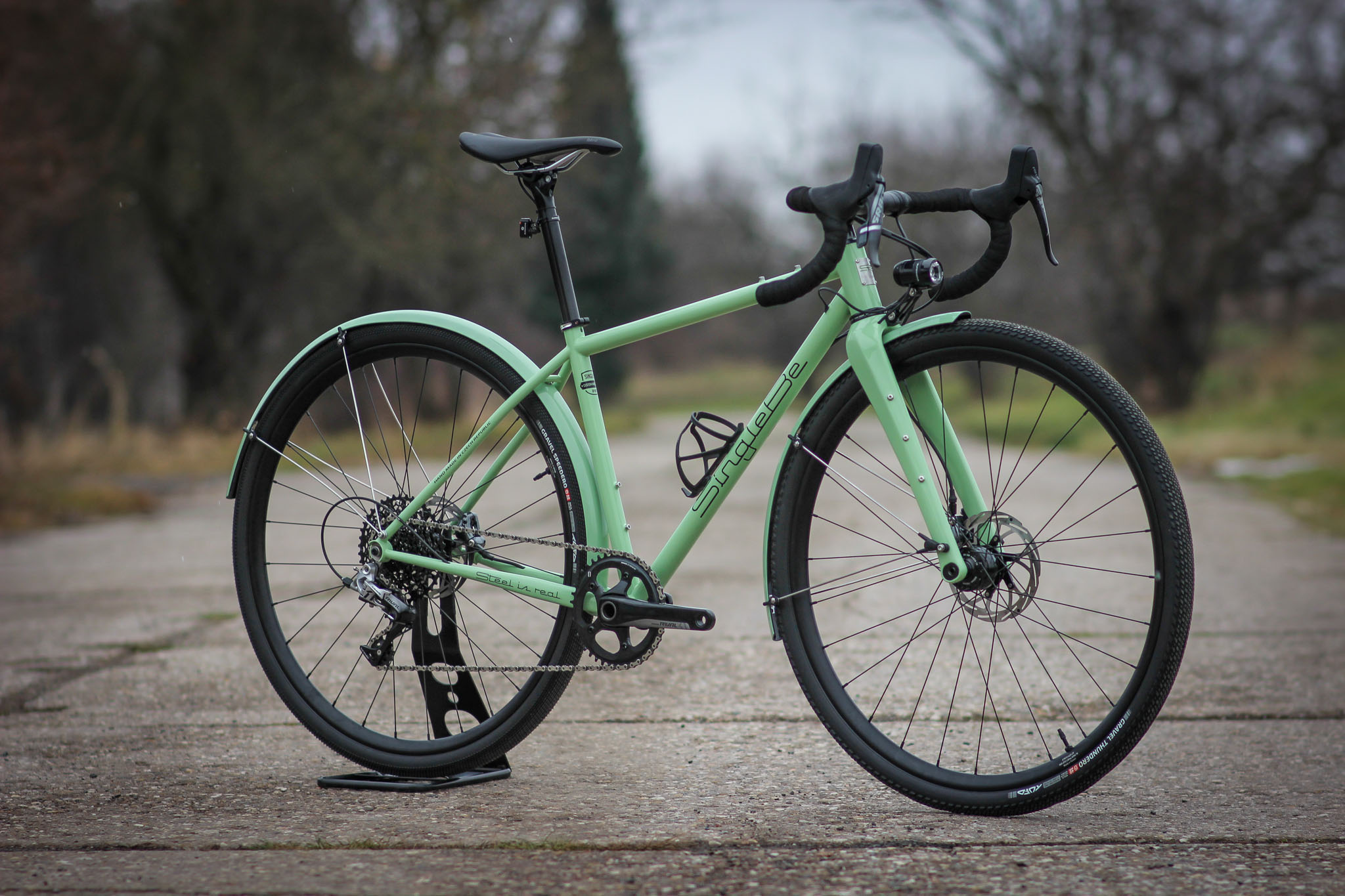

This is all what your kids need. Fully equipped gravel bike with fenders and high quality dynamo lights.

SingleBe Kids Gravel Grinder





Columbus Futura Cross+ has a lot of features like internal cable routings, anything cage mounts as well as mounts for light.

SingleBe Kids Gravel Grinder

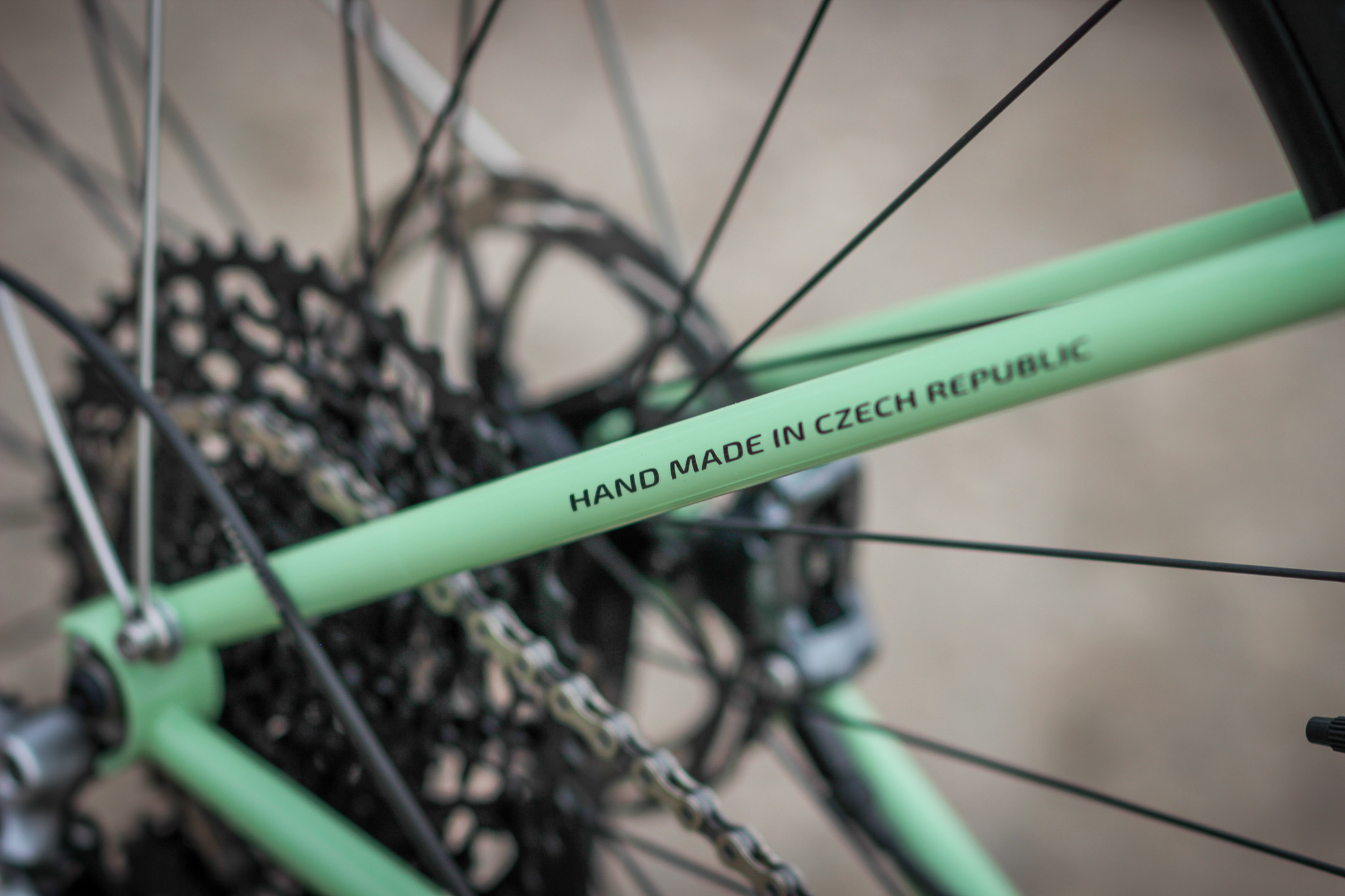

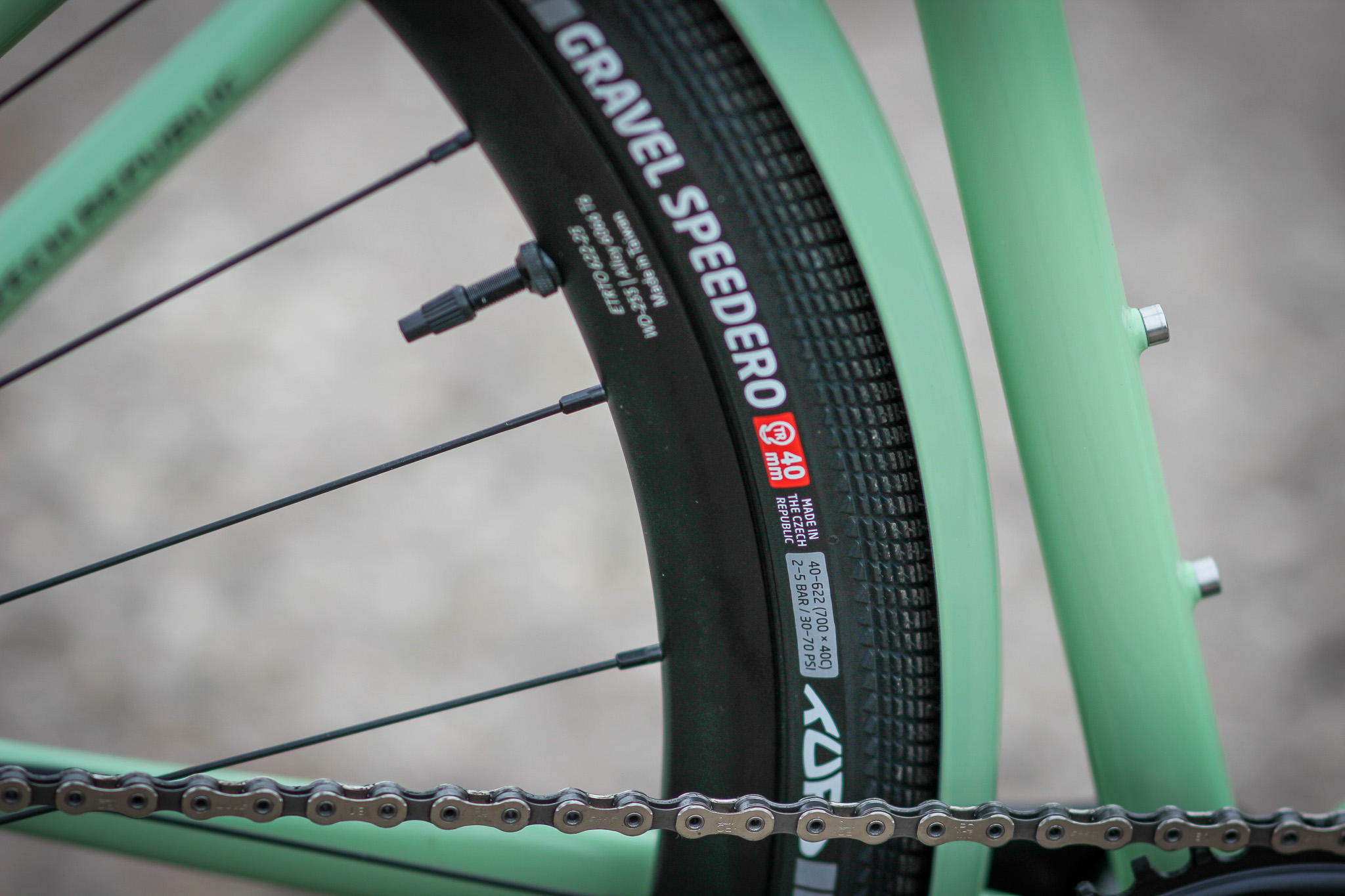

With czech frame you need also czech tires. Tufo produce super good tubeless gravel tires.

SingleBe Kids Gravel Grinder





Of course, you can find all internal cable routings also on the steel frame.

SingleBe Kids Gravel Grinder

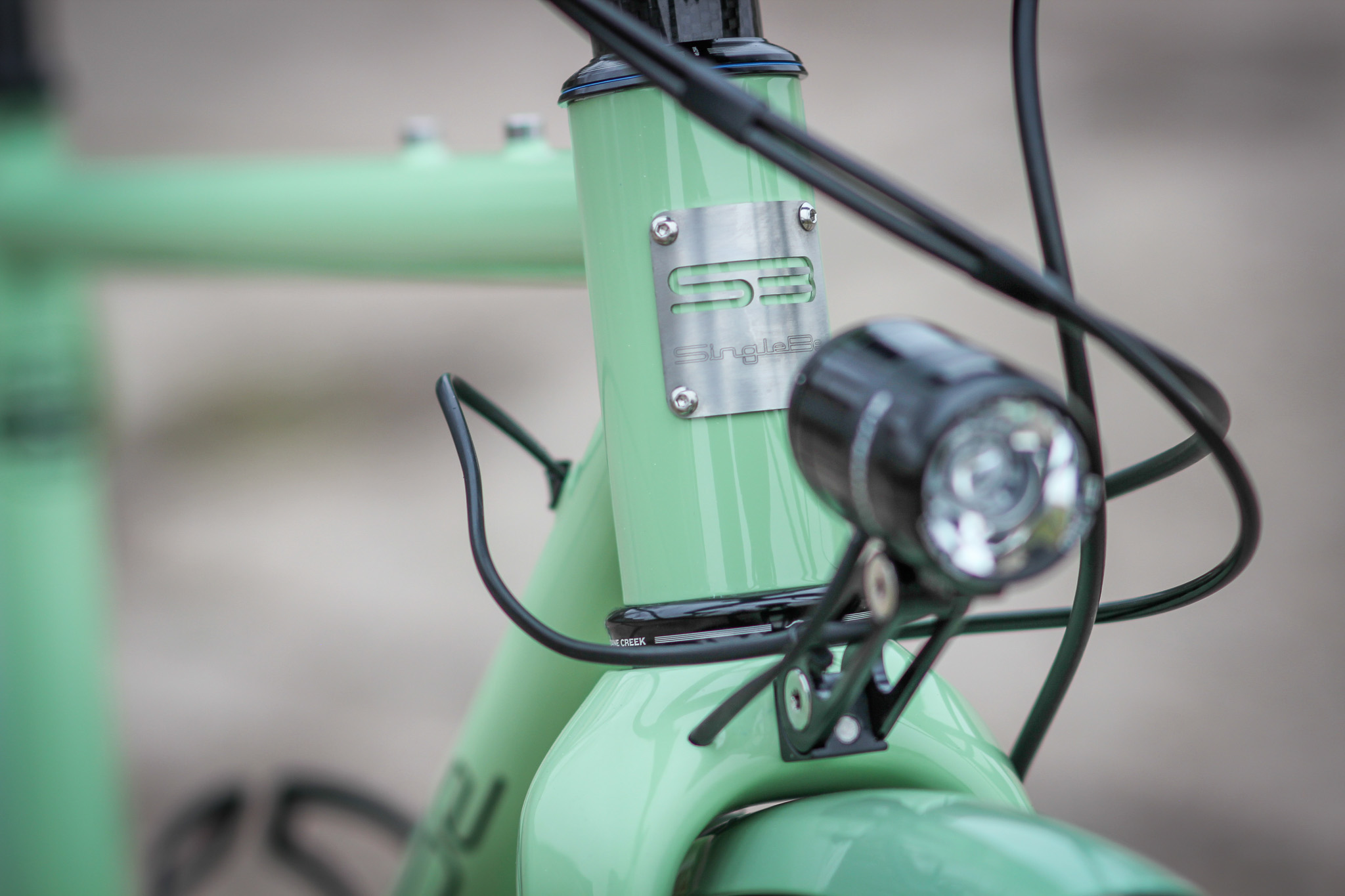

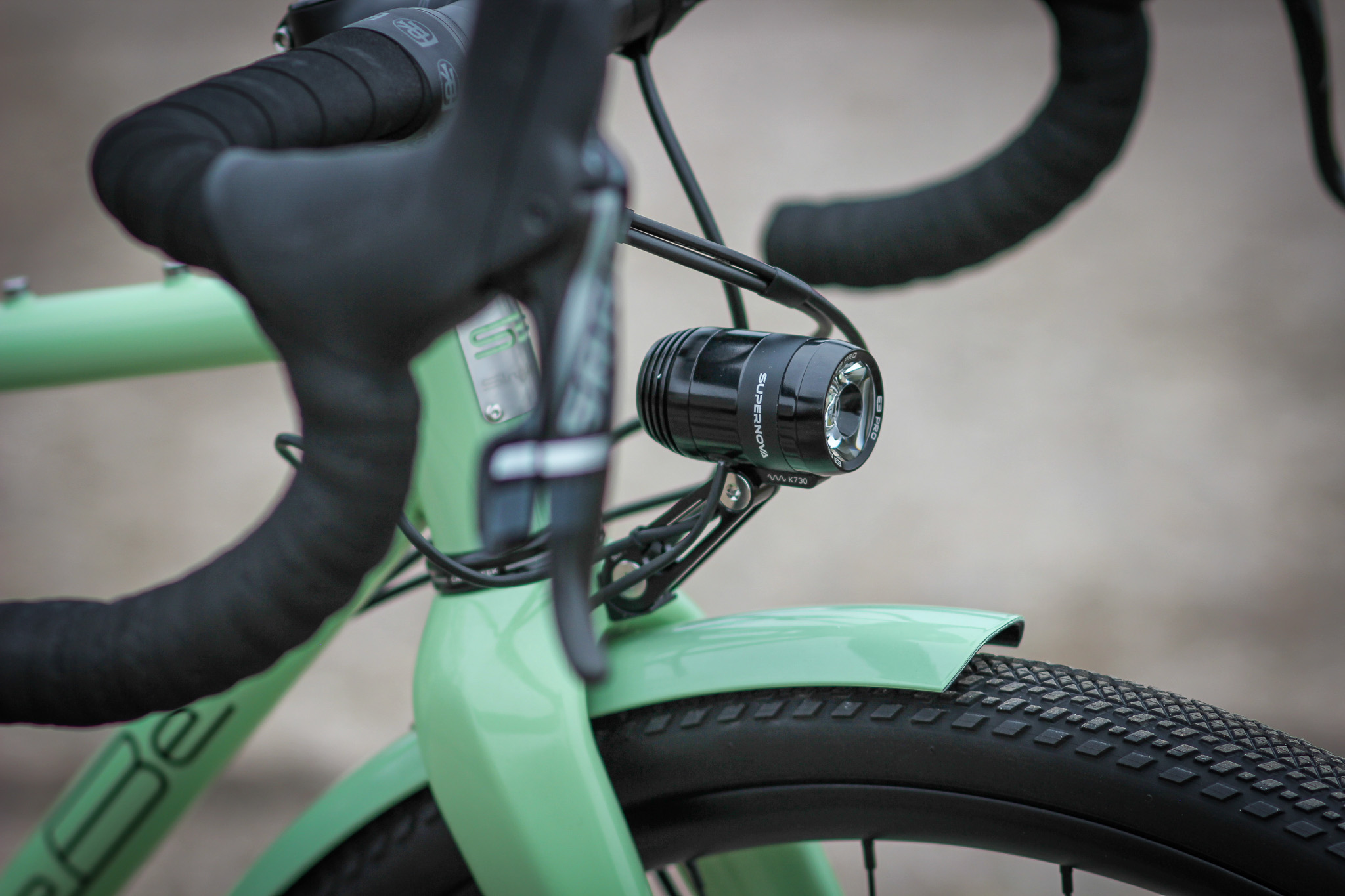

We use one of the best lights on the market. Supernova lights.

SingleBe Kids Gravel Grinder





Frame Reynolds 853 / Dedacciai ZeroUno stays
Headset Cane Creek 40
Fork Columbus Futura Cross+

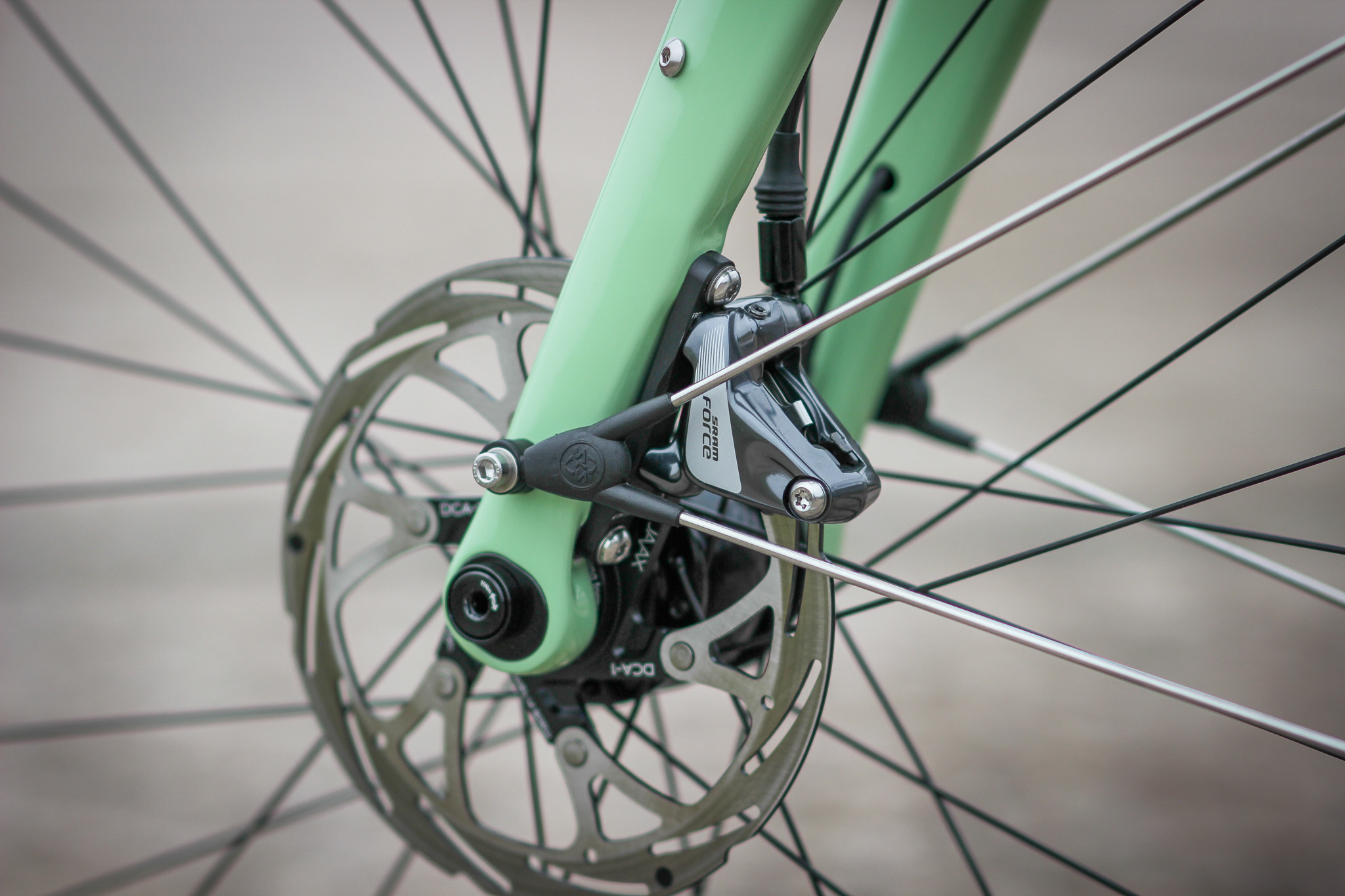

Brakes Sram FORCE 1, FM
Rotors Javax DC-01, CL, 160 mm

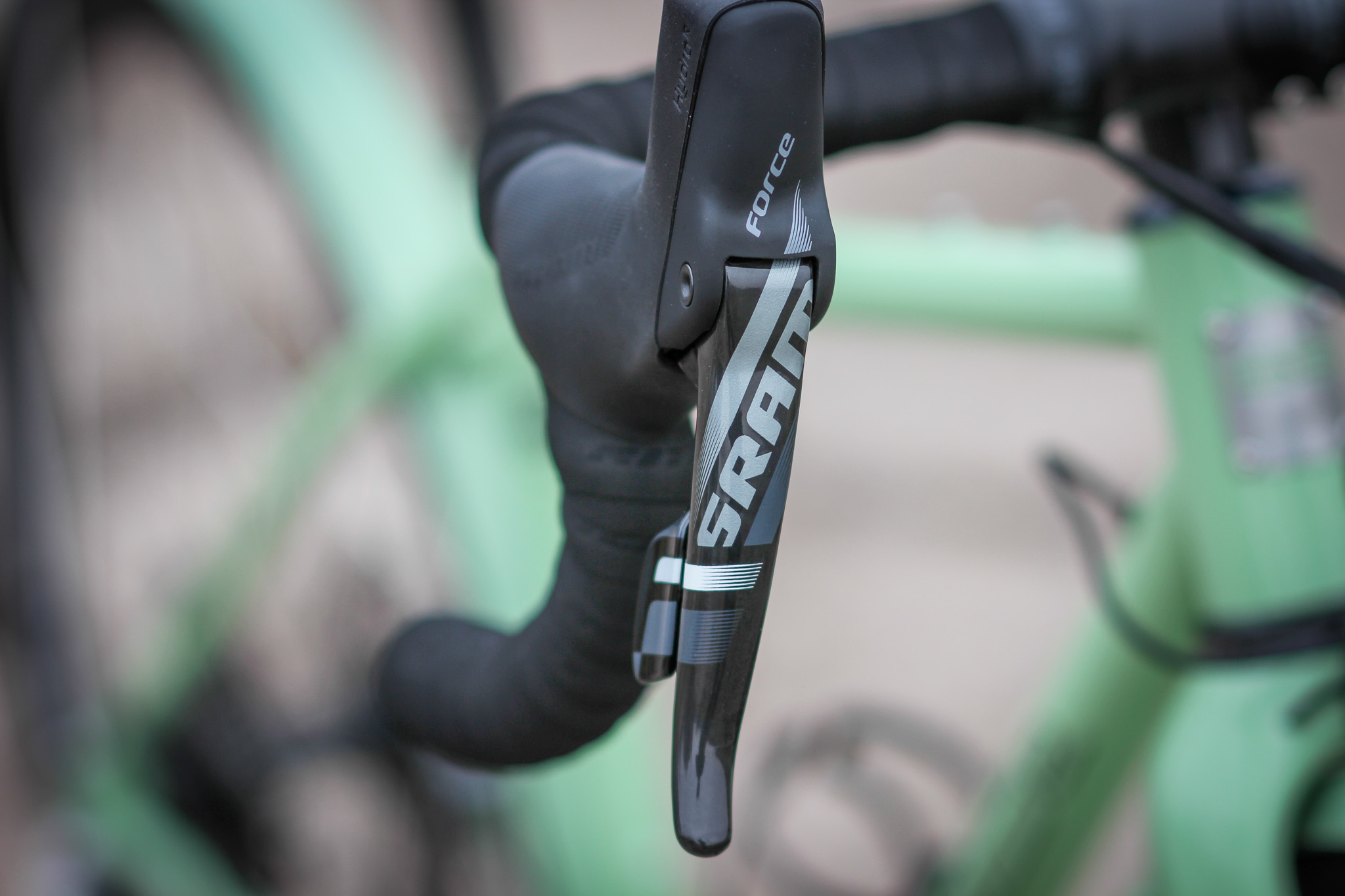

Shifting Sram Force 1
RD Sram Rival 1, long cage, Type 3
Cassette Sram GX 10-42
Chain Sram
Seatpost Trigon carbon, custom no paint, internal cable routings
Bars Trigon RB-137, aero

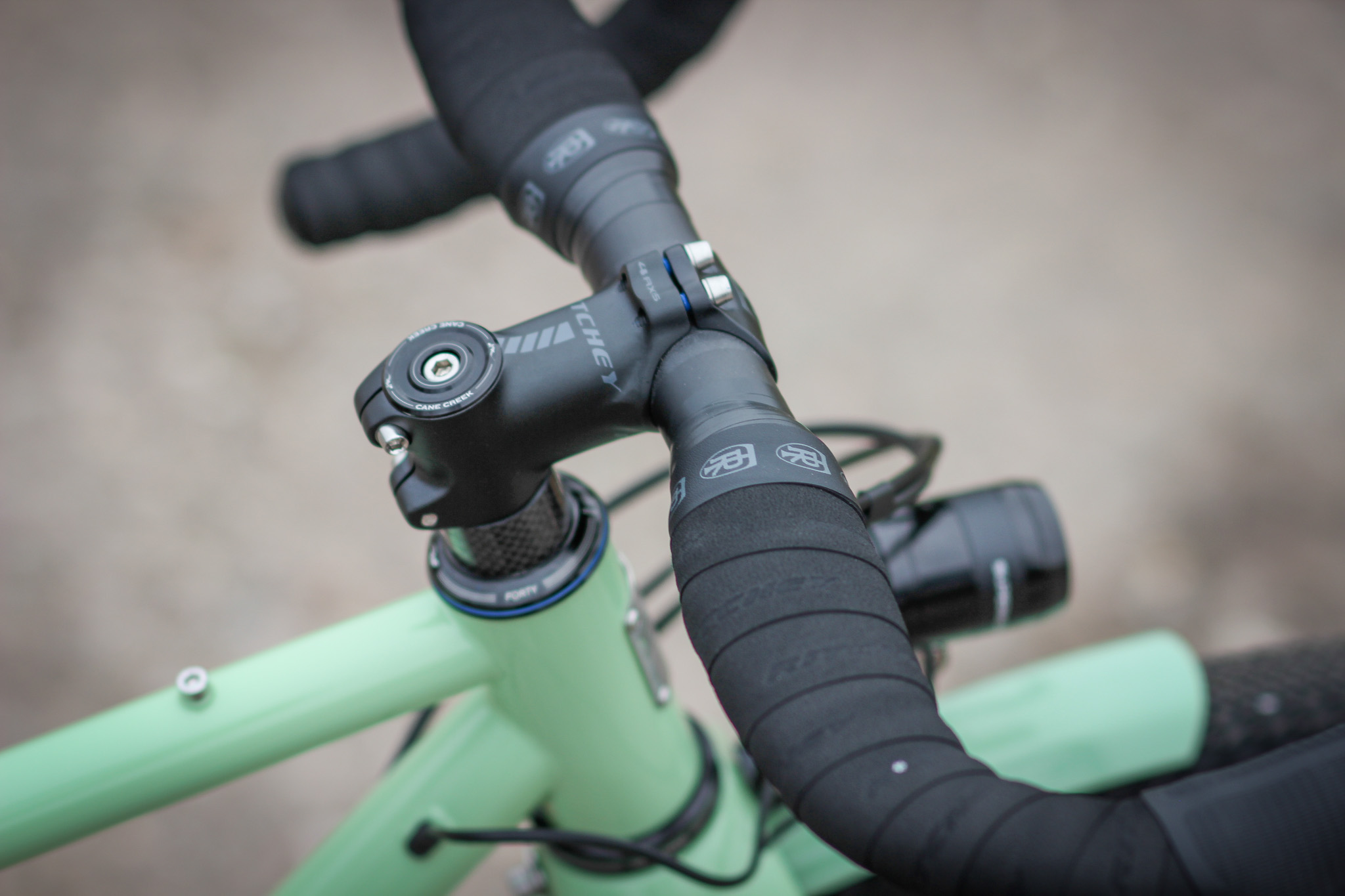

Stem Ritchey 4-axis
Tape Ritchey

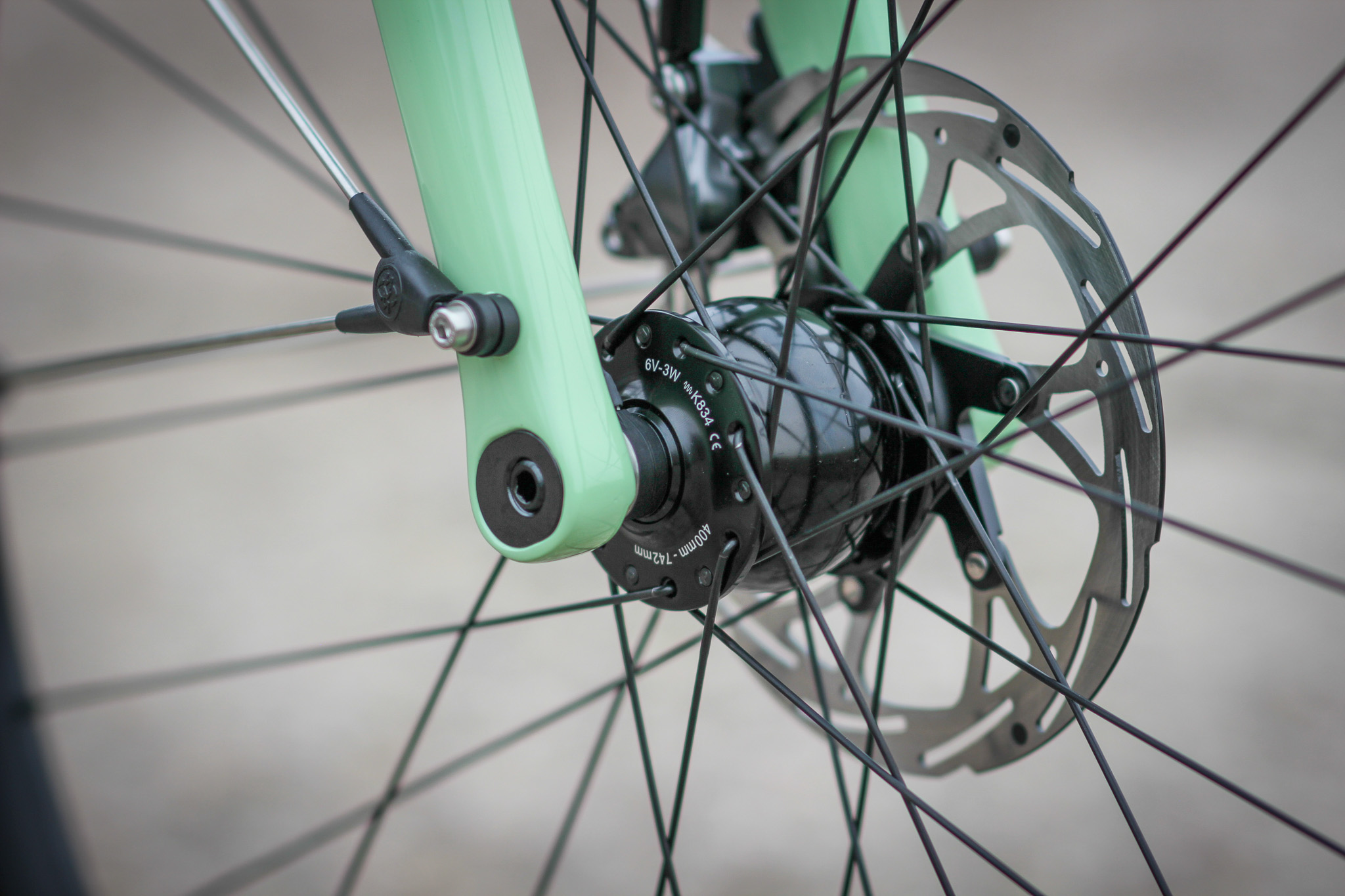

Front hub SON 28,CL, 28h, 100x12
Rear hub BItex BX106R 28H CL XD
Tires Tufo Thundero/Speedero 700x40C, kevlar, TL
TLR tubeless system
Rims Javax WD-255 28h intern 25mm
Spokes Pillar PSR 2018 TB, j-bend
Crankset Sram Rival 1, 42T, 172.5
Saddle Fabric Scoop Schallow
Fenders SKS
Cage SKS carbon

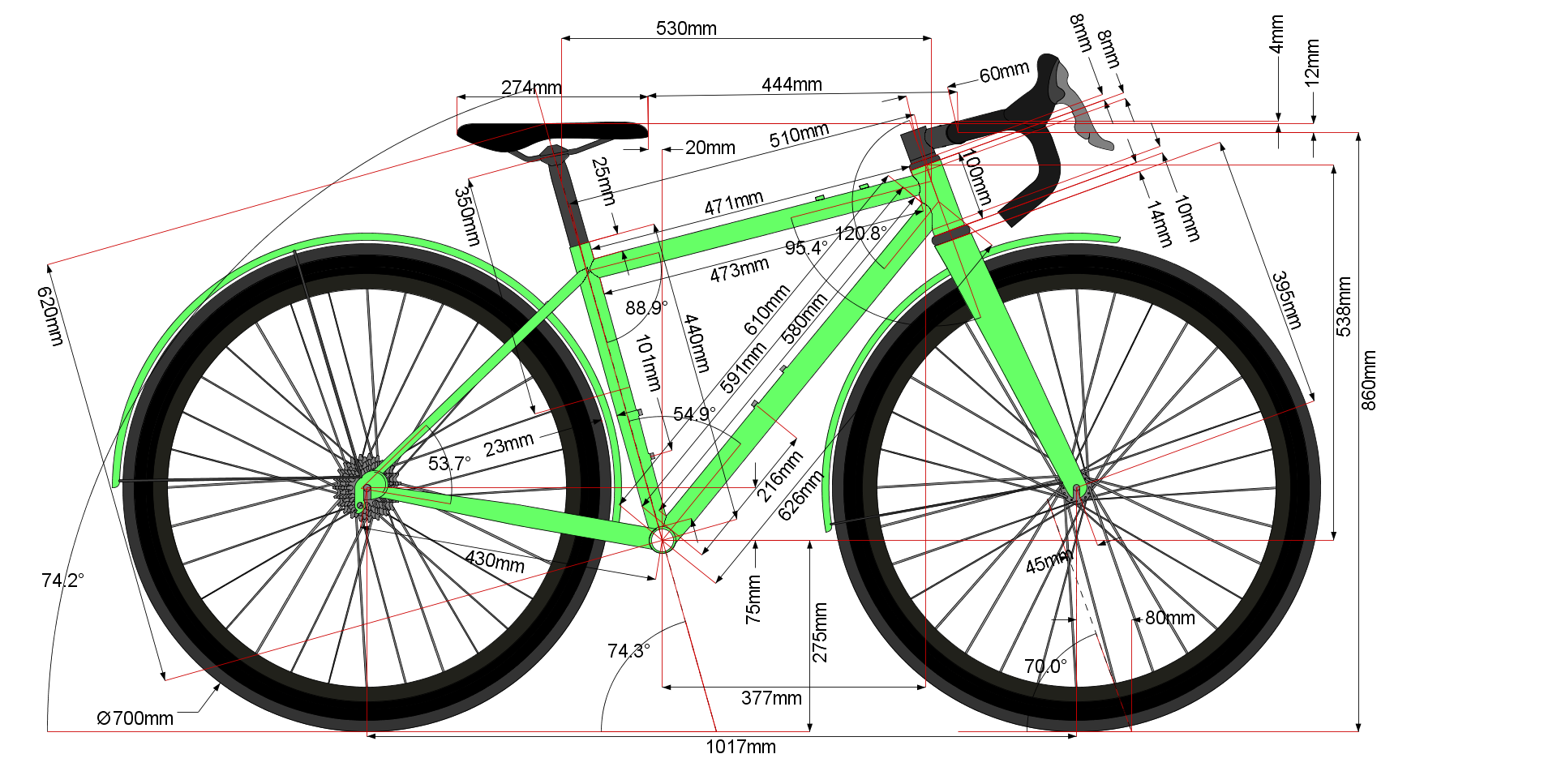

TTA (B) 510 mm
TTE (C) 530 mm
HT (D) 100 mm
ST (A) 440 mm
CS (E) 430 mm
HA (G) 70.0°
SA (F) 74.3°
BB drop - 75 mm
BB height 275 mm
Fork AC 400 mm
Wheelbase 1017 mm
Stack 538 mm
Reach 377 mm
