Disk road bike with reliable groupset Shimano Ultegra 2×11.
Carbon handbuild wheelset, rims are Javax RC359 mm with 35 mm profile and hubs come from Bitex, model BX106.

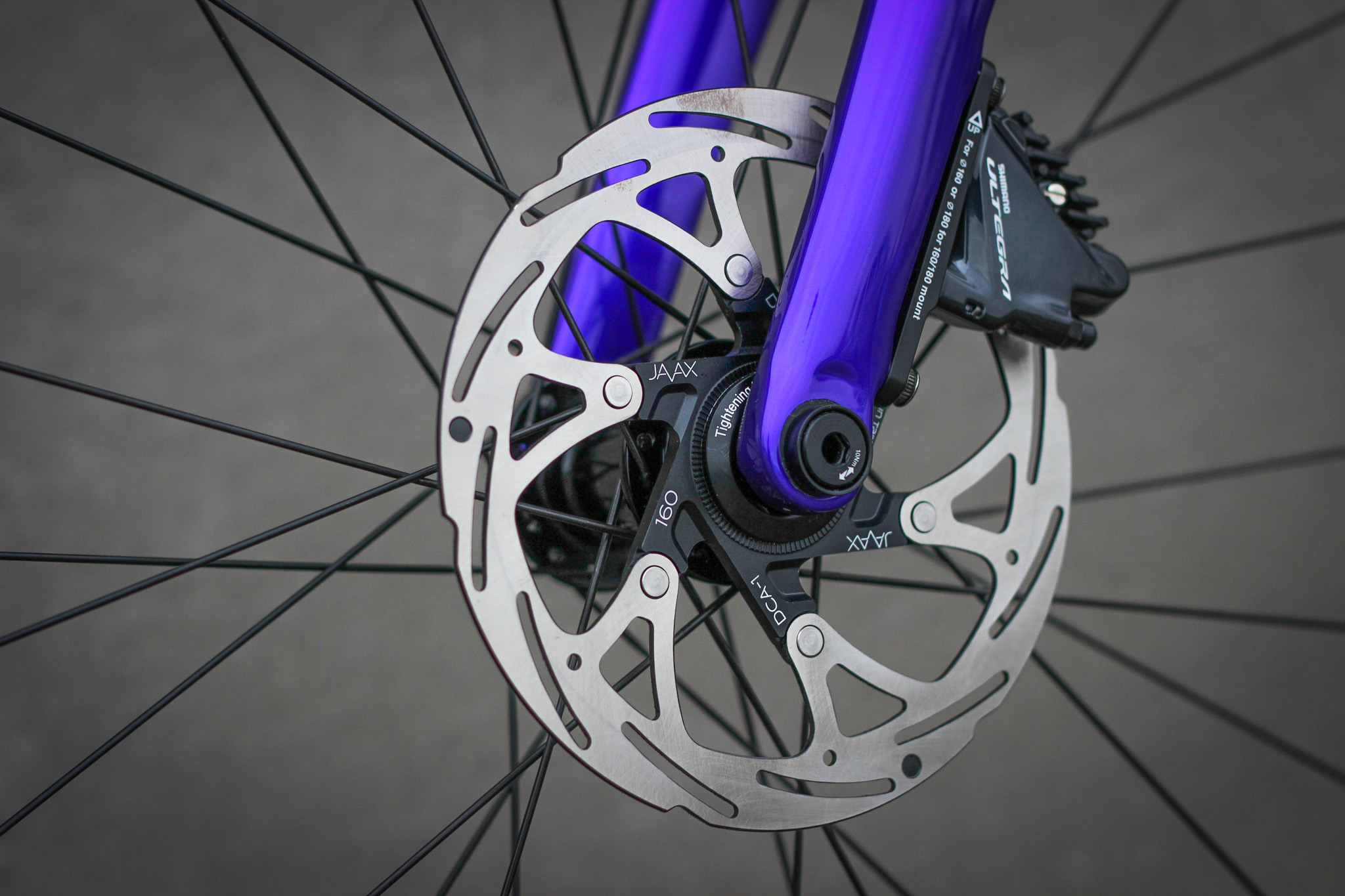

Carbon road fork Columbus Futura DISK offer enough space for wider road tires.

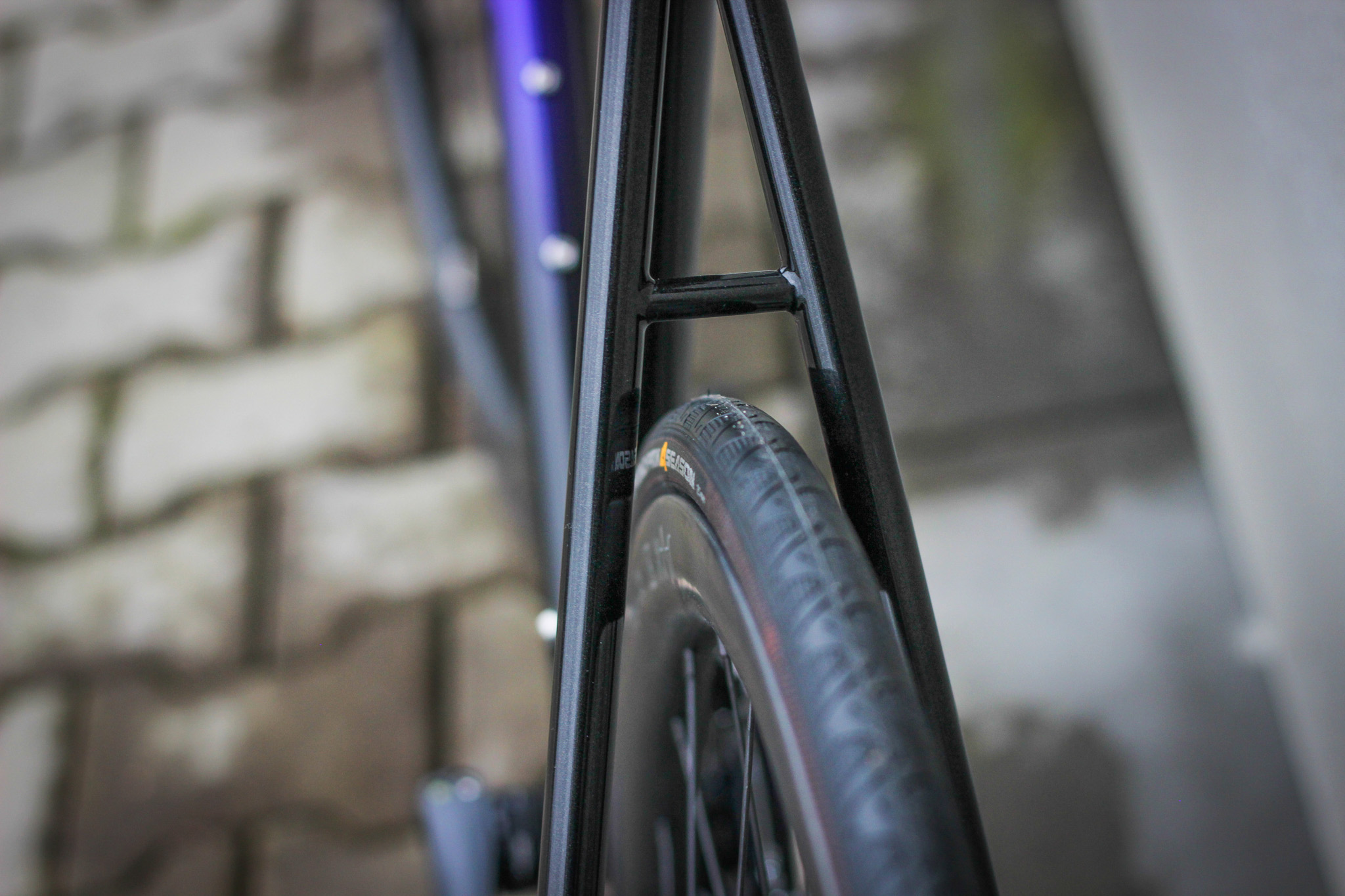

Also rear stays have enough space for modern wider tires.
We hand build all the wheels as well on many different hub brands. Bitex is very good choice and super ratio between price and quality.
| Frame | Dedacciai Zero |
|---|---|
| Headset | Cane Creek 40 |
| Fork | Columbus Futura DISK 100x12 |
| Brakes | Shimano Ultegra R8000 |
| Shifters | Shimano Ultegra R8000 2x11 |
| RD | Shimano Ultegra R8000 max 34T cap. |
| Cassette | Shimano Ultegra 11-32 |
| Seatpost | Trigon SP110UL custom no logo glossy, carbon, 27.2 |
| Bars | Ritchey Butano |
| Stem | Ritchey 4-axis 100 mm x -6 |
| Bar tape | Ciclovation |
|---|---|
| Front hub | BX 106F 100x12 CL 28H |
| Rear hub | BX 106R 142x12 CL 28H HG |
| Tires | Continental Four Season 700x25C |
| Rims | Javax RC359, carbon, 35mm, 28/28H, TLR |

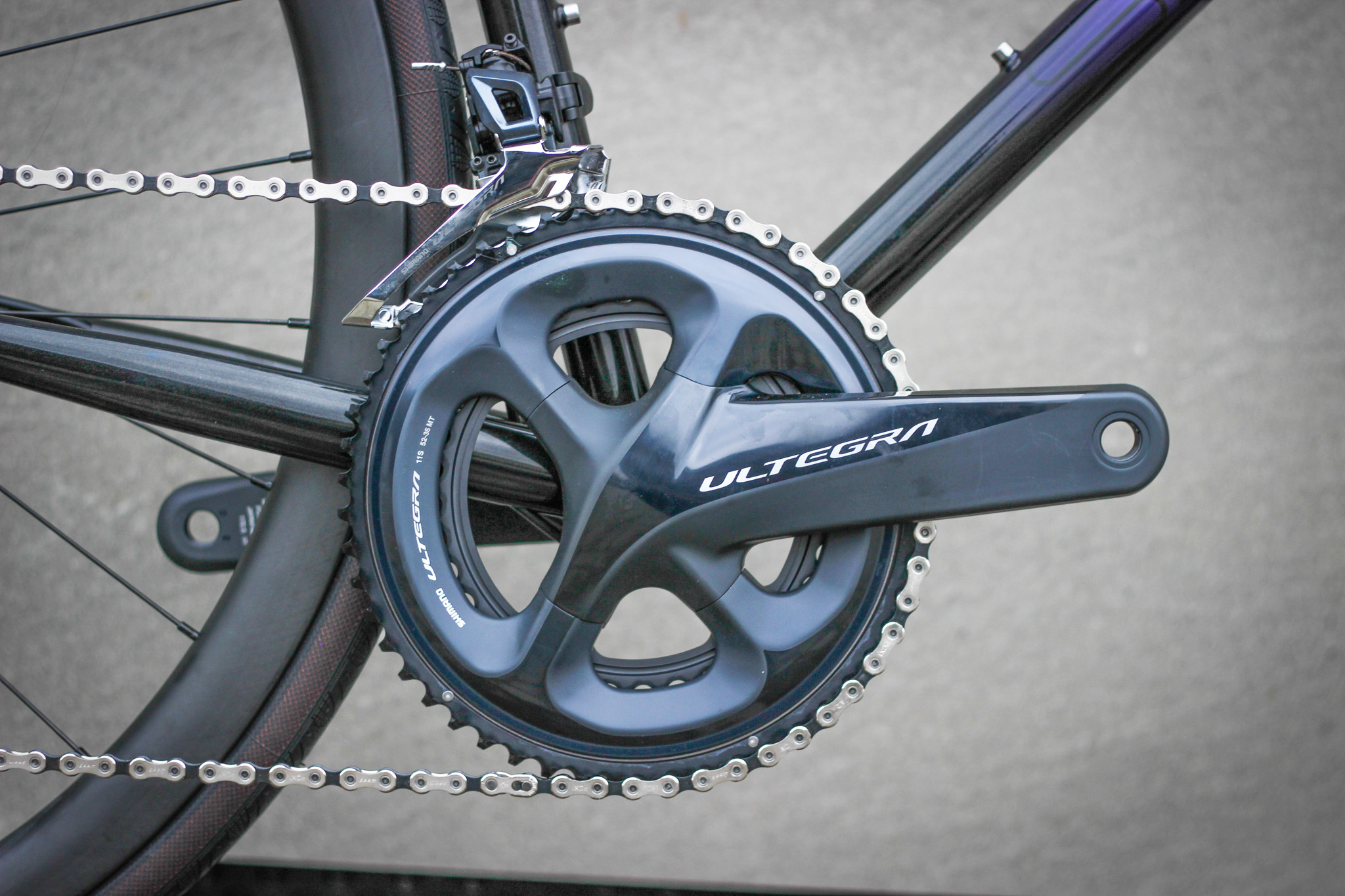

| Crankset | Shimano Ultegra FC-R8000 52/36 |
| Saddle | carbon, only for pictures |
| Spokes | Pillar TB2018 black |
| Color | indigo blue-purple pearl / metallic black |
| TTA (B) | 557 mm |
|---|---|
| TTE (C) | 575 mm |
| HT (D) | 180 mm |
| ST (A) | 560 mm |
| CS (E) | 412 mm |
| HA (G) | 72.5° |
| SA (F) | 73.5° |
| BB drop | - 75 mm |
| BB height | 268 mm |
| Fork AC | 365 mm |
| Wheelbase | 1014 mm |
| Stack | 595 mm |
| Reach | 398 mm |
