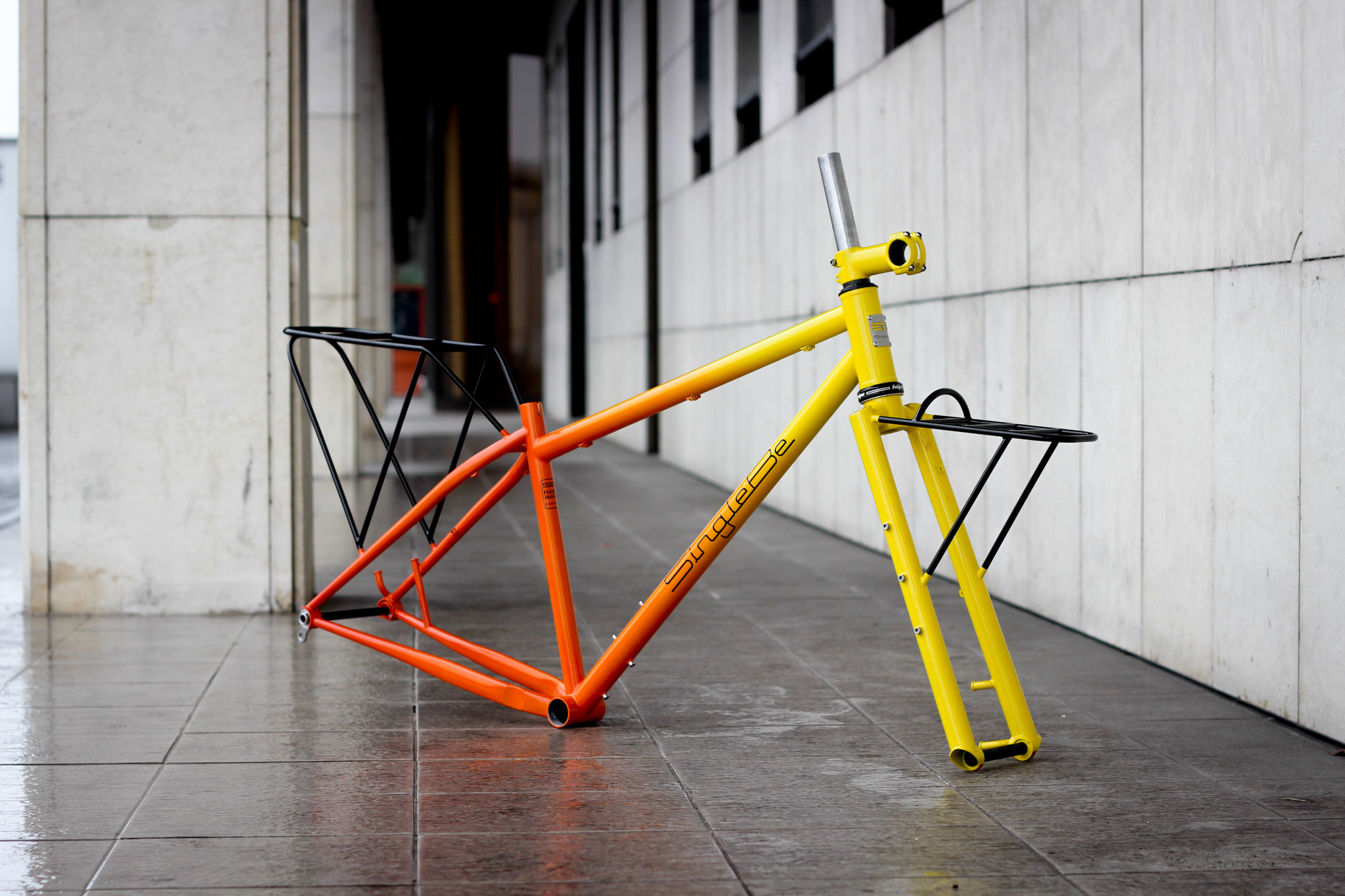

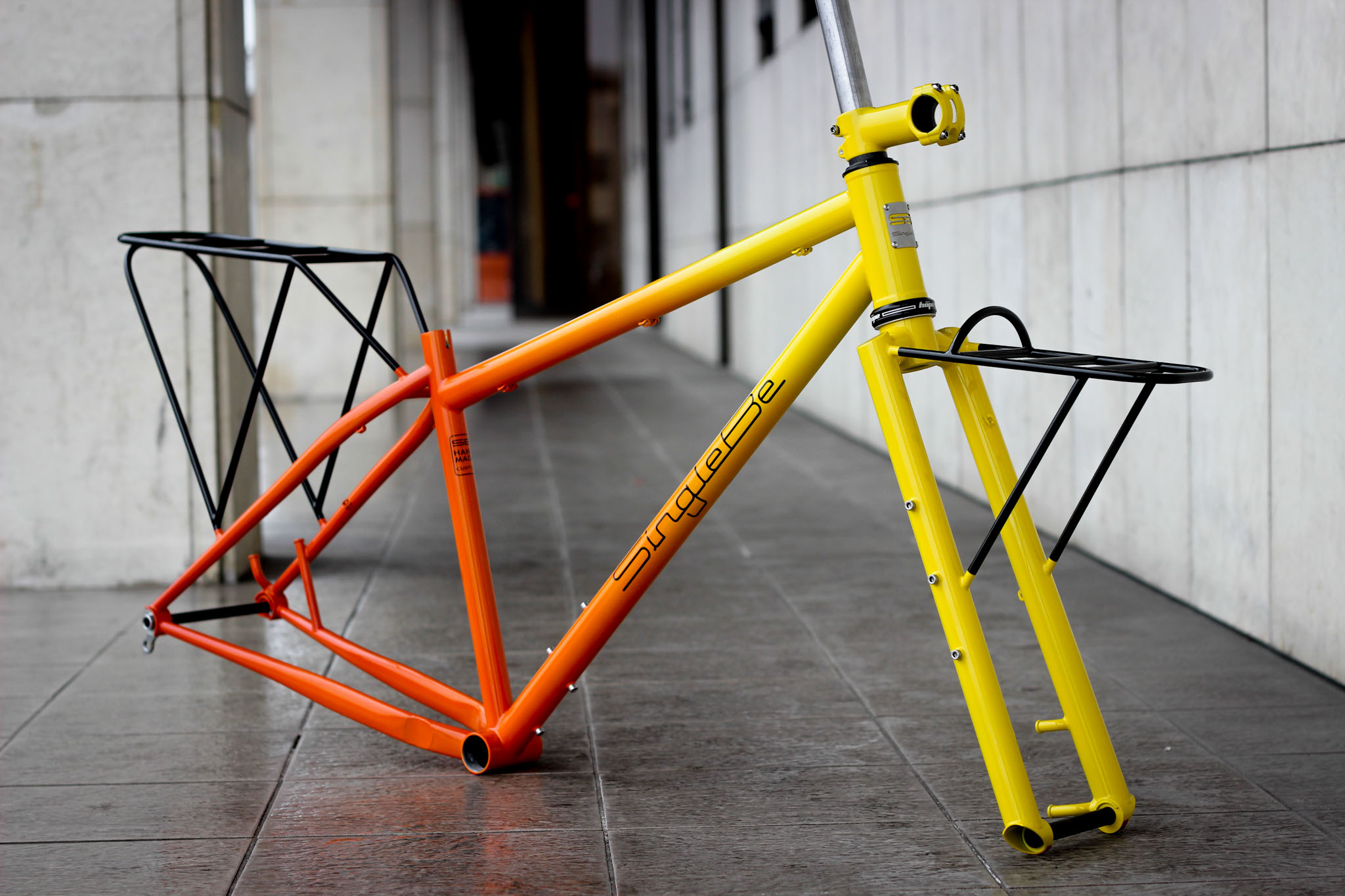

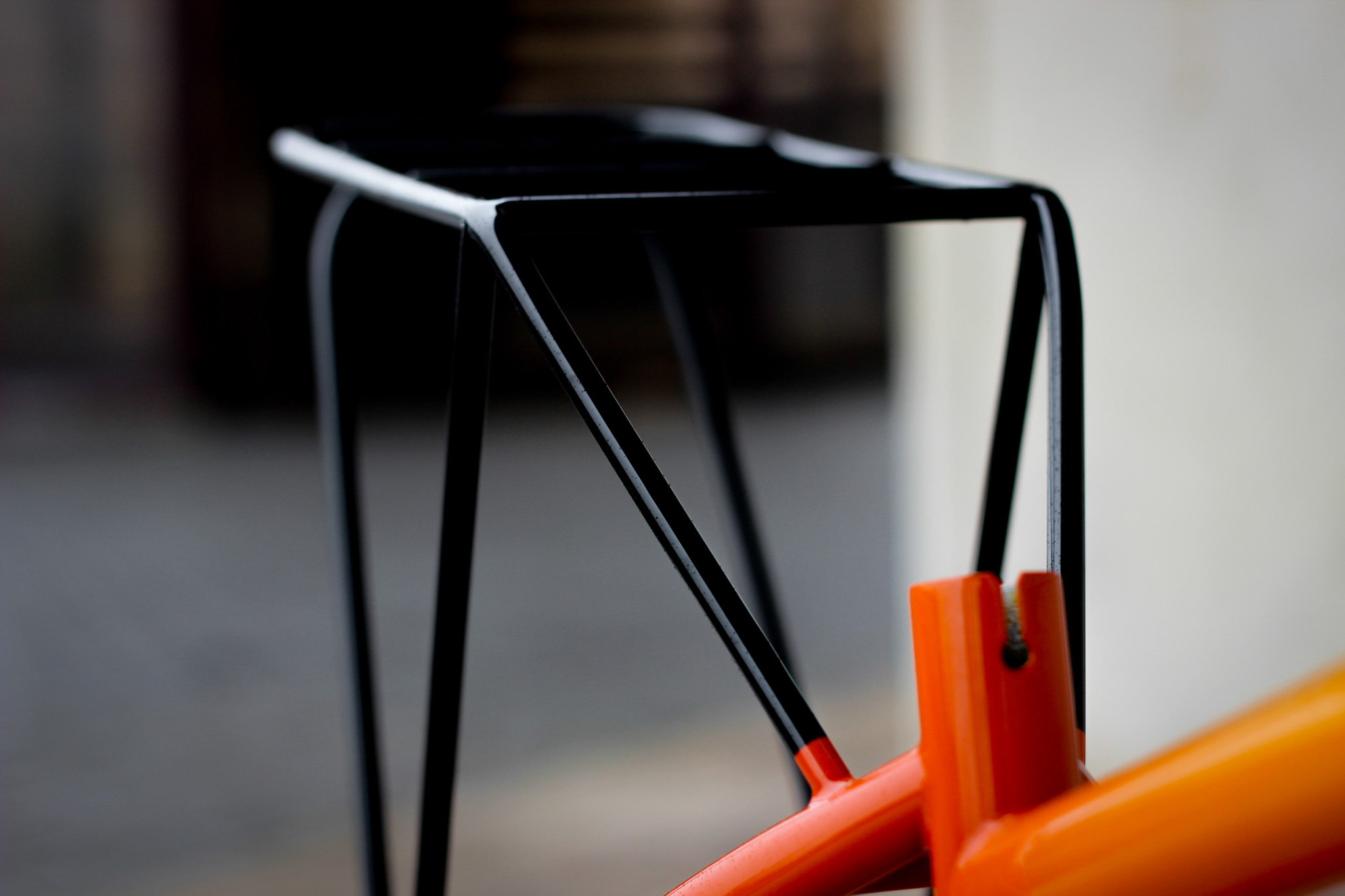

Light stainless fully integrated racks to carry equipment for multiple days long expeditions.

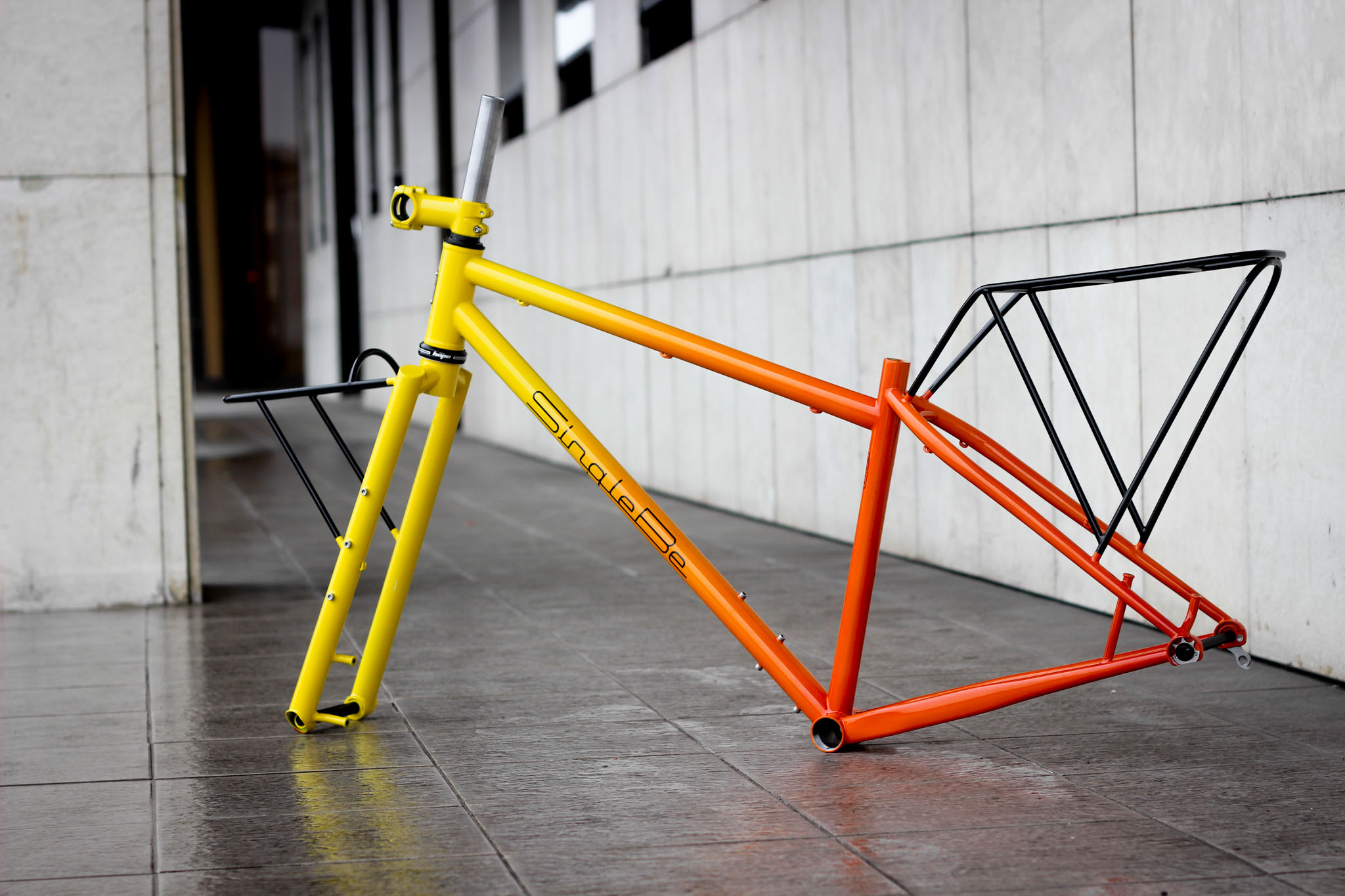

Orange ink paint allowed to make fluid color transition.

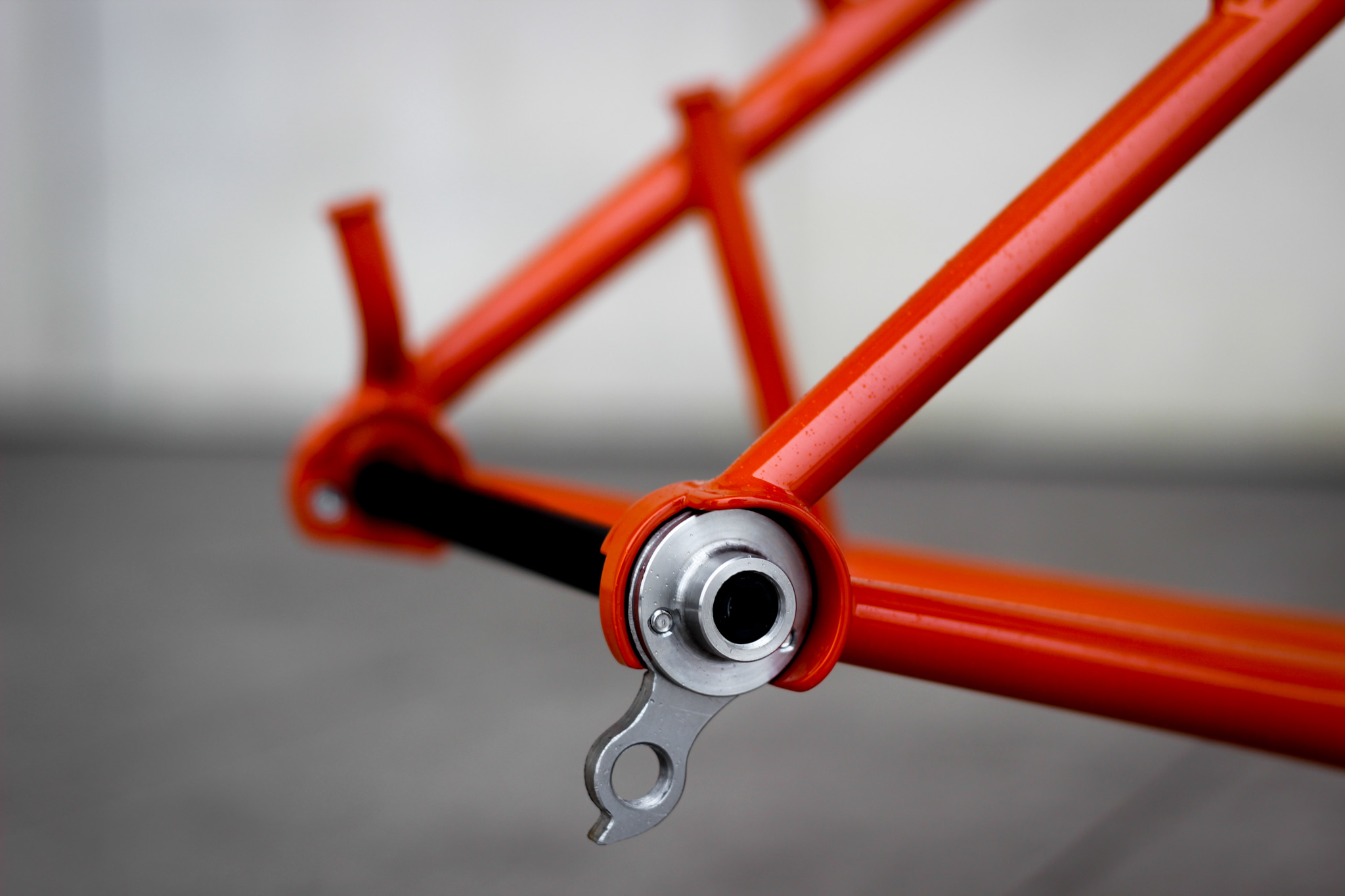

Front dropouts are 110×15, rear also Boost version 148×12.

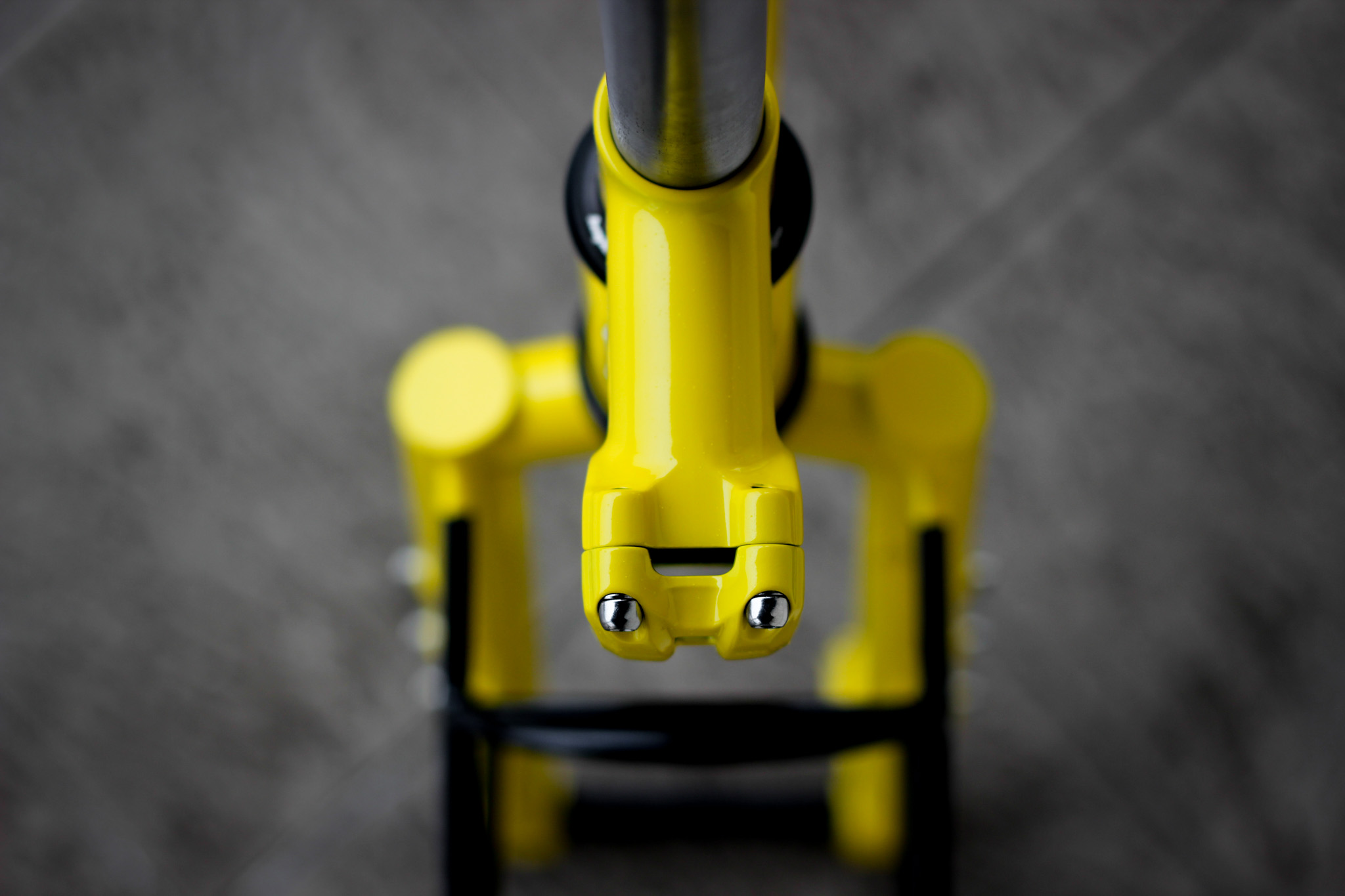

Also we painted two FSA stems in lengths 60 and 80 mm.

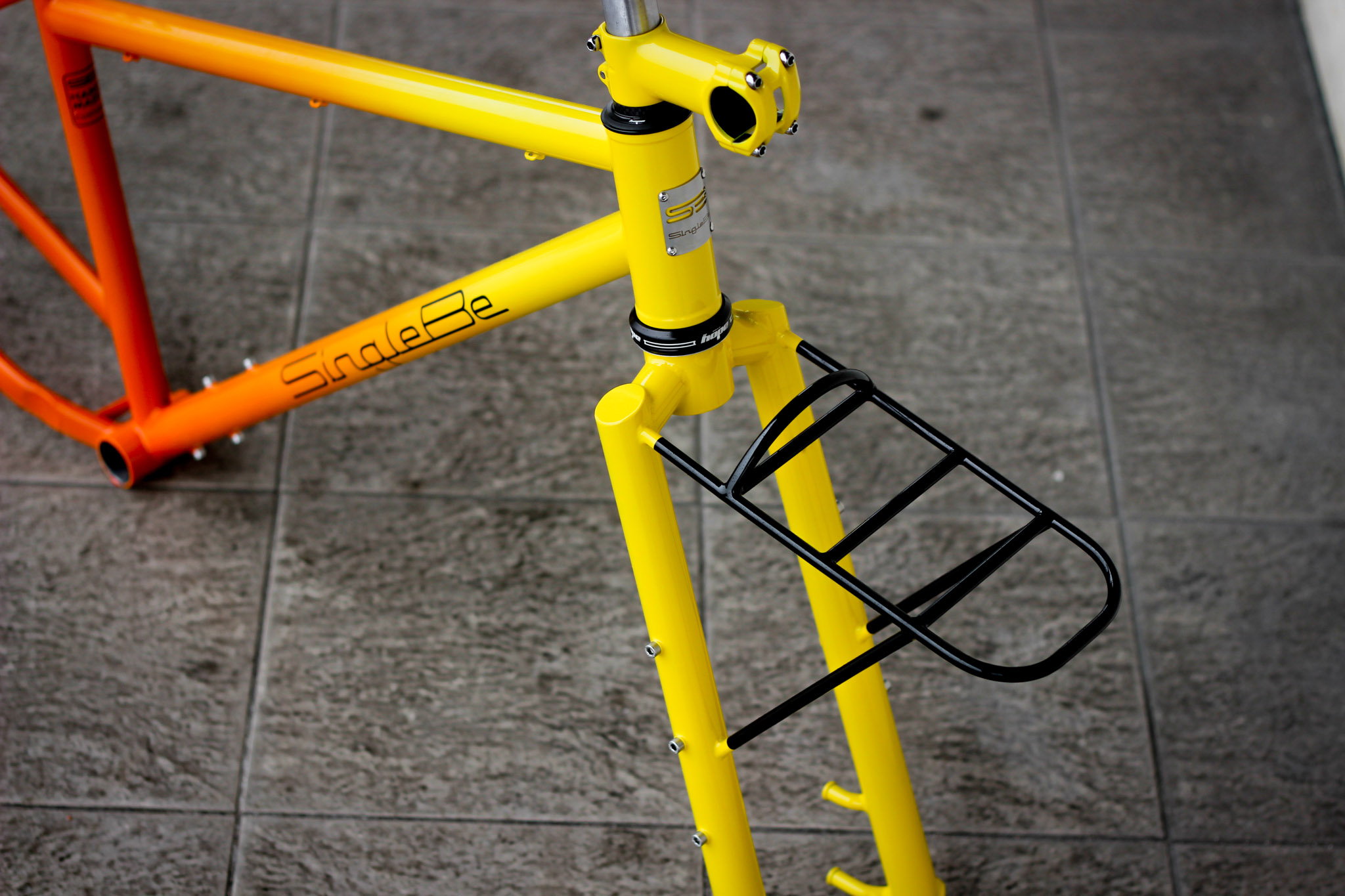

Front integarted rack with a small bridge for easier loading.
| Frame steel | Reynolds 853, Dedacciai ZeroUno stays |
|---|---|

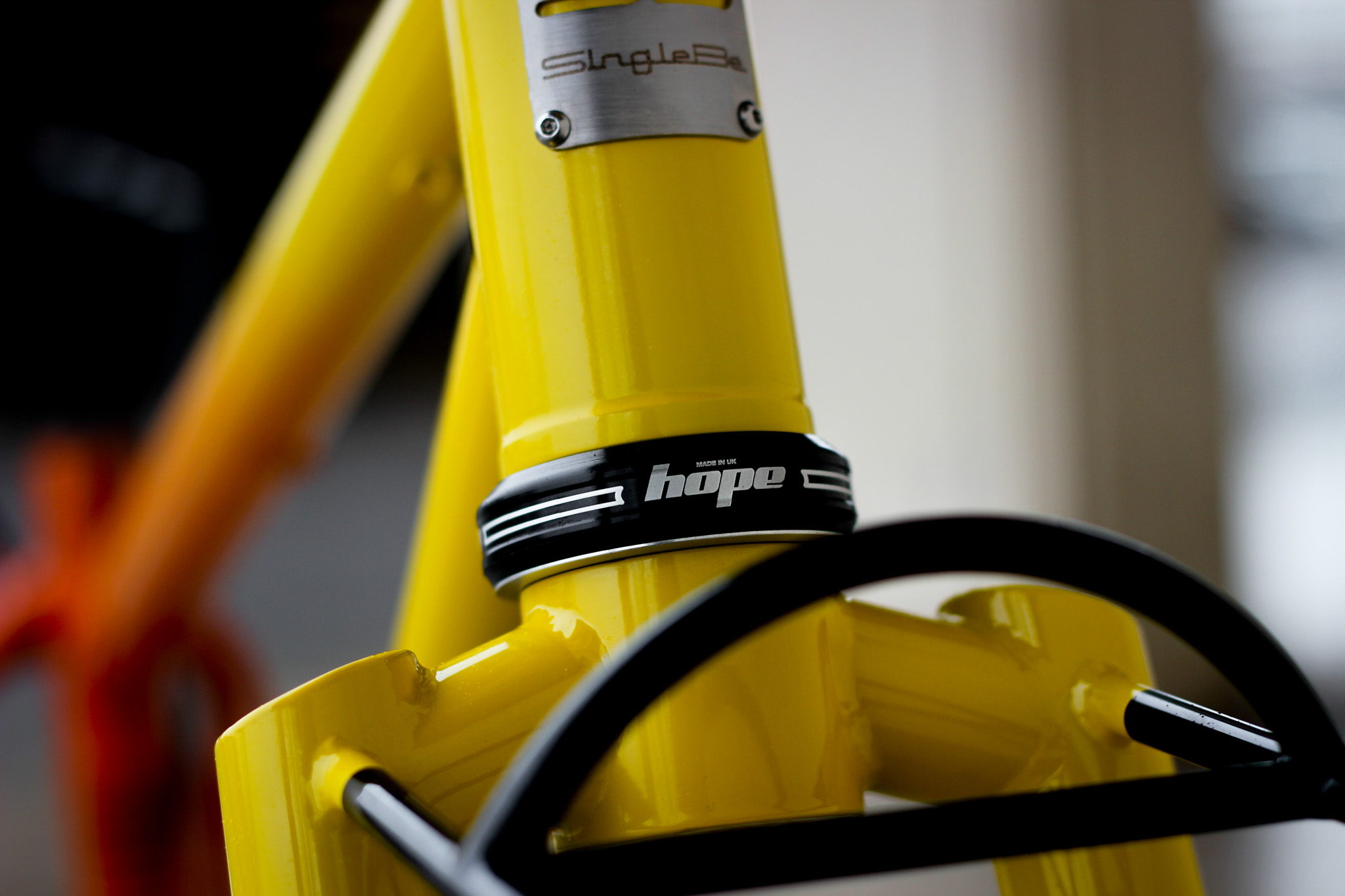

| Headset | Hope, semi 44 mm ID, ZS44/28.6 - EC44/40 |
| BB standard | BSA, 73 |
| Cable routings | external |
| Max tires | 29x2.35 / 27,5x2,8 |
| Dropouts | 148x12, SingleBe AL axle |
| Gears | 1x11-12, Boost, 52 mm CL |
|---|---|
| Color | yellow together with orange ink paint, fluid color transitions |
| Fork steel | SAE4130 |
| Fork dropouts | 110x15 |
| Fork extras | 3xM5 threadings |
| Racks | integrated stainless steel superlite racks |

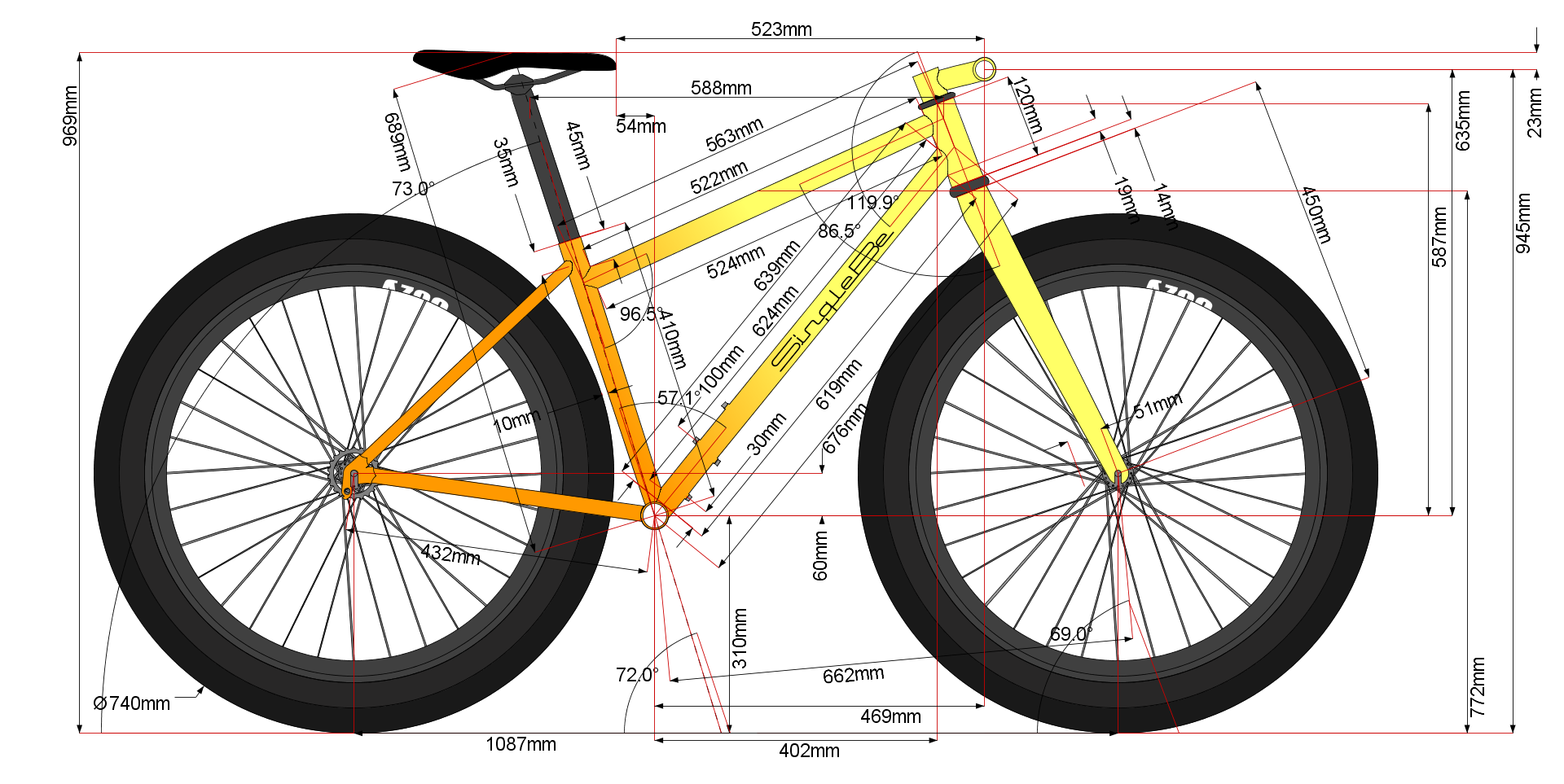

| TTA | 563 mm |
|---|---|
| TTE | 588 mm |
| HT | 120 mm |
| ST | 410 mm |
| CS | 432 mm |
| HA | 69° |
| SA | 72° |
| BB frop | 60 mm |
| BB height | 310 mm |
| Fork AC | 450 mm |
| Wheelbase | 1087 mm |
