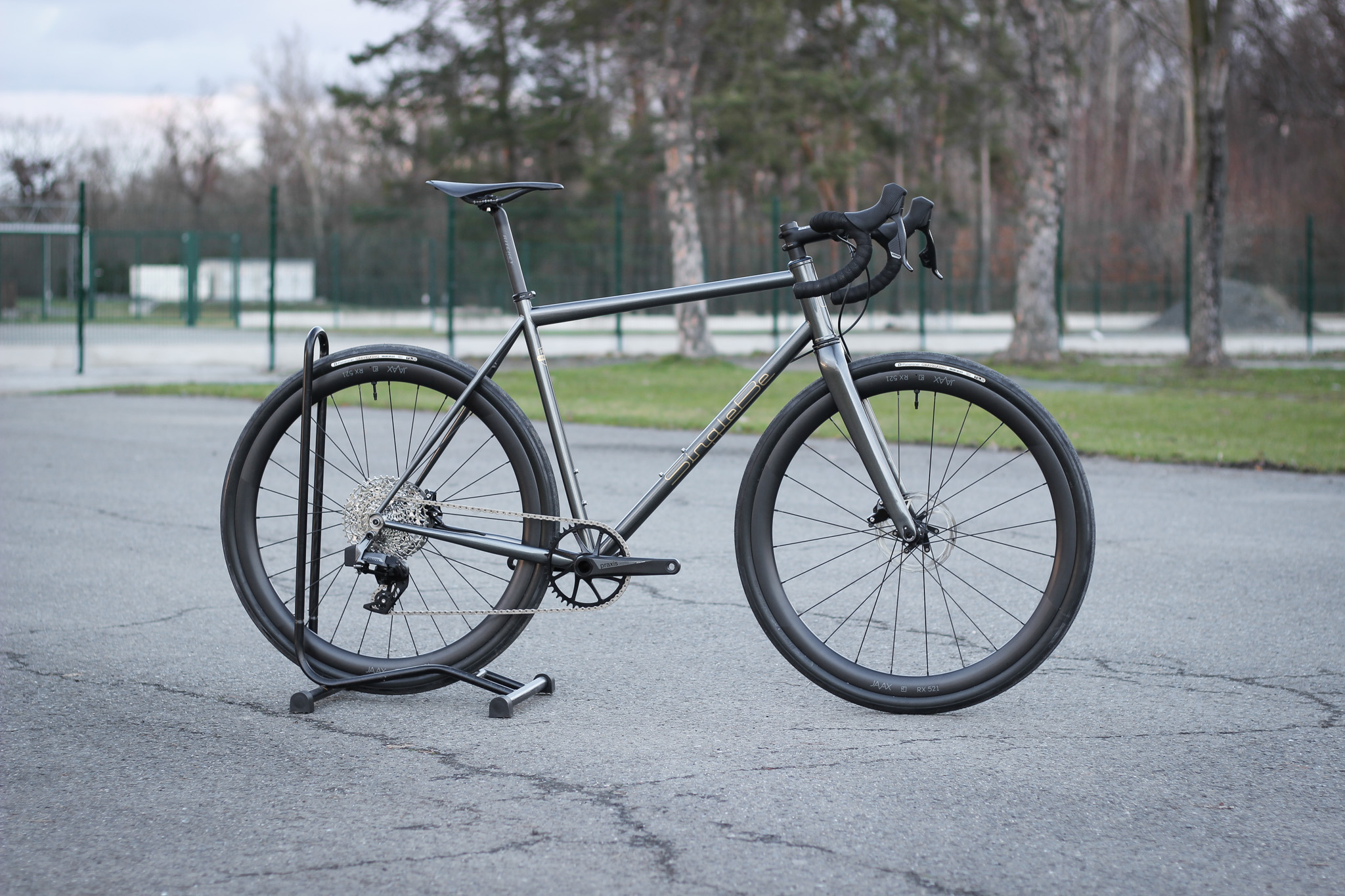

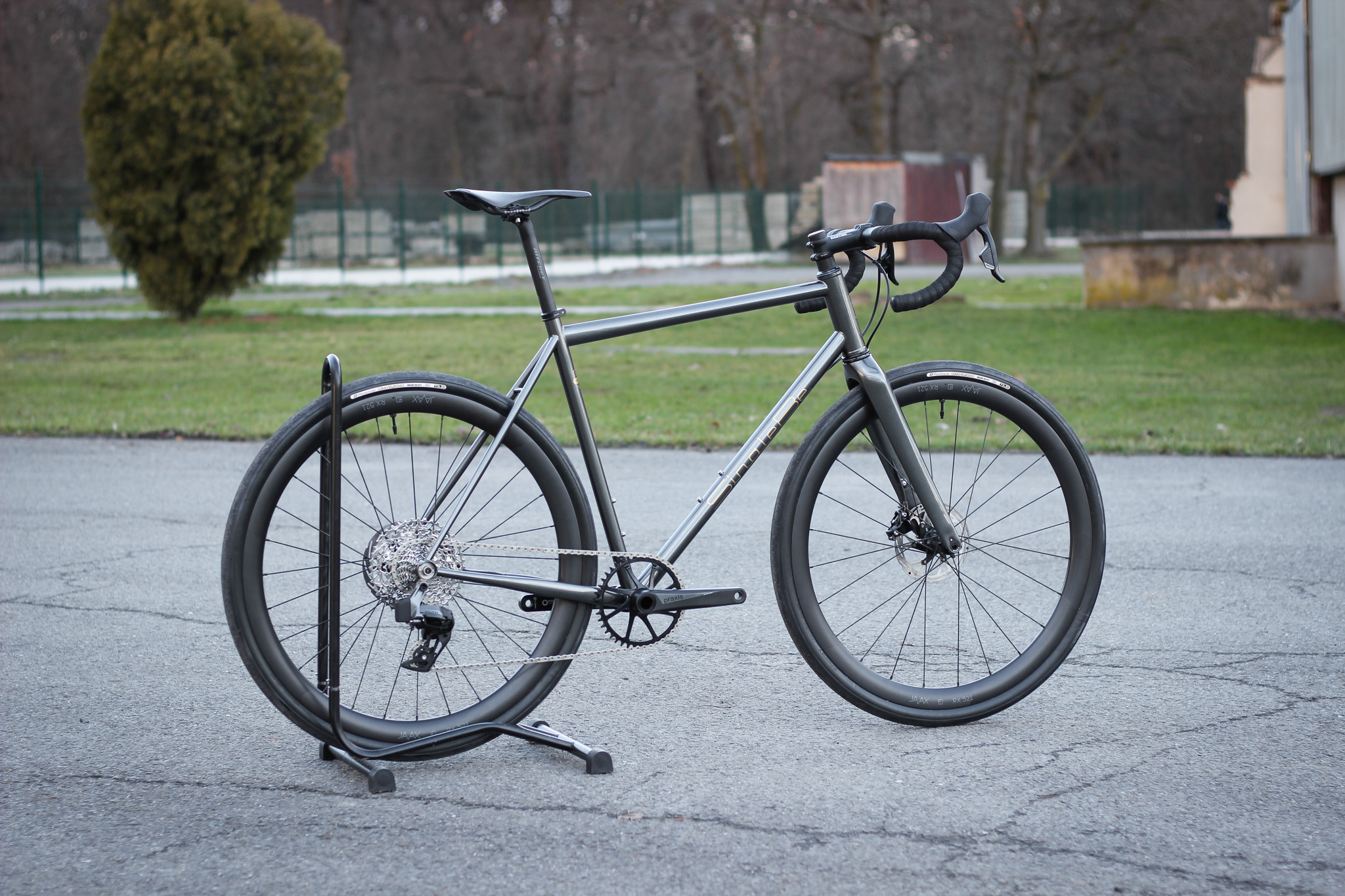

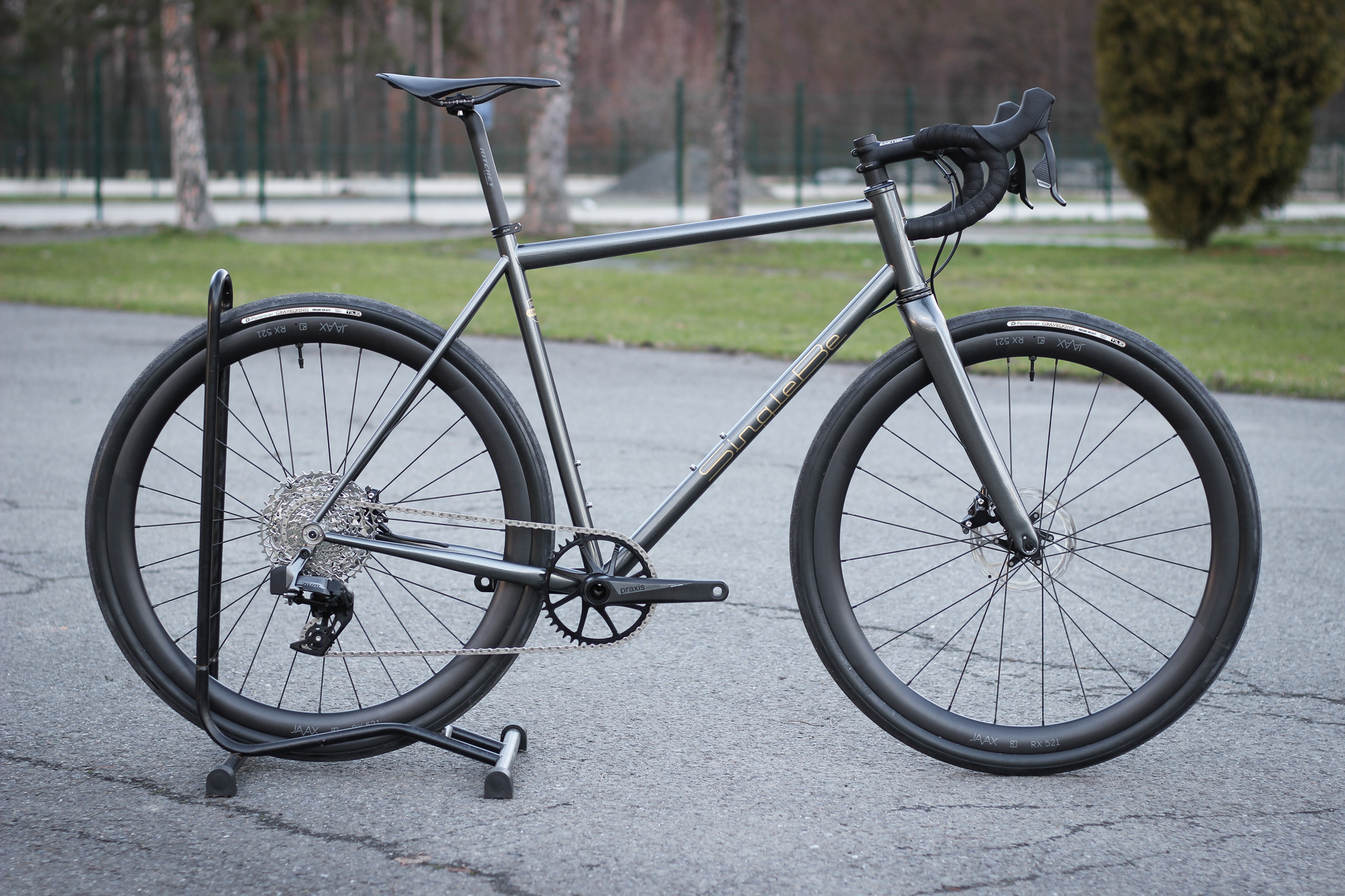

Super fast elegant gravel bike with Sram Rival 1 AXS drive and carbon wheels.

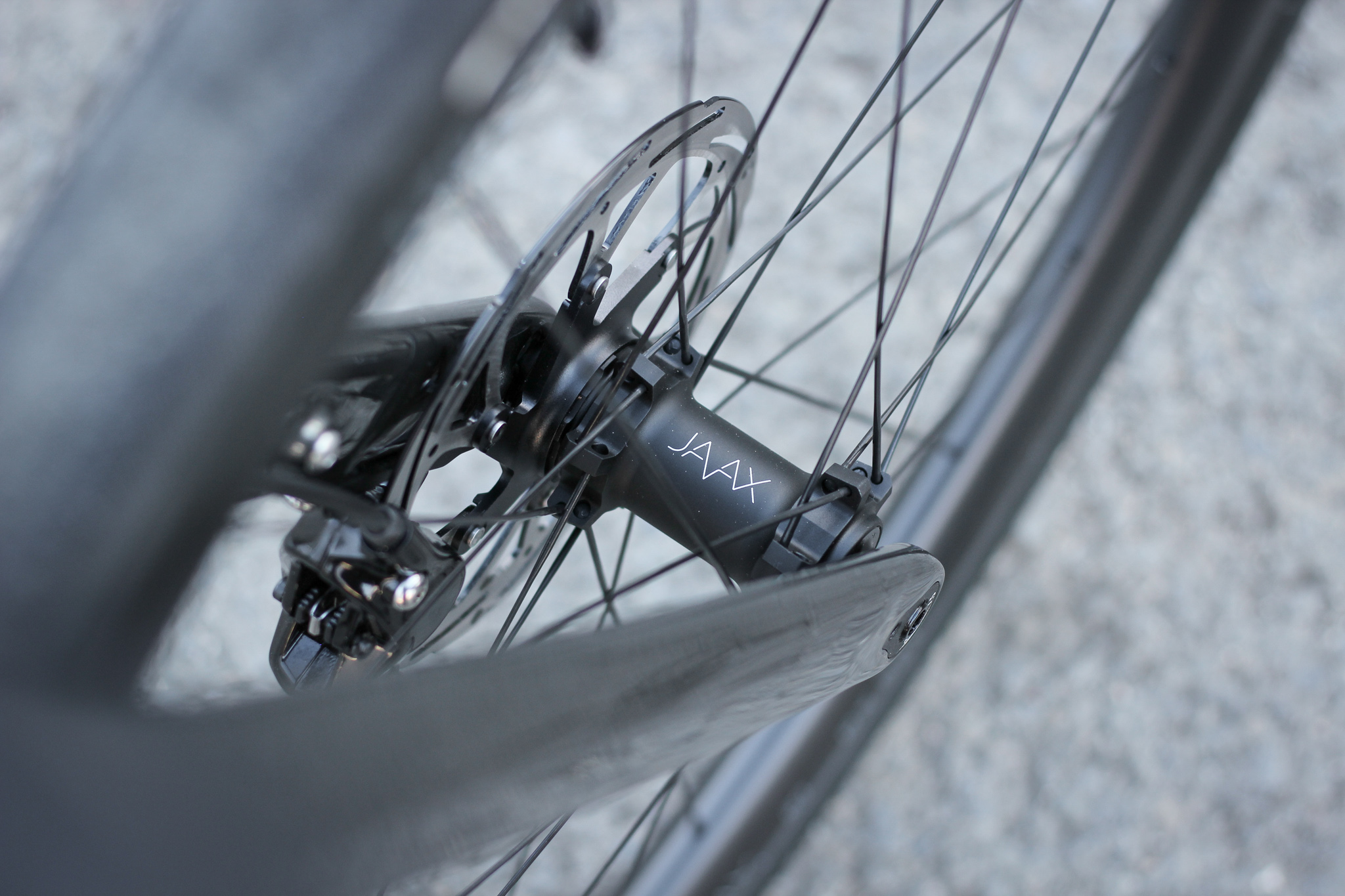

Front and rear hubs are Javax brand, great quality/price ratio.
Production number 0578. So many frames/bikes so far and many satisfied customers.
Painted logo on head tube was customers choice.
Some customers also prefer classic road handlebars rather then modern flaired gravel bars.

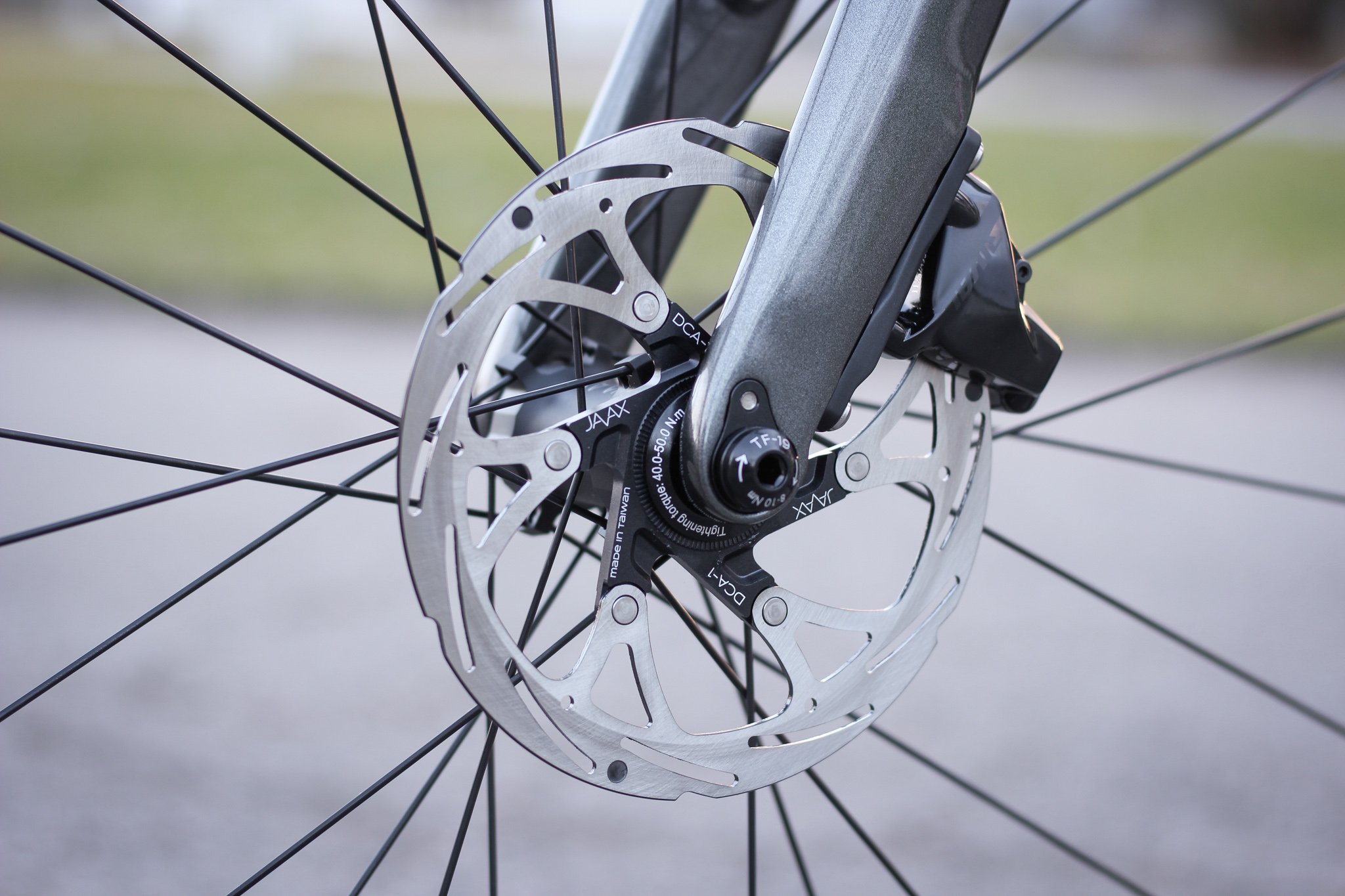

Basically we use 160 mm rotors for both front and rear.

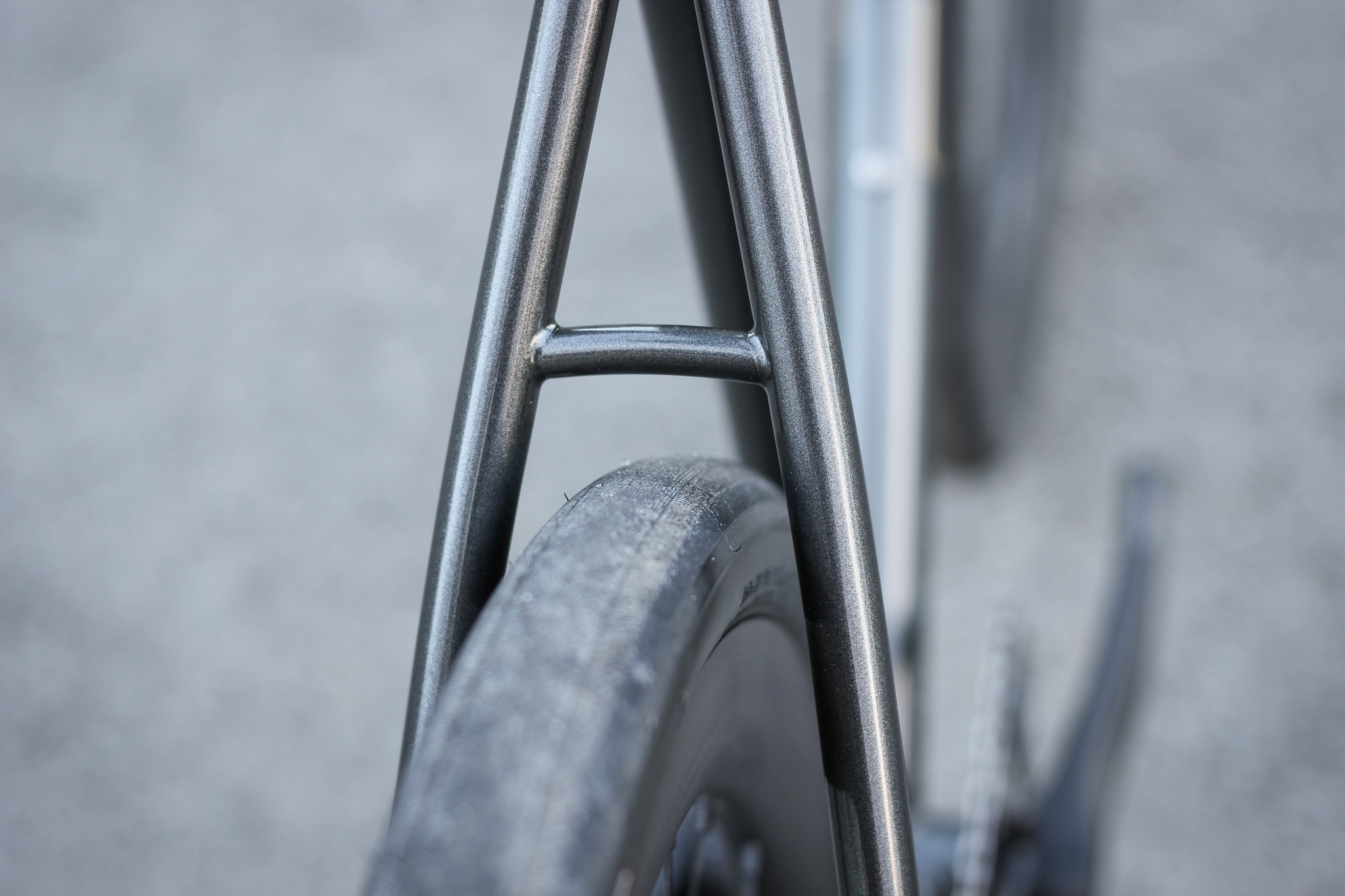

| Frame | Reynolds 853 / Dedacciai Zero Uno |
|---|---|
| Headset | Cane Creek Forty |
| Fork | Trigon RC90FE 100x12 full carbon, internal, FM |
| Brakes | Sram Rival, HRD |
| Shifting | Sram Rival 1x12 AXS |
| RD | Sram Rival AXS 1x12 XPLR |
| Cassette | Sram Rival 10-44 |

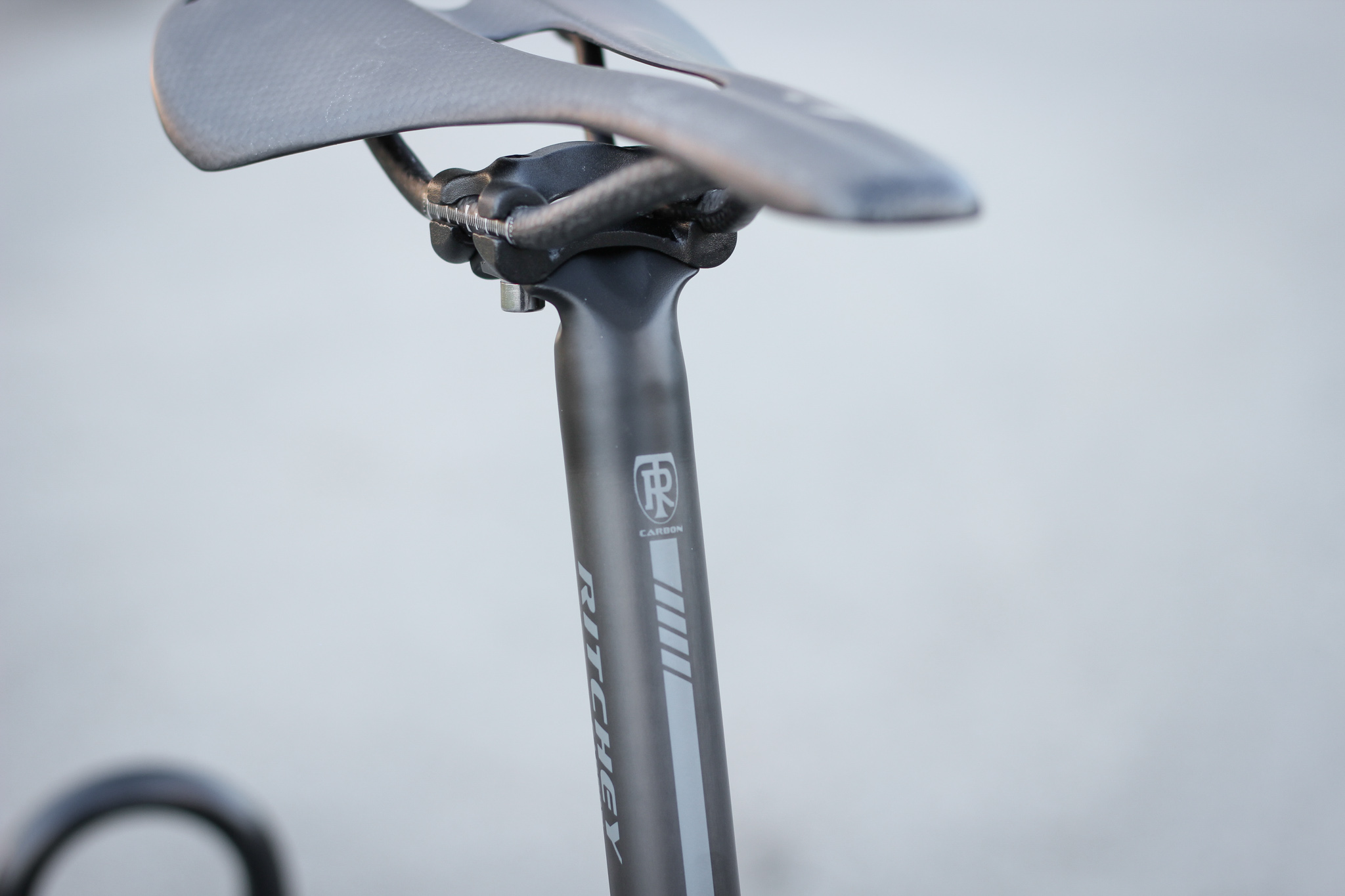

| Seatpost | Ritchey Comp Carbon 27.2x350 |
| Seatpost clamp | Javax 30.0 |
| Handlebars | Trigon carbon road aero RB11 |
| Stem | EASTON 90 mm / -6 |
|---|---|
| Bar tape | Cinelli |
| Front hub | Javax M521 CL SP 24H 100x12 |

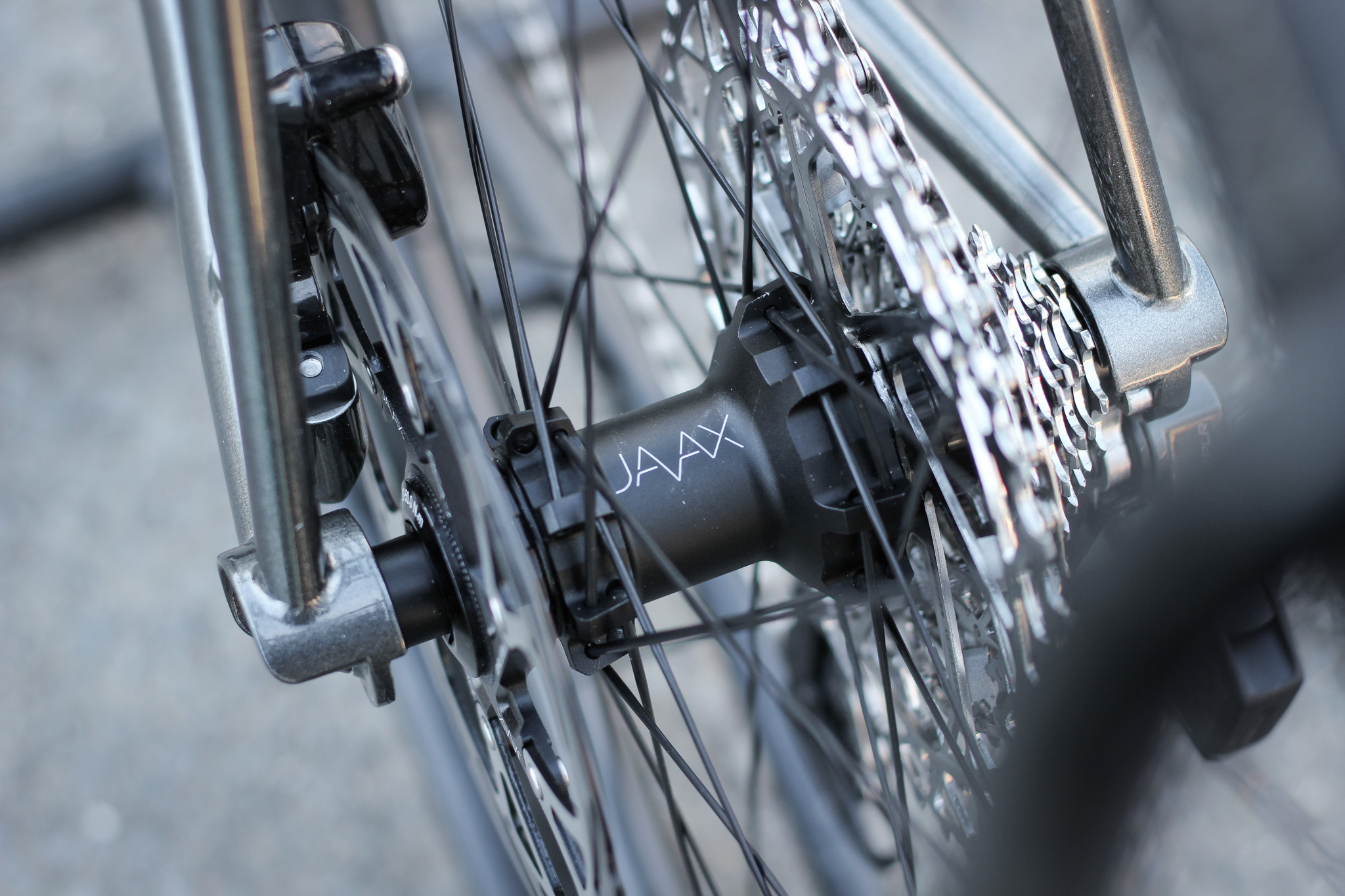

| Rear hub | Javax G519 CL SP 28H 142x12 XDR |

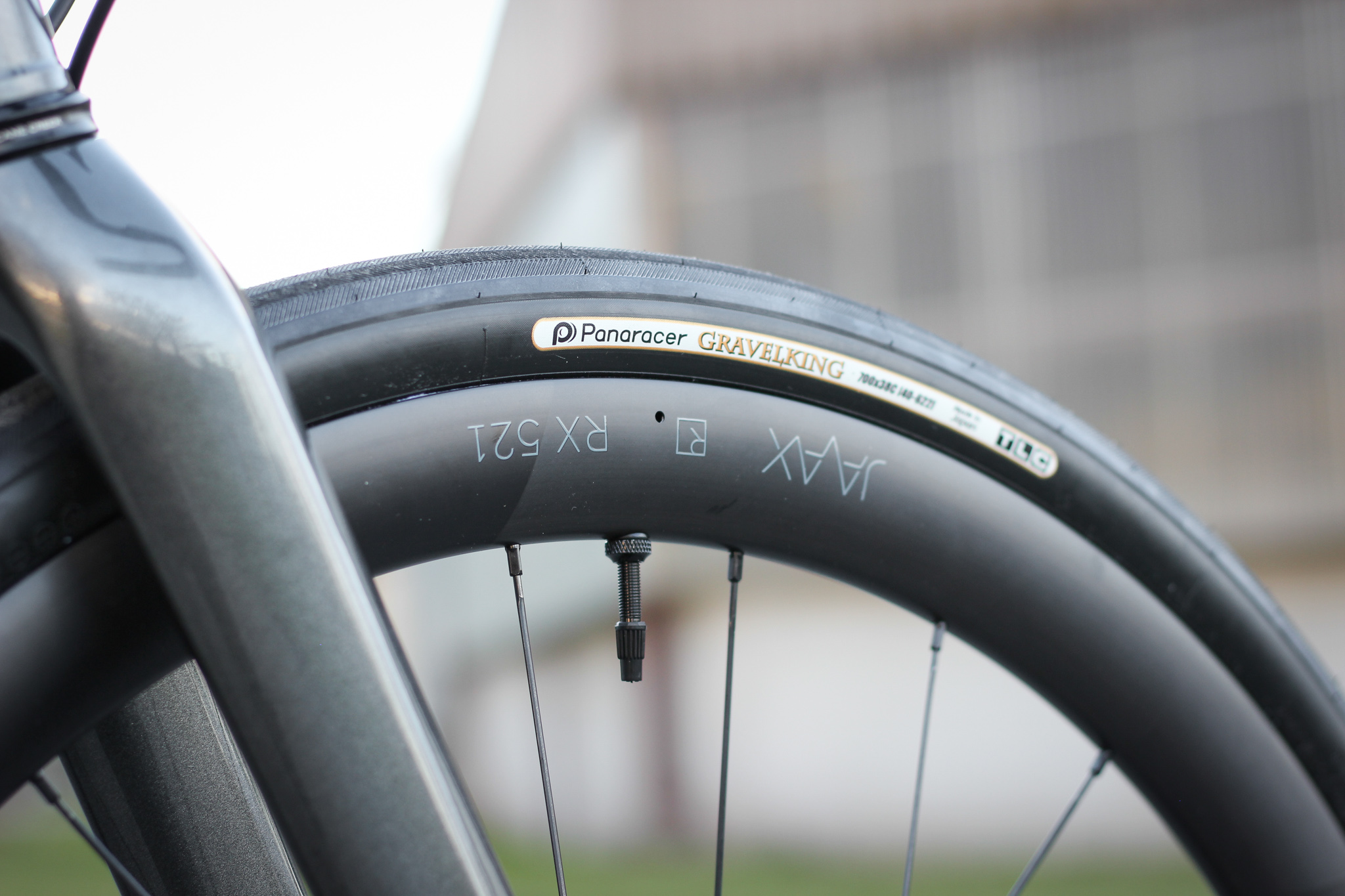

| Tires | Panaracer Gravelking slick 700x38C |
| Rims | Javax RX521 24/28h |

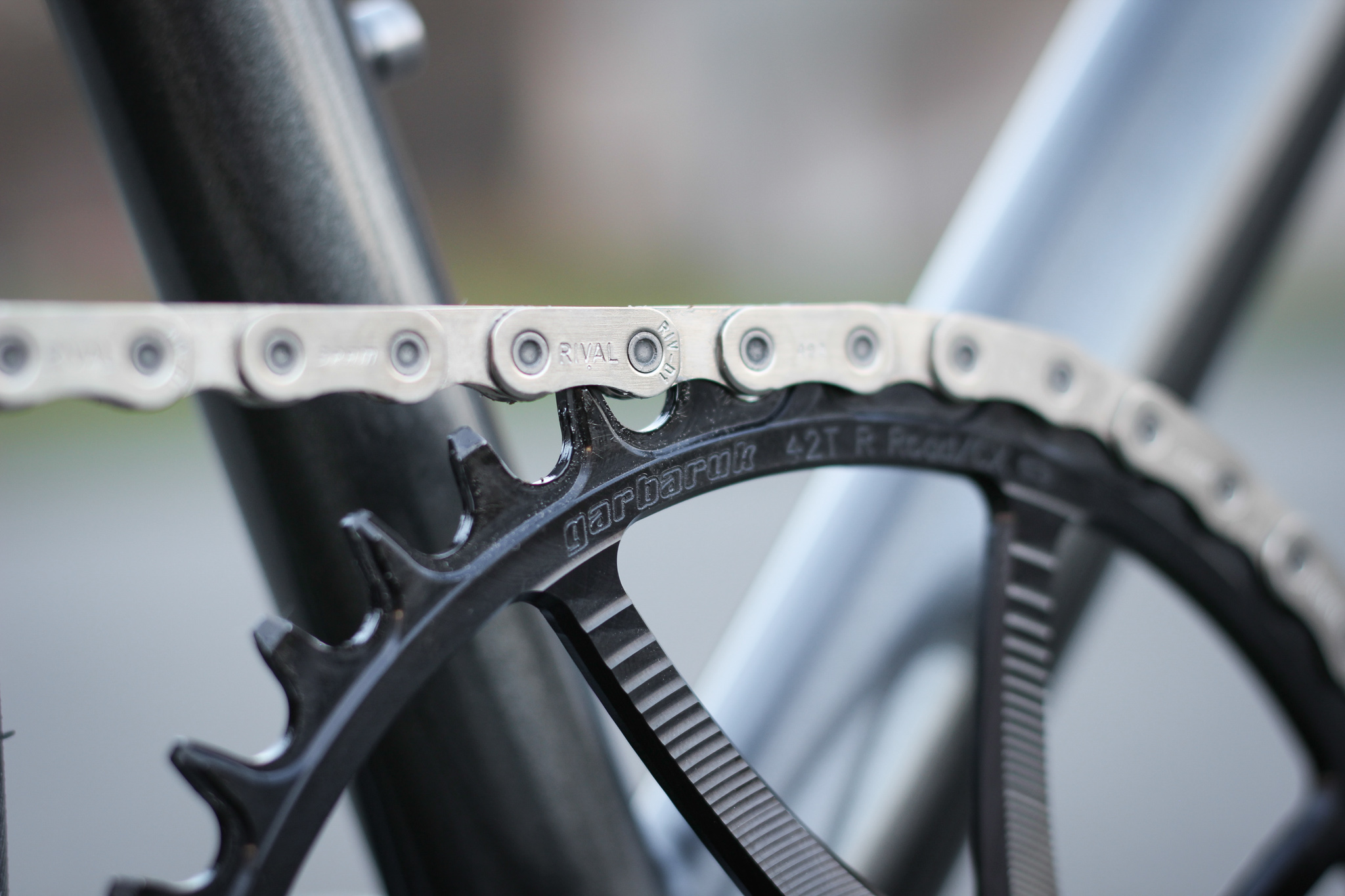

| Crankset | PRAXIS MTB Alu + Garbaruk 42T chainring |
| Saddle | karbonové (ilustrační) |
| Spokes | Pillar PSR Wing 22 |
| Weight | 8,9 kg without pedals |
| TTA (B) | 560 mm |
|---|---|
| TTE (C) | 579 mm |
| HT (D) | 160 mm |
| ST (A) | 550 mm |
| CS (E) | 425 mm |
| HA (G) | 71° |
| SA (F) | 73.5° |
| BB drop | - 75 mm |
| BB height | 275 mm |
| Délka vidlice | 400 mm |
| Wheelbase | 1052 mm |
| Reach | 400 mm |
| Stack | 601 mm |
