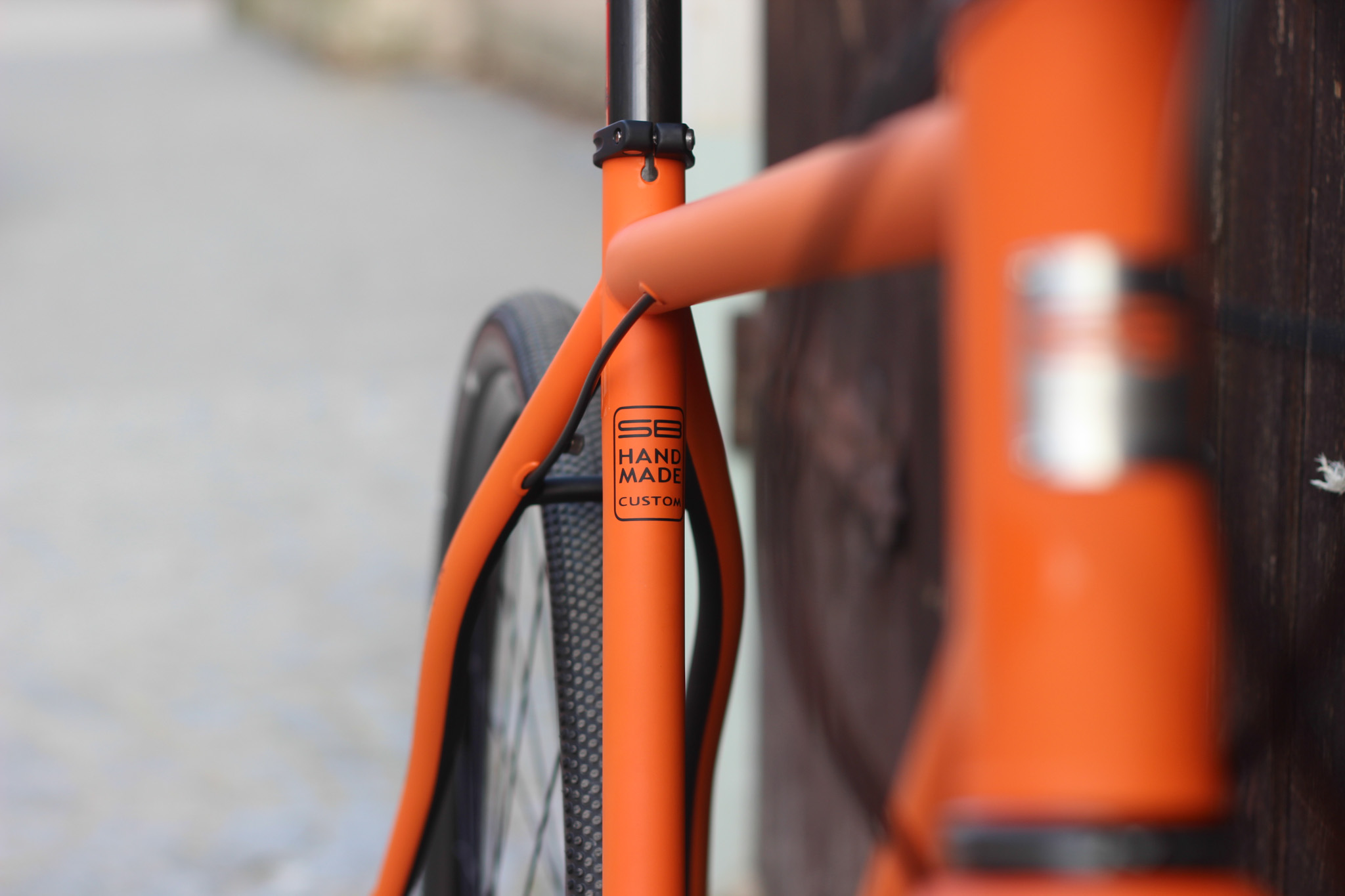

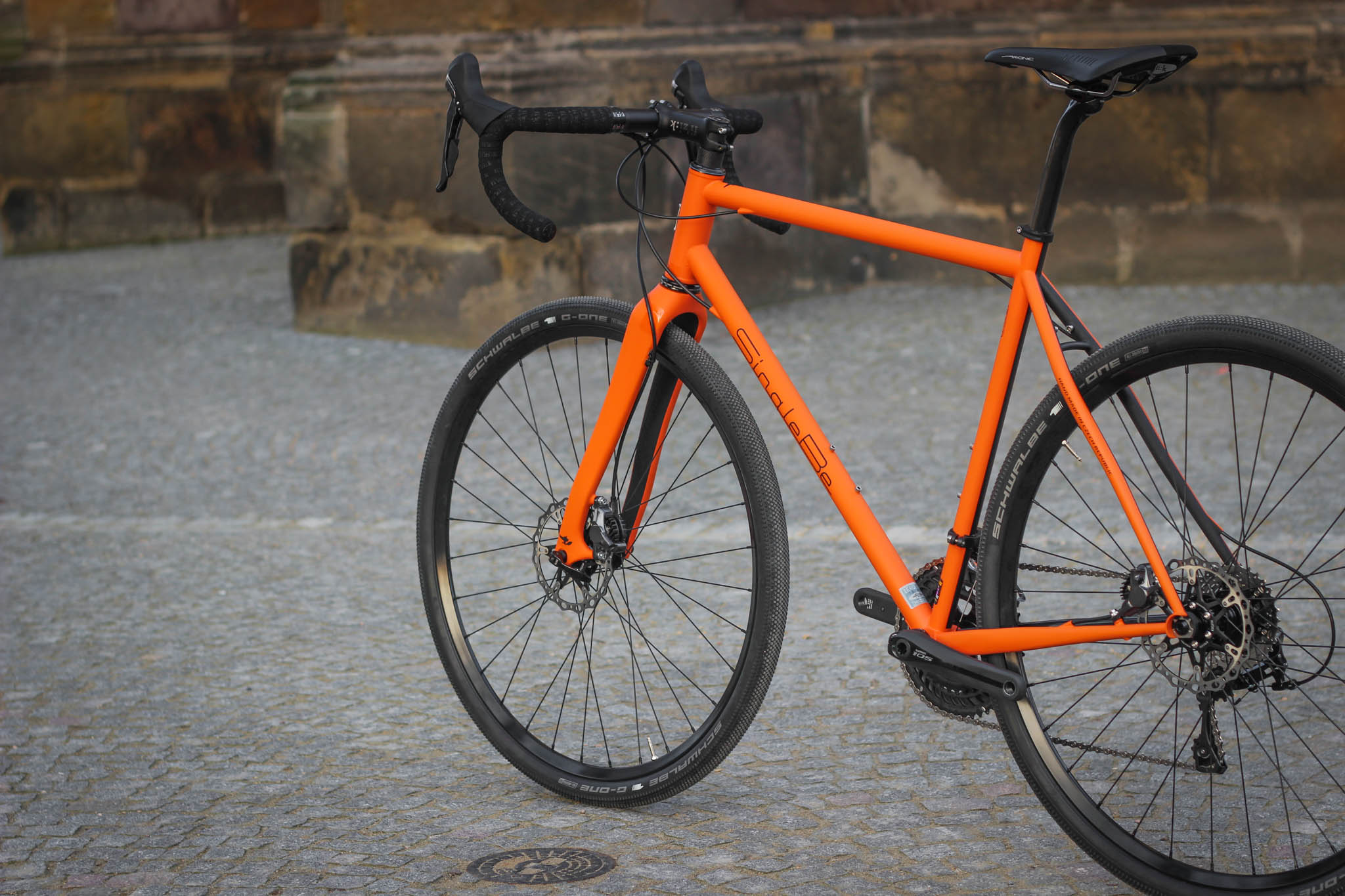

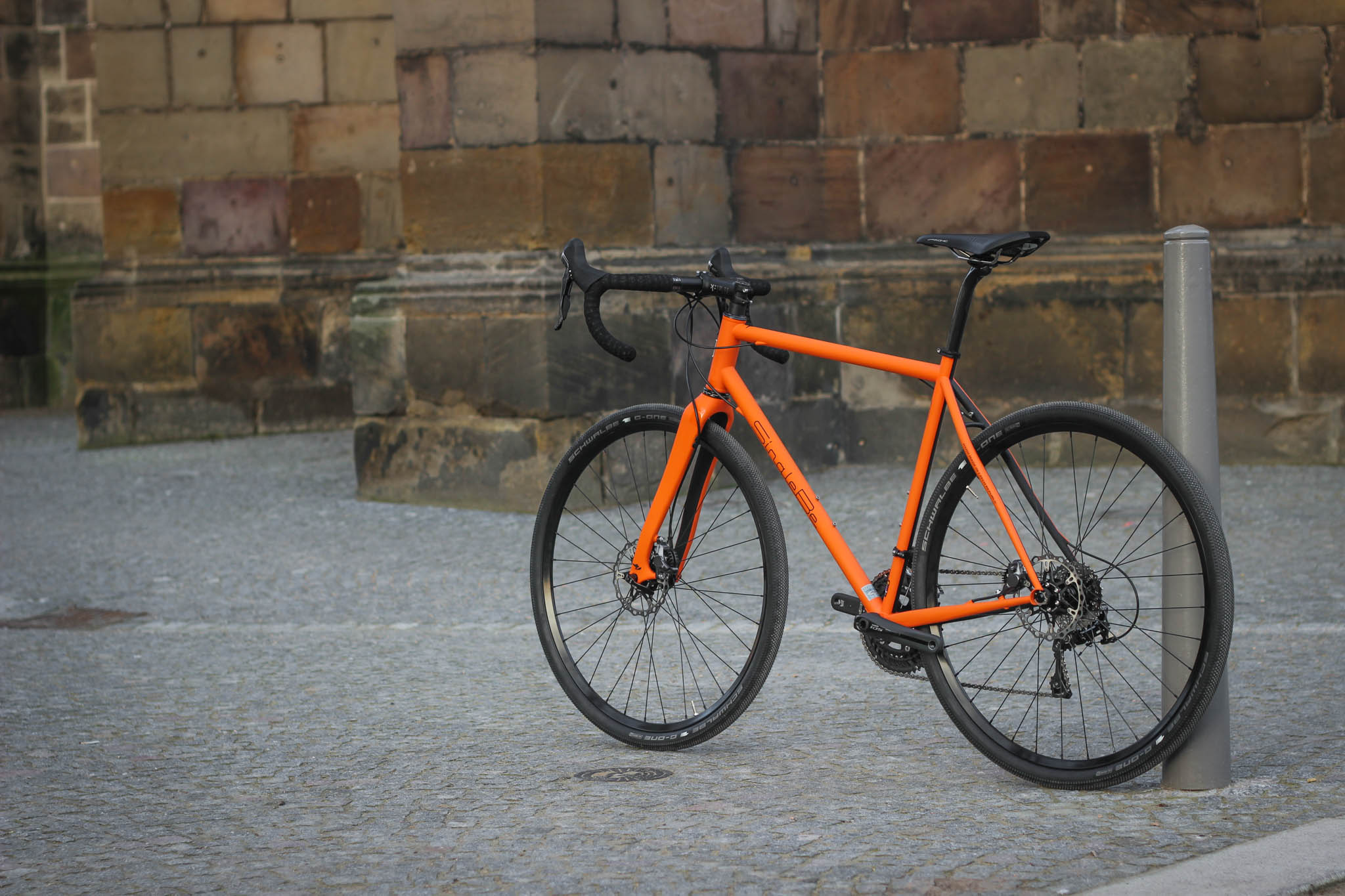

Removing all the not necessary logos brings the cleanest look.

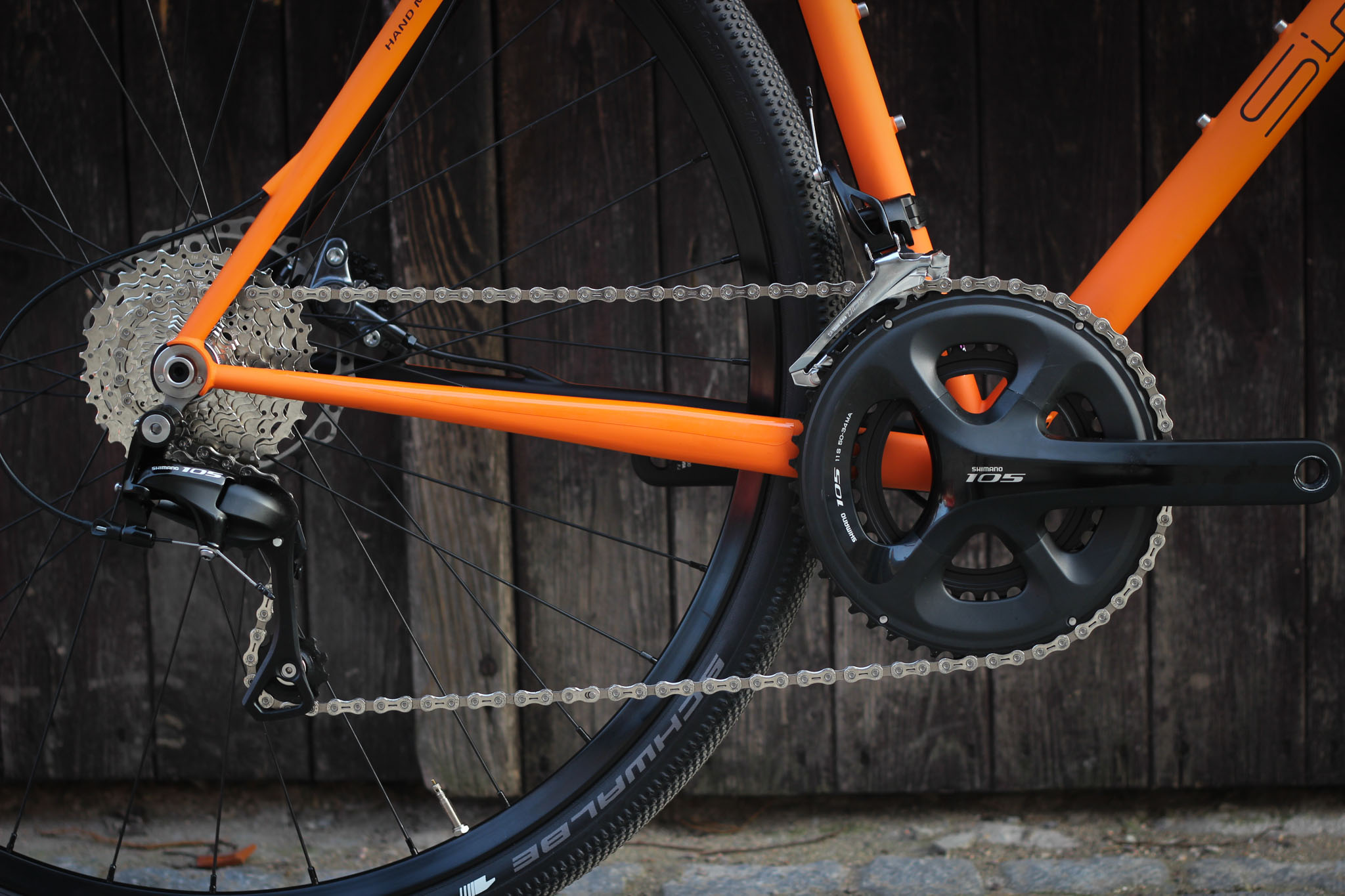

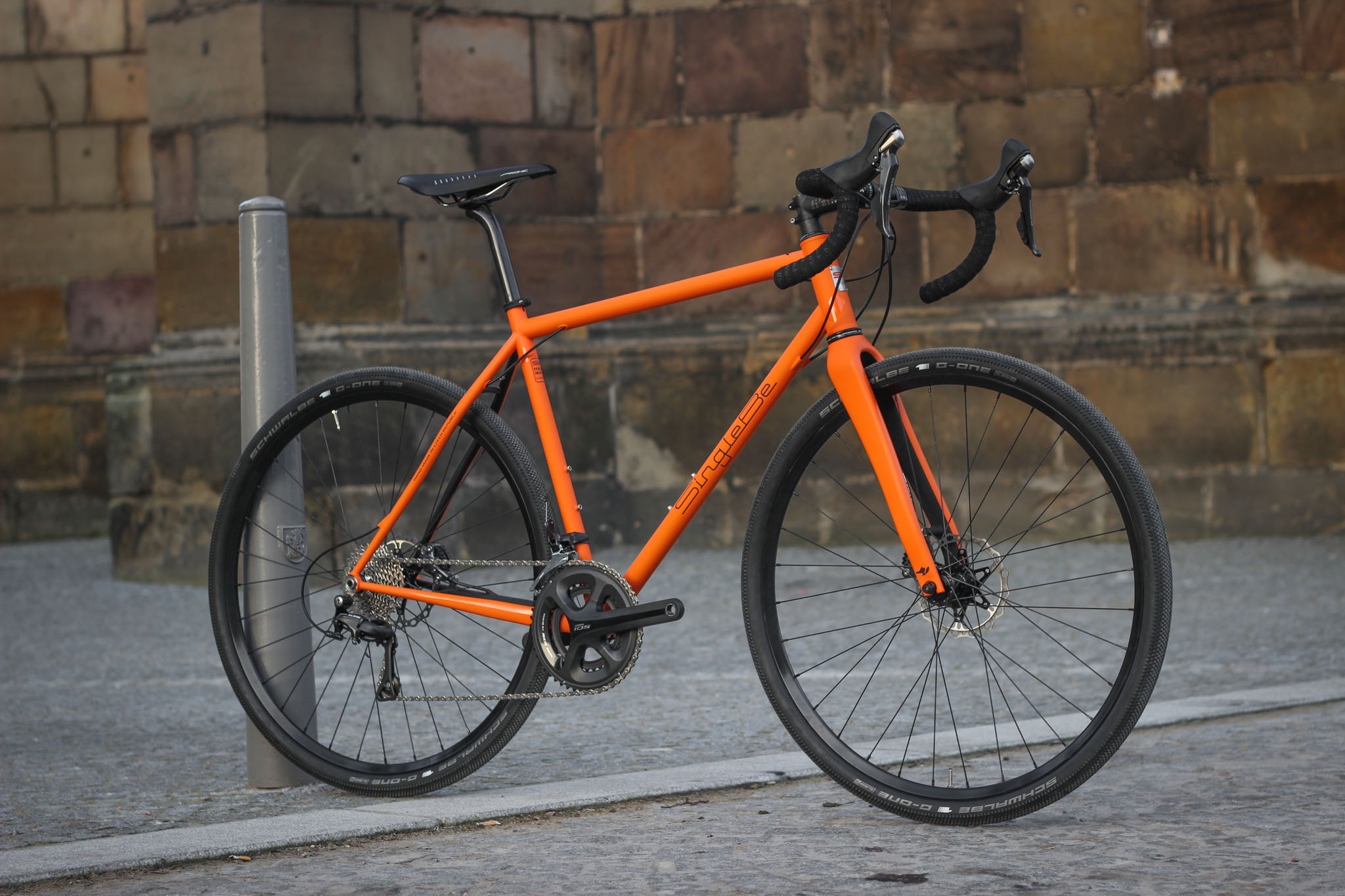

This is Shimano 105 5800 Drive, with Compact chainrings and cassette 11-32.
Optional rear rack mounts are brazed on from the inside side, so the bike is still clean from the side view.

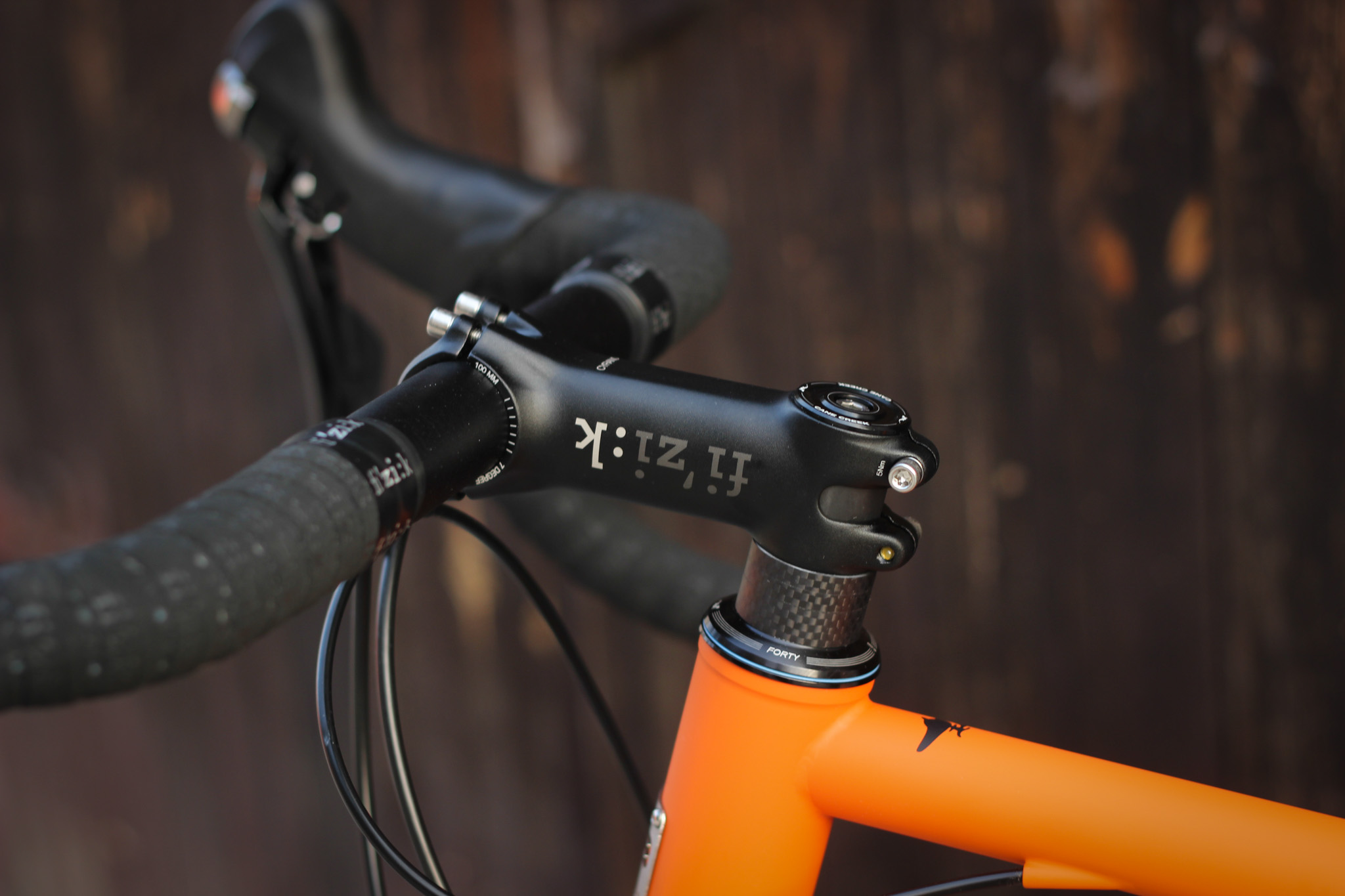

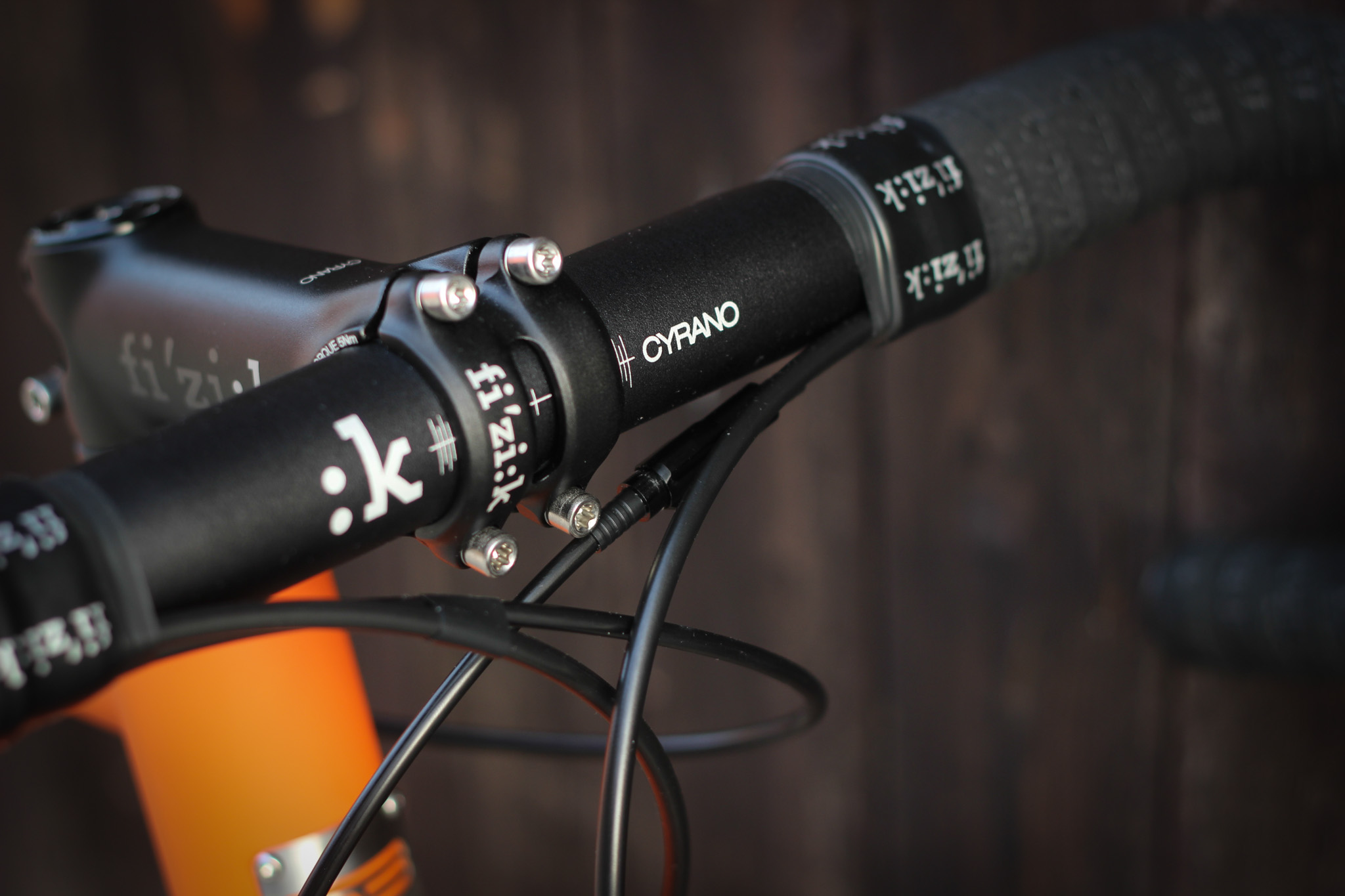

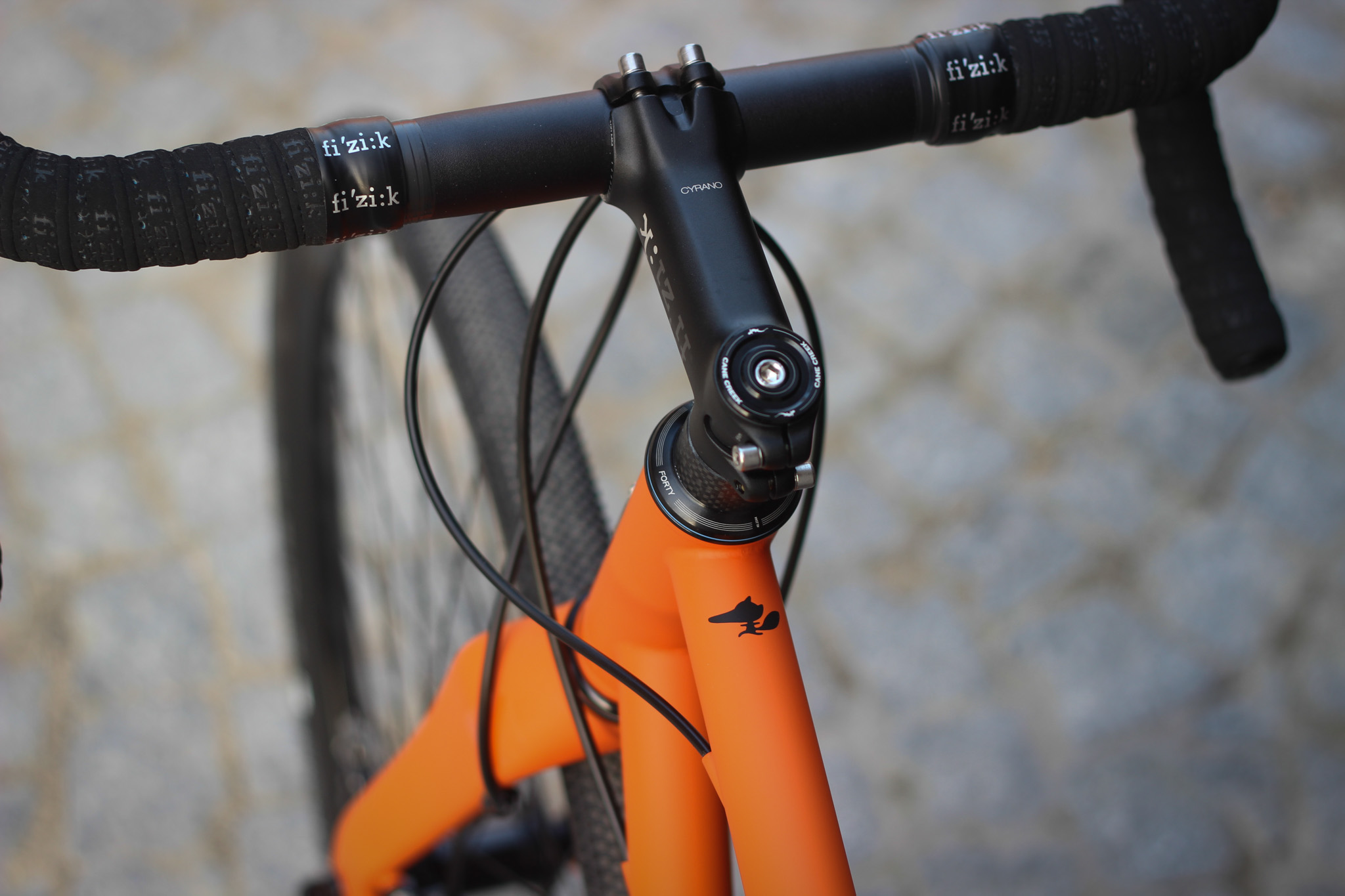

Complete Fizik at front. Super comfy bar tape with 3.5 mm thickness.

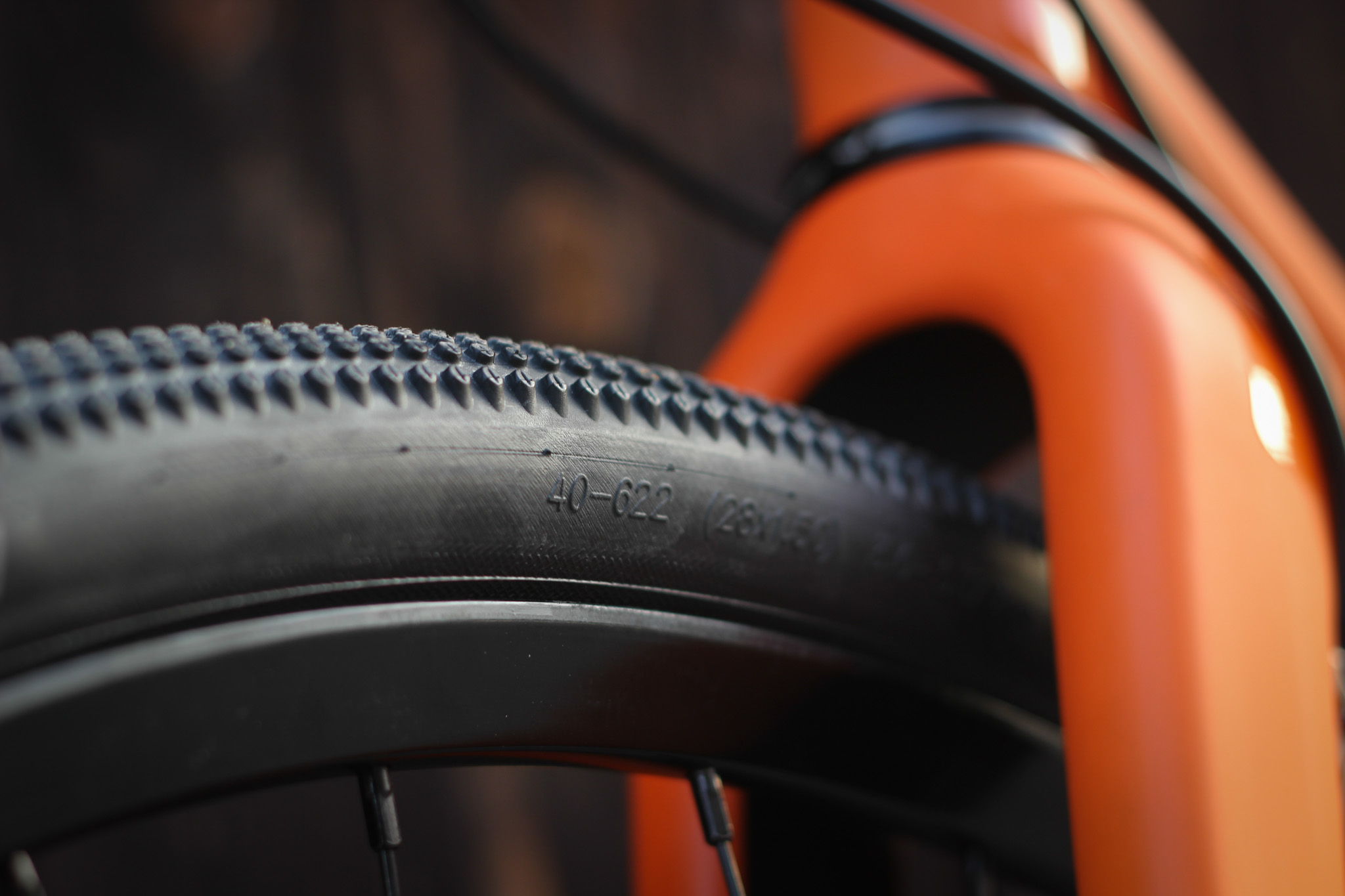

Super comfortable tires are these Schwalbe G-One 40×622 TLR and in combination with ZTR IronCross it makes so reliable tubeless combination.

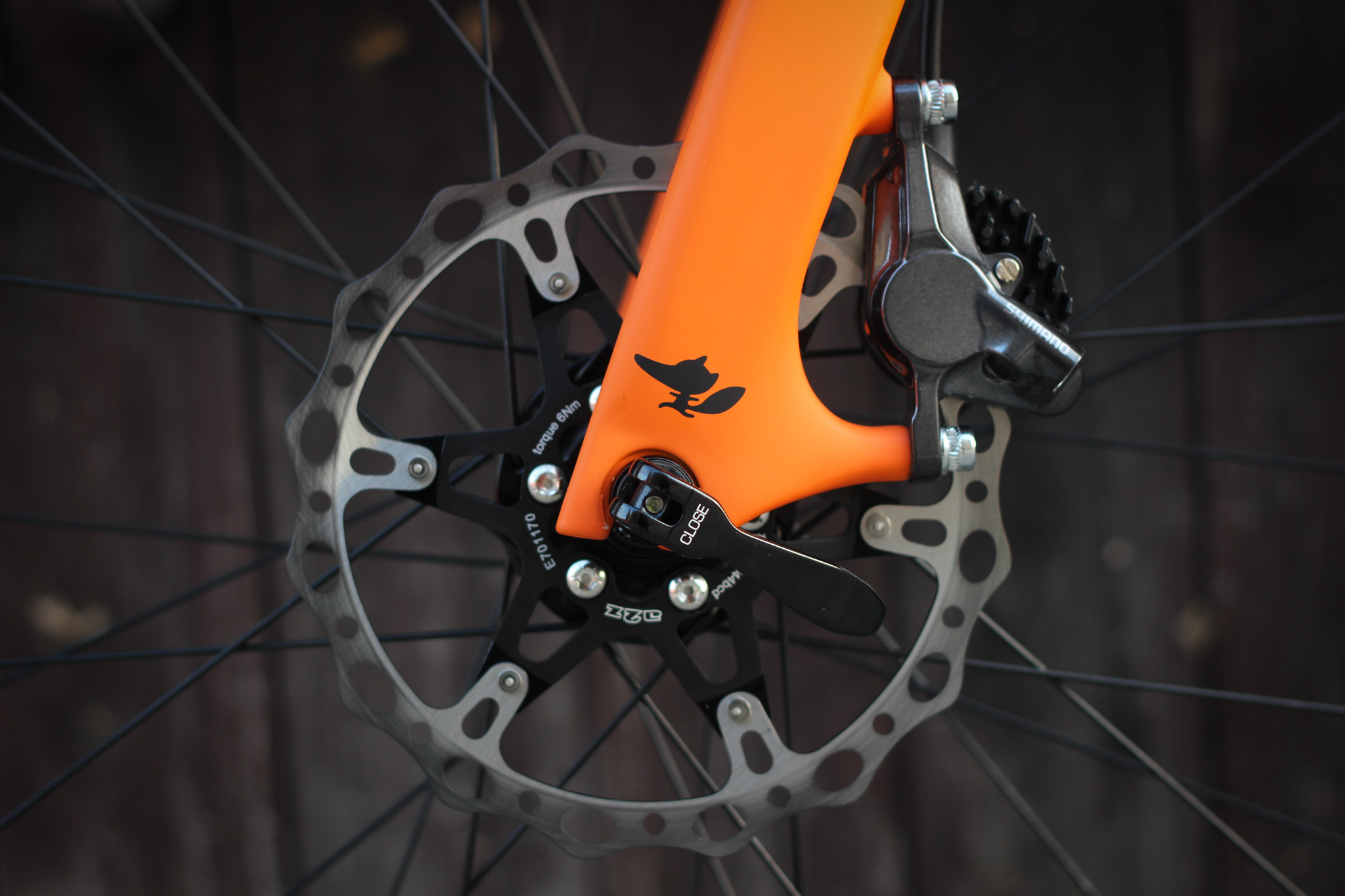

Some custom design and break pads with ice technology.

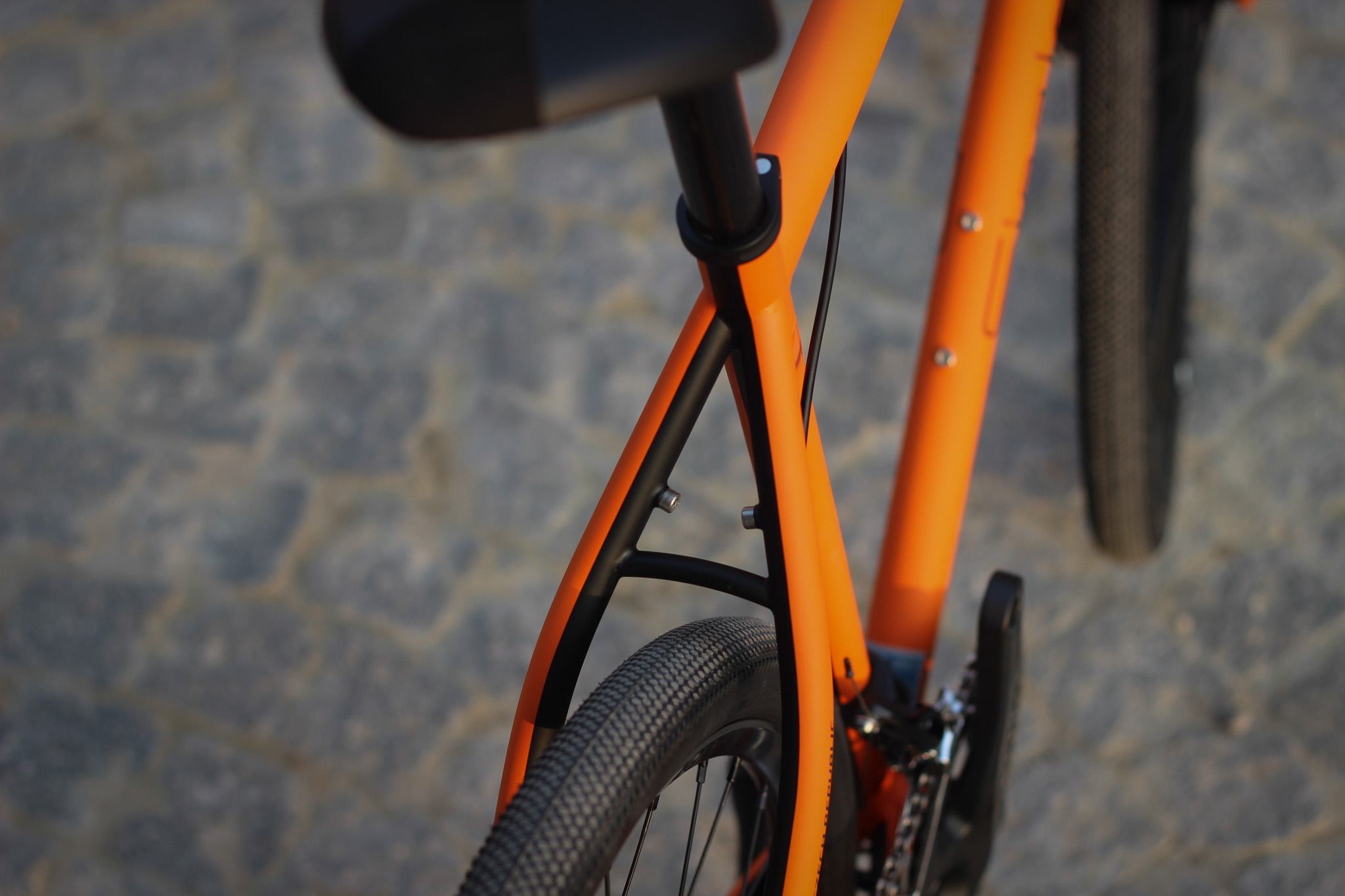

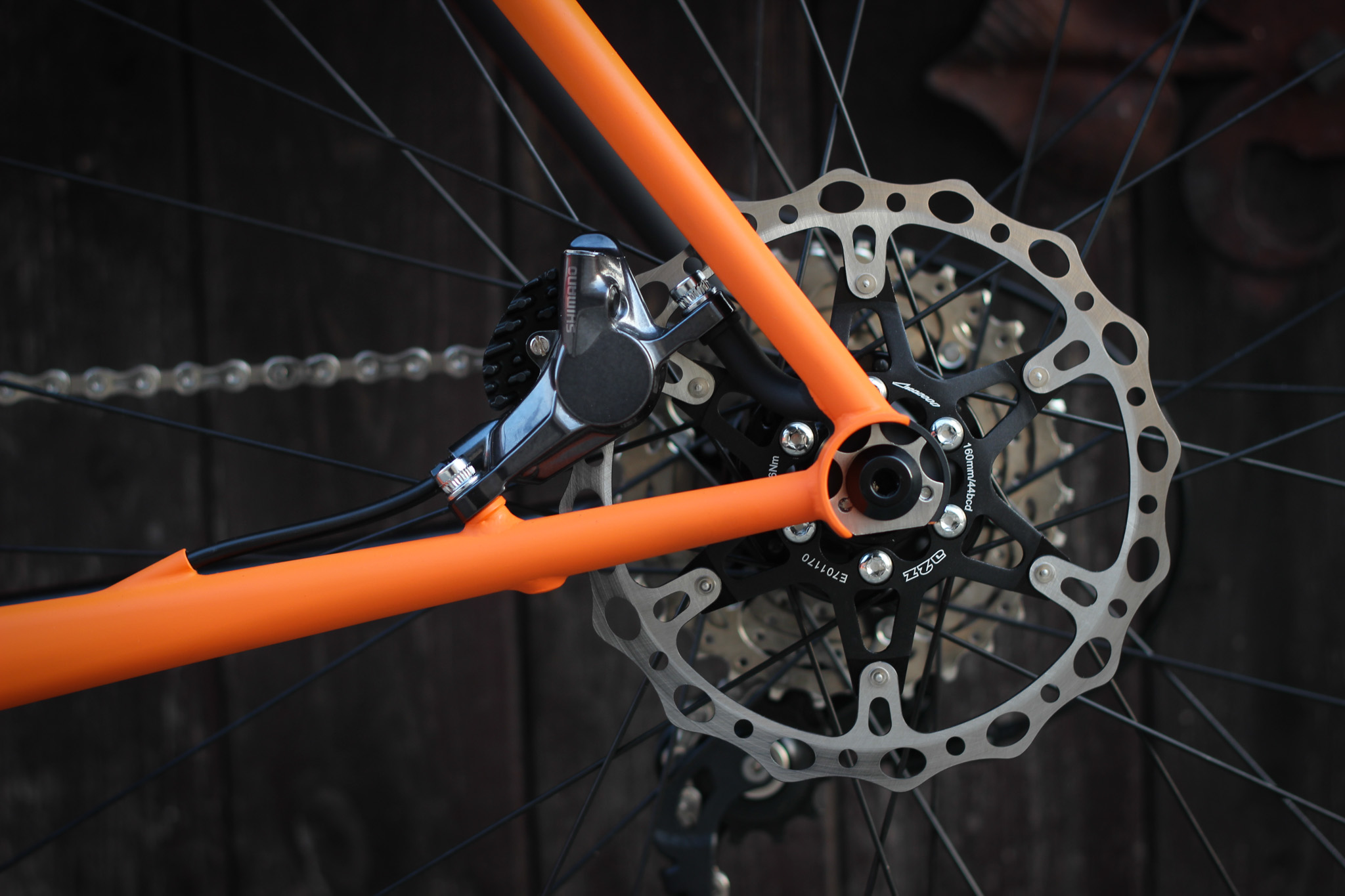

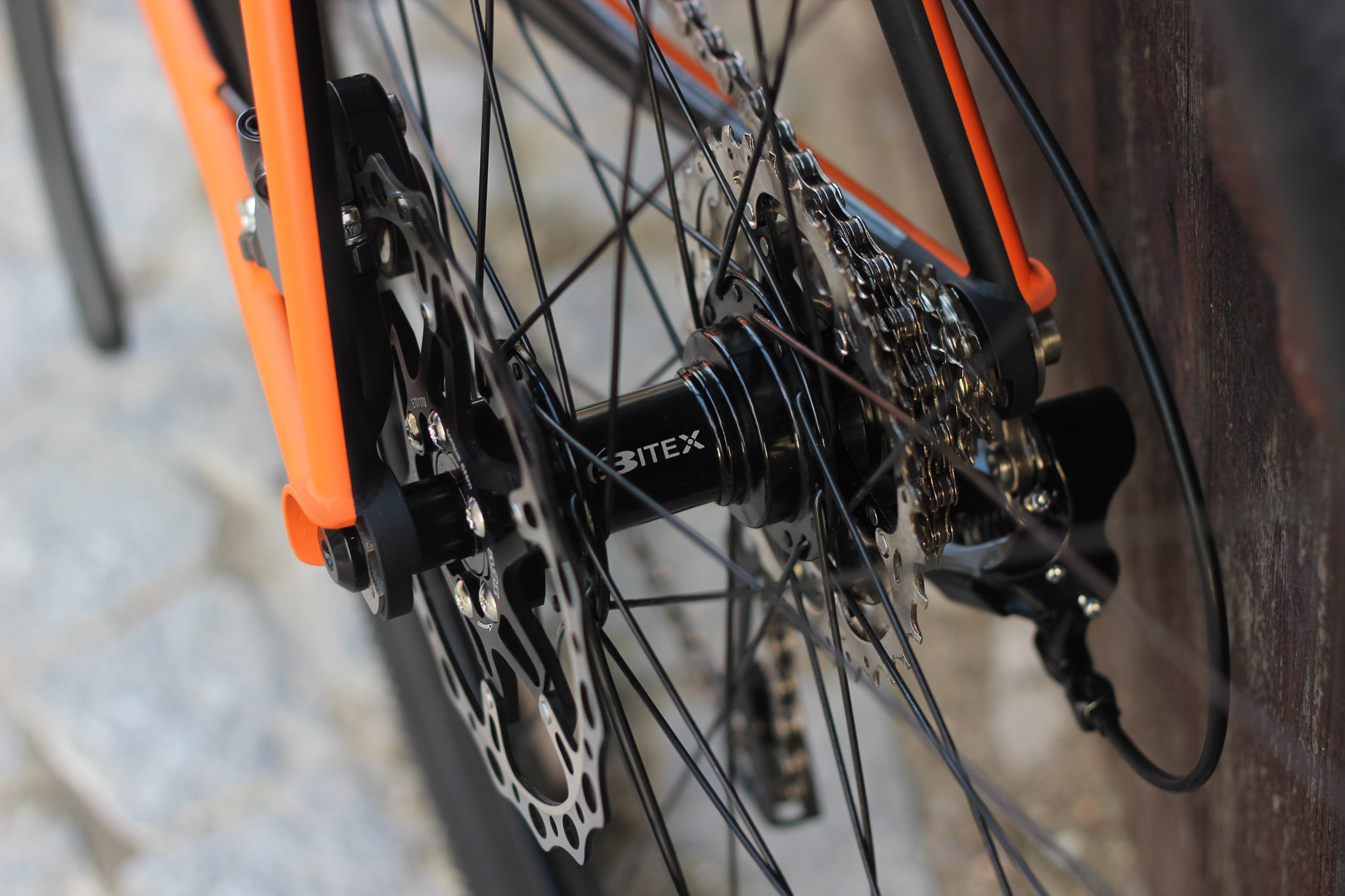

Rear caliper is inside rear triangle and there is black anodized singlebe custom rear axle.

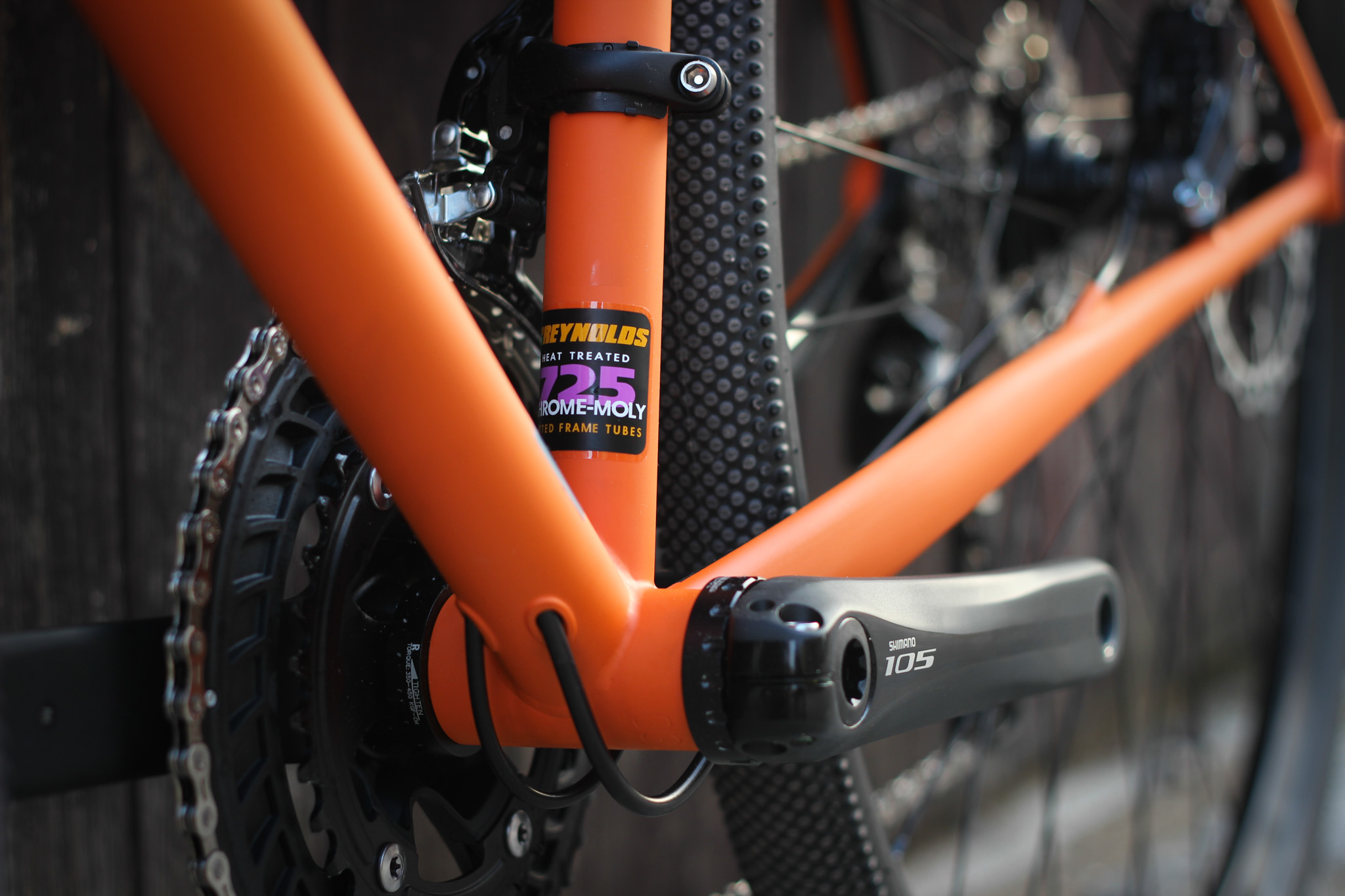

| Frame | Reynolds 725 / Dedacciai ZeroUno stays |
|---|---|
| Headset | Cane Creek 40, ZS/EC44/40 |
| Fork | Trigon XC08 |
| Breaks | Shimano BR-RS785 PM 160/160 |

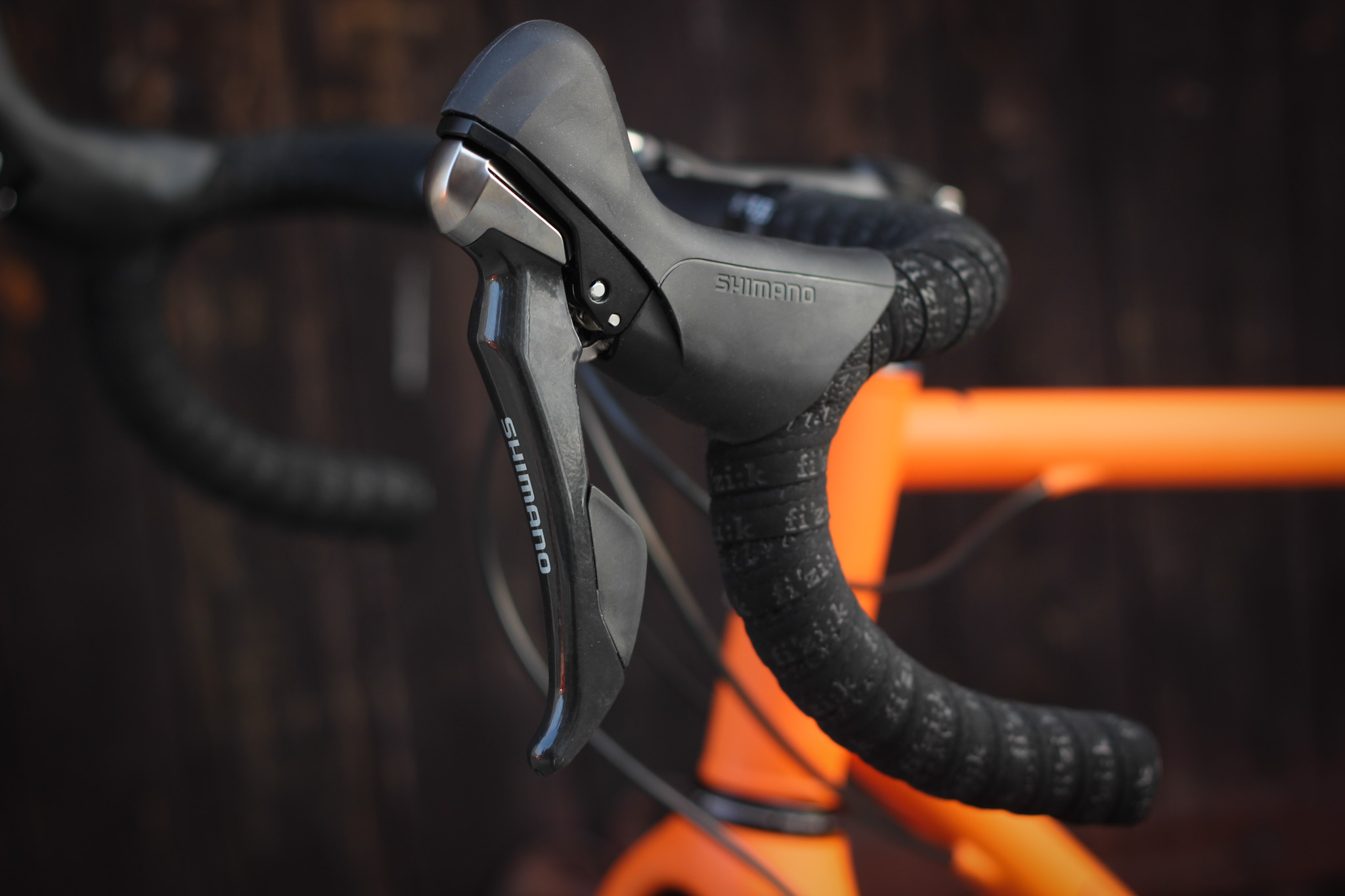

| Shifters | Shimano ST-RS685 2x11 |
| RD | Shimano 105 5800 GS |
| FD | Shimano 105 5800 clamp |
| Cassette | Shimano 105 5800 11-32 |

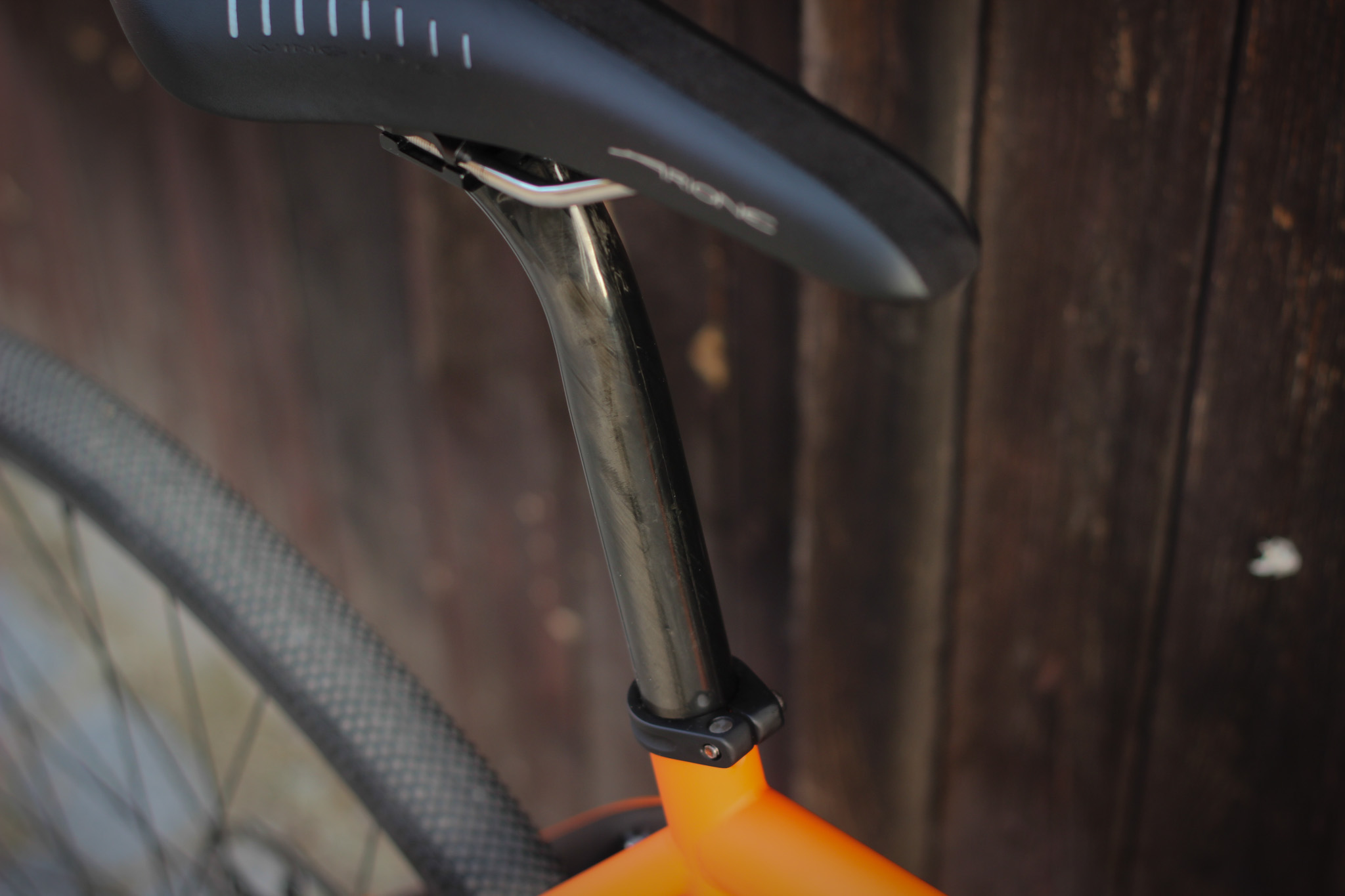

| Seatpost | TRIGON SP108TFL 27.2x350 mm UD |
| Seatpost clamp | Brand-X custom paint |
| Handlebars | Fizik Cyrano R5 44 Bull |
| Stem | Fizik Cyrano R5 +/- 7° 100 |
|---|---|
| Bar tape | FIZIK Performance Soft Touch |
| Front hub | Bitex MTF15 100x9 QR |
| Rear hub | Bitex MTR12 142x12 |
| Tires | Schhwalbe G-One Allround 700x40c |
| Rims | ZTR IronCross 32h TLR |
| Crankset | Shimano 105 5800 Compact 172.5 |
| Saddle | Cyrano R5 44 Bull |
| Spokes | Pillar PDB 2,0/1,8 |
| Weight | 9.5 kg without pedals |

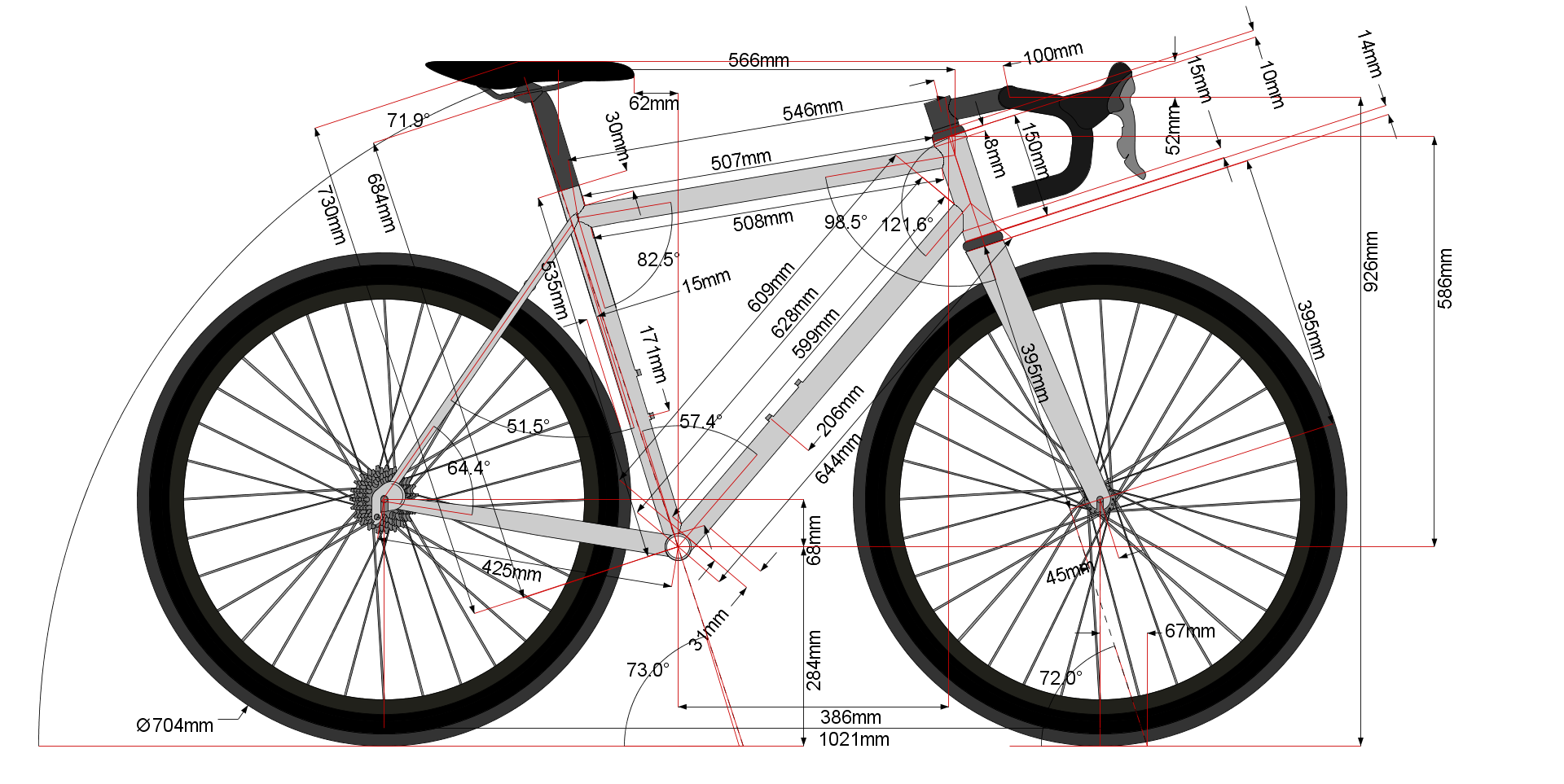

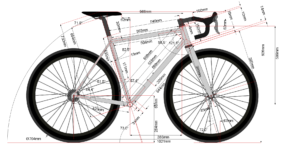

| TTA (B) | 546 mm |
|---|---|
| TTE (C) | 566 mm |
| HT (D) | 150 mm |
| ST (A) | 535 mm |
| CS (E) | 425 mm |
| HA (G) | 72° |
| SA (F) | 73° |
| BB drop | - 68 mm |
| BB height | 284 mm |
| Fork AC | 395 mm |
| Wheelbase | 1021 mm |
