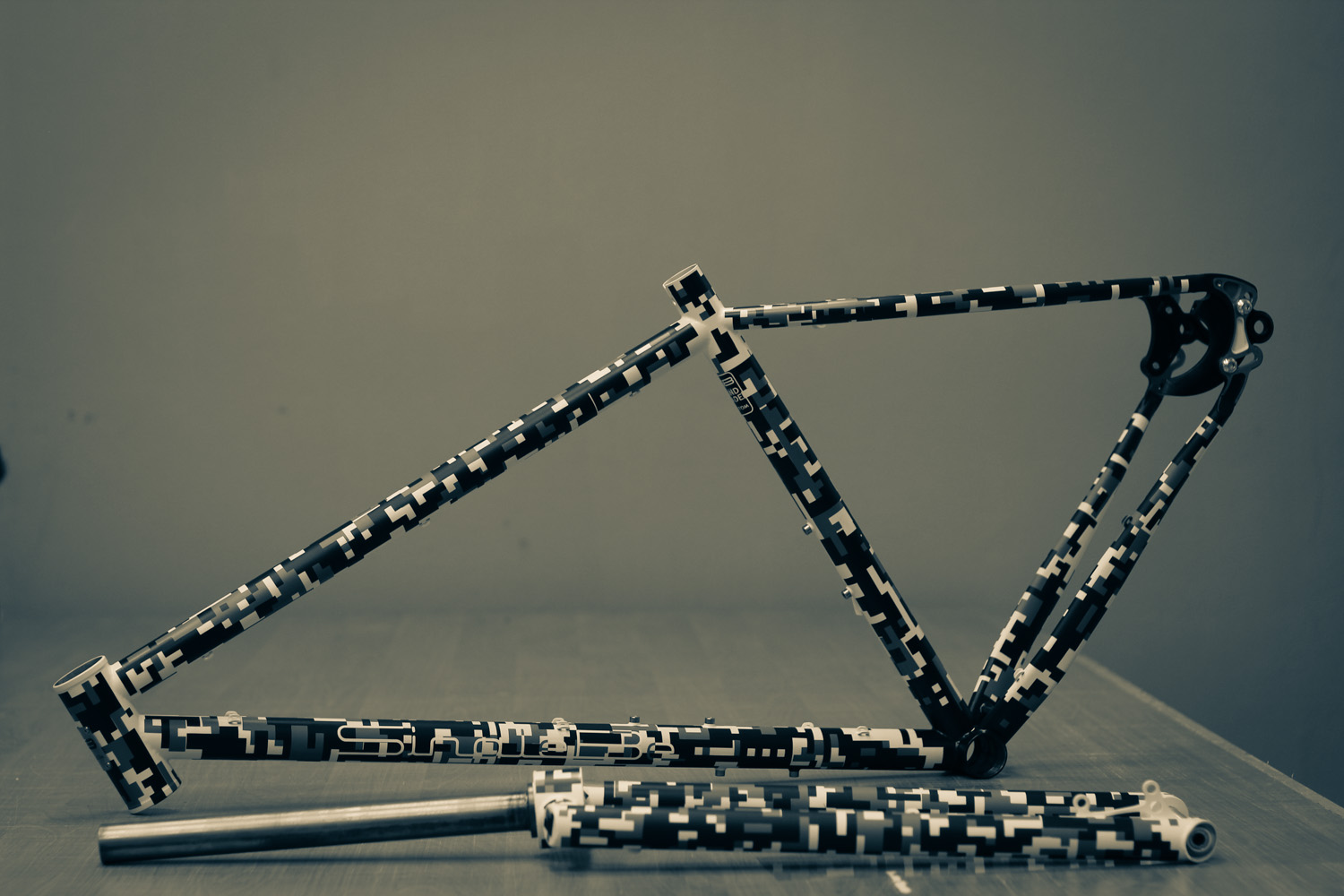

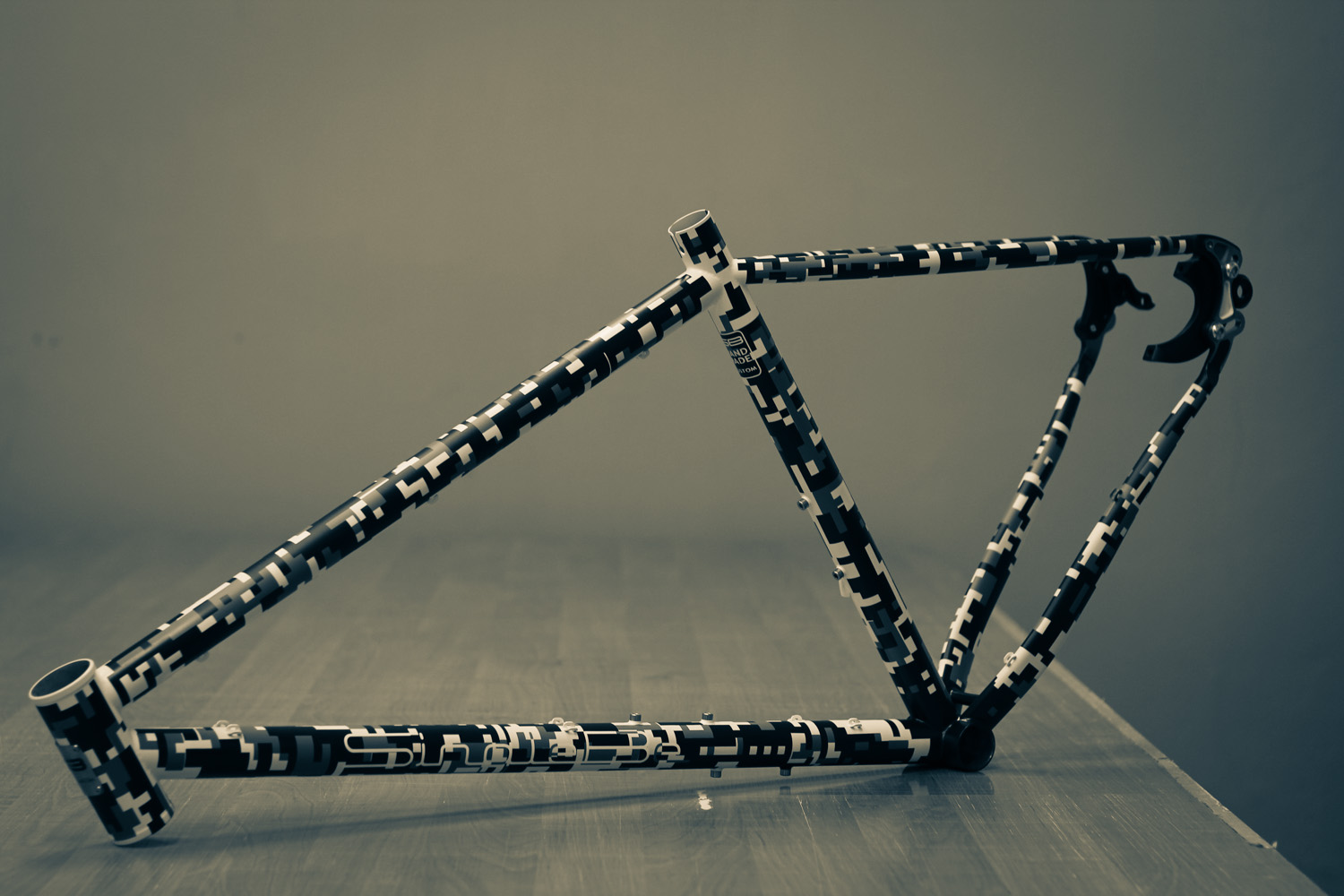

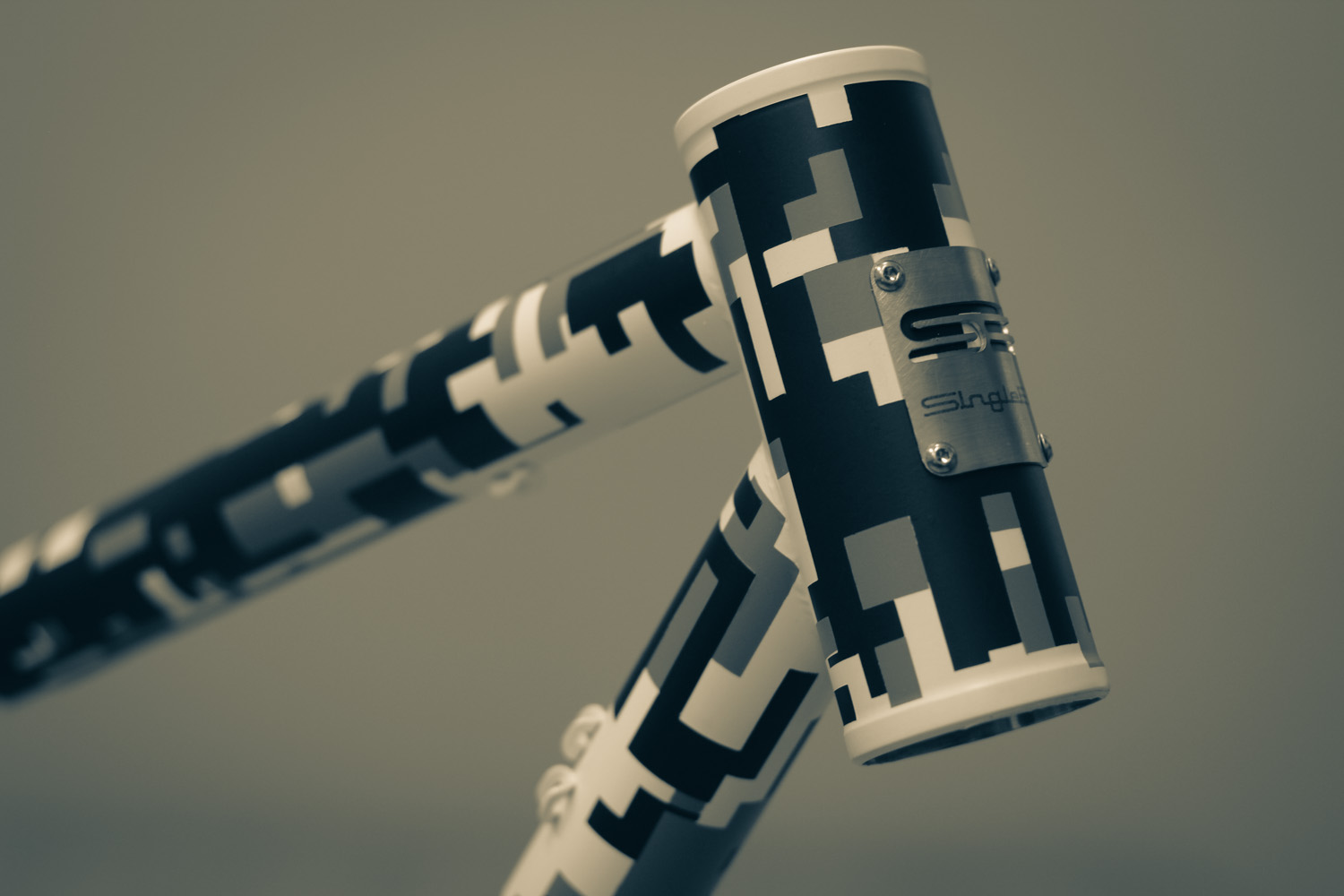

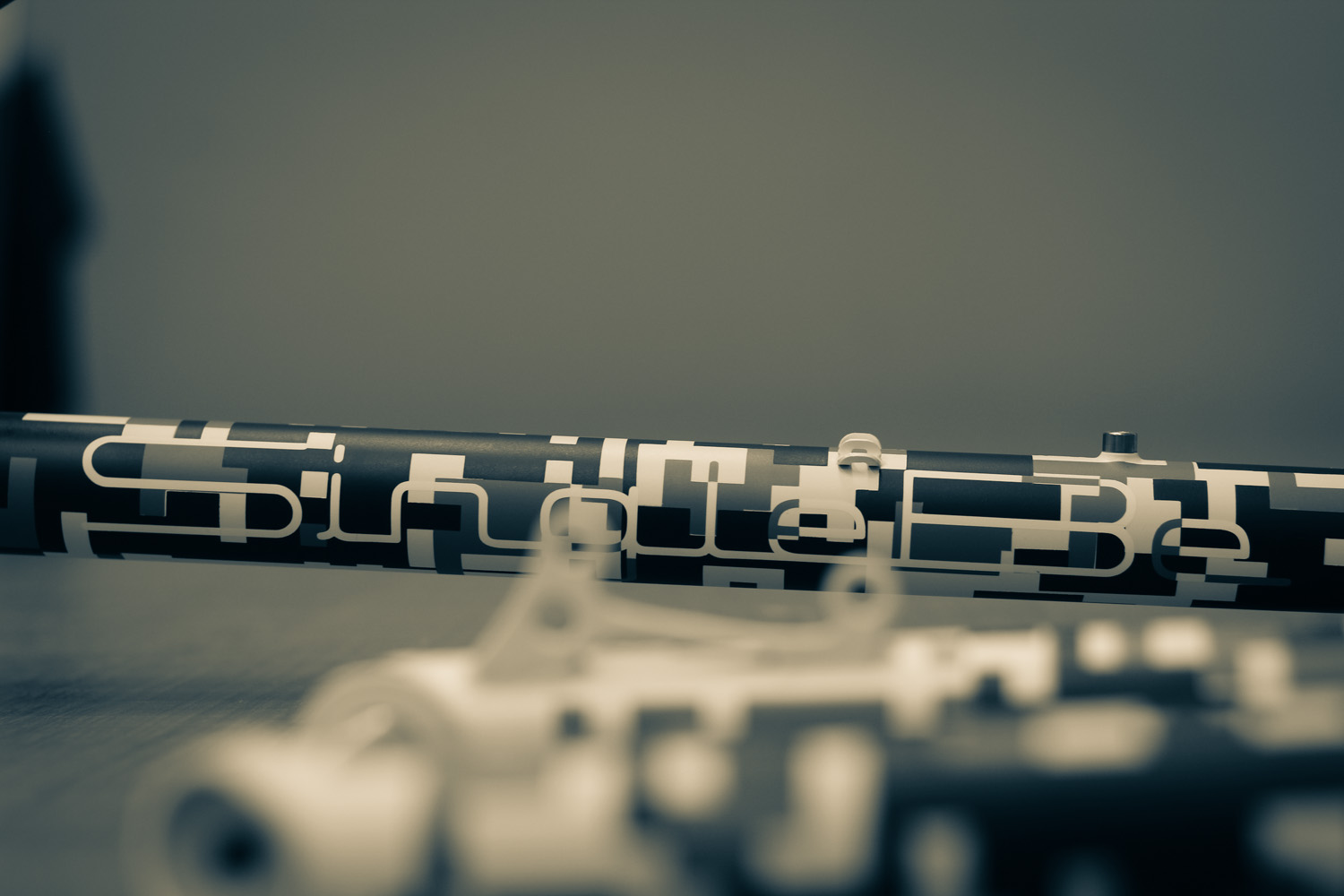

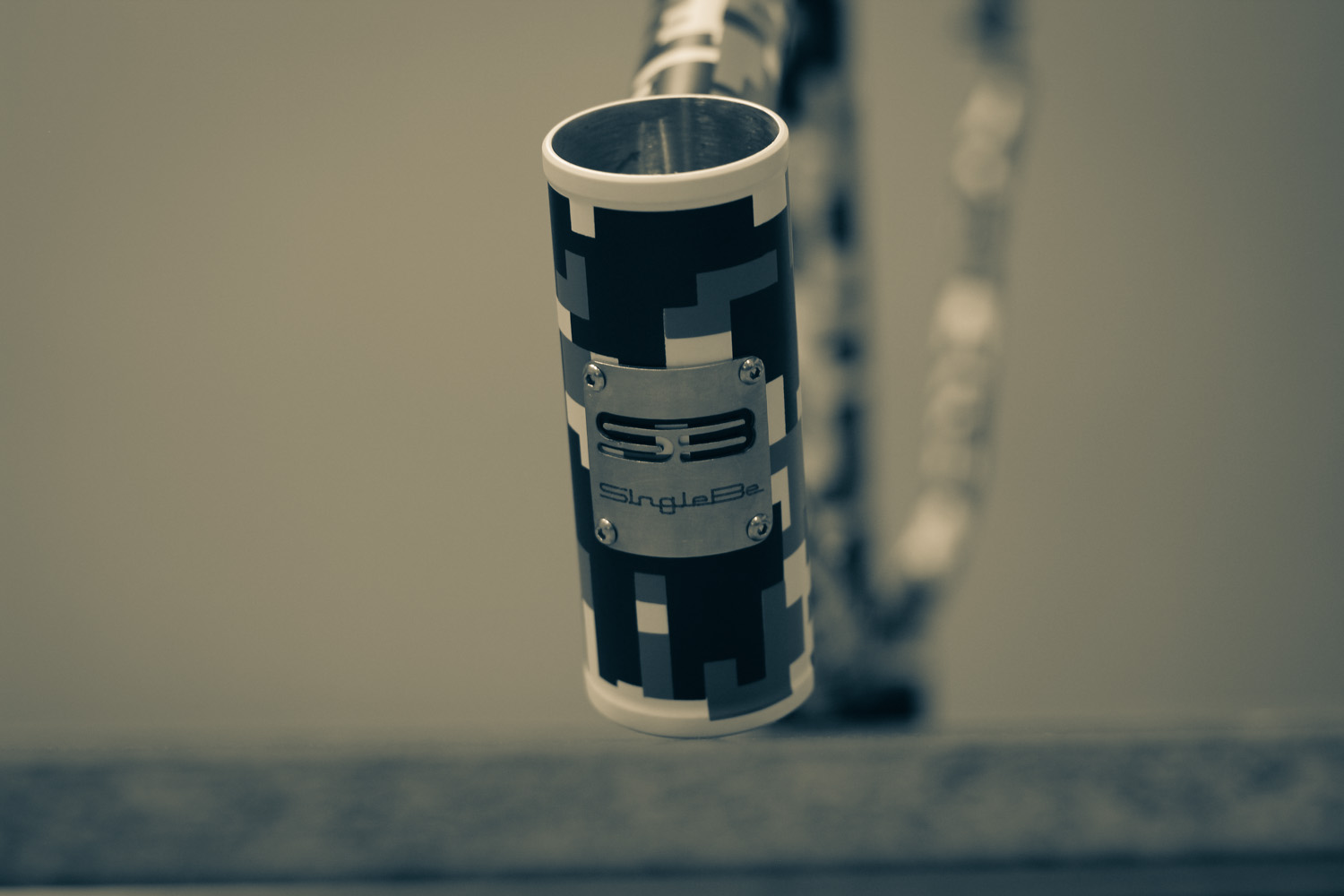

Brilliant result after 22 hours in the paintshop : )

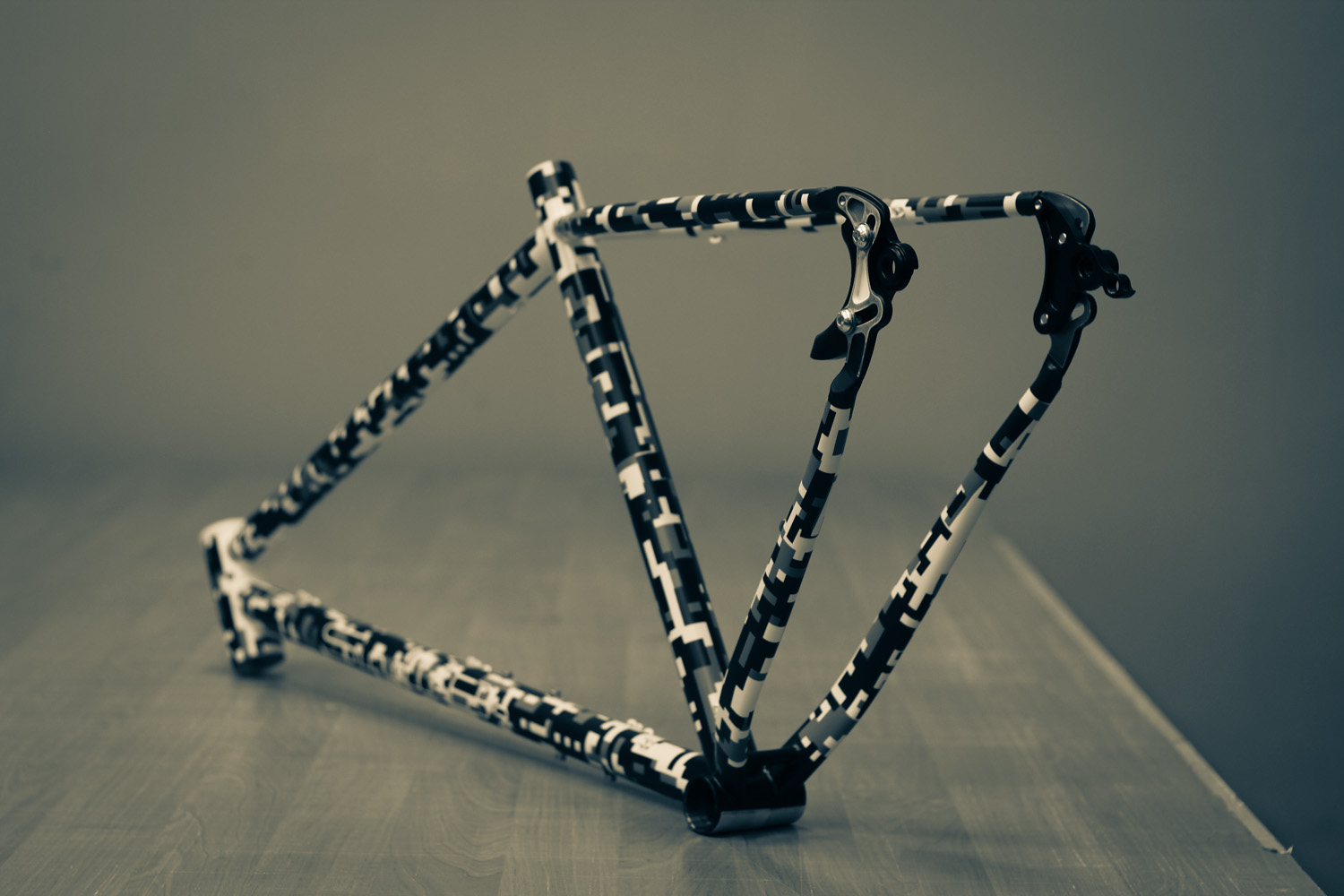

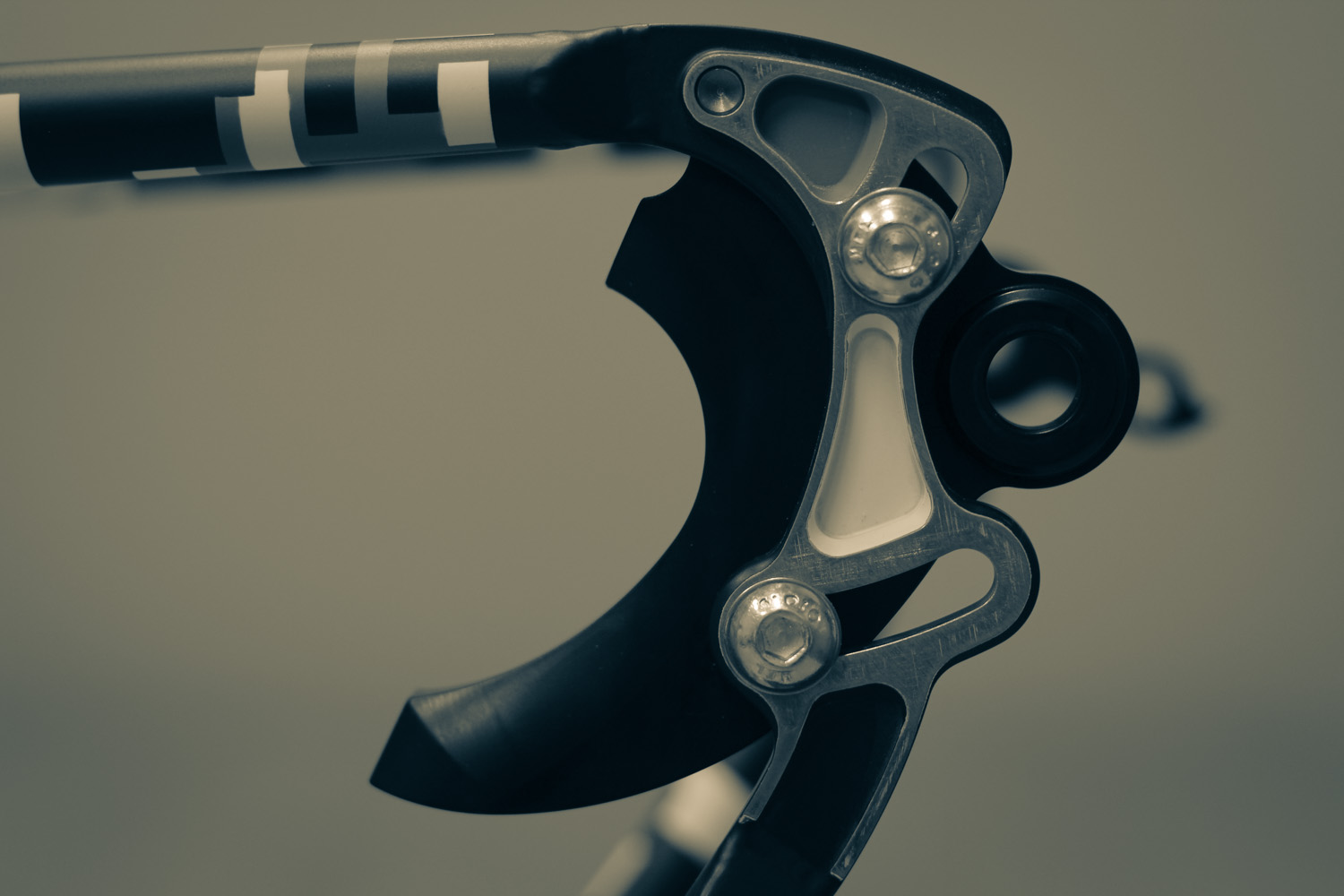

A customer wanted an adjustable Rocker dropouts. These allow to switch rear wheels and a drive style from 11sp to a singlespeed.

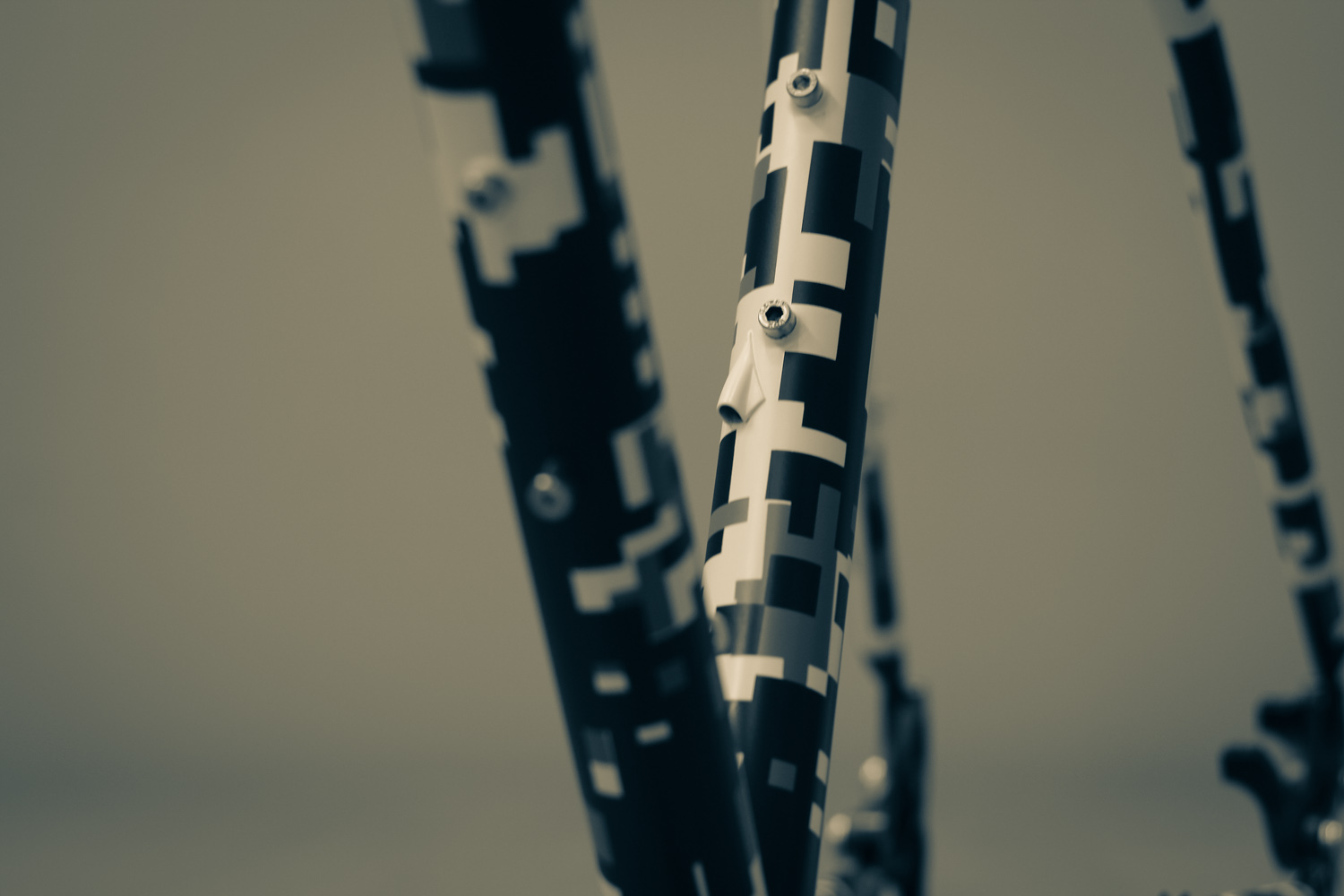

Ready for a dropper post with internal cable routings.

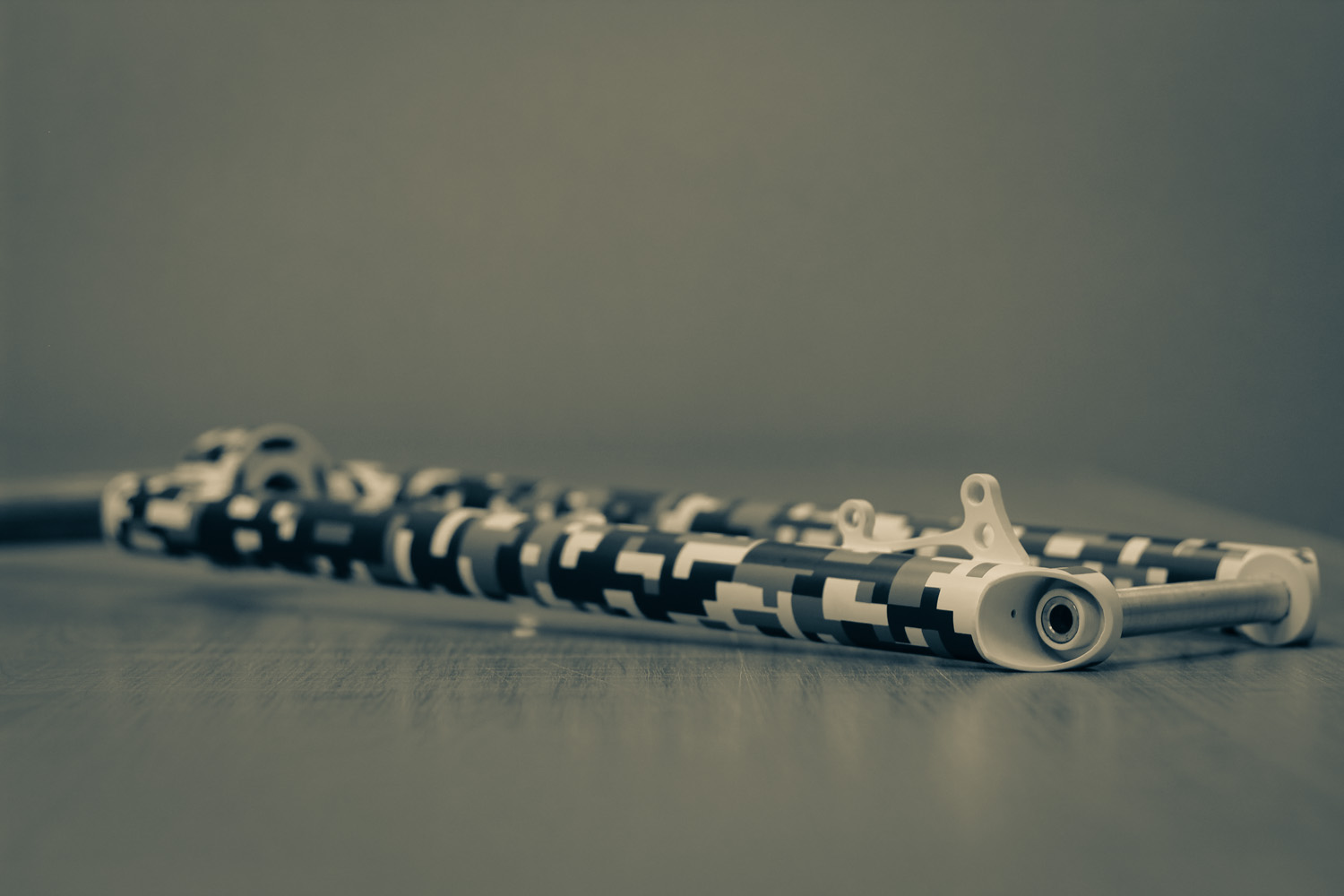

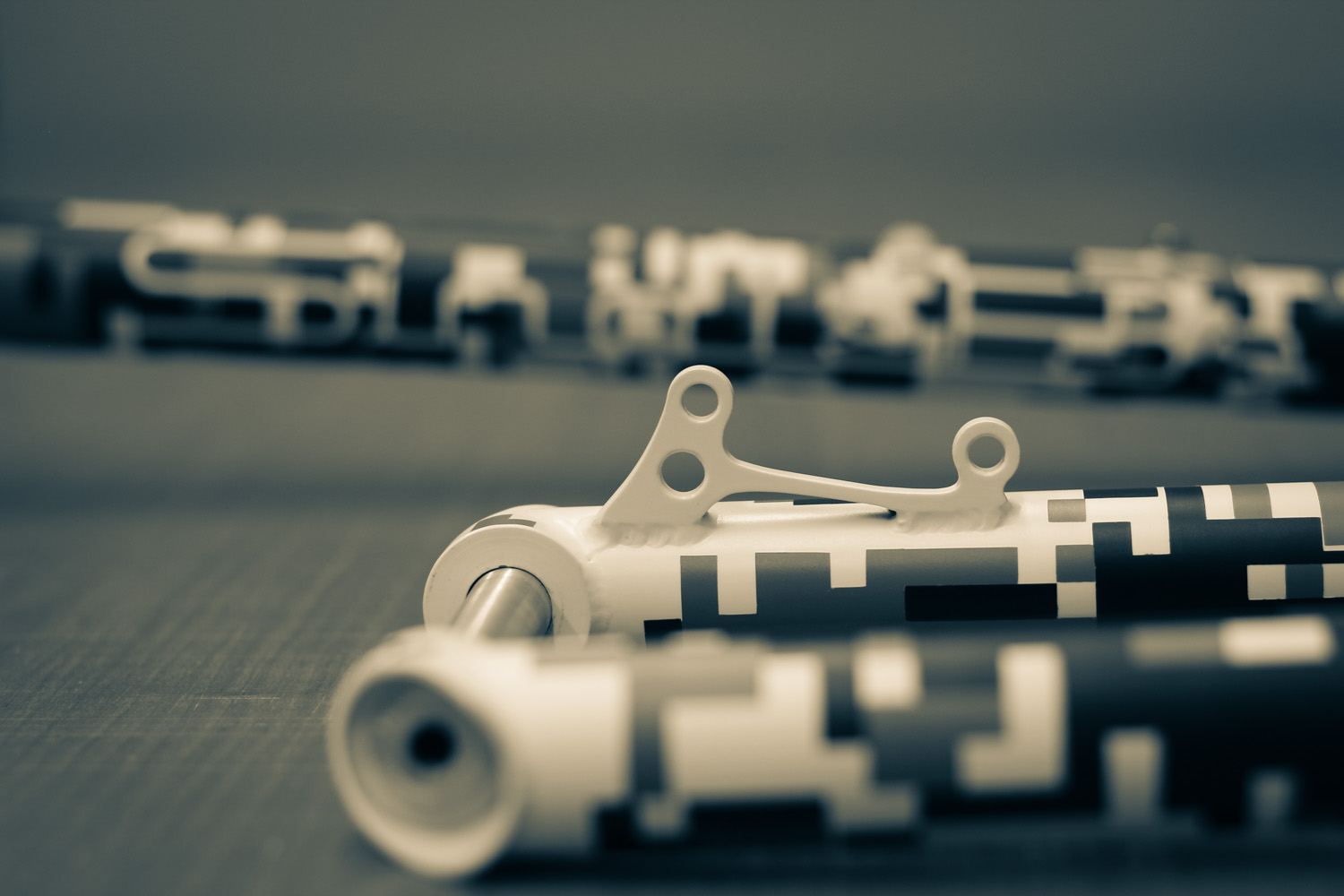

Rigid singlebe fork with a thru axle 100×15 mm
| Frame | Reynolds 853 (Dedacciai ZeroUno stays) |
|---|---|
| Headset | IETS44 |
| BB shell | BSA, 73 |
| Cable routings | external, internal for a dropper post |
| Tire clearance | 29x2.3 |
|---|---|
| Dropouts | Paragon Rocker |
| Drive compatibility | all types, depends on aluminium inserts |
| Color | Digitalized Camouflage |

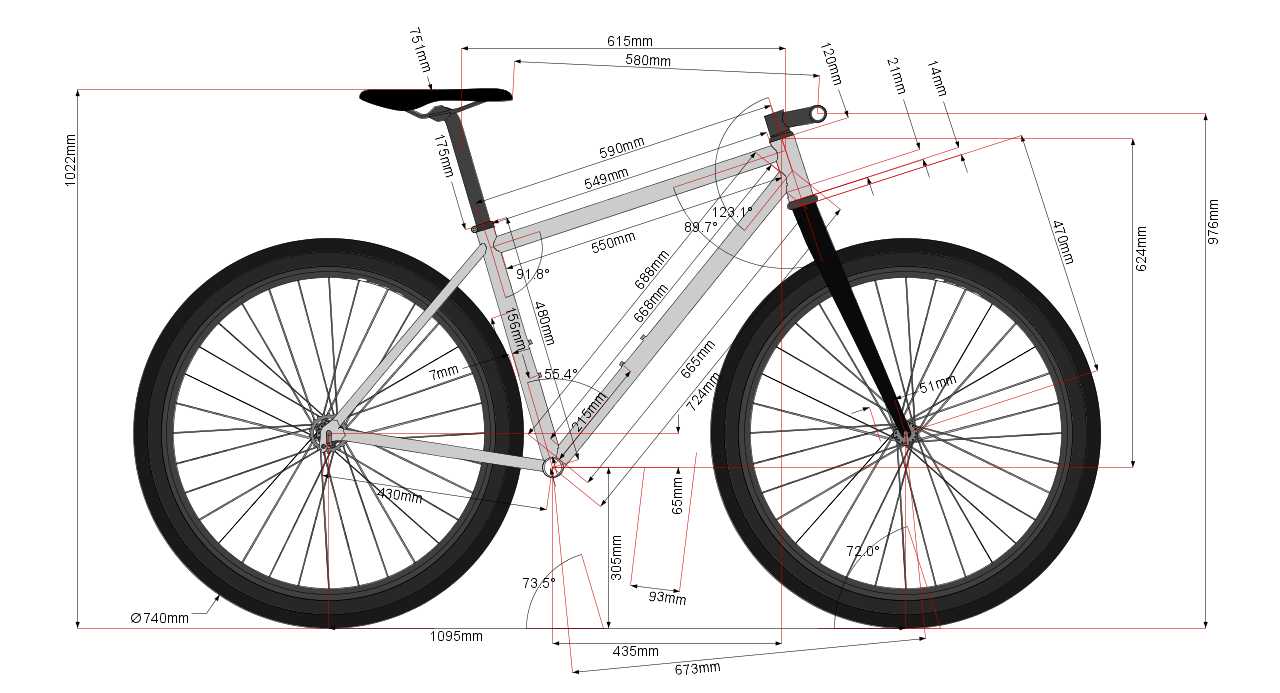

| TTA (B) | 590 mm |
|---|---|
| TTE (C) | 615 mm |
| HT (D) | 120 mm |
| ST (A) | 480 mm |
| CS (E) | min 430 mm |
| HA (G) | 72° |
| SA (F) | 73.5° |
| BB drop | - 65 mm |
| BB height | 305 mm |
| Fork length | 470 mm |
| Wheelbase | 1095 mm |
