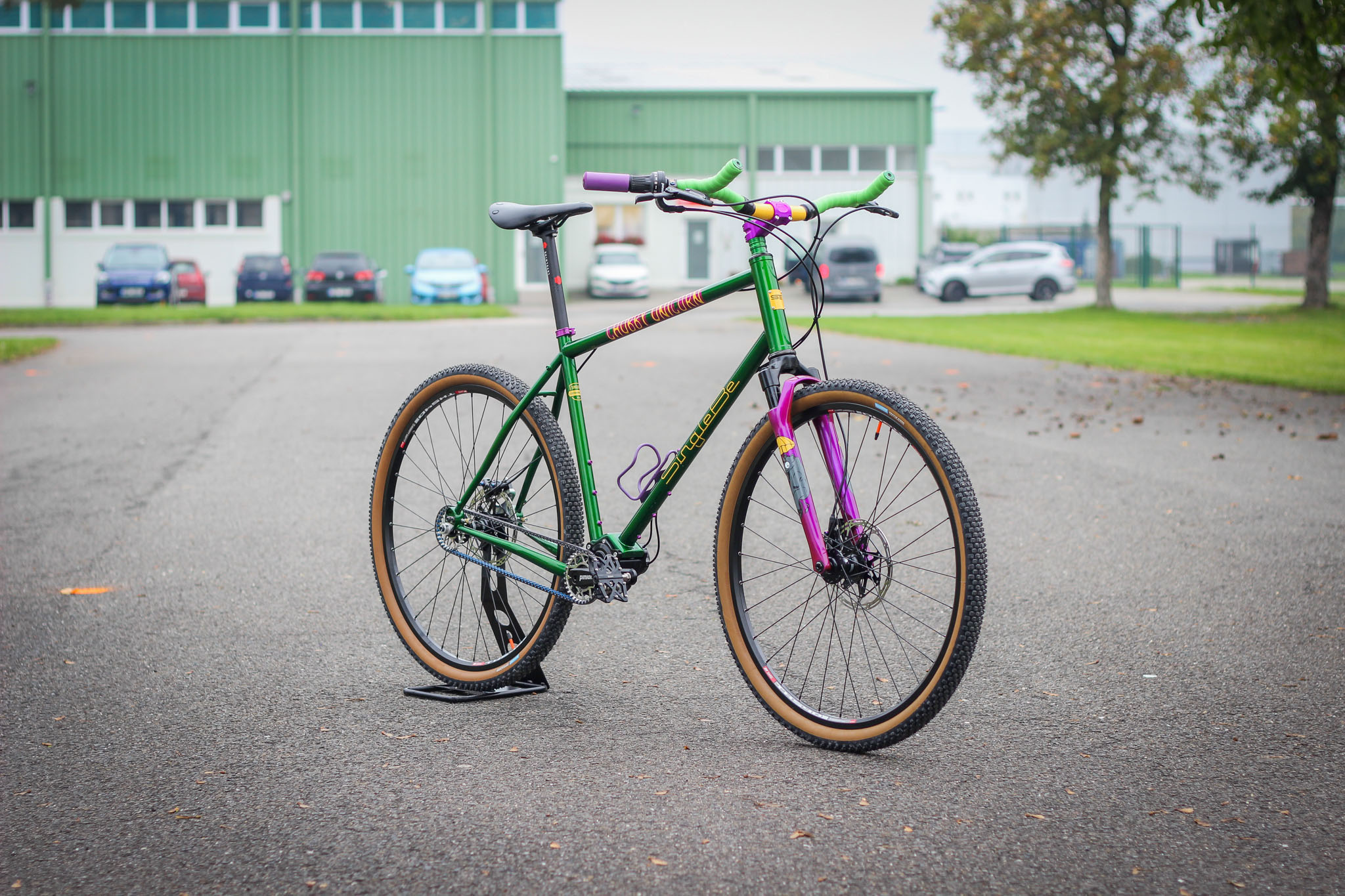

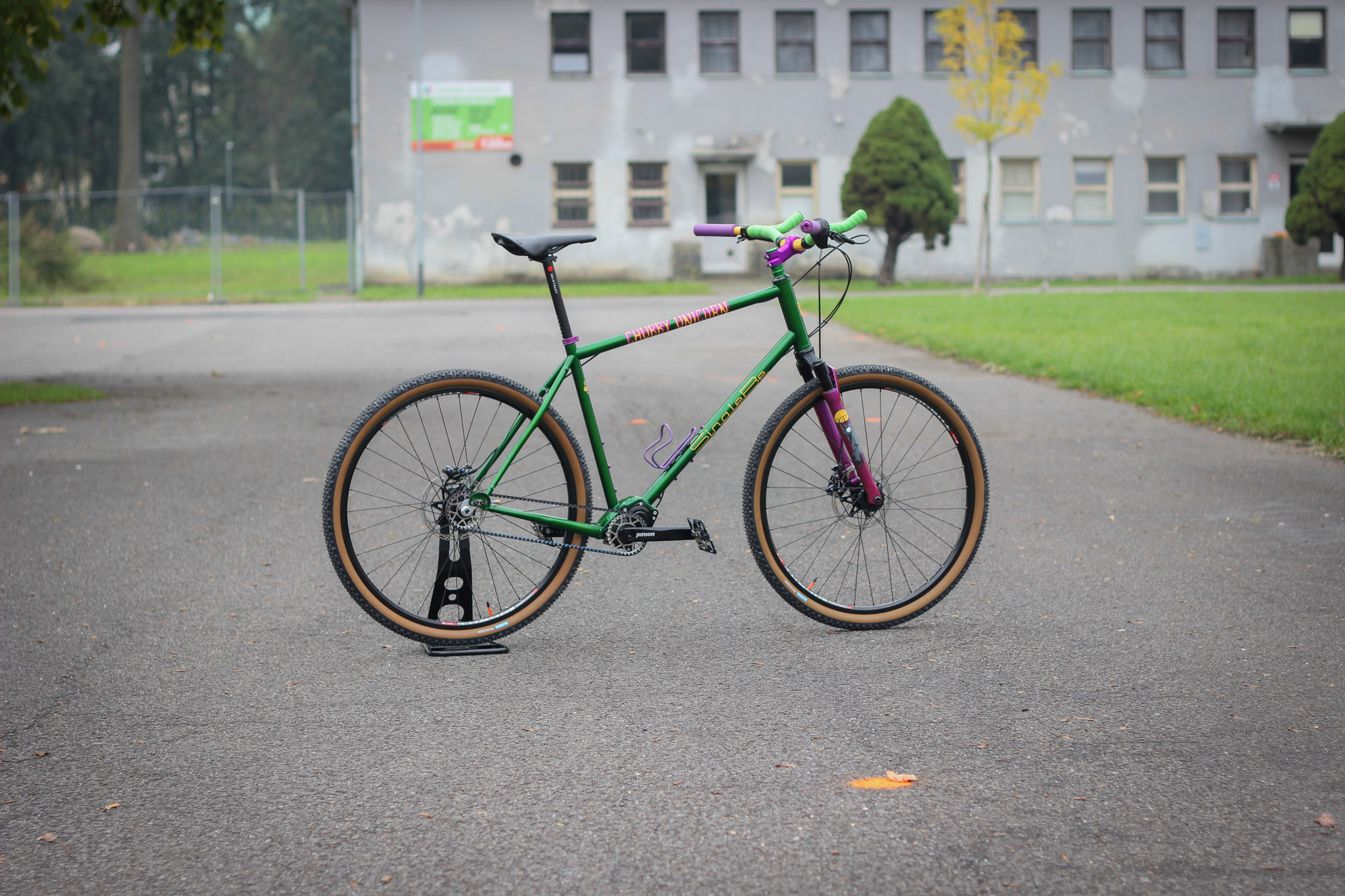

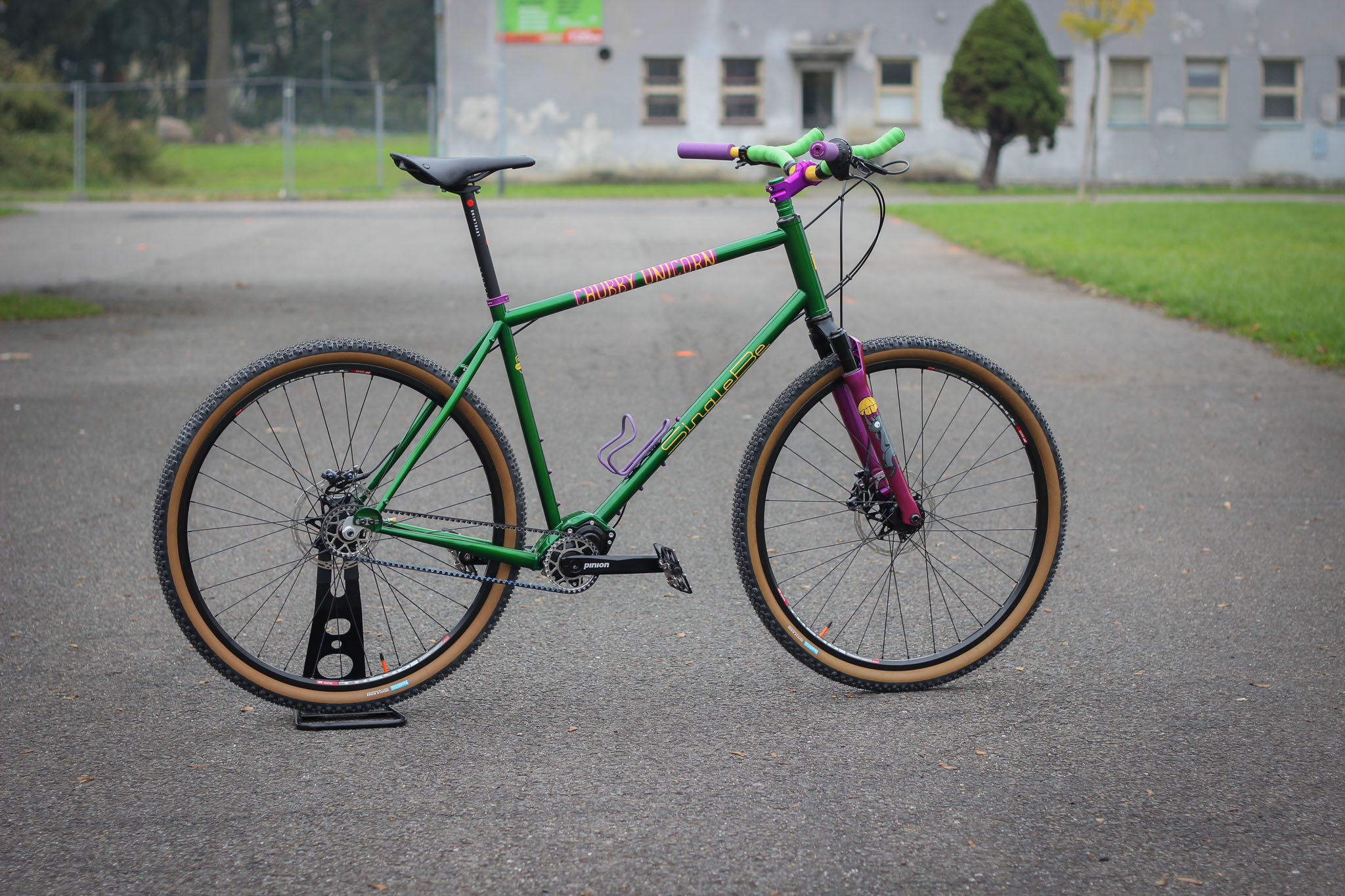

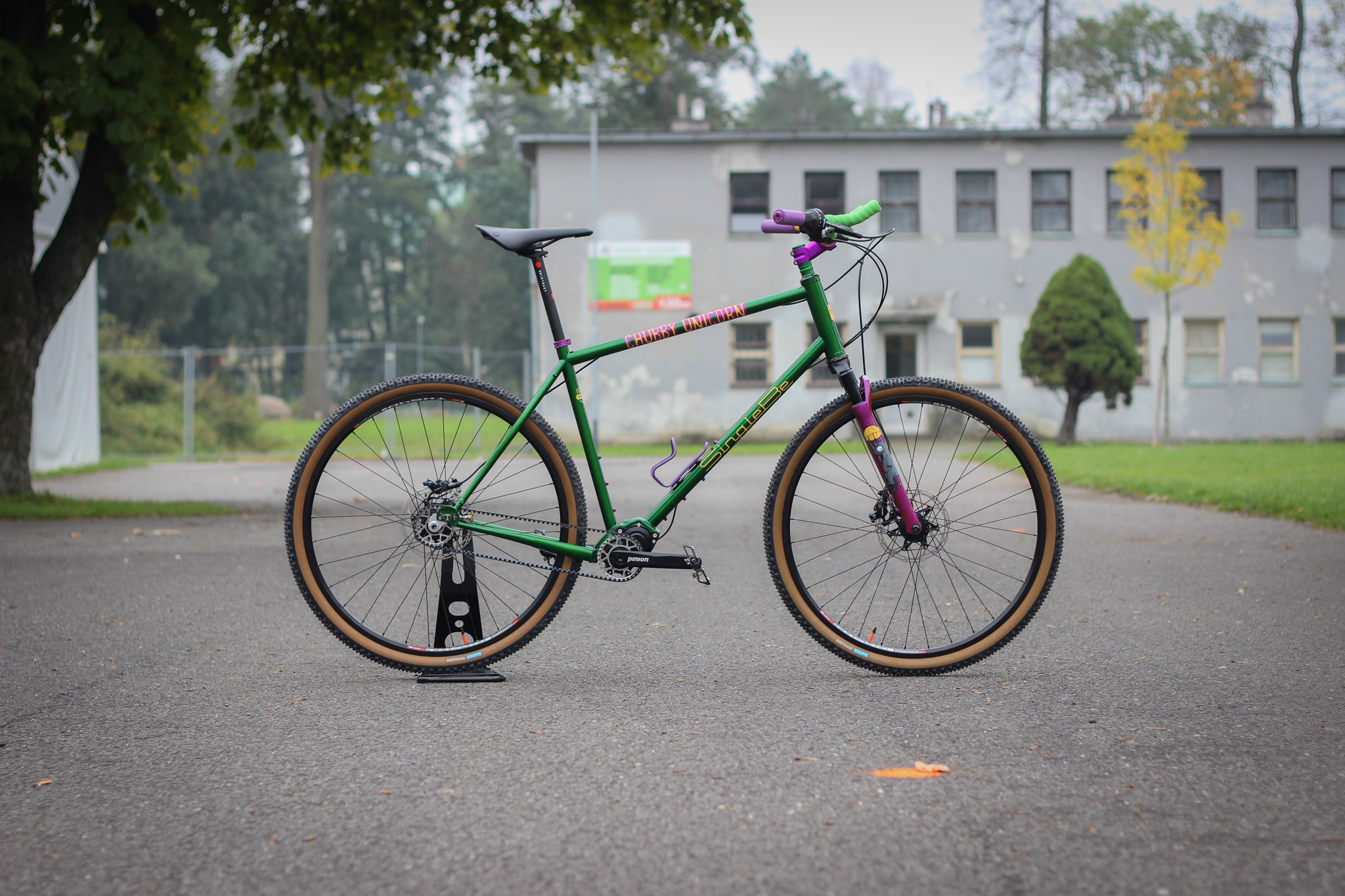

Custom gravel bike with uncommon bars and with Pinion P1.18 gearbox.

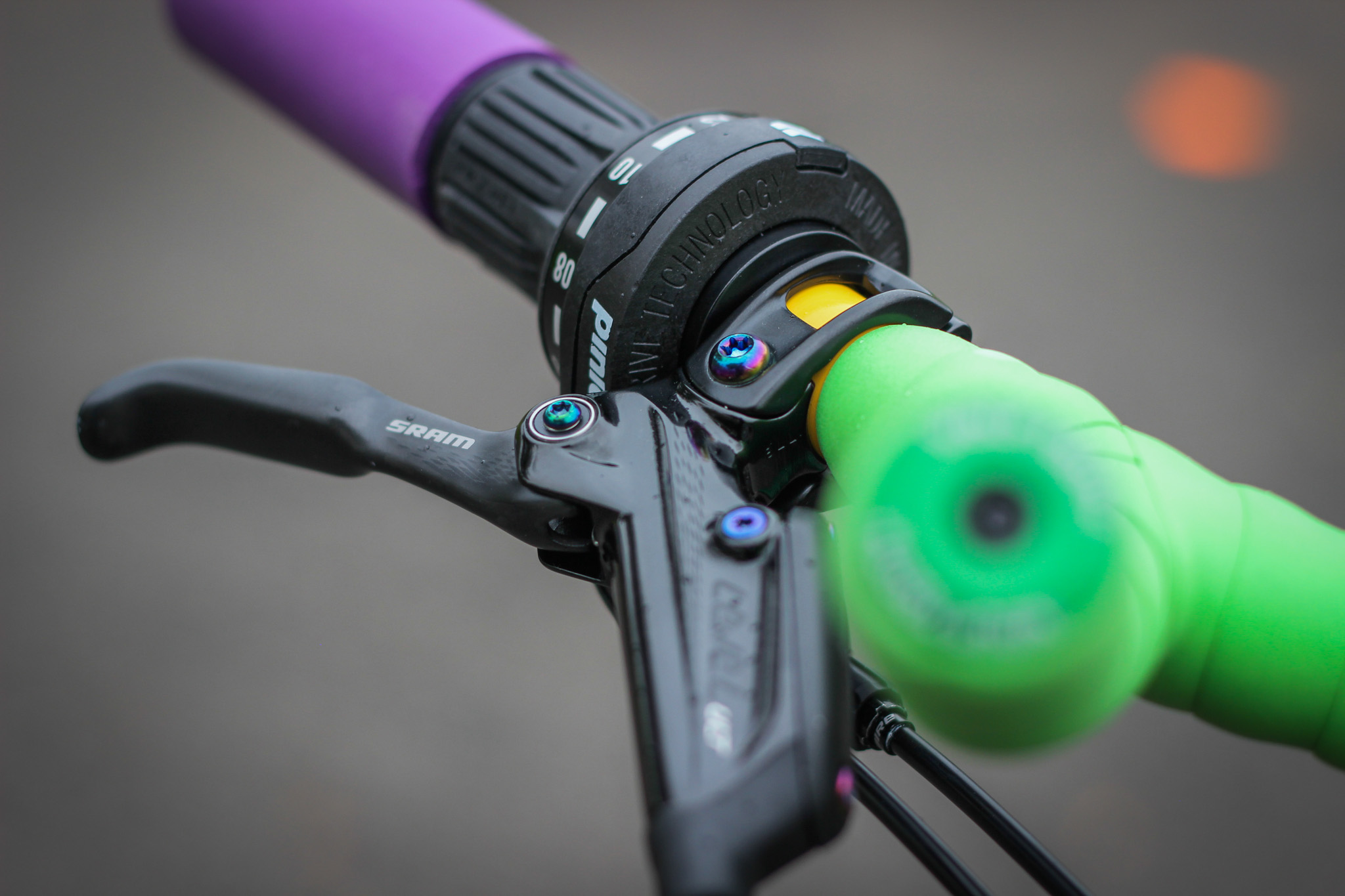

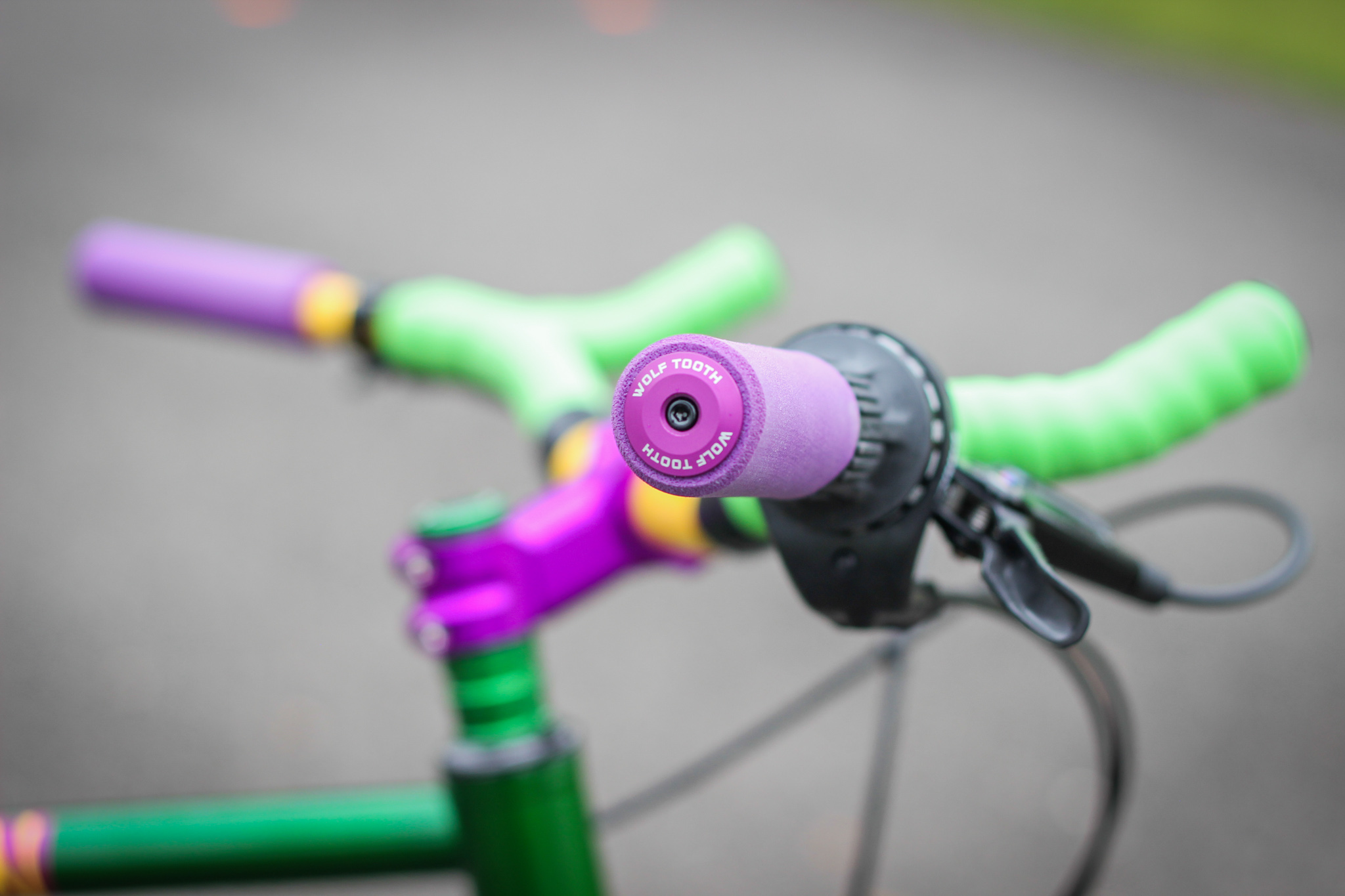

Pinion grip shift shifter. Sram brakes in this top model have nice rainbow Ti bolts.

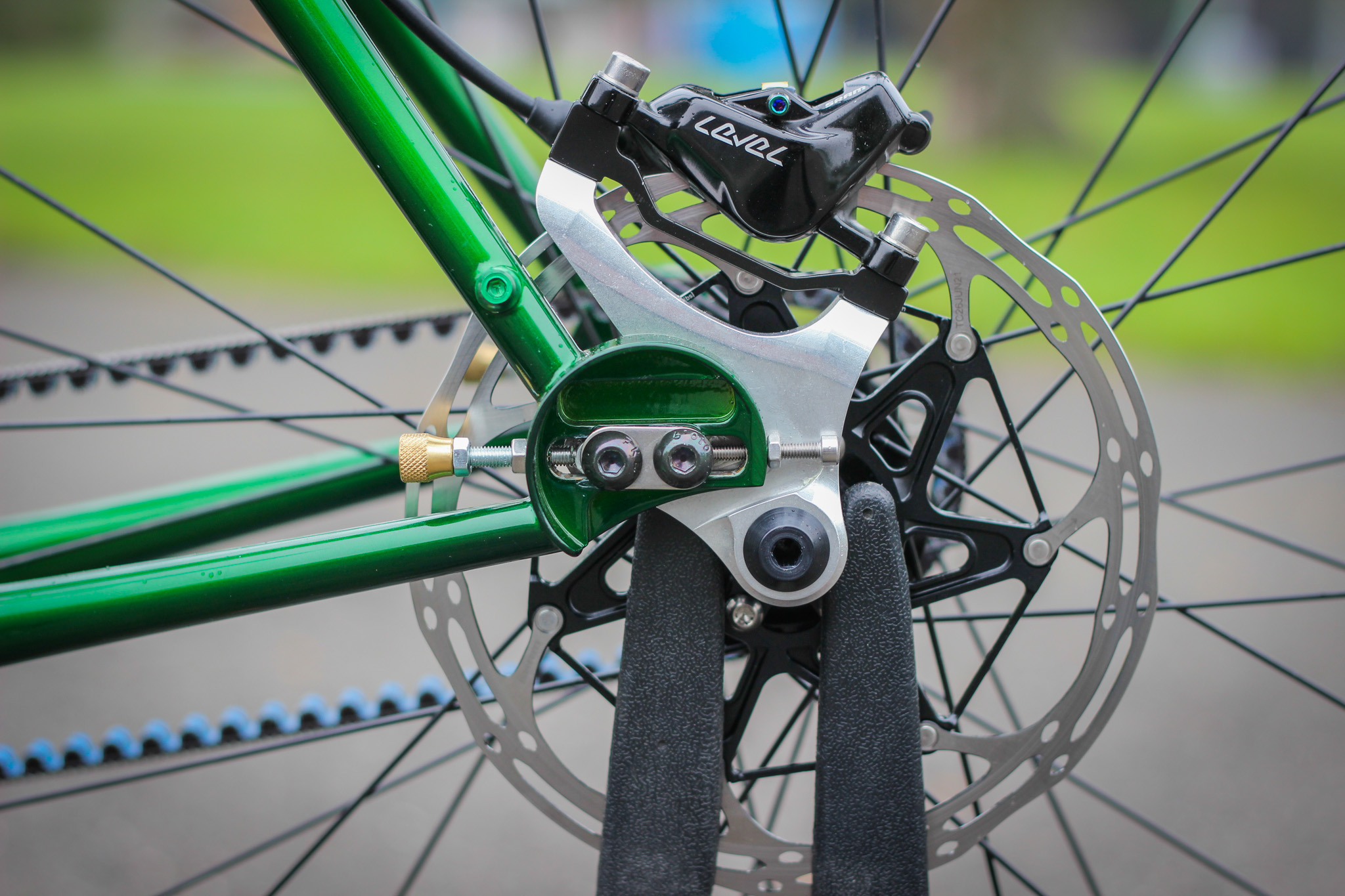

Our own sliding dropouts with ALU inserts from Paragon Machine Works.

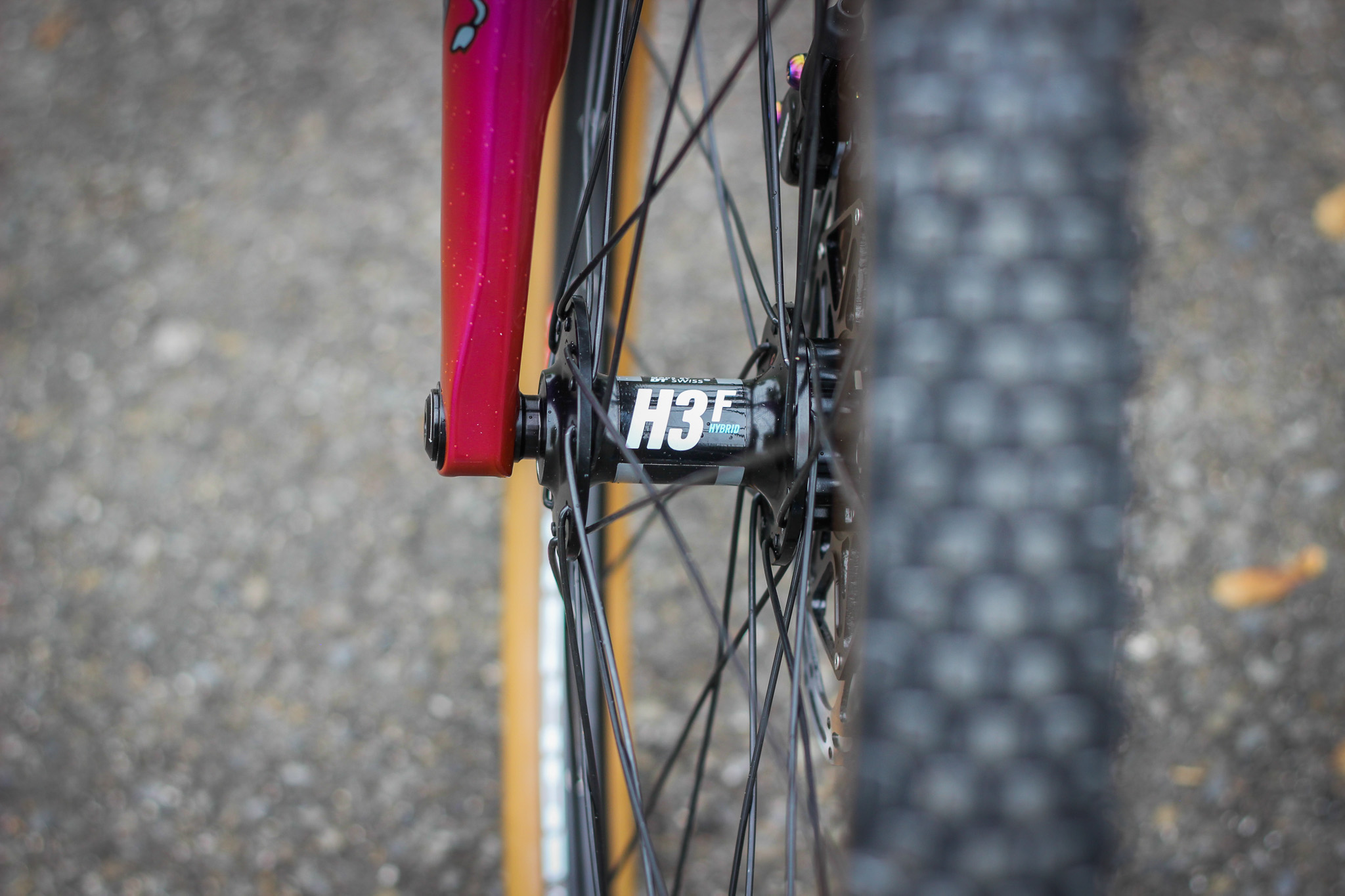

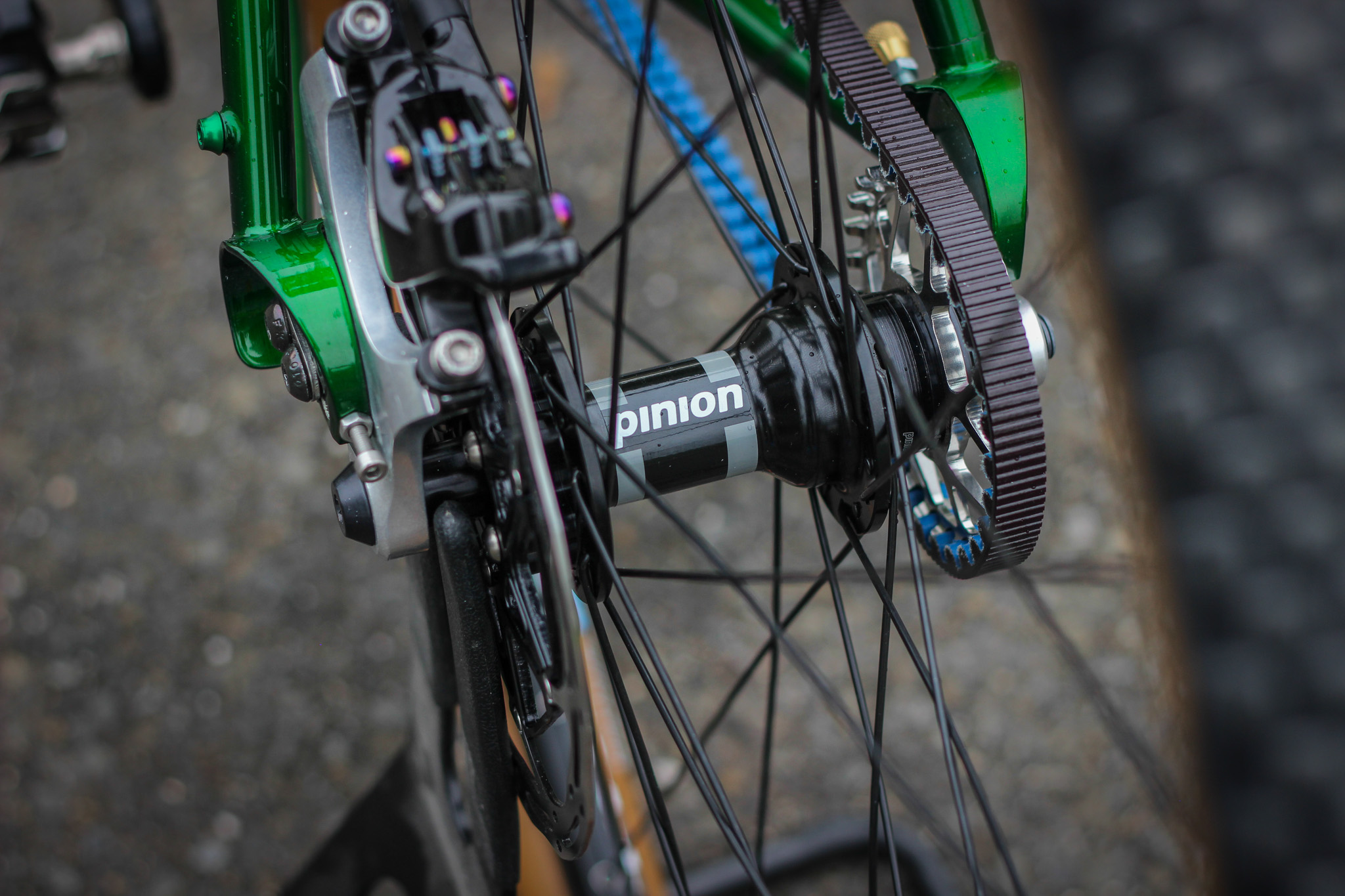

Pinion has also hubs, made by DT Swiss.

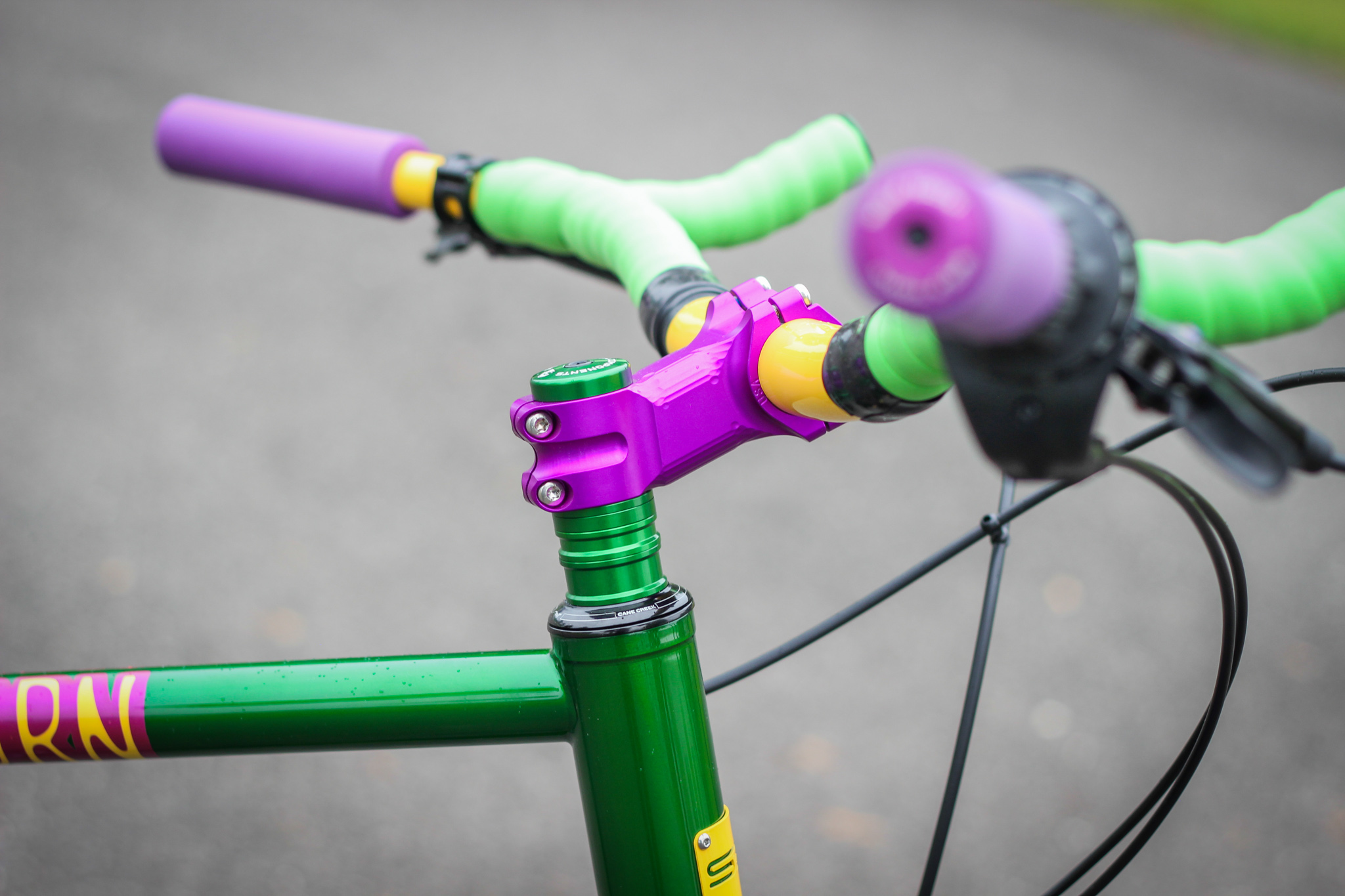

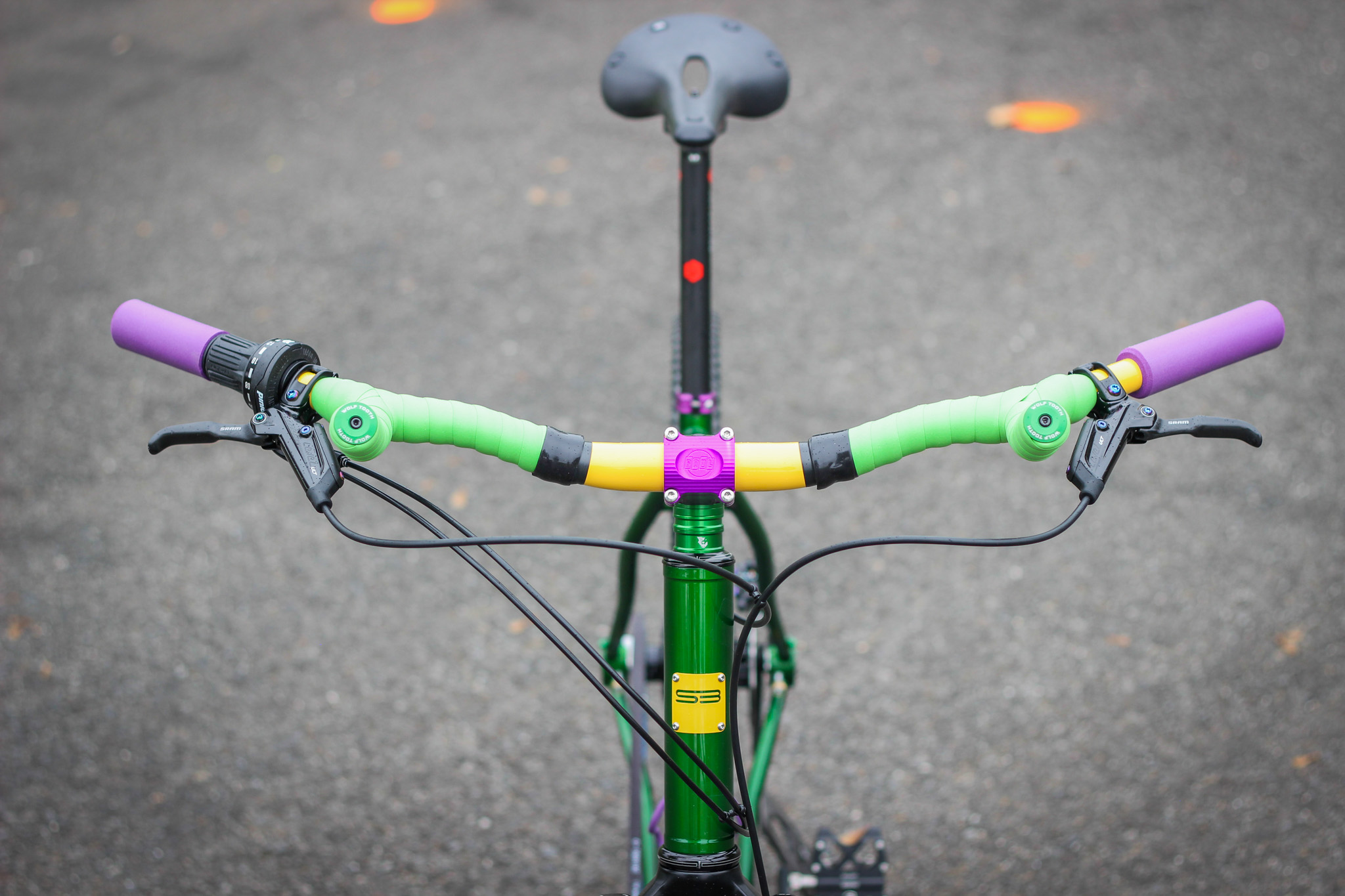

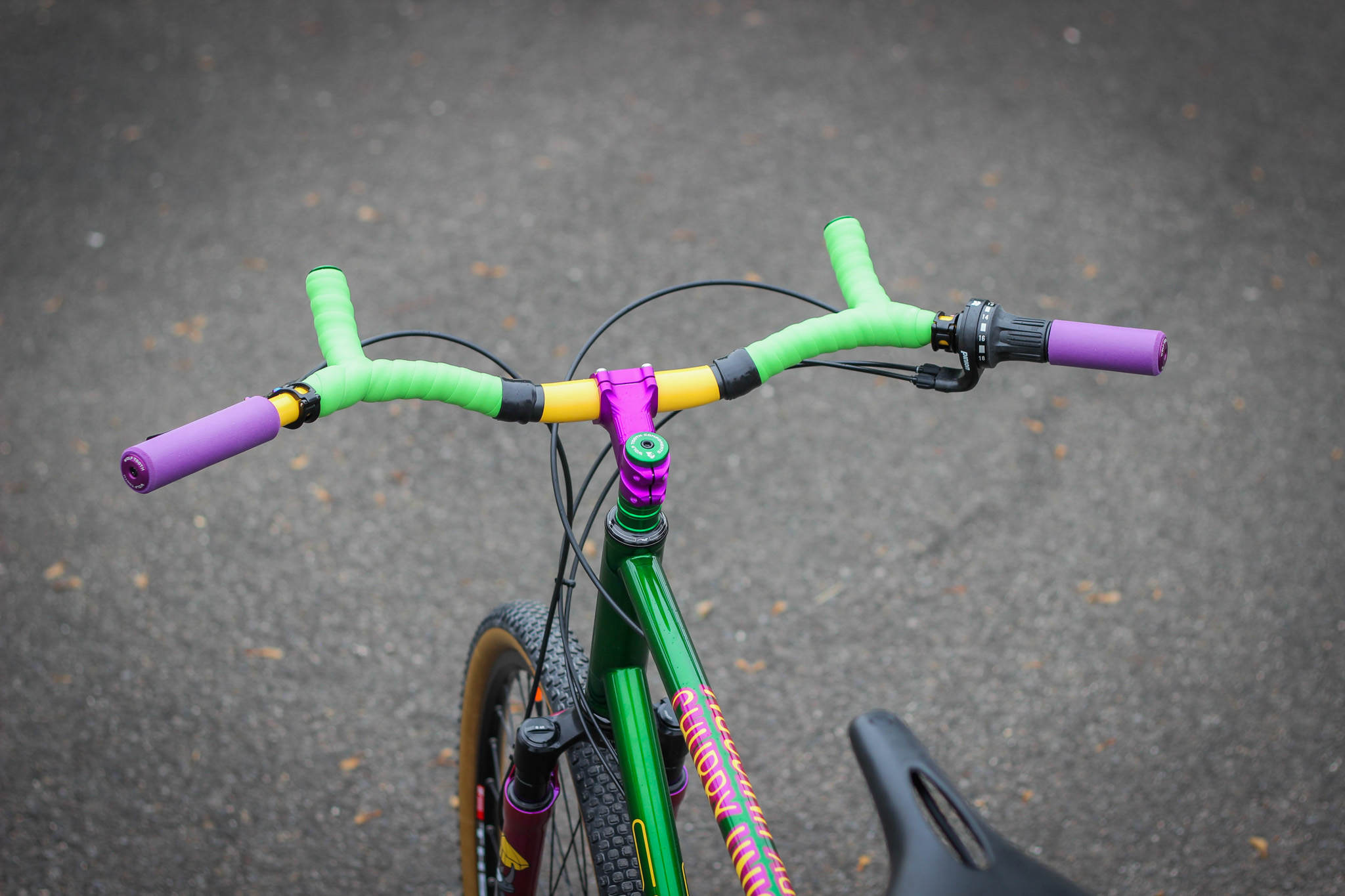

So many hand position on these bars.

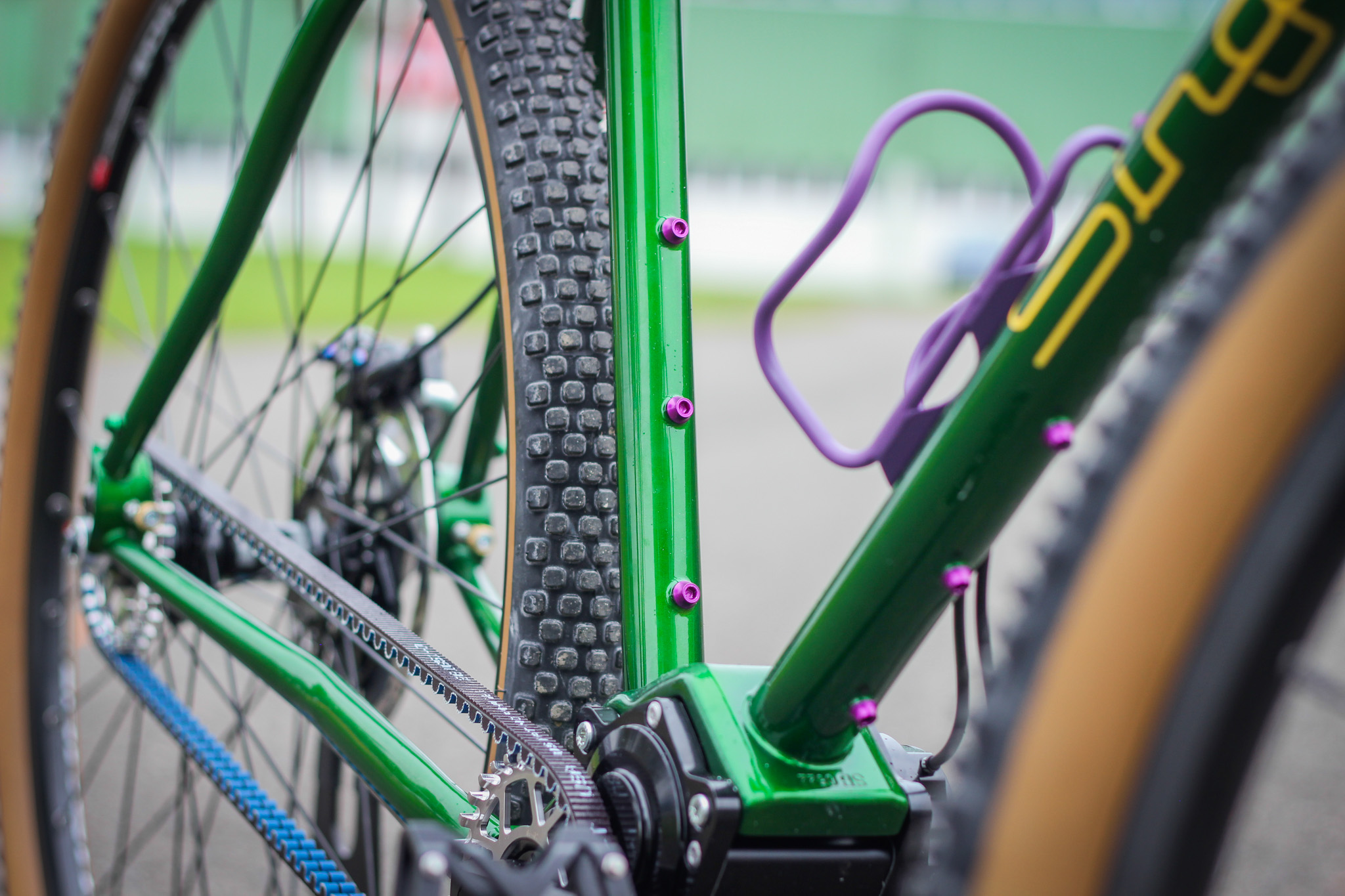

Aluminium bolts, green anodized so very close to the frame color.
Painted logo, special customer requirement.
Pinion P1.18 gearbox offer wide gear range and 18 speeds.
| Frame | Reynolds 853 / Dedacciai ZeroUno |
|---|---|
| Headset | CaneCreek 110 |
| Fork | Rock Shox Rudy 40 mm |
| Brakes | Sram Level ULT |
| Rotors | Sram |
| Shifters | Pinion rotary shifter DS2 |
| Gearbox | Pinion P1.18 |
| Seatpost | carbon, LEVELNINE |
| Seatpost clamp | Wolftooth 30.0 |
| Bars | - |
| Stem | Paul Components |
| Grips | ESI |
|---|---|
| Front hub | Pinion H3F 100x12 |
| Rear hub | H3 R 142x12 |

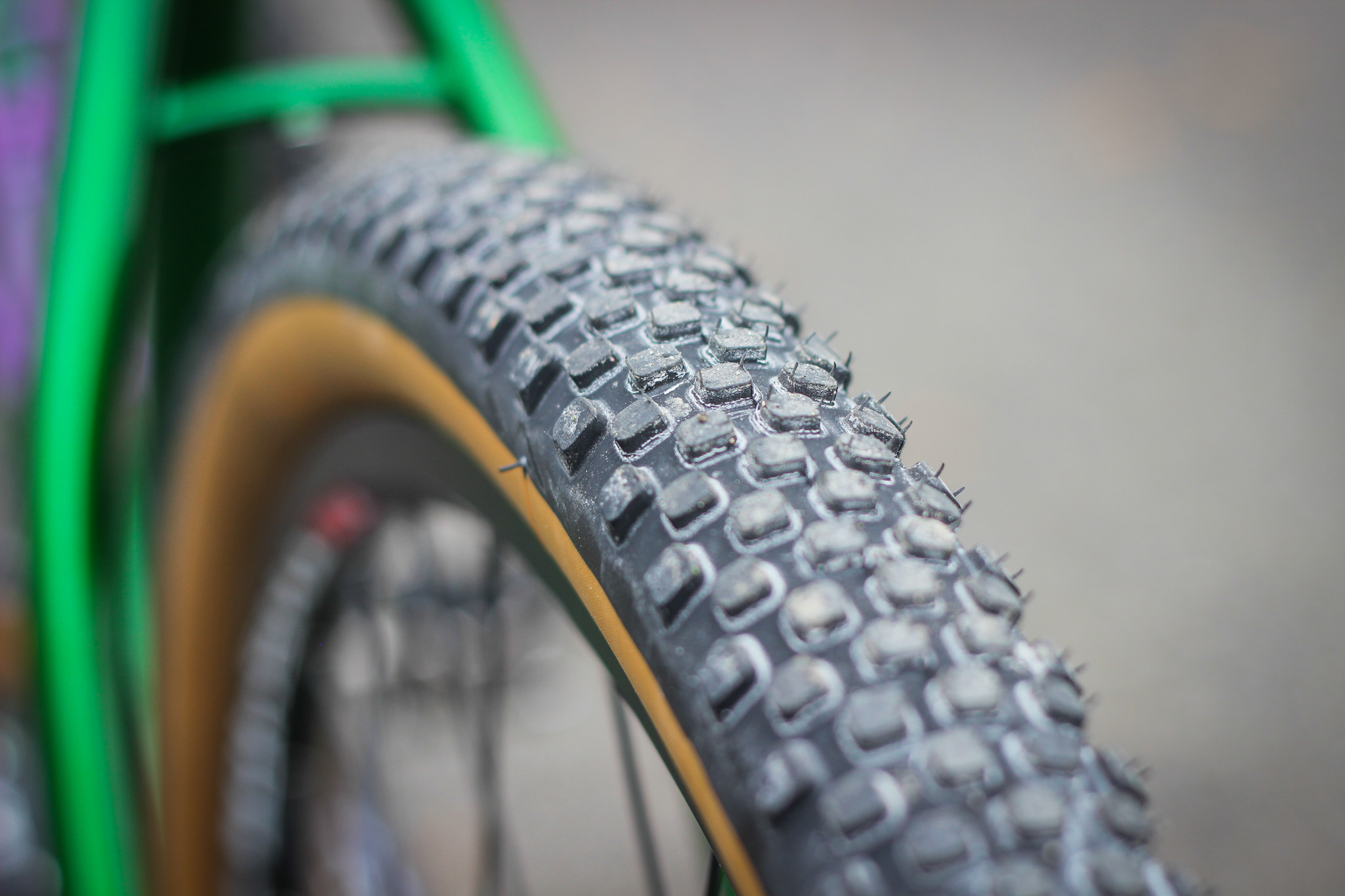

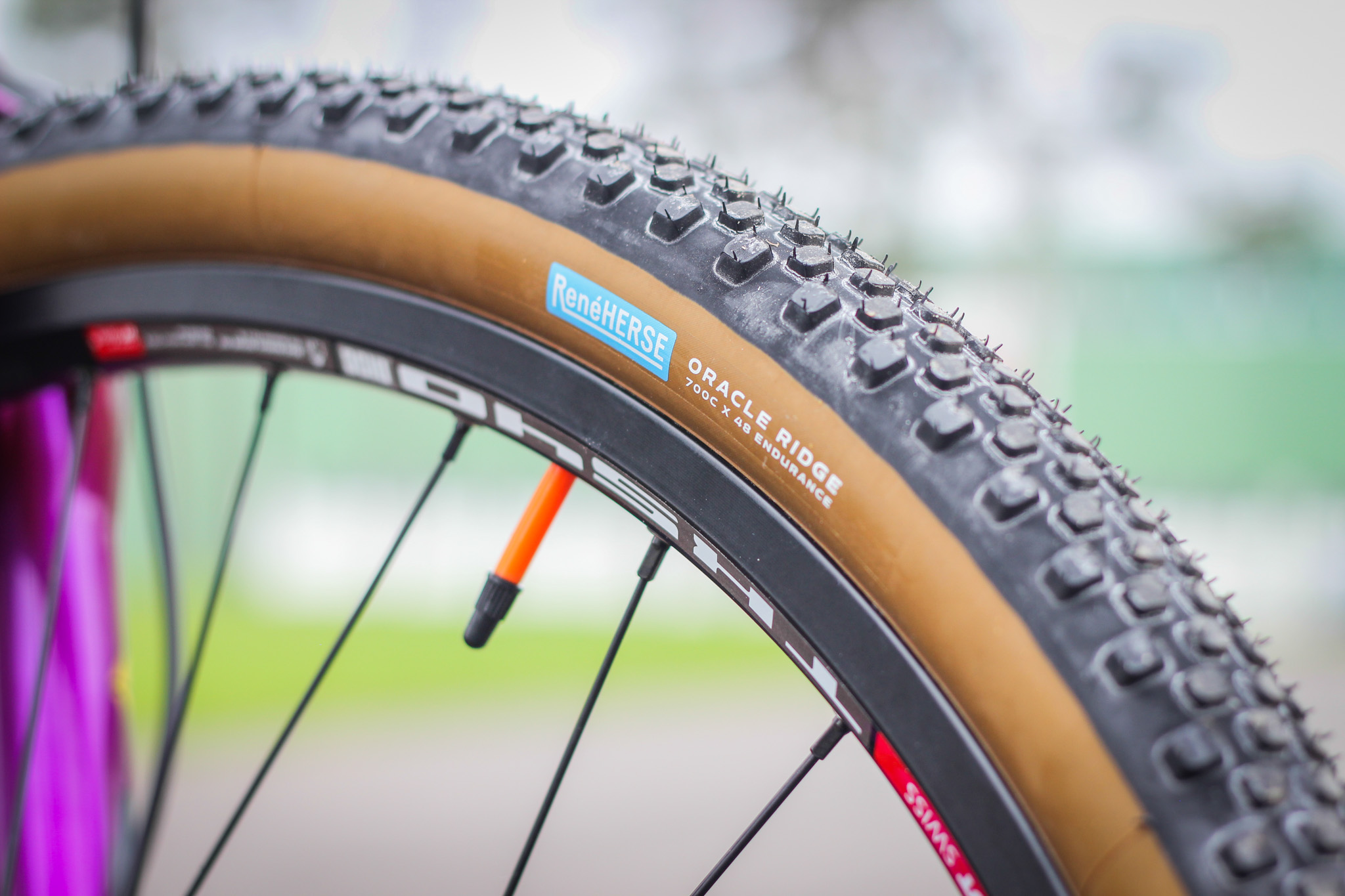

| Tires | Rene Herse Oracle RIDGE 700x48C |
| Rims | DT Swisss TK540 DISK |
| Crankset | Pinion CNC 175 |
| Front sprocket | Gates Carbon Drive 32T direct mount |
| Rear sprocket | Gates Carbon Drive CDX 28T |
| Pedals | platformy |

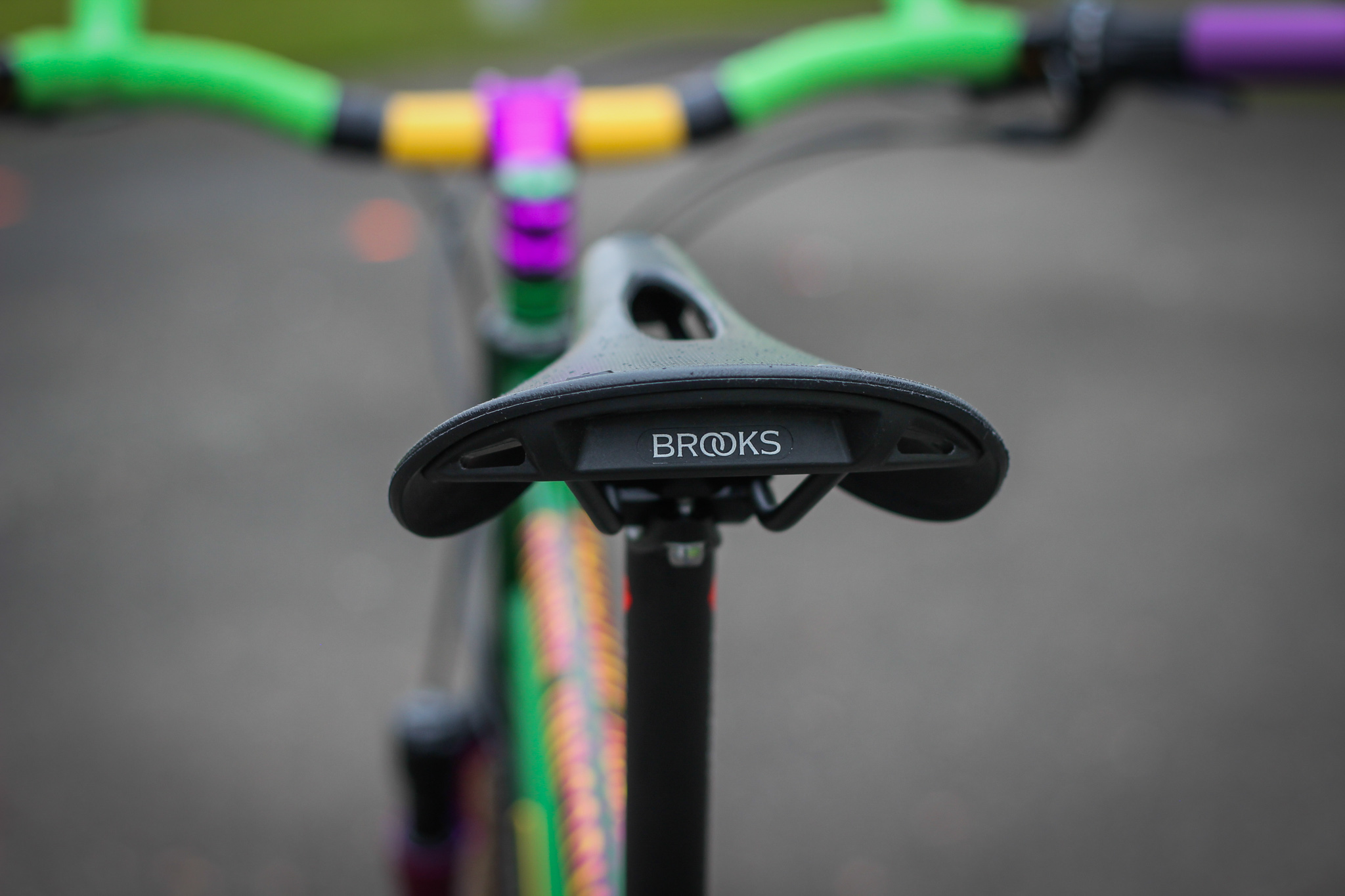

| Saddle | Brooks Cambium |

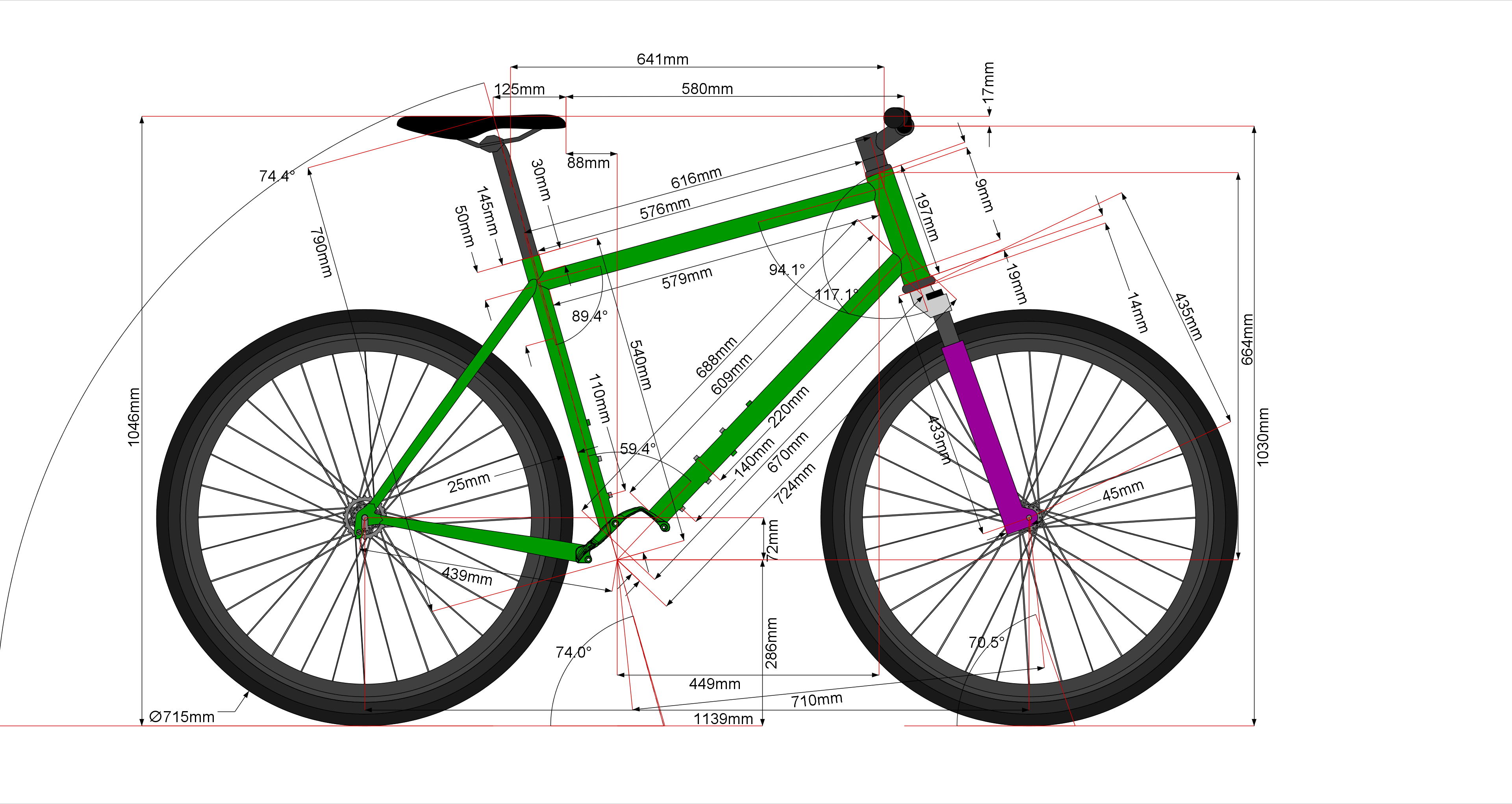

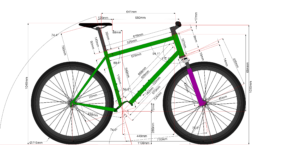

| TTA (B) | 616 mm |
|---|---|
| TTE (C) | 641 mm |
| HT (D) | 197 mm |
| ST (A) | 540 mm |
| CS (E) | min 432 mm |
| HA (G) | 70.5° |
| SA (F) | 74° |
| BB drop | - 72 mm |
| BB height | 286 mm |
| Fork AC | 433 mm |
| Wheelbase | 1139 mm |
