SingleBe Camo Plus

“Plus” bike with WTB TrailBlazer 2.8″ tires and full carbon tapered rigid fork.

SingleBe > Bikes > MTB 29er/650b(+) > SingleBe Camo Plus

About project SingleBe Camo Plus

Complete bike build on a steel frame from Reynolds 853 with following features

– ready for seatpost 31.6 mm and ready for adjustable dropper post with internal routings
– 148×12 mm boost rear spacing
– rear PM for min 160 mm disk
– internal cable routings for brake and rear deraileur
– really unique and stunning camouflage design in 4 colors, including custom painting for crankset, stem, fork and a bottom headset cup
– tire clearance 27.5×2.8 (probably possible for 3.0 as well)
– ready for 1×10 drive or boosted 1×11 (CL 51 mm)

Complete bike weight is 11.8 kg without pedals.

All HQ pictures you can find in this flick album – Flickr.

Parametry

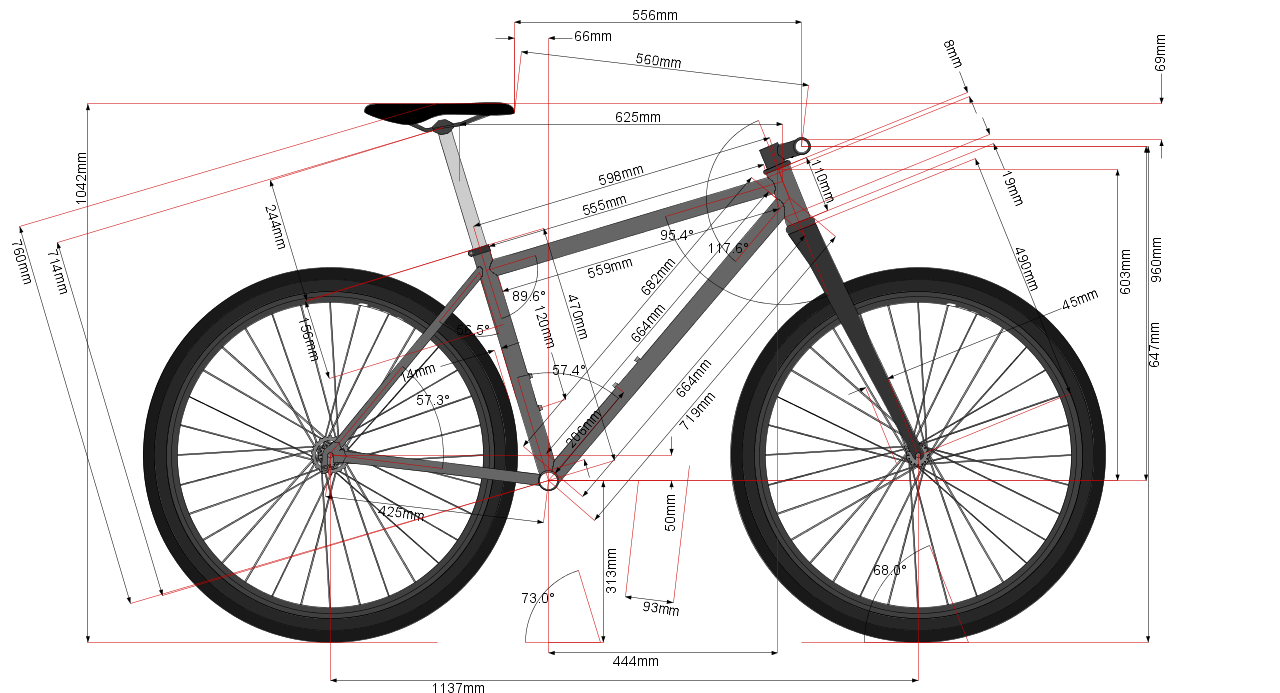

Geometry

Frame	Reynolds 853 - SAE4130 stays
Fork	Full carbon, 15mm axle, tapered, 490 mm
Headset	Cane Creek 40 bottom, max1 semi top
Brakes	Shimano SLX, 180 mm TRP disks
Stem	Spank Spike 35 mm
Seatpost	Ritchey Comp Carbon 31.6
Handlebars	CrankBrothers Cobalt 2 720 mm
Grips	Sting foam
Front hub	100x15 alu disk
Rear hub	148x12 alu disk
Tires	WTB TrailBlazer 27.5x2.8

Rims	noname, alu, 38 mm width
Crankset	Shimano Deore Camo edition, 175 mm
Chainring	AbsoluteBlack 32t
Rear deraileur	Shimano SLX Shadow Plus
Shifting	Shimano Zee 10s Dyna Sys
Cassete	Shimano SLX 11-36
Chain	KMC Lite gold 10 s
Saddle	Fabric Scoop Shallow Elite
Seatpost clamp	Max 1 34.9
Weight	11.8 kg without pedals

TTA (B)	598 mm
TTE (C)	625 mm
HT (D)	110 mm
ST (A)	470 mm
CS (E)	425 mm
HA (G)	68.0°
SA (F)	73.0°
BB drop	- 50 mm
BB height	313 mm (for 27.5x2.8" - OD 725 mm)
All measured with fork	490 mm
