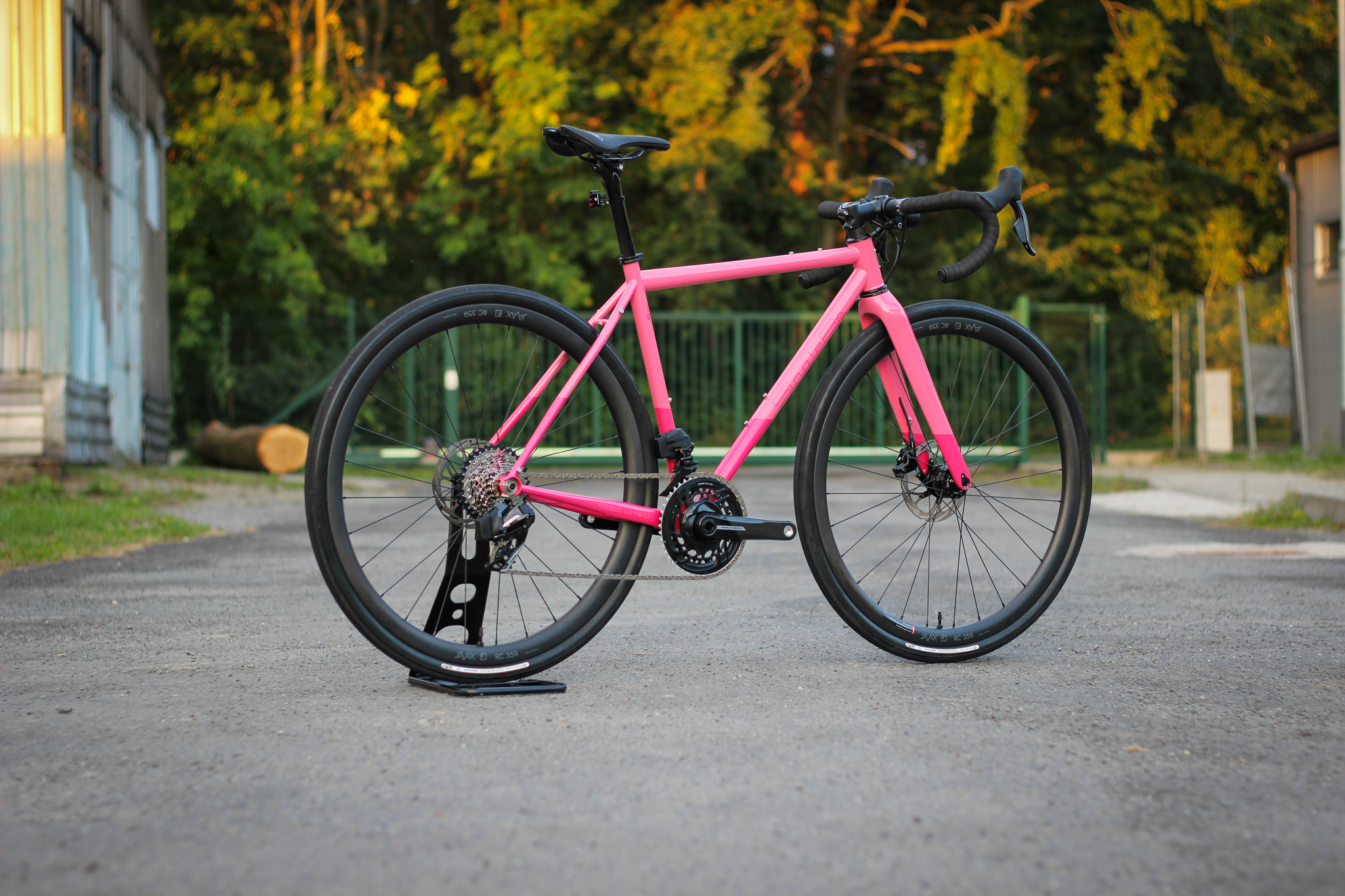

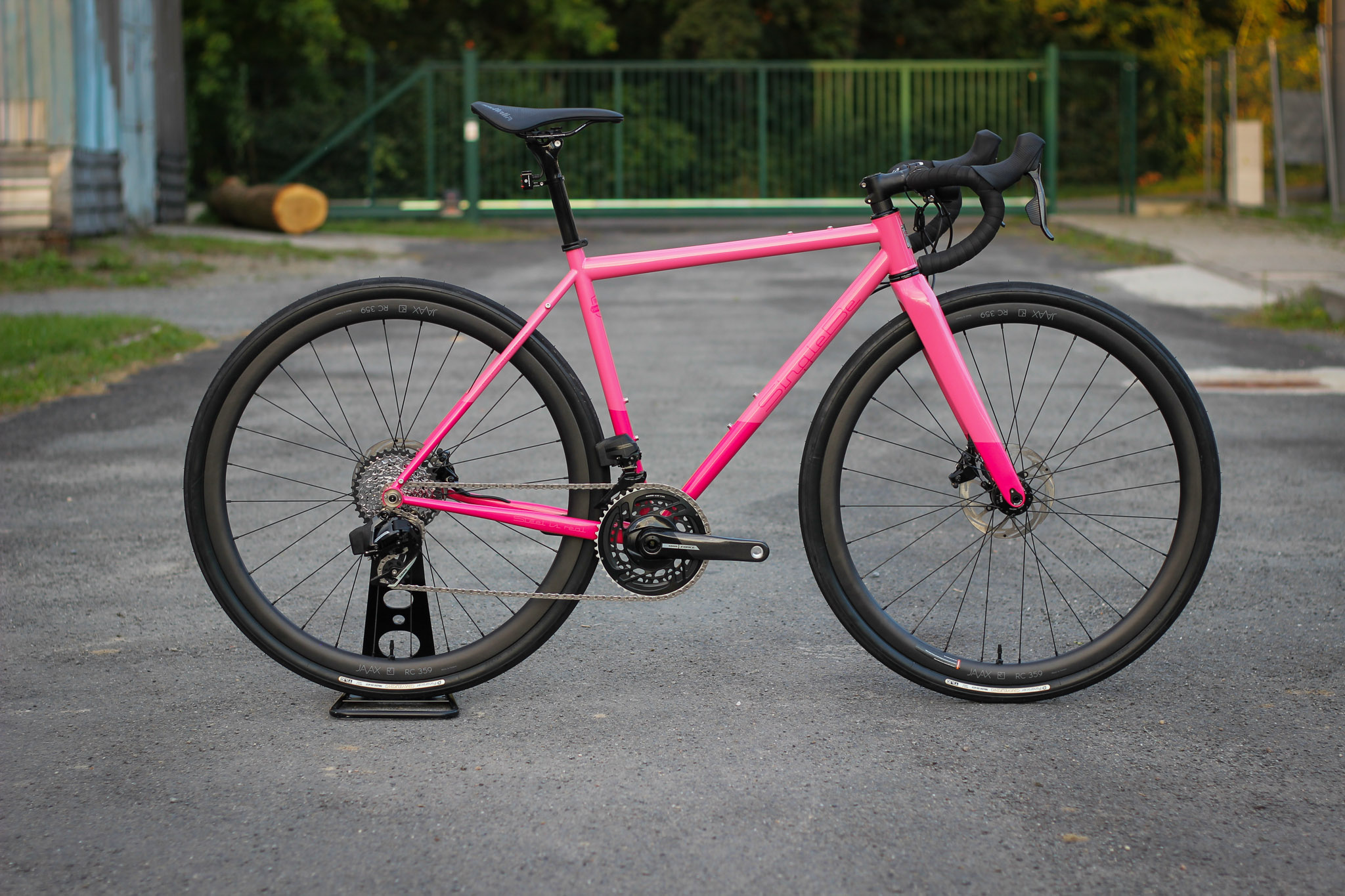

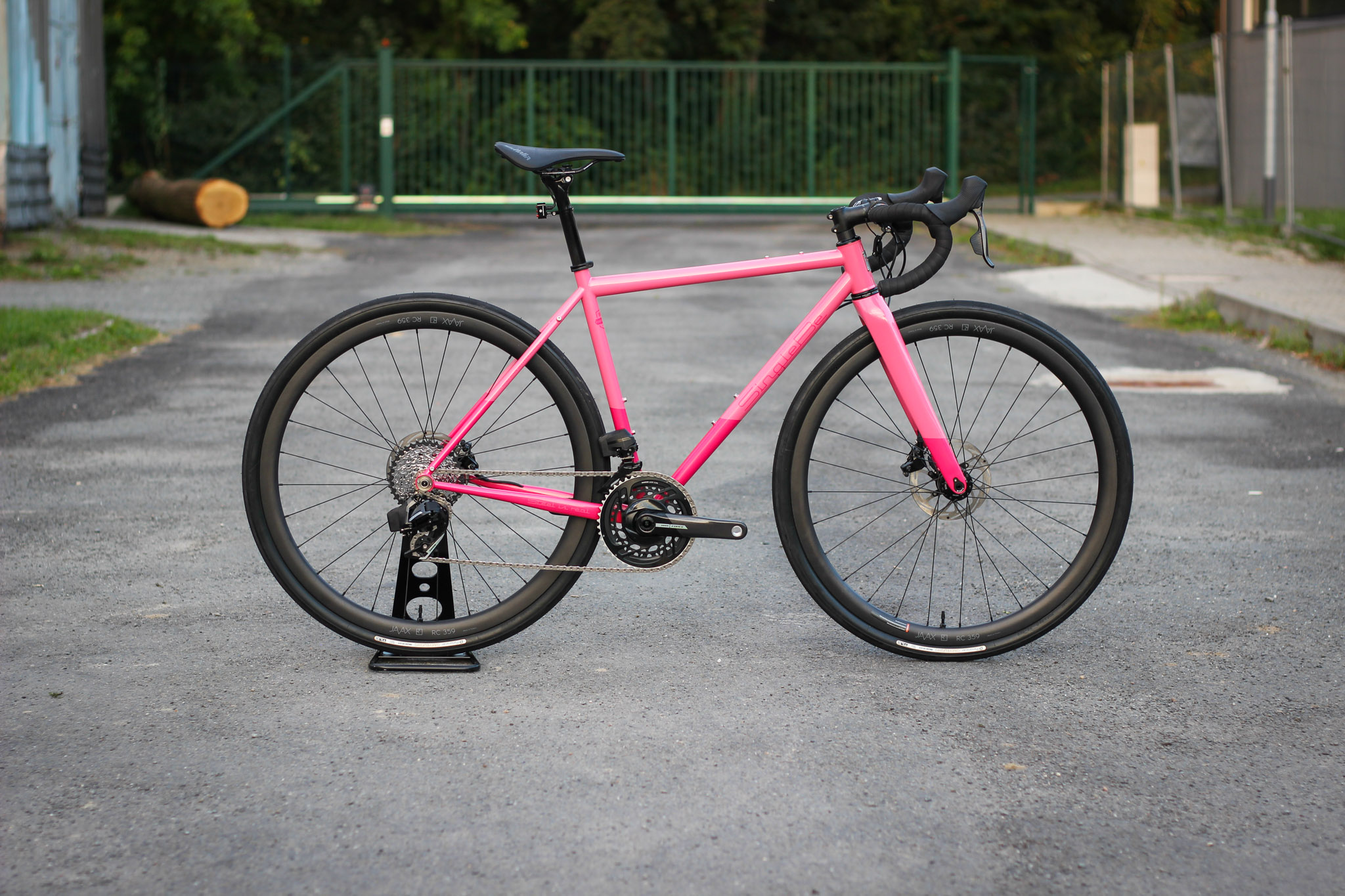

Woman allroad/gravel custom steel bike with Sram FORCE 2×12 AXS groupset.

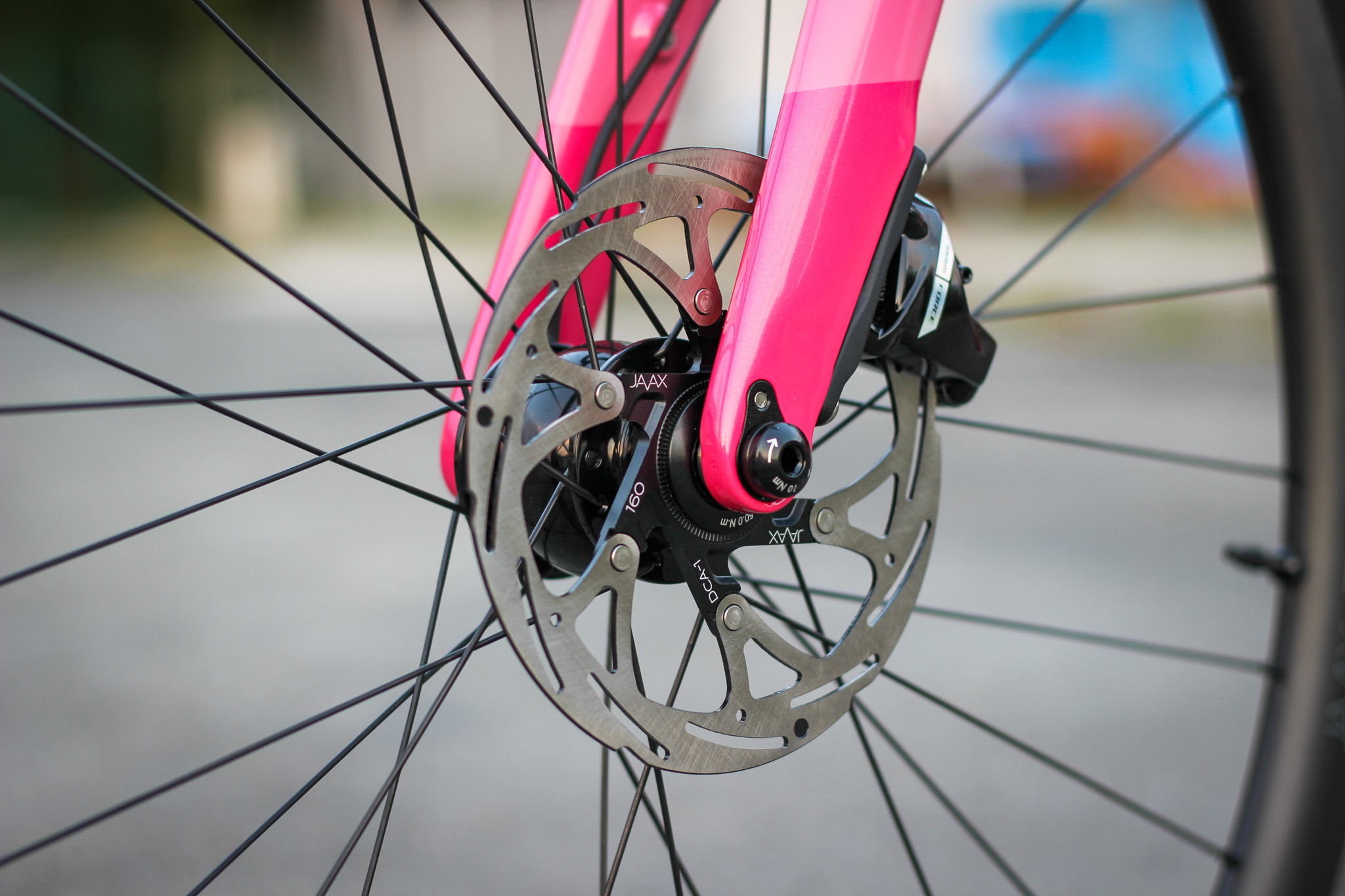

Front dynamo hub SON 28.

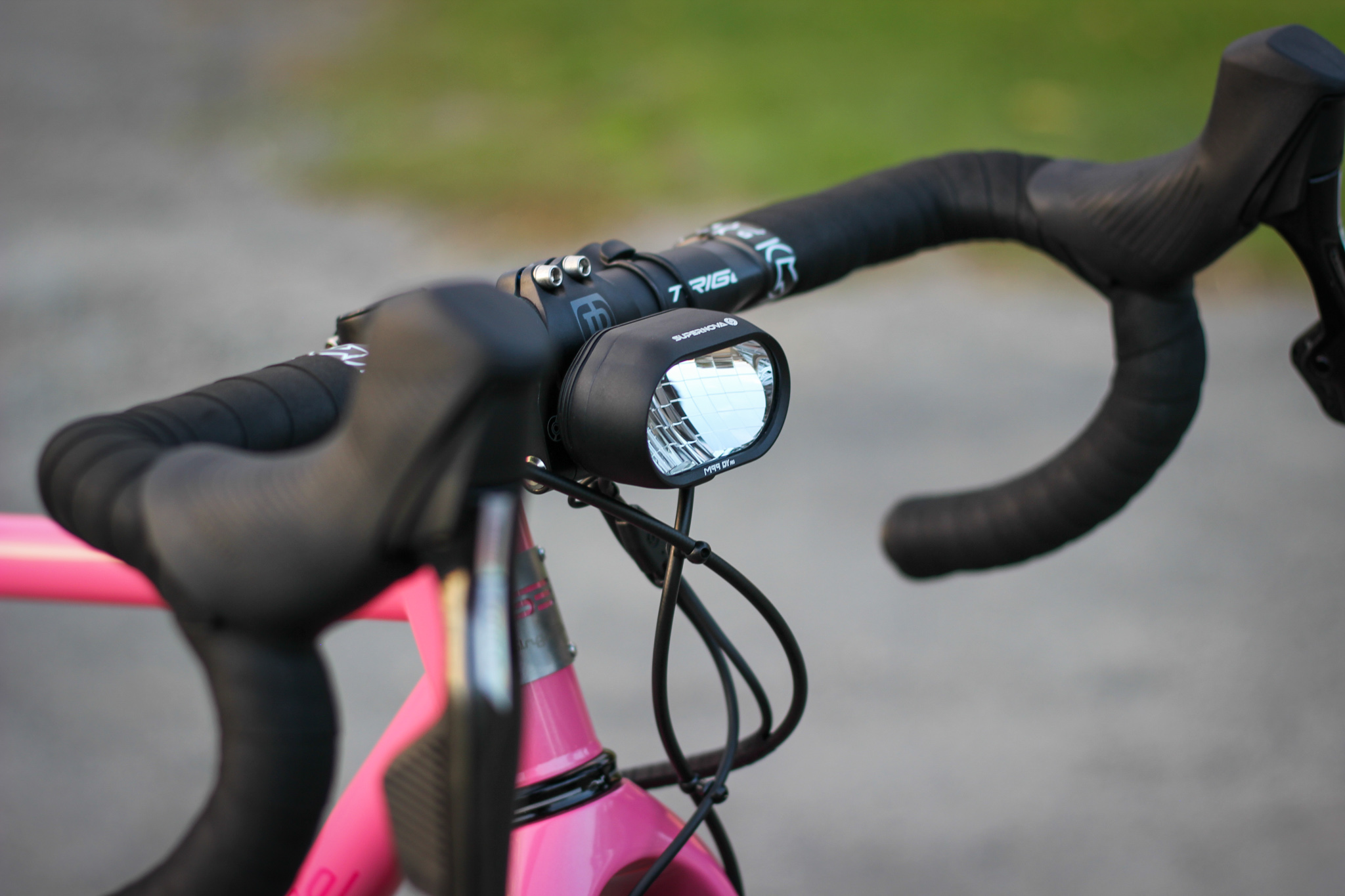

Front light Supernova M99 DY with exceptional performance.
You can switch several light modes with this button.

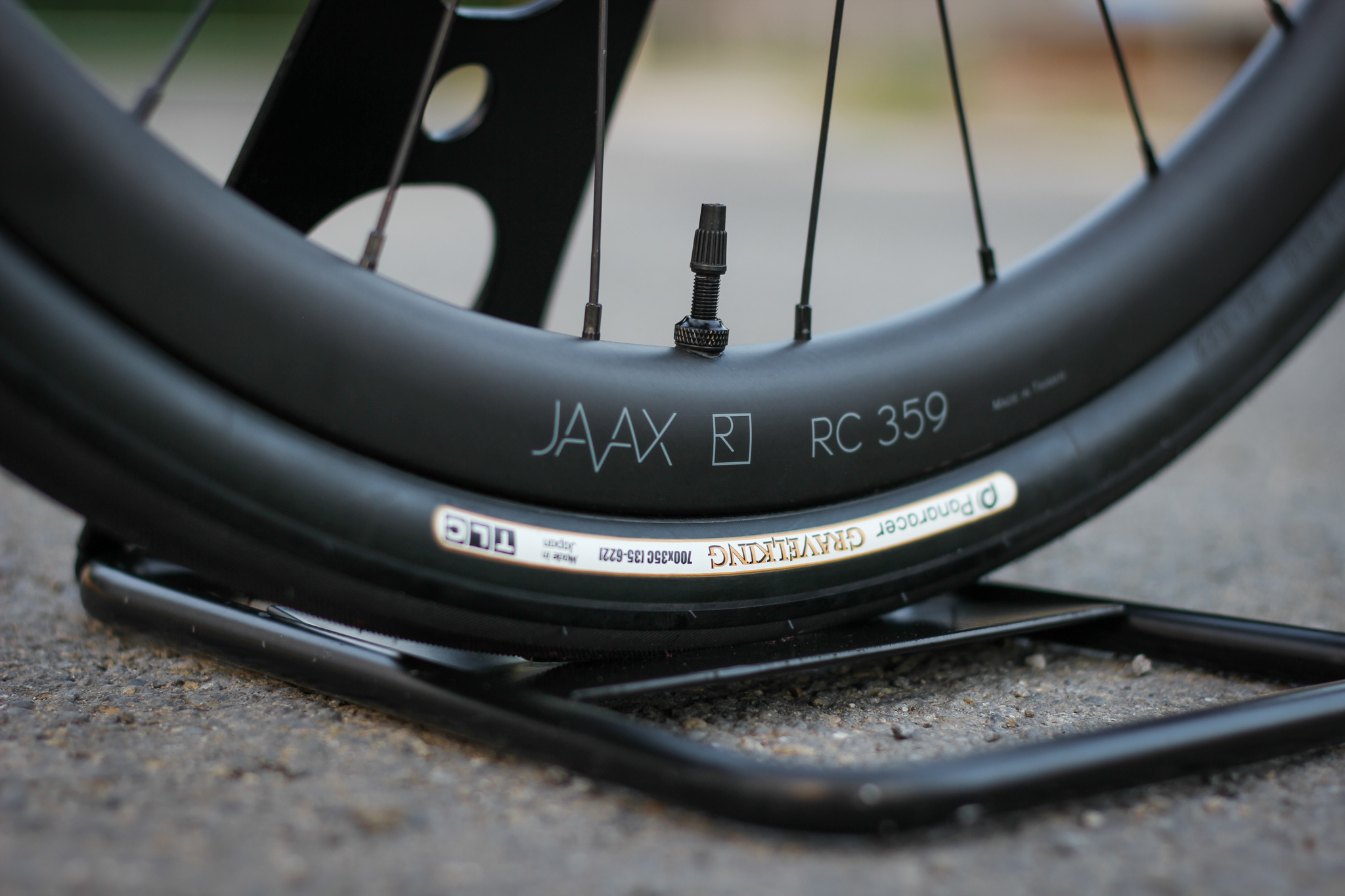

We build custom wheels with Javax RC359 carbon rims, 35 mm height.

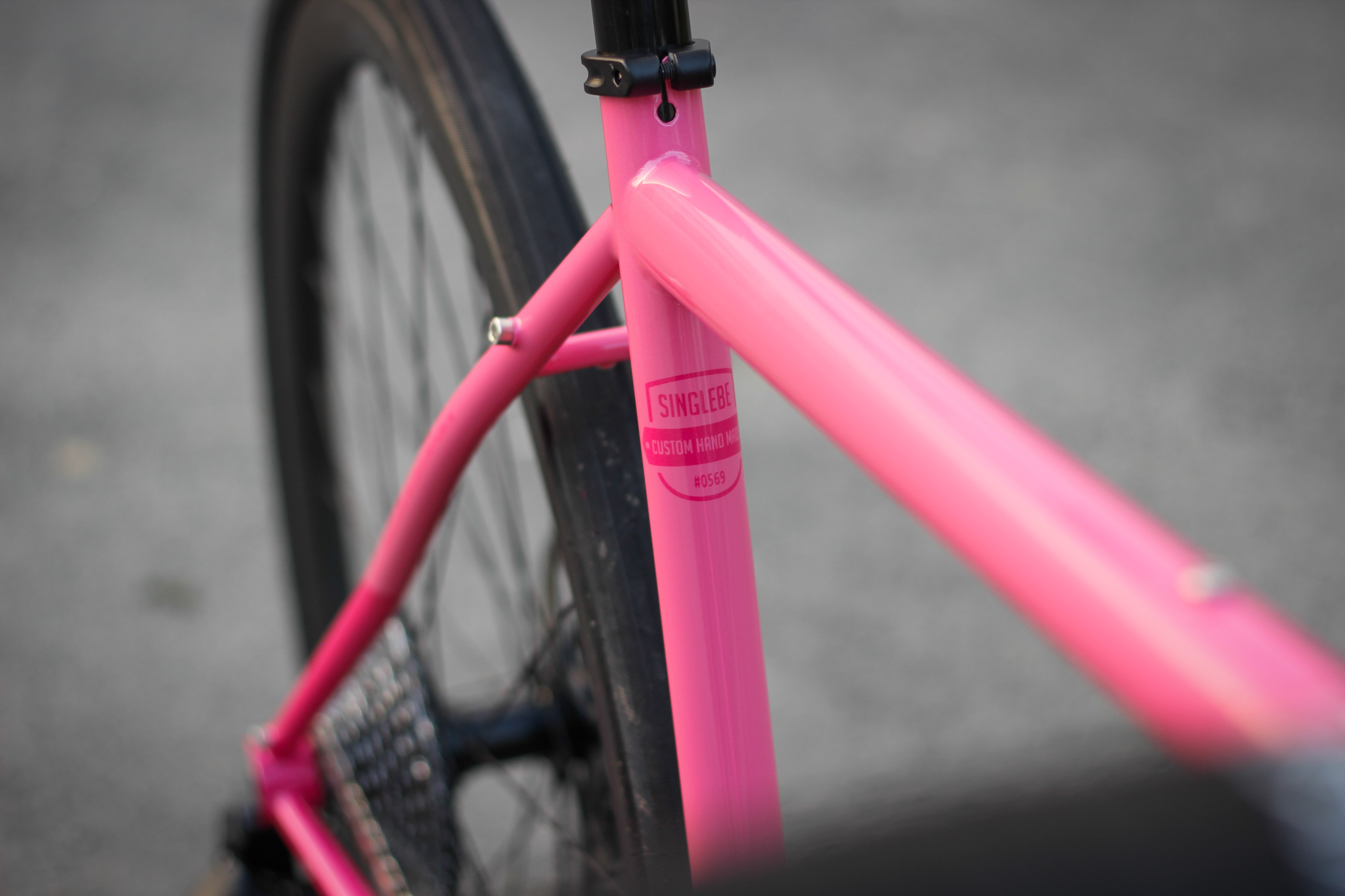

We make only custom frames so you can define your own parameters, for exampla top tube bag mount points.
Internal cable routing for a rear brake, the rest is AXS wireless.
| Frame | Reynolds 853 / Dedacciai Zero Uno |
|---|---|
| Headset | Cane Creek Forty |
| Fork | Trigon RC93FE 100x12 full carbon, internal, FM |
| Brakes | Sram Force, HRD |

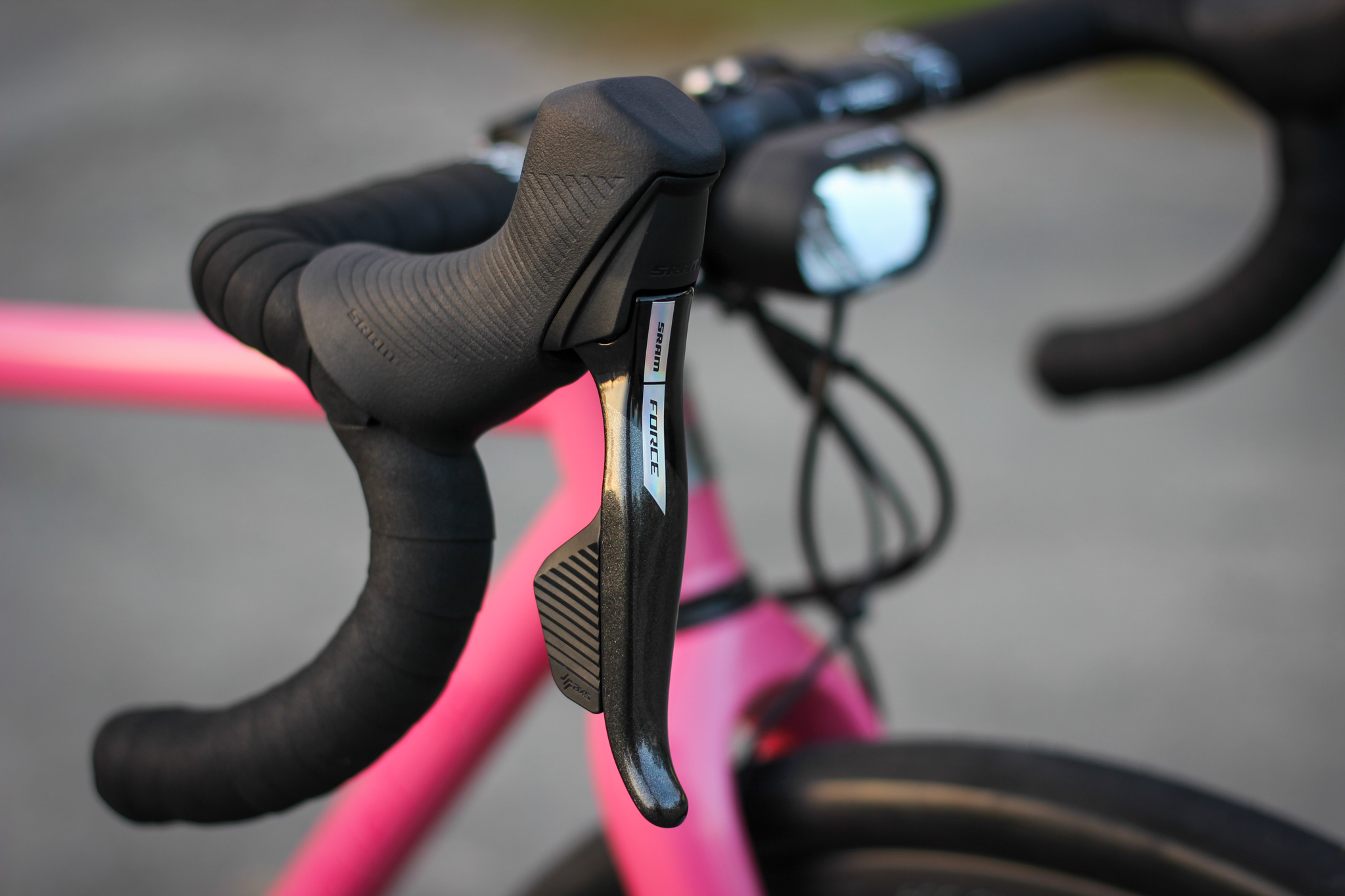

| Shifters | Sram Force 2x12 AXS |

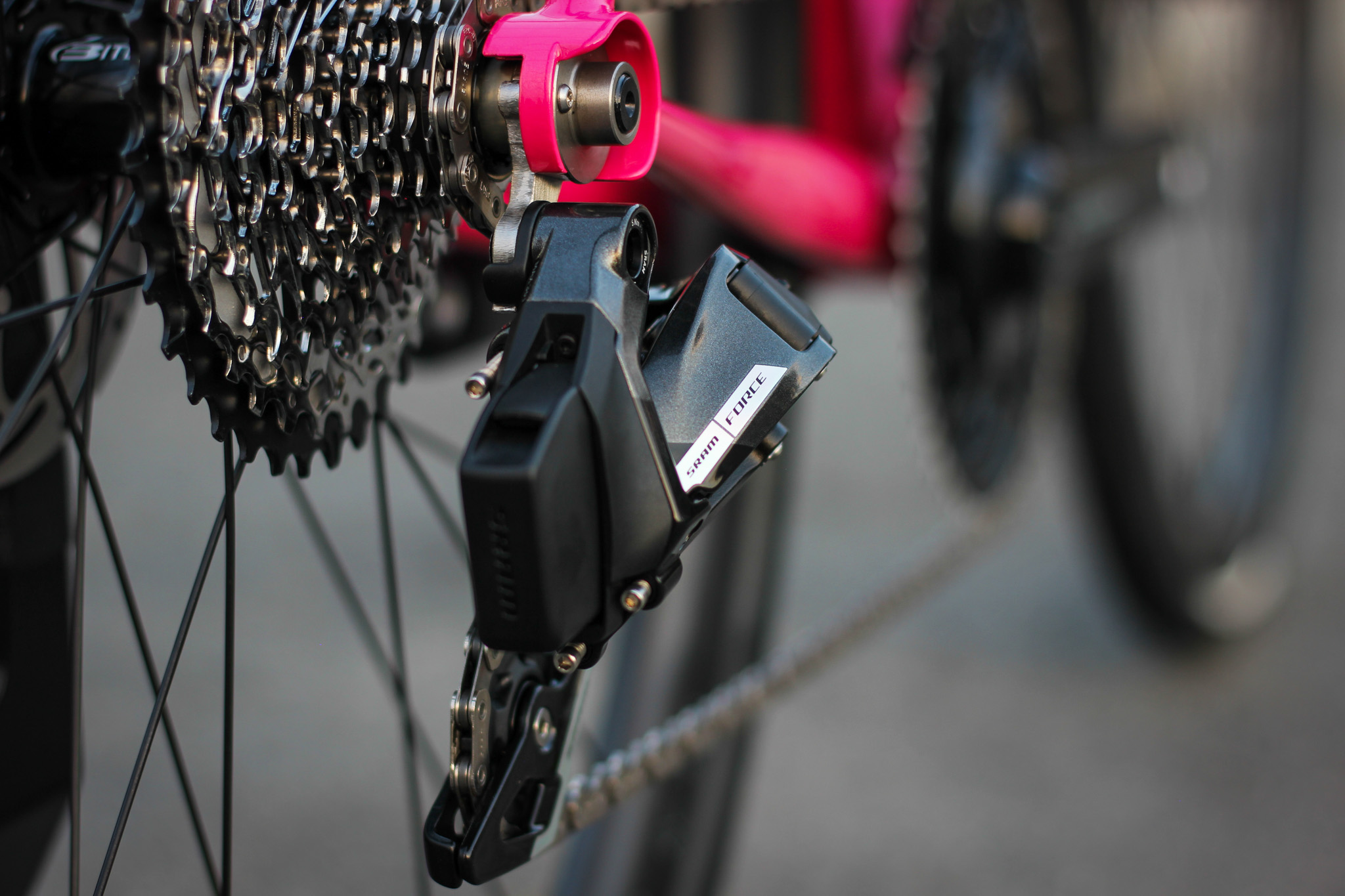

| RD | Sram Force AXS |
| Cassette | Sram Force 10-36 |
| Seatpost | Trigon, carbon, no logo, 27.2 |
| Seatpost clamp | 28.6 mm |
| Bars | Trigon carbon road aero RB11 |
| Stem | Ritchey 4-Axis 70 mm / -6 |
| Bar tape | Shimano PRO |
|---|---|
| Front hub | SON 28 100x12 28H dynamo |

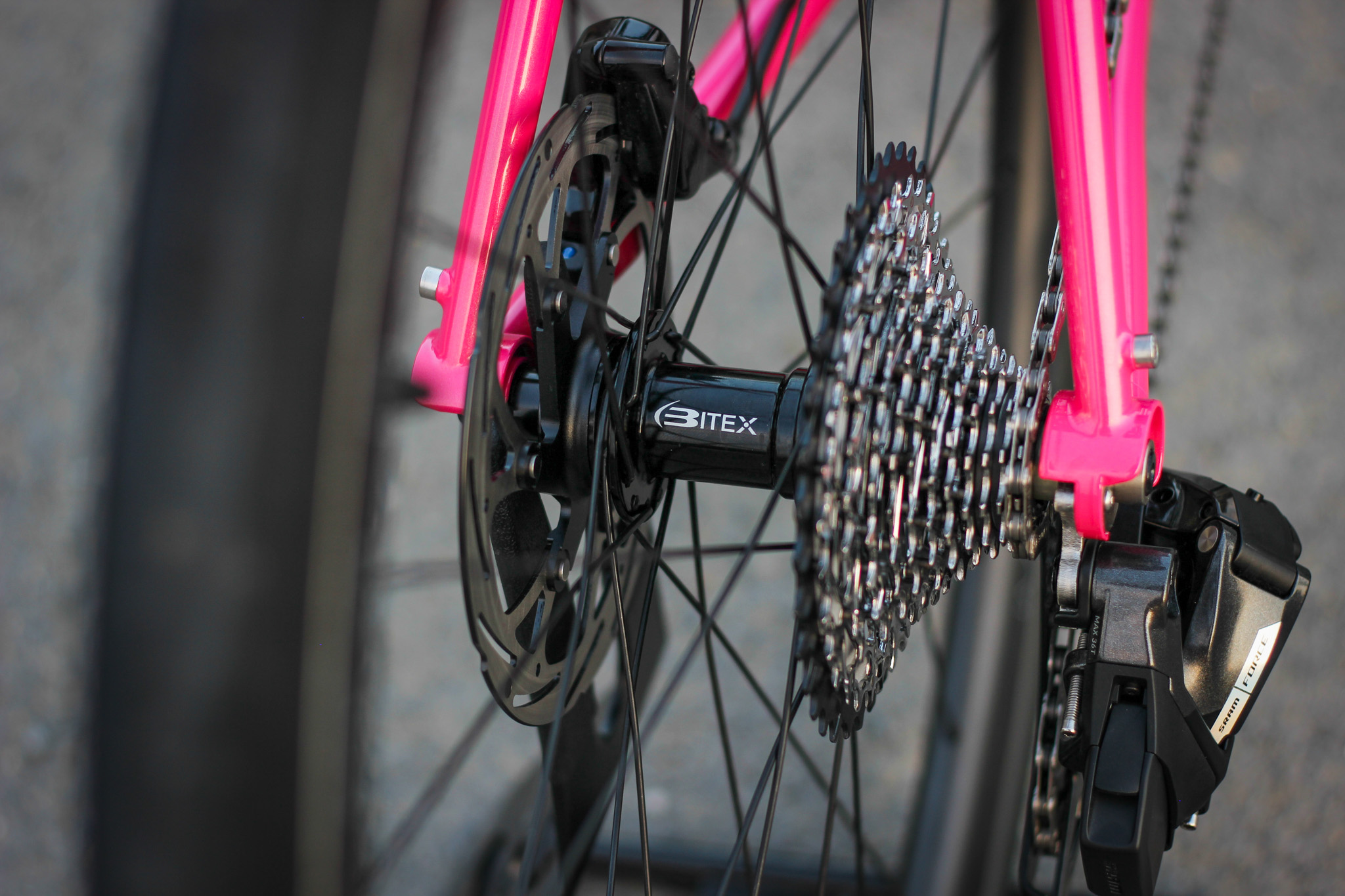

| Rear hub | BItex BX106R 28H XDR 142x12 |
| Tires | Panaracer Gravelking slick 700x35C |
| Rims | Javax RC359 28h |

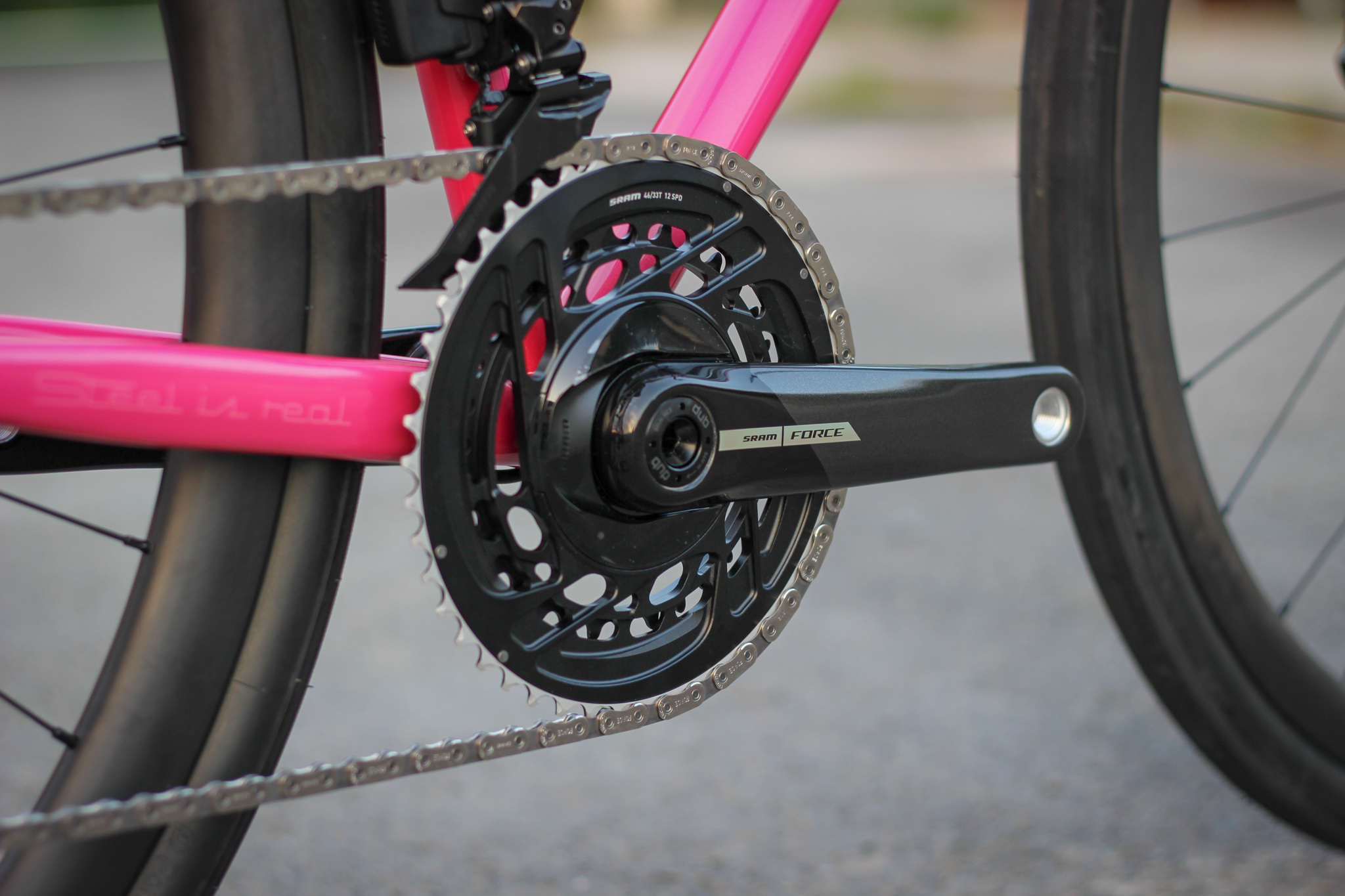

| Crankset | Sram Force AXS 2x12 170 46/33 |

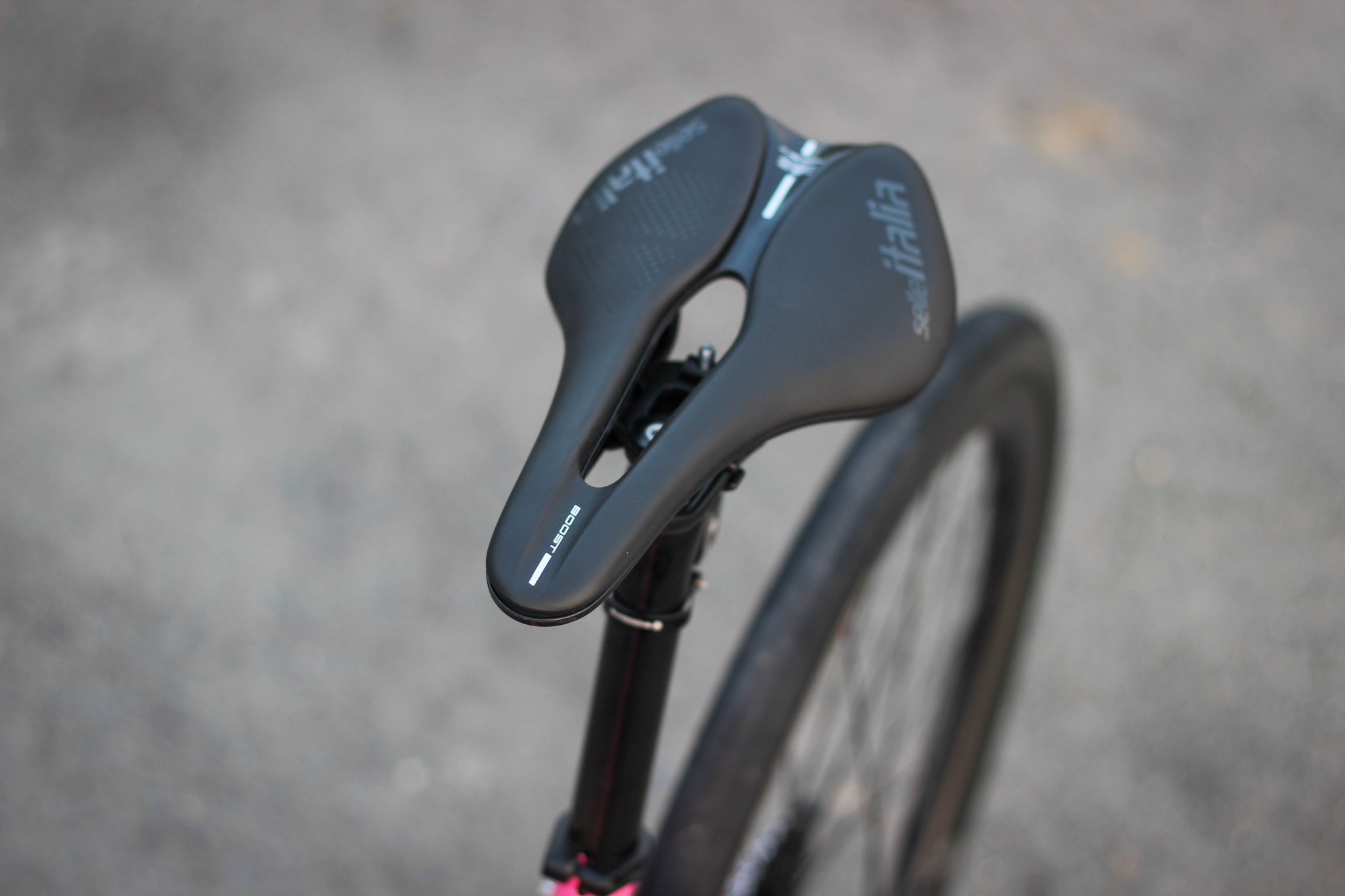

| Saddle | Selle Italia NOVUS Boost Tm supeflow |
| Spokes | Pillar PSR 2018 2.0/1.8/2.2 |
| Front light | Supernova M99 DY |
| Rear light | Supernova Taillight mini |

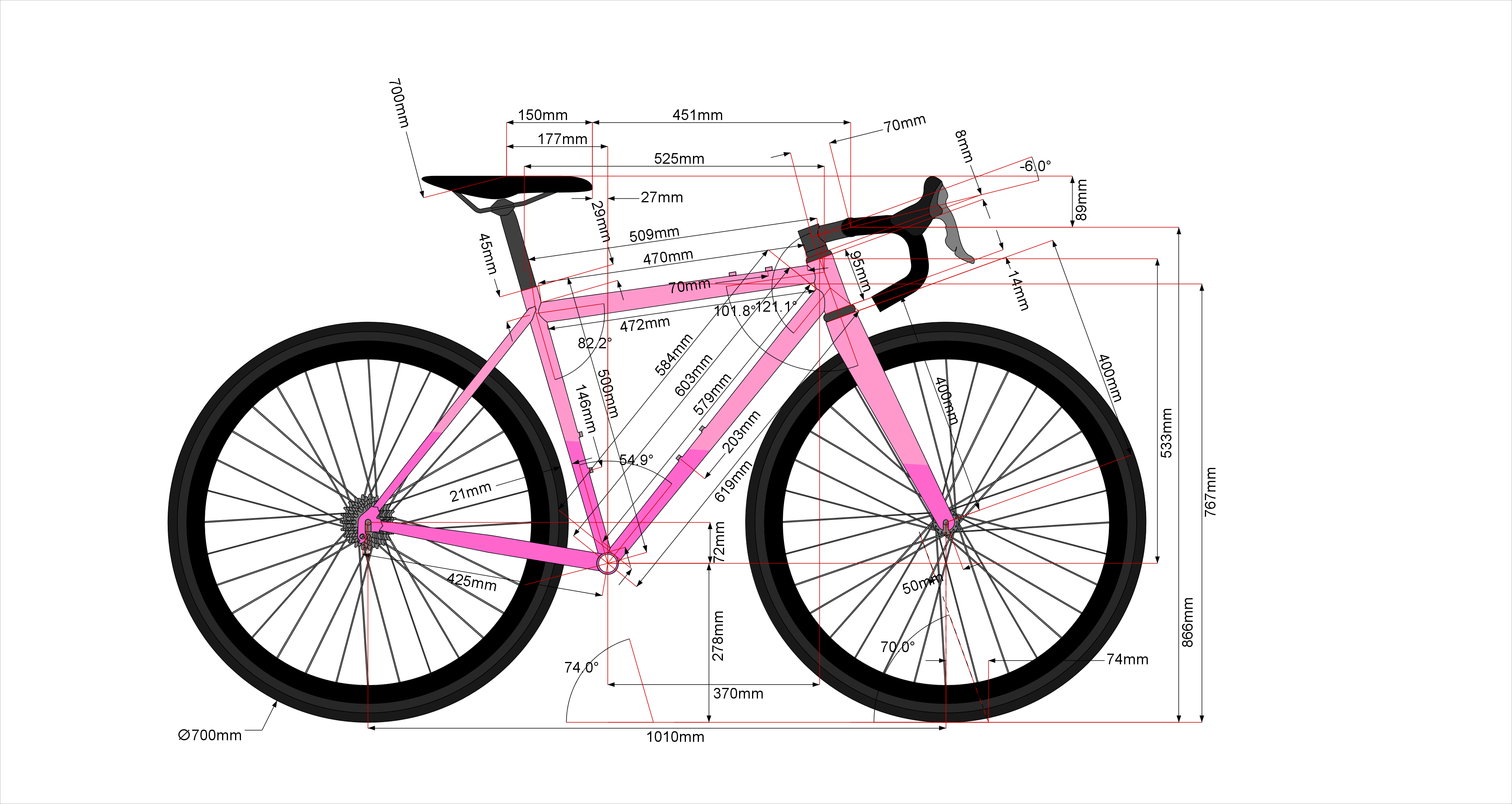

| TTA (B) | 509 mm |
|---|---|
| TTE (C) | 525 mm |
| HT (D) | 95 mm |
| ST (A) | 500 mm |
| CS (E) | 425 mm |
| HA (G) | 70.0° |
| SA (F) | 74° |
| BB drop | - 72 mm |
| BB height | 278 mm |
| Fork AC | 400 mm |
| Wheelbase | 1010 mm |
| Reach | 370 mm |
| Stack | 533 mm |
