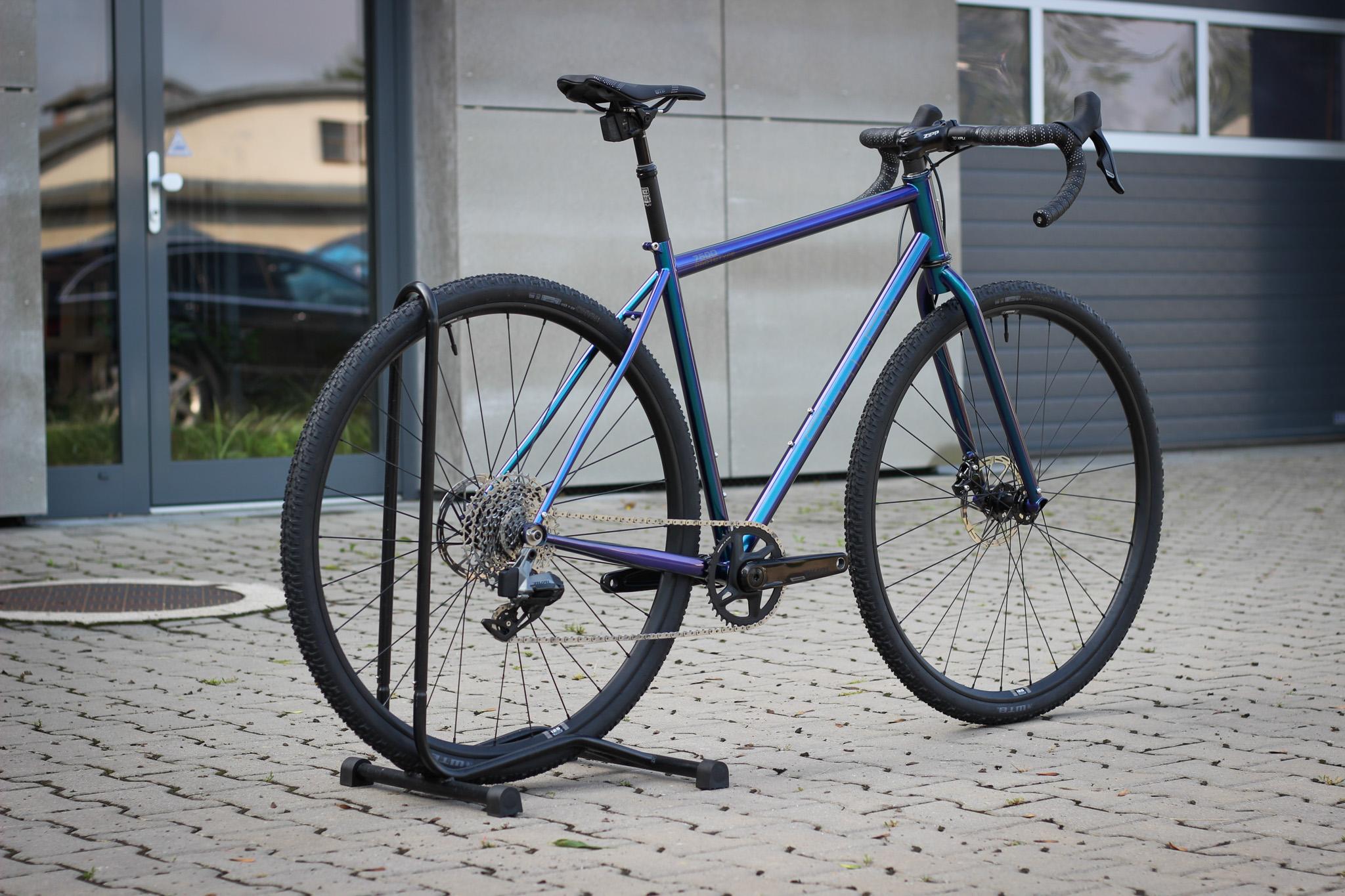

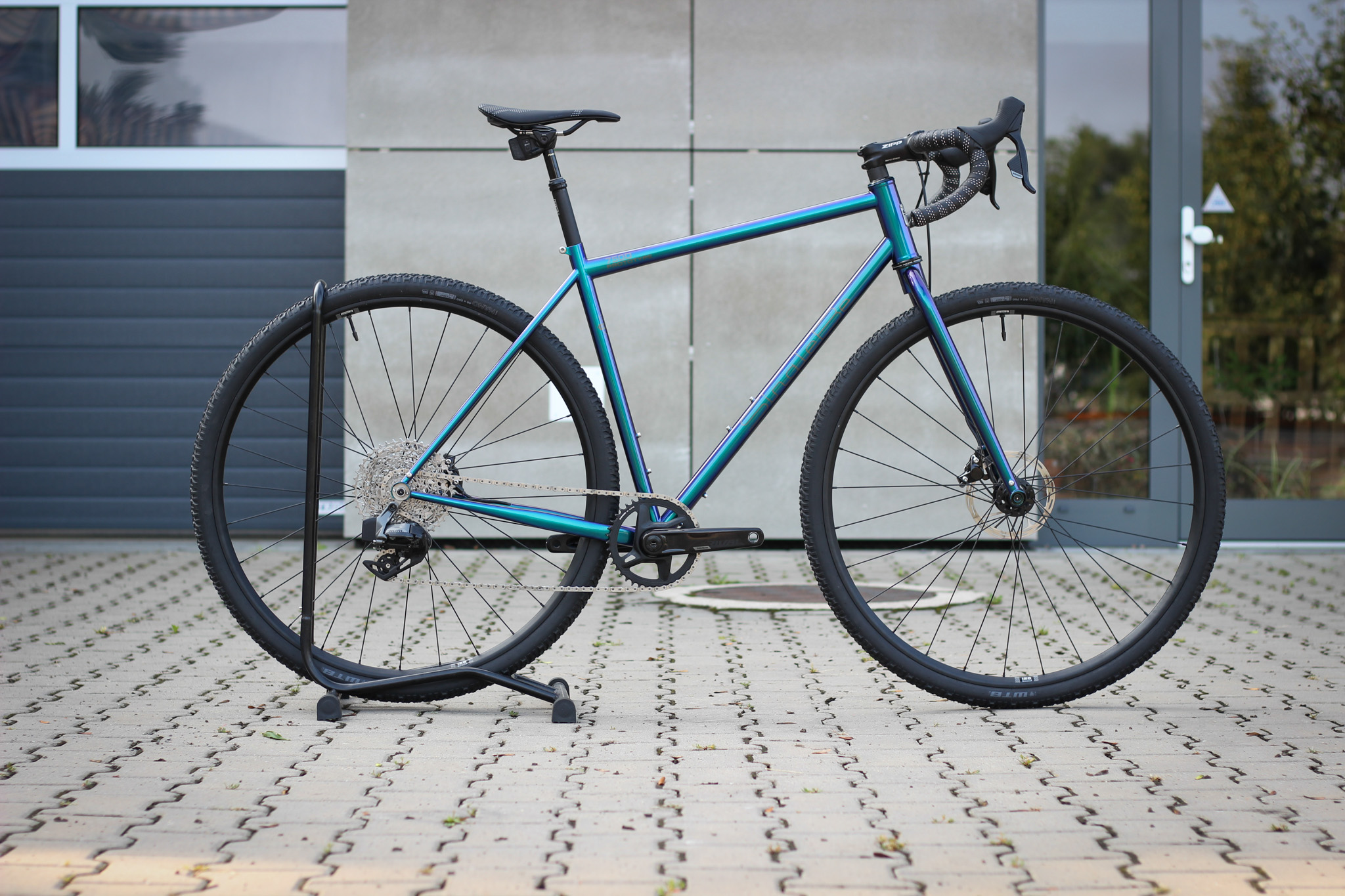

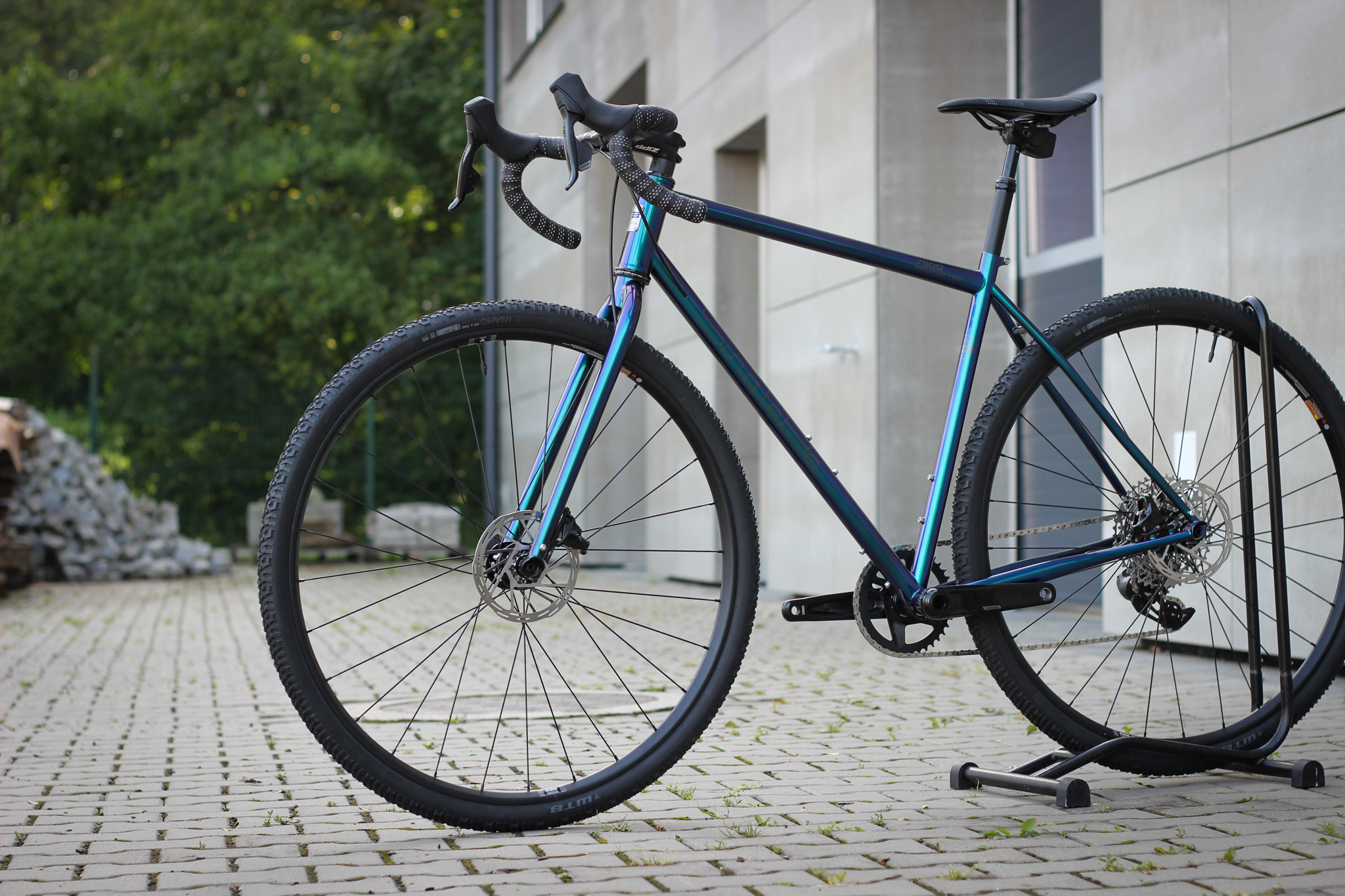

SingleBe custom steel gravel bike with new wheel standard 750D developed by WTB.
We have worked together with WTB so also there are other WTB parts like WTB Gravelier Ti saddle.
WTB plan to offer two models of 750D tires, 40x750d Nano and 35x750d Byway.

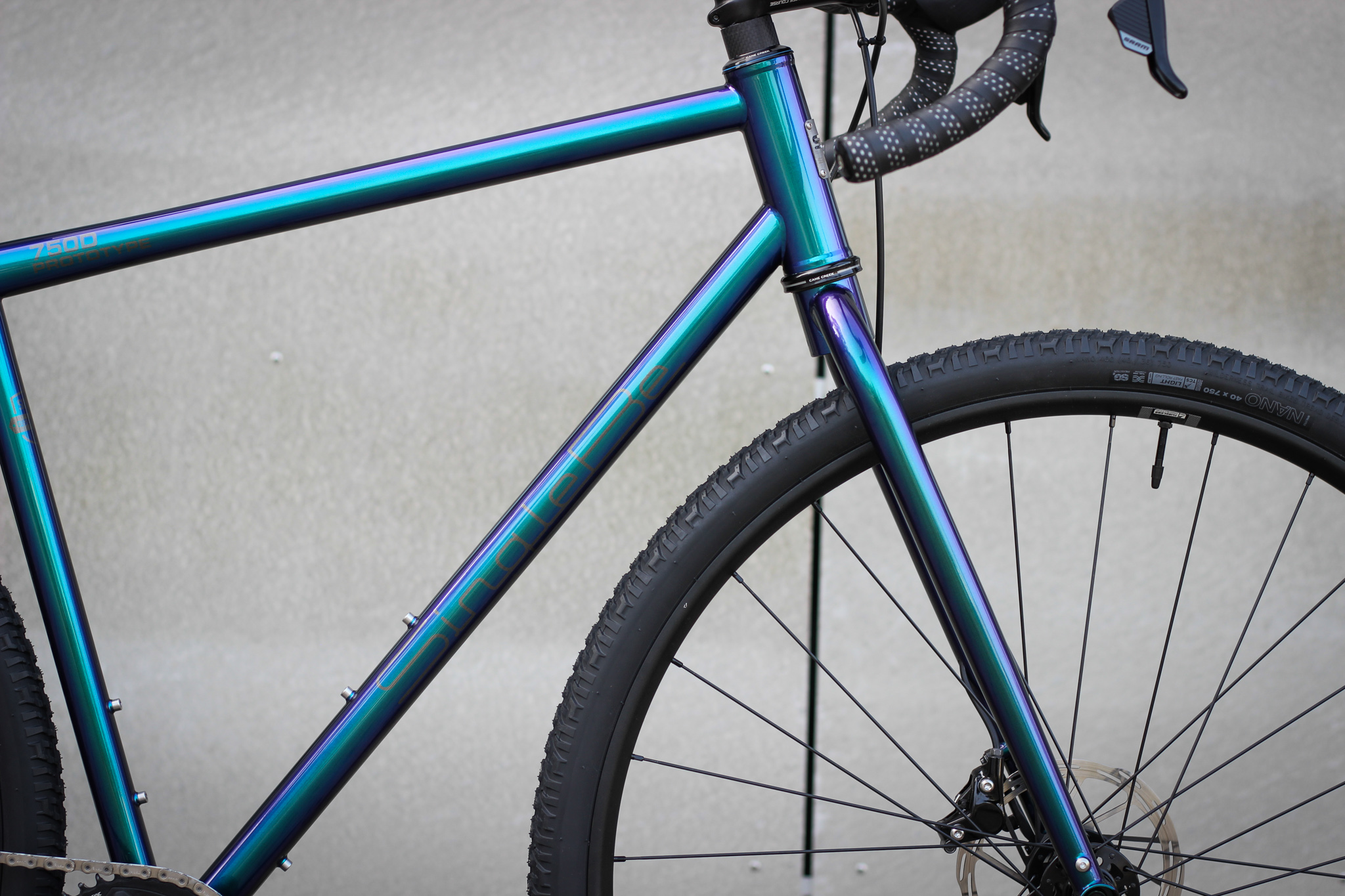

Bigger wheel diameter need also longer axle-crown fork, so we have built our own steel fork, unicrown, Reynolds 631 steel, 100×12 dropouts.
New wheel standard 750d should be good option for bigger size frames.

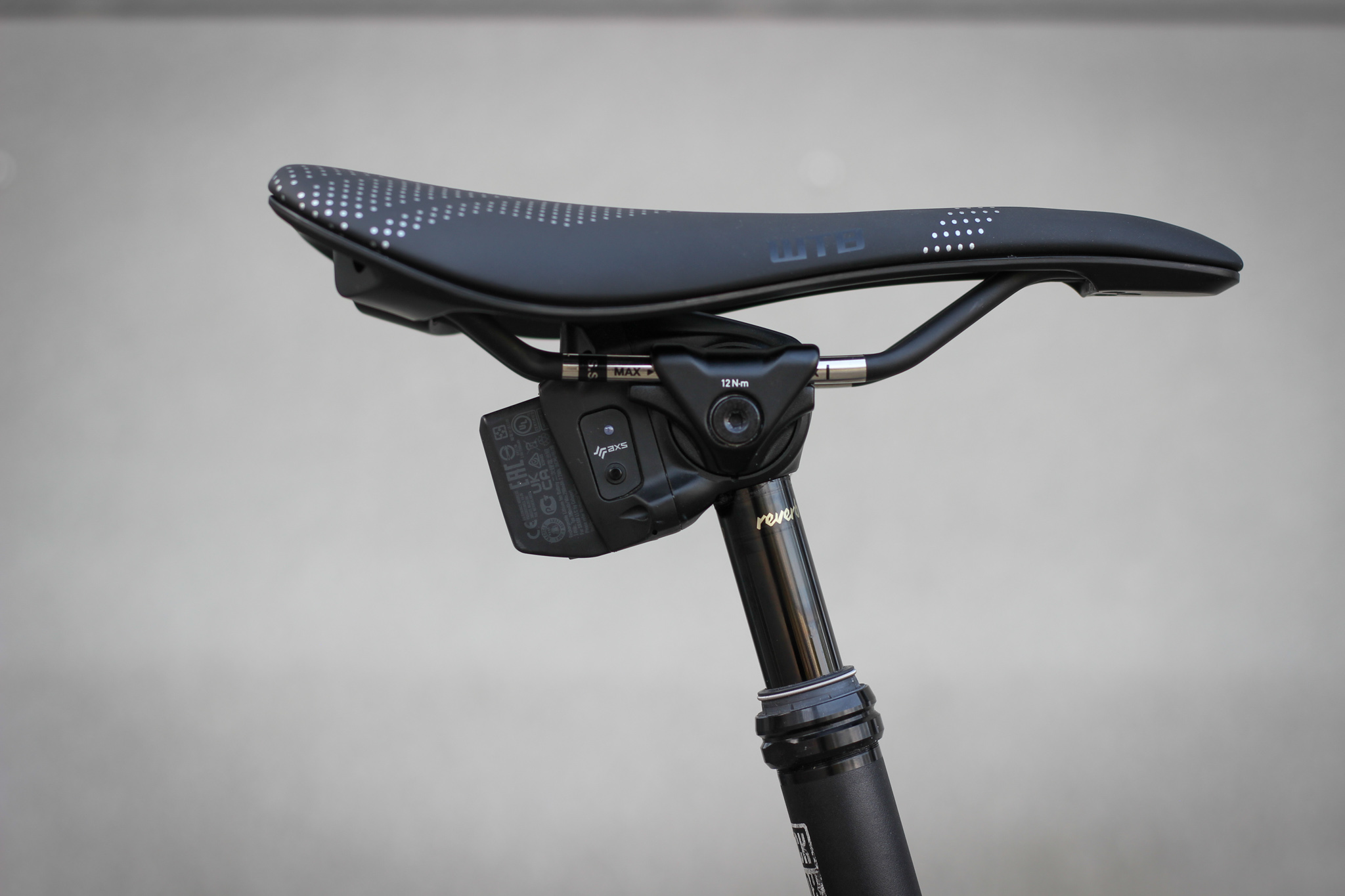

Rock Shox Reverb adjustable seatpost delivers better handling.

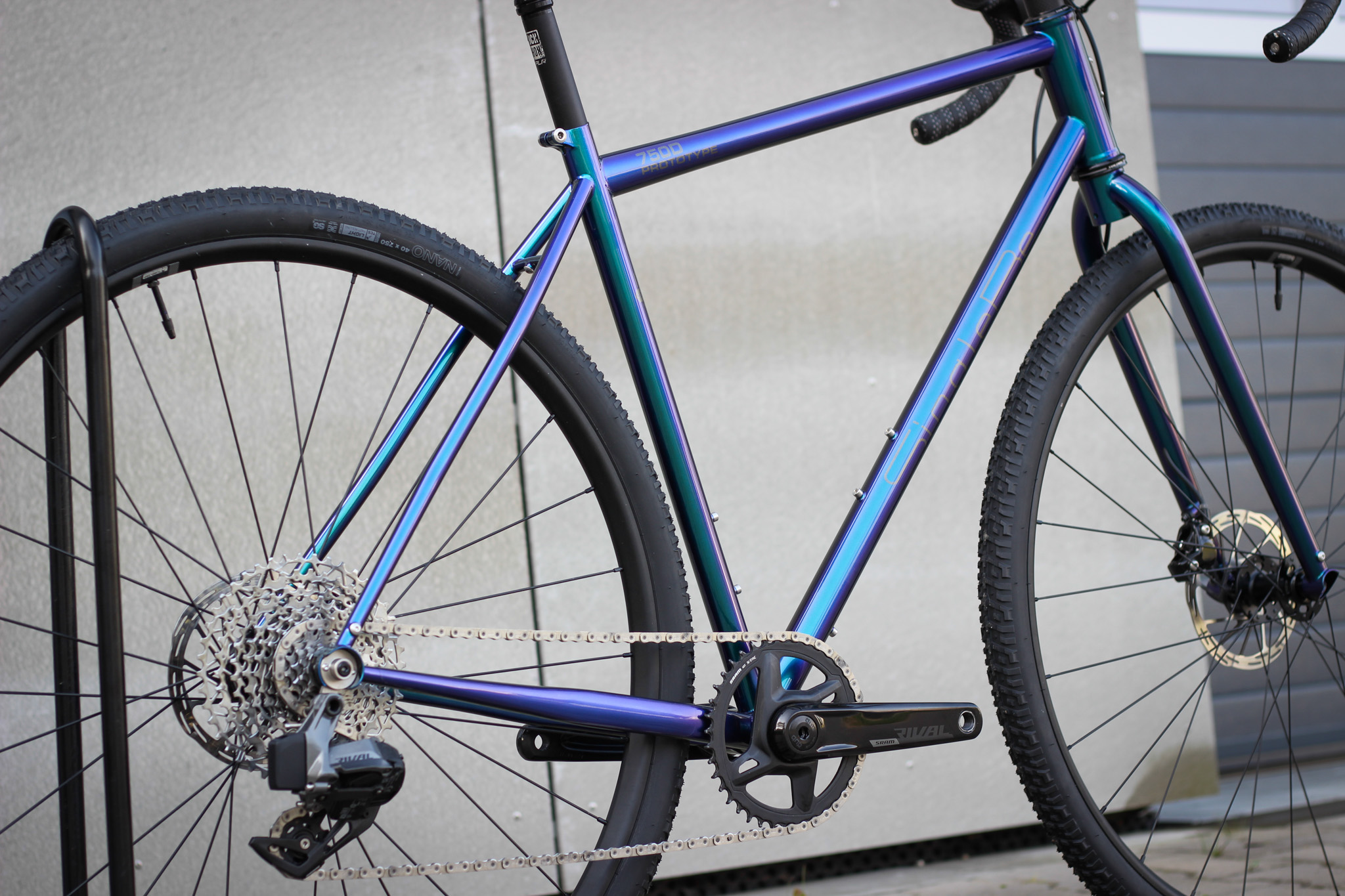

| Frame | Reynolds 853 / Dedacciai Zero |
|---|---|
| Headset | Cane Creek 40 |

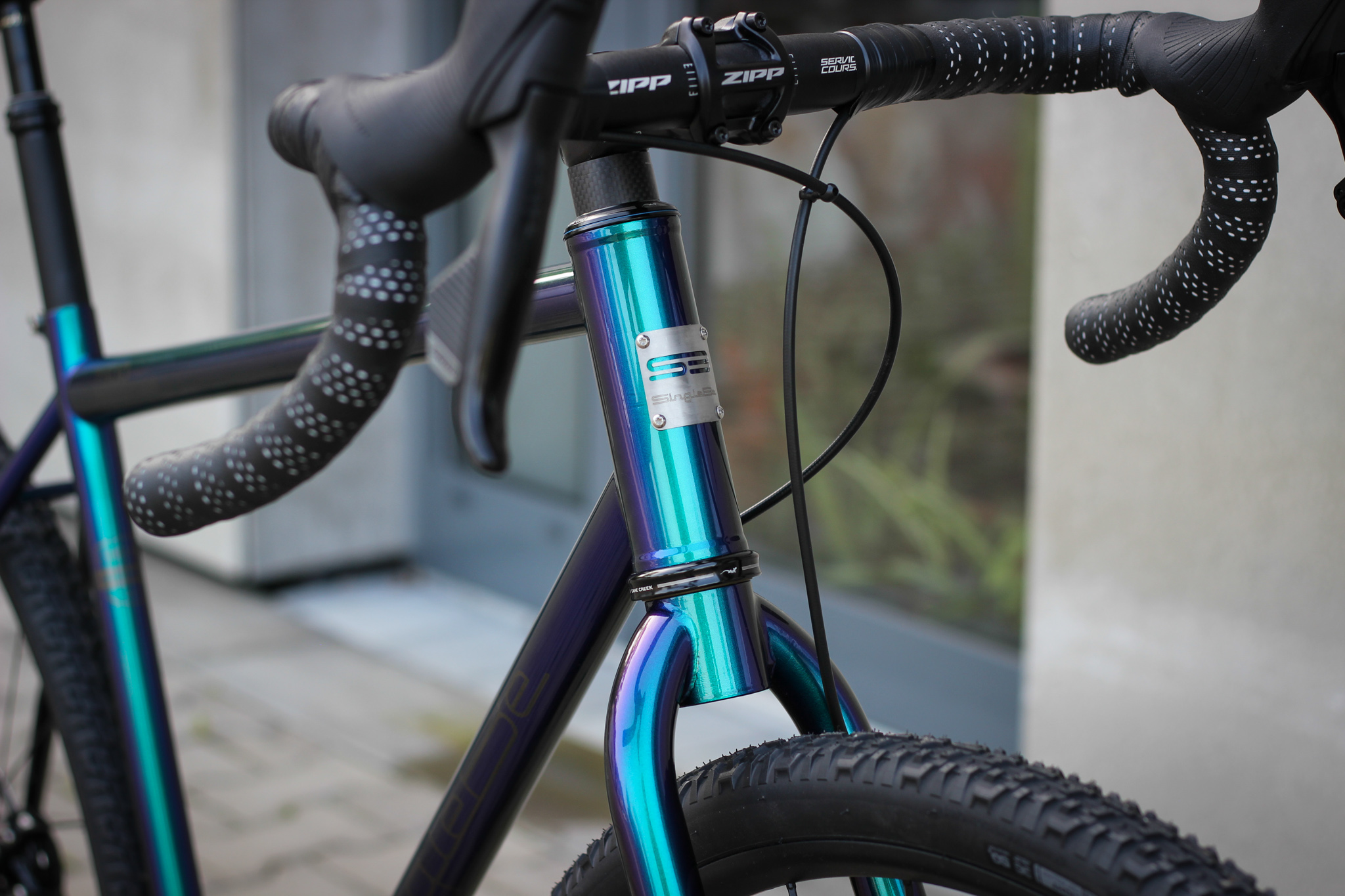

| Fork | SingleBe steel rigid unicrown fork, Reynolds 631, 100x12 |
| Brakes | Sram Rival 1, HRD |
| Shifters | Sram Rival 1x12 AXS |

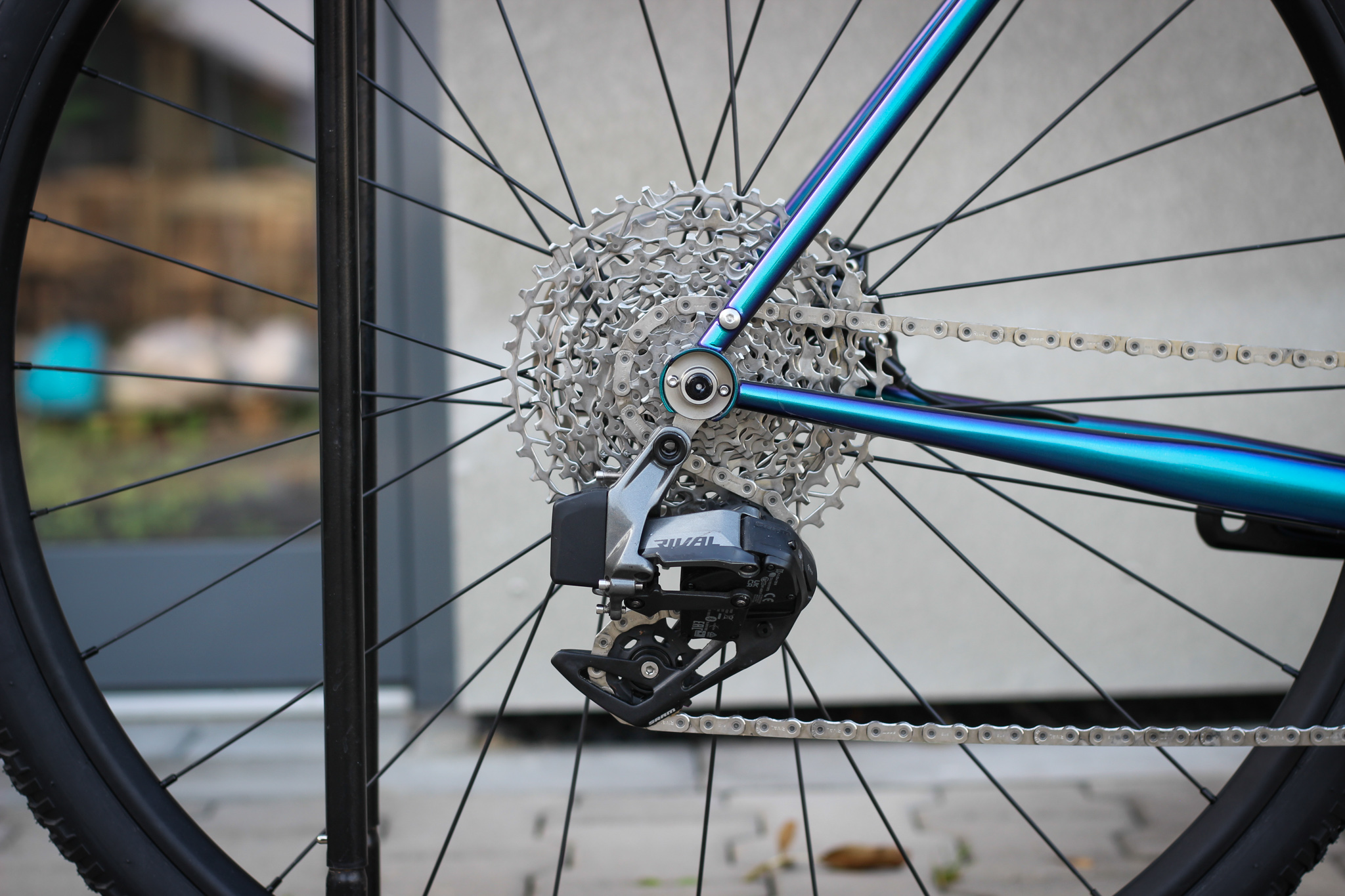

| RD | Sram Rival AXS 1x12 XPLR |
| Cassette | Sram Rival 10-44 XG-1251 |
| Seatpost | Rock Shox Reverb XPLR 27,2 AXS |
| Seatpost clamp | integrovaná |
| Bars | Zipp Service Course 420 mm |
| Stem | Zipp Service Course |
| Bar tape | Velo Reflective |
|---|---|
| Front hub | WTB 100x12 |
| Rear hub | WTB 142x12 XDR |

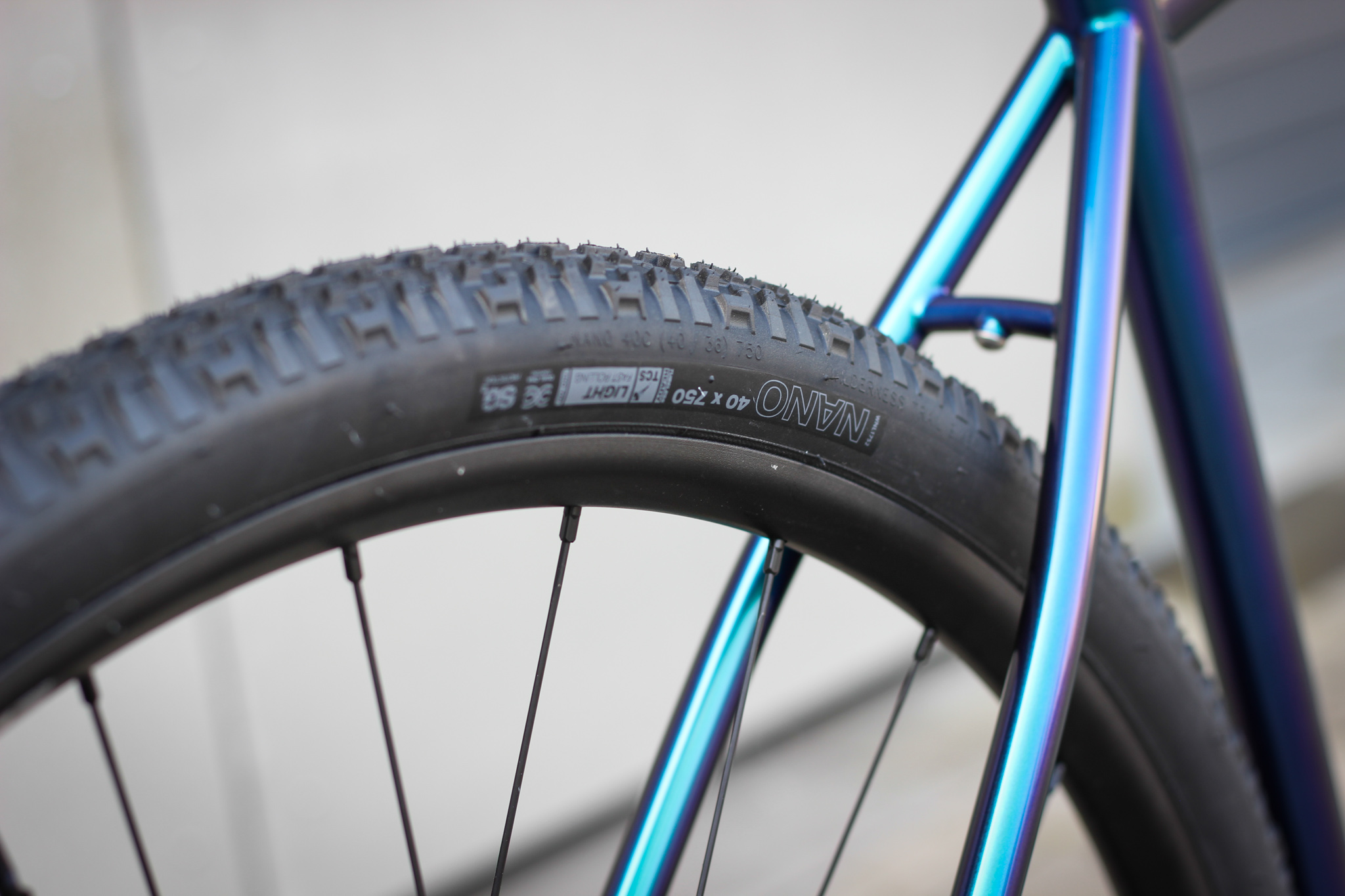

| Tires | WTB Nano 40x750d |
| Rims | WTB i25 750D |
| Crankset | Sram Rival DUB 1x12 172,5 40T |

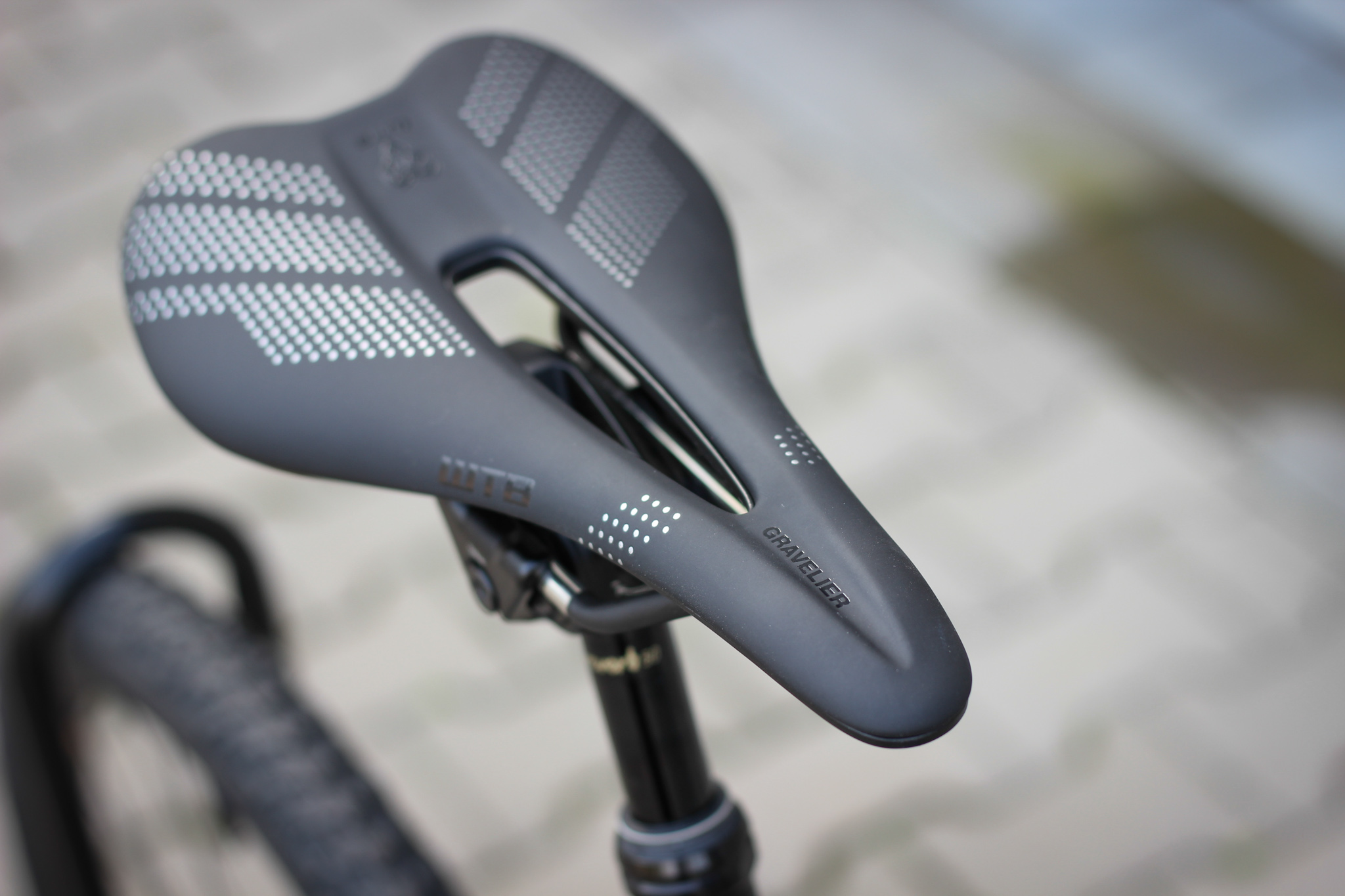

| Saddle | WTB Gravelier Ti |
| Spokes | black steel |
| Cages | - |
| Weight | 10,5 kg w/o pedals |

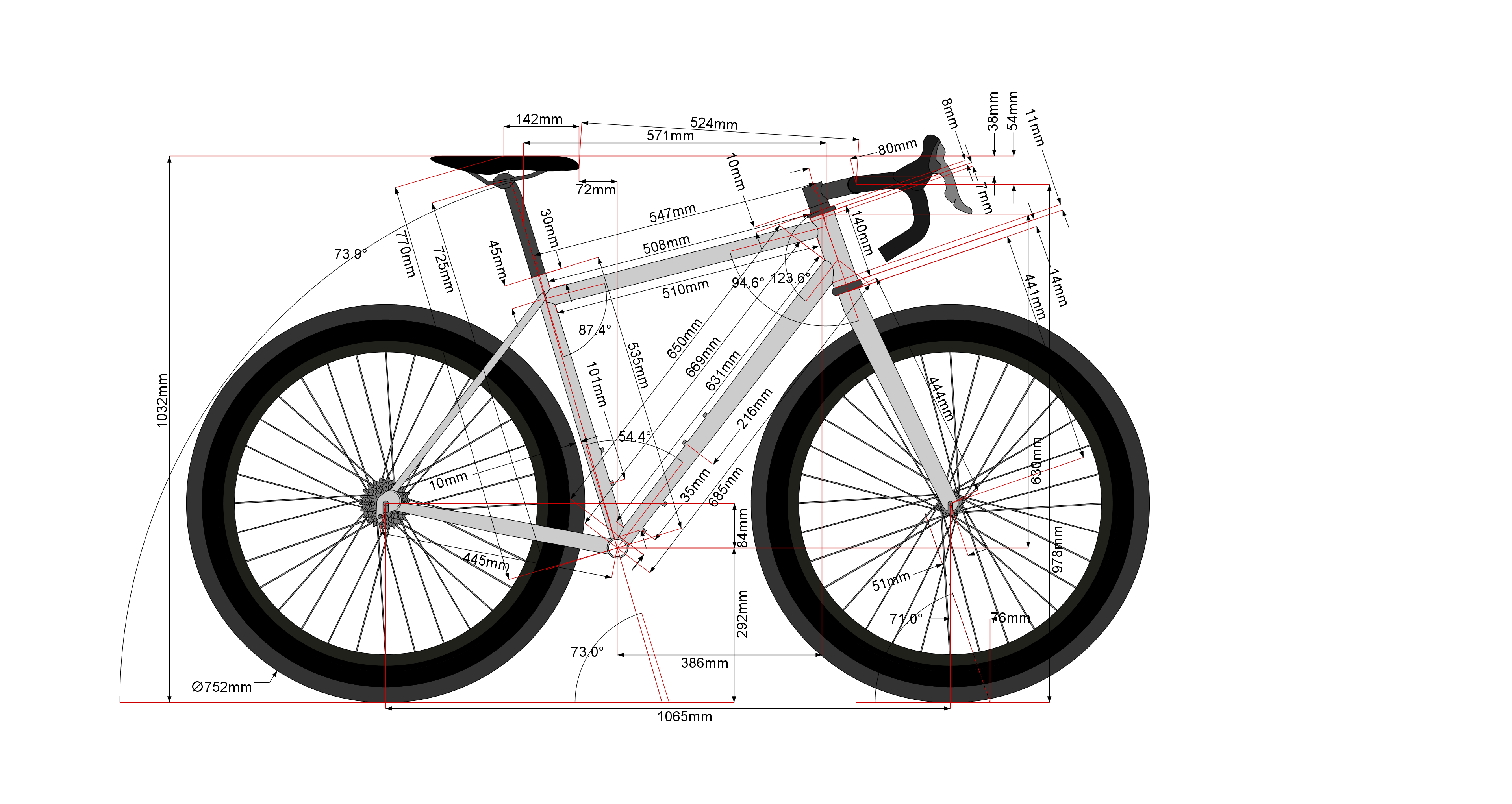

| TTA (B) | 526 mm |
|---|---|
| TTE (C) | 544 mm |
| HT (D) | 145 mm |
| ST (A) | 530 mm |
| CS (E) | 422 mm |
| HA (G) | 70.5° |
| SA (F) | 73,5° |
| BB drop | - 70 mm |
| BB height | 280 mm |
| Fork AC | 400 mm |
| Wheelbase | 1015 mm |
| Reach | 370 mm |
| Stack | 582 mm |
