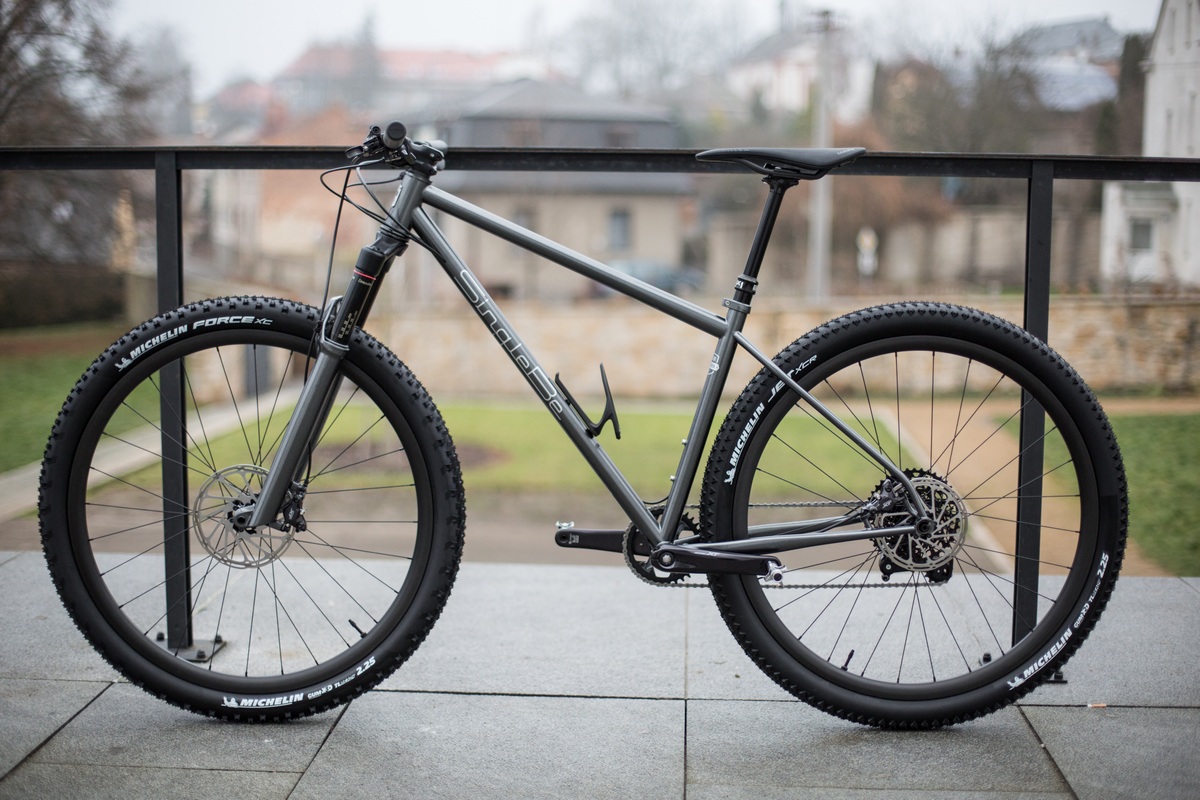

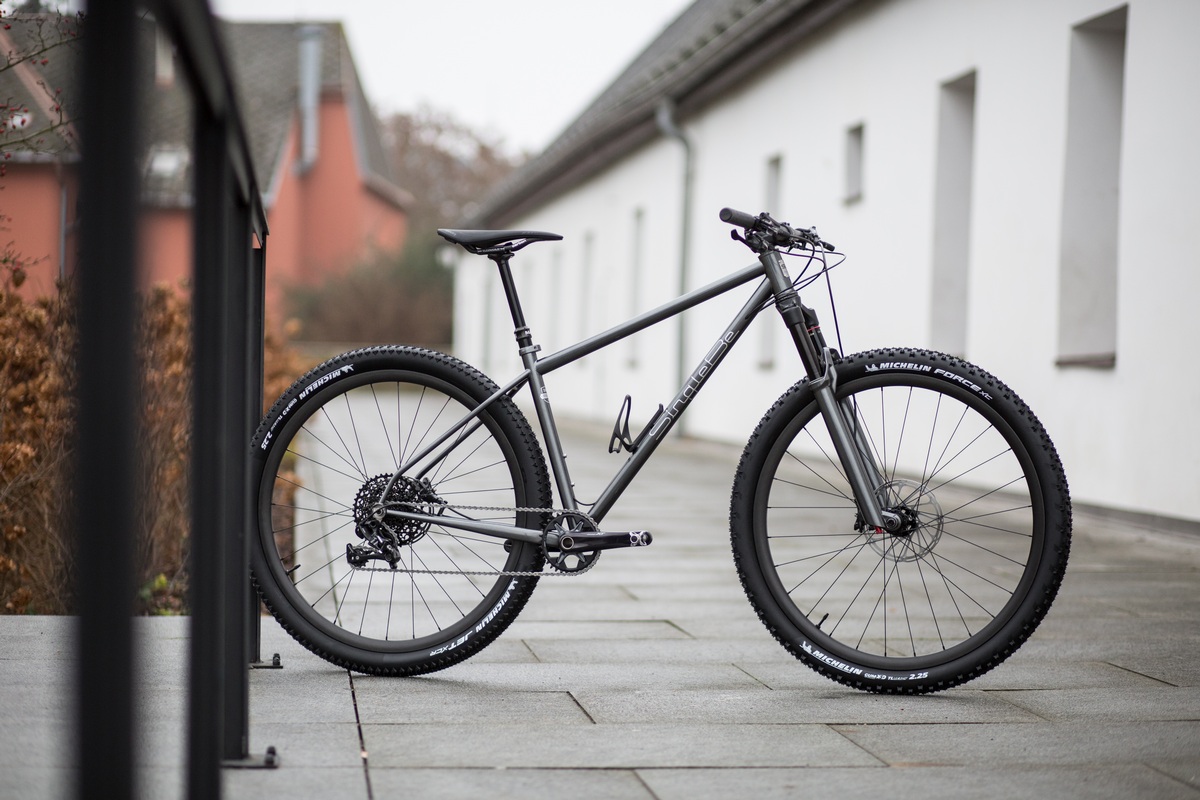

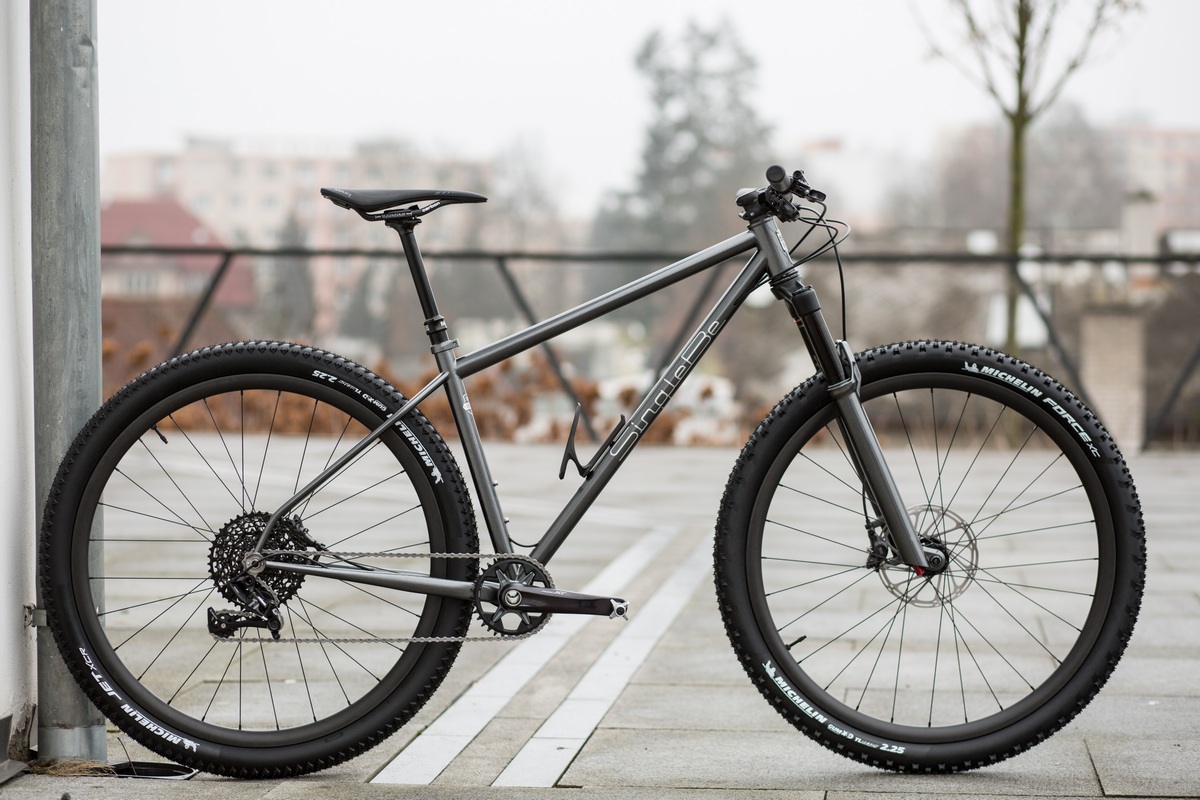

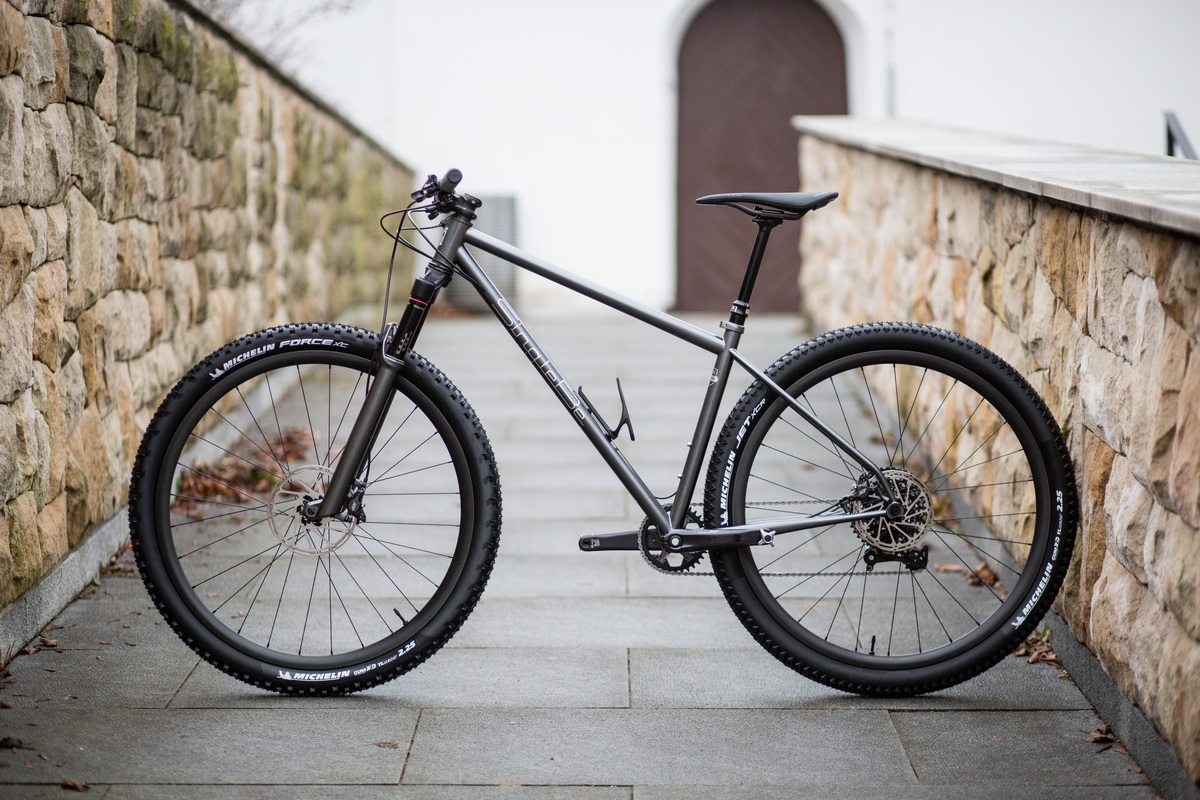

Short ass, modern angles and a dropper post…, all you need to enjoy technical trails.

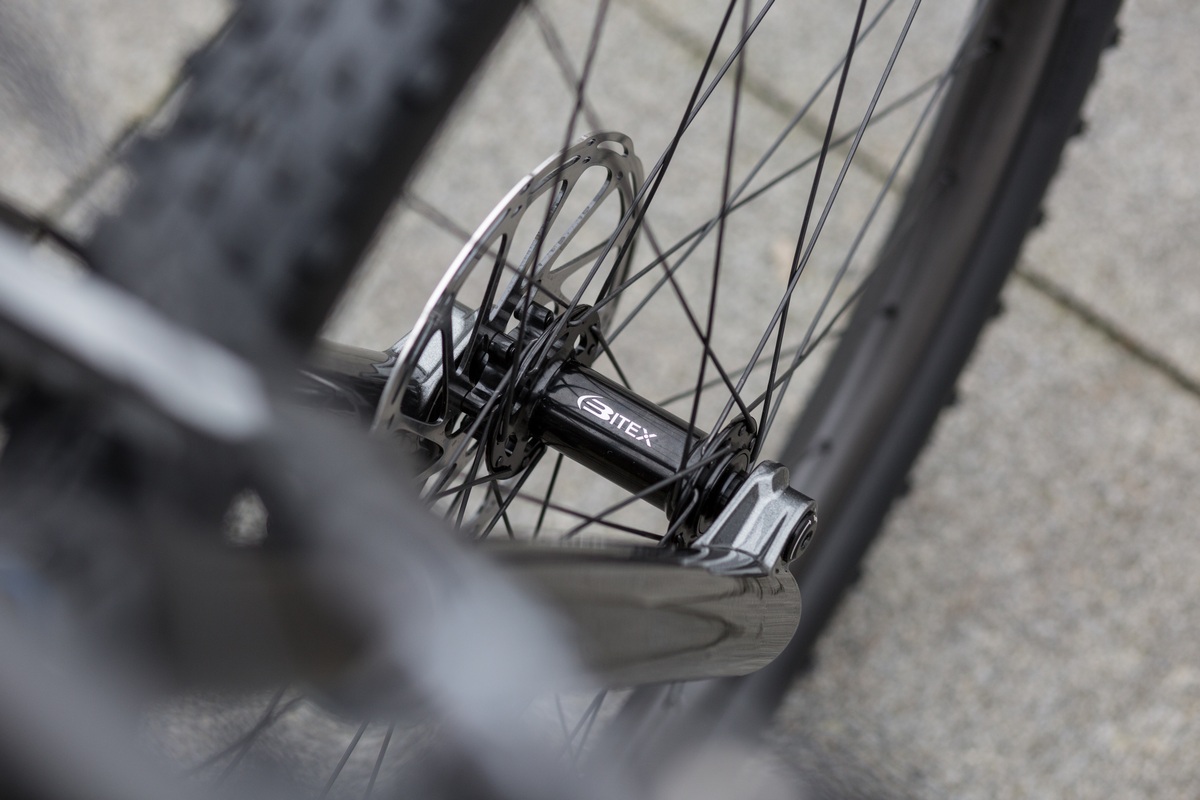

Carbon wheels are hand made built on Bitex boost BX211F/R hubs.

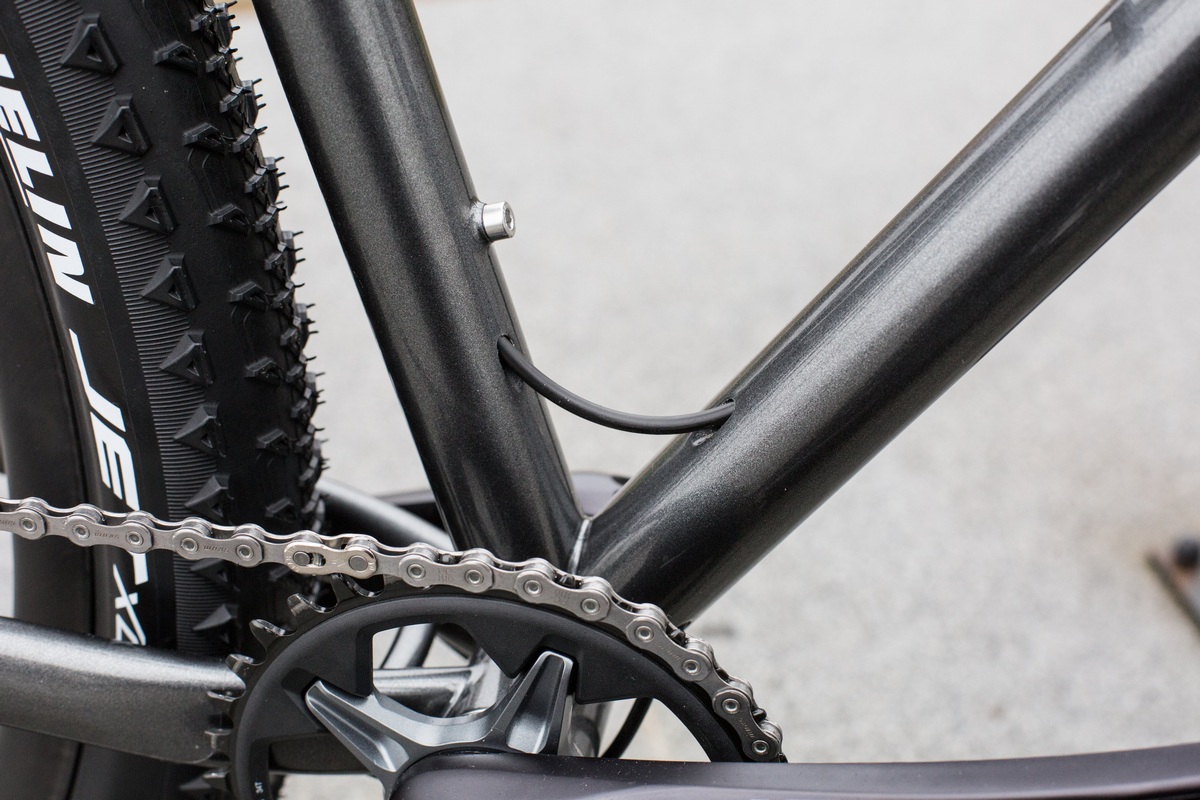

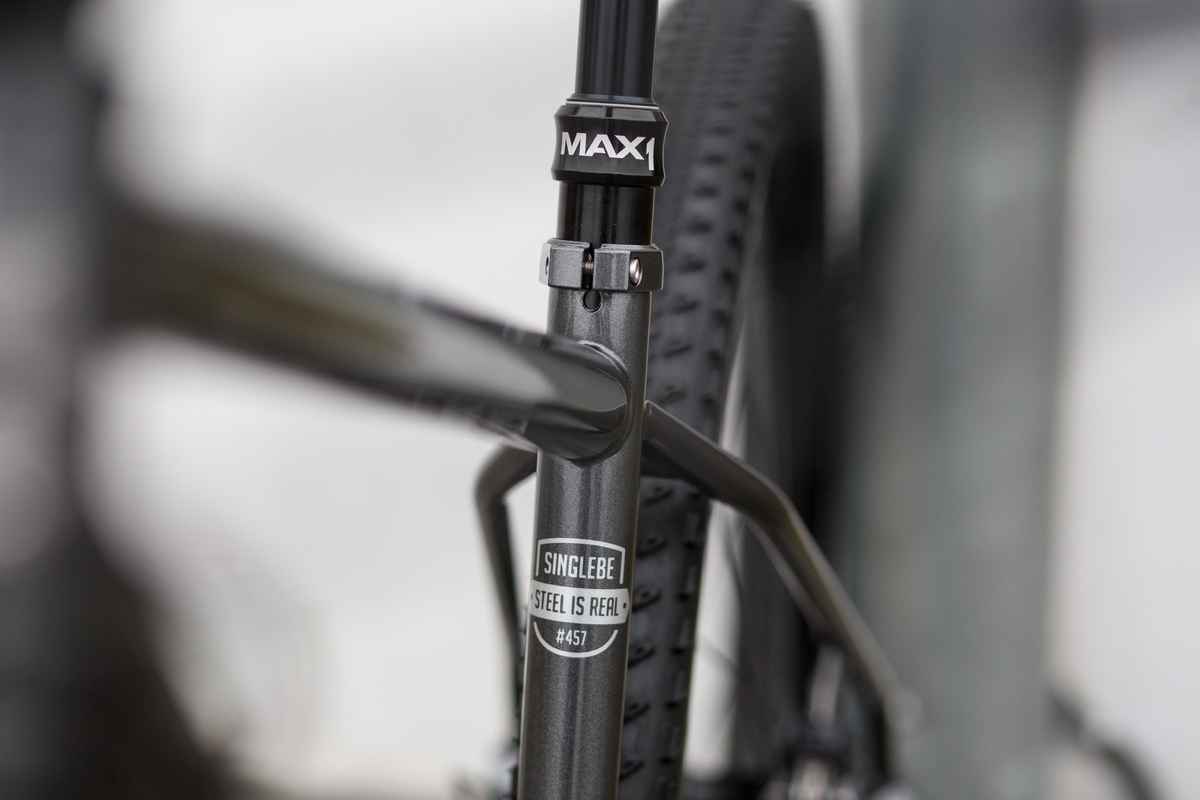

Internal cable routings for a dropper post seatpost.

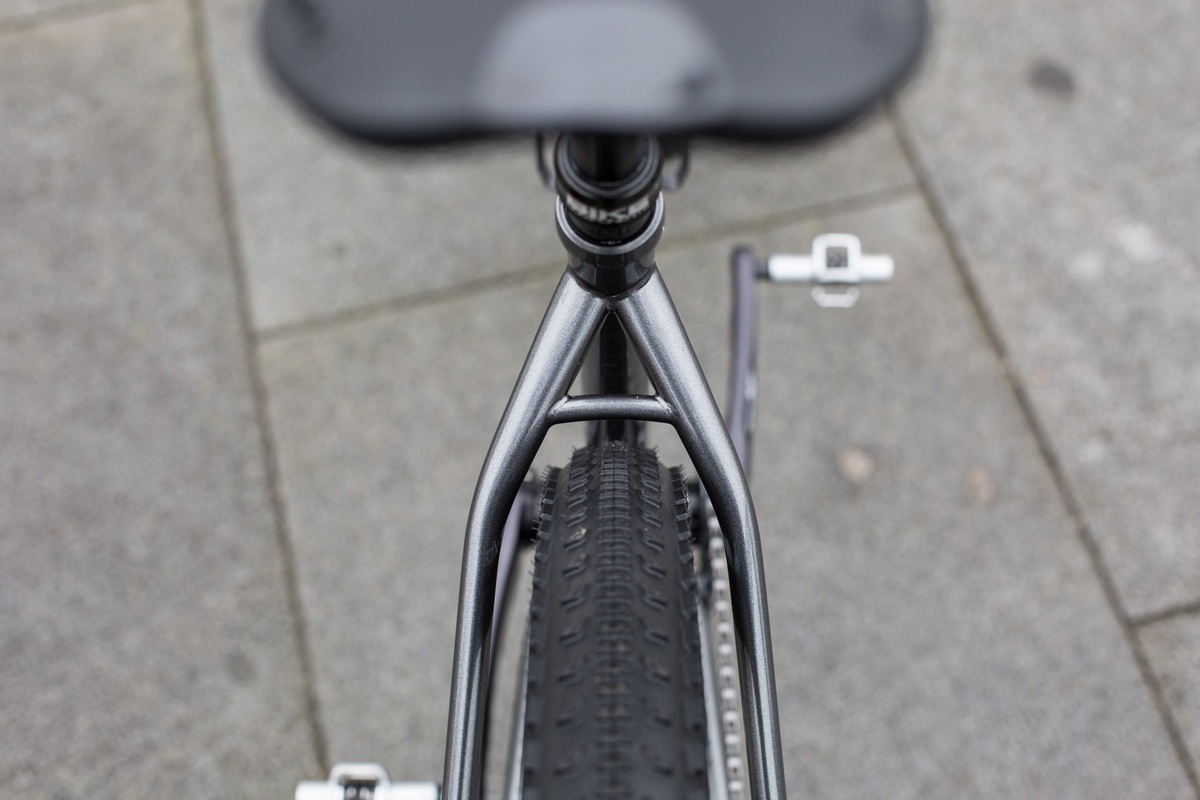

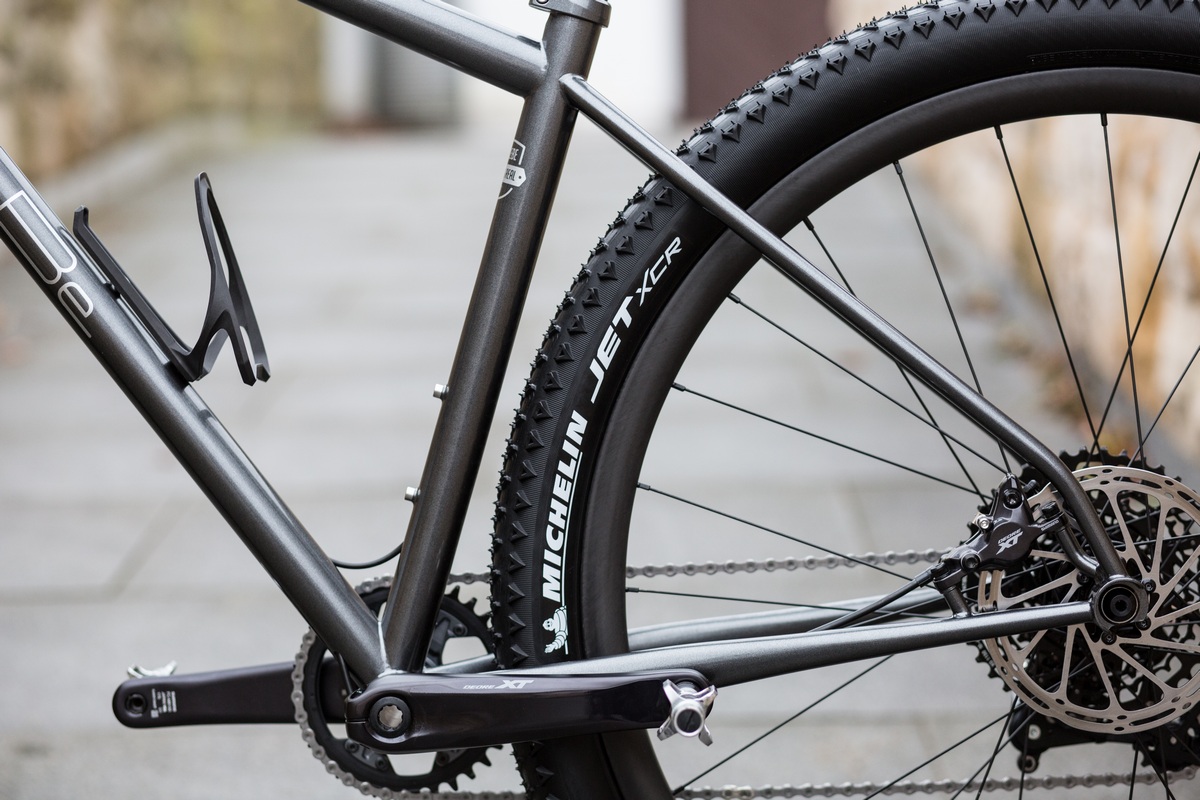

There is enough tire clearance up to 2.35 tires.

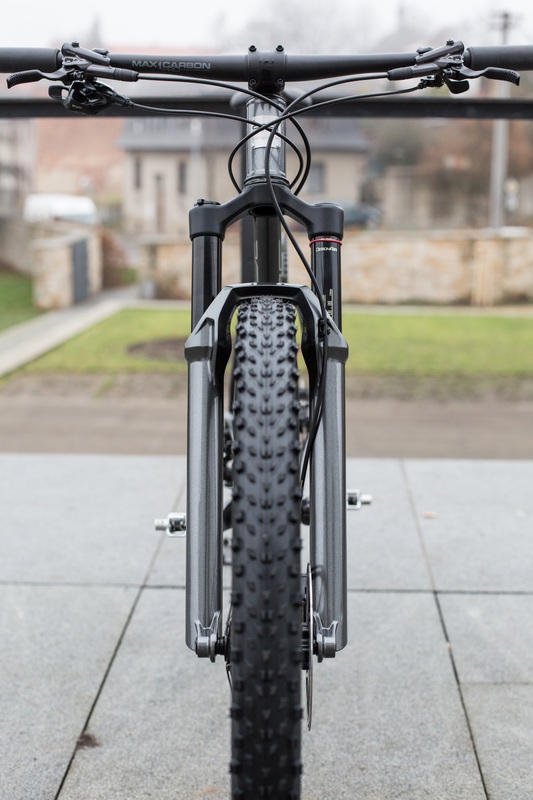

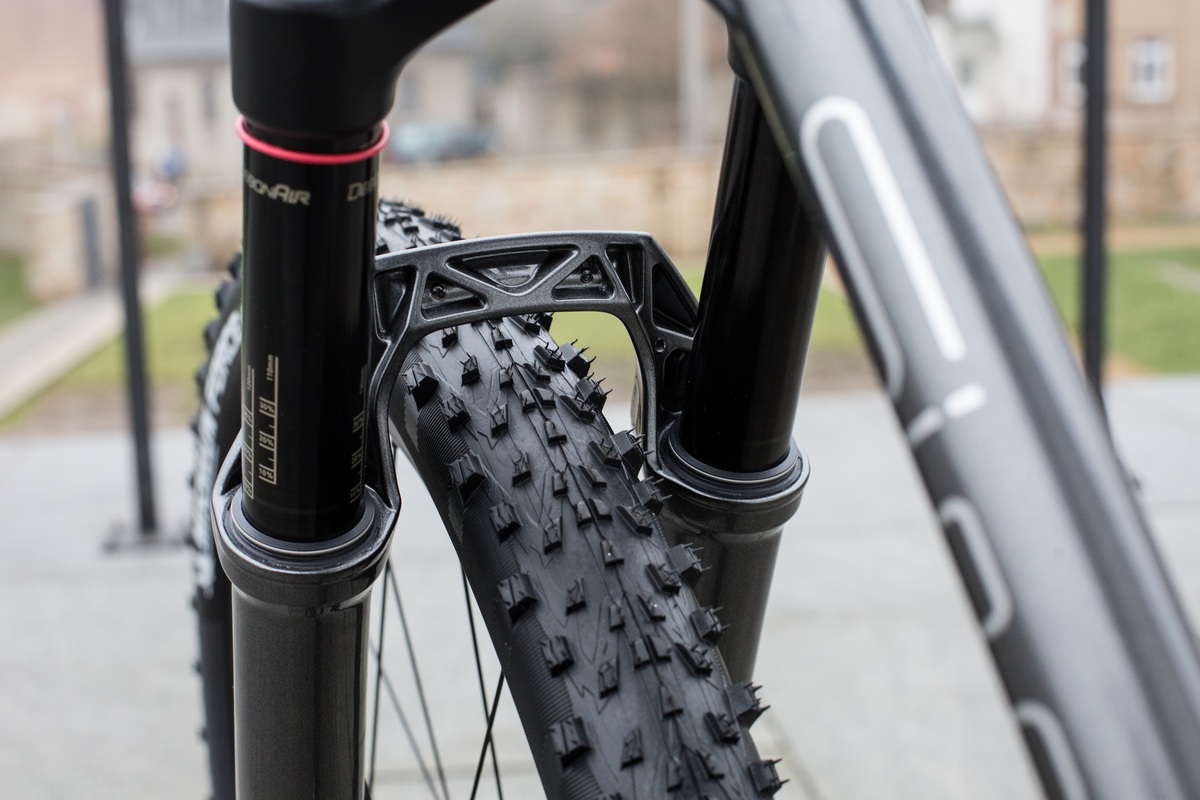

Brand new RS SID Select 35 mm 120 mm fork is working really well.

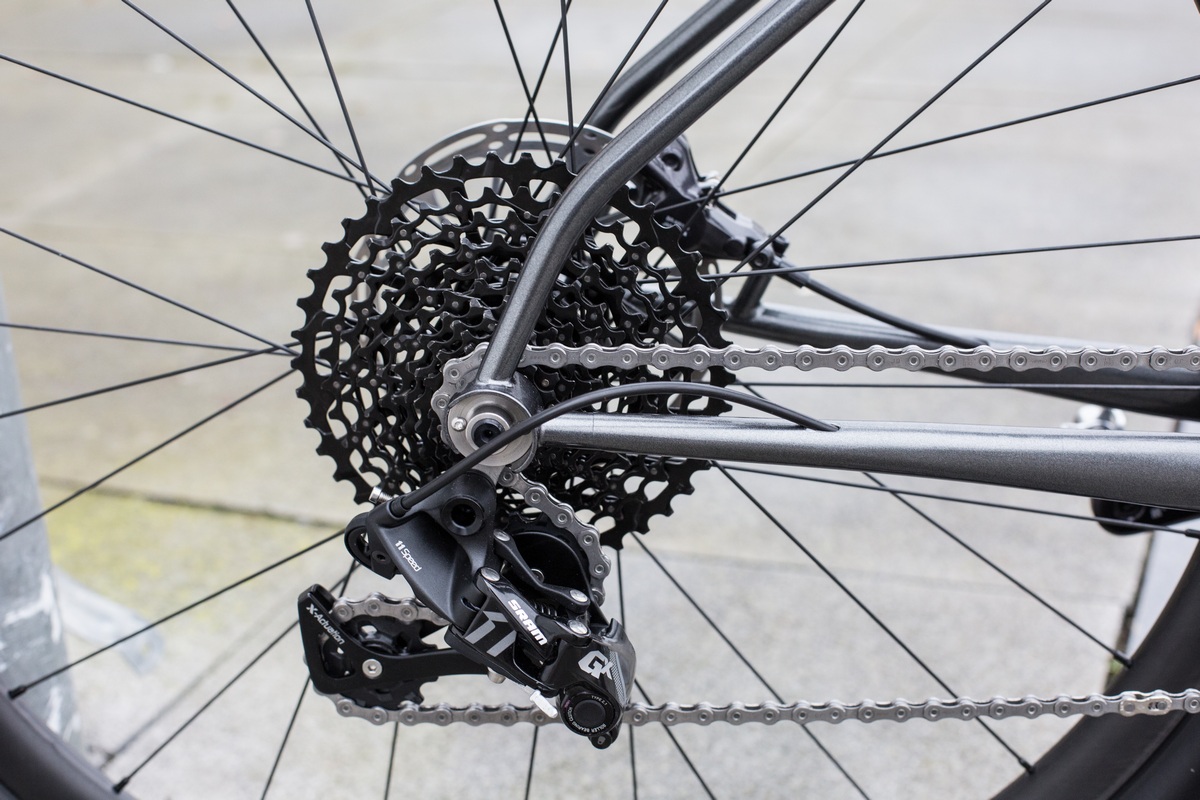

Customers choice was older but really reliable groupset Sram GX 1×11 with 10-42 gear range. Pretty enough for most of the rides.

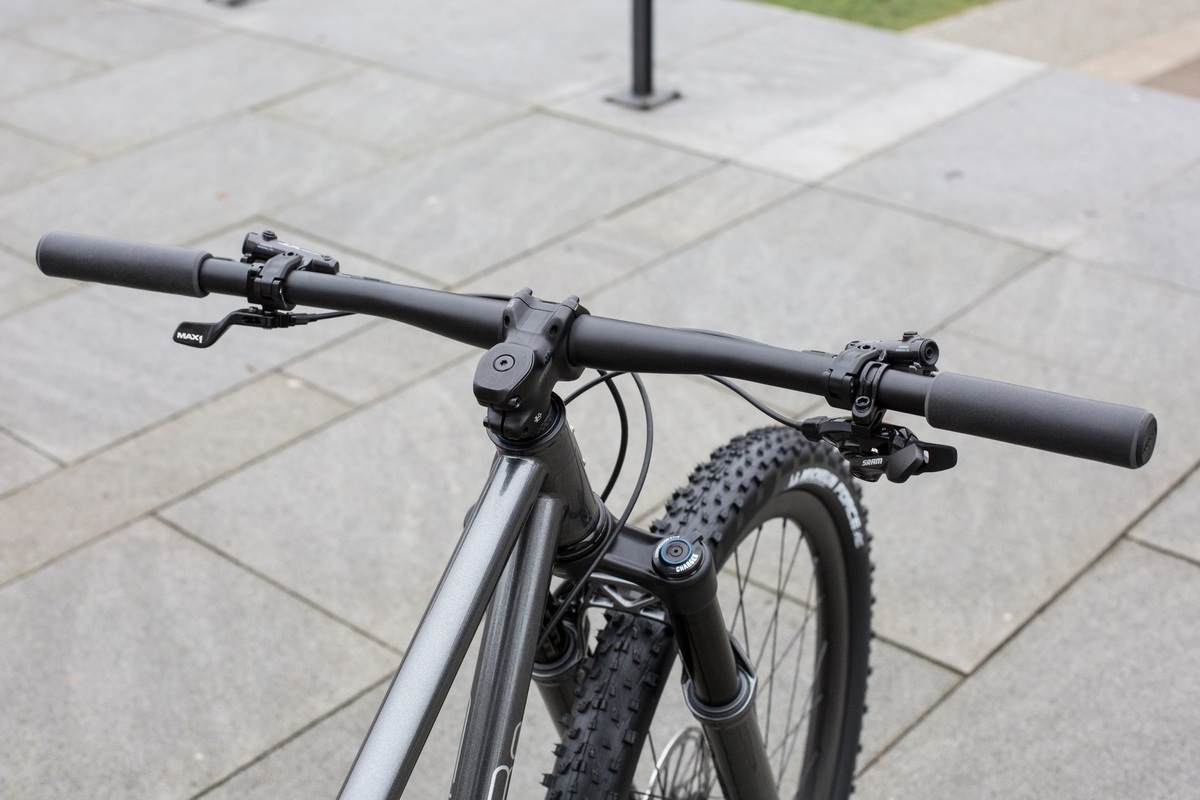

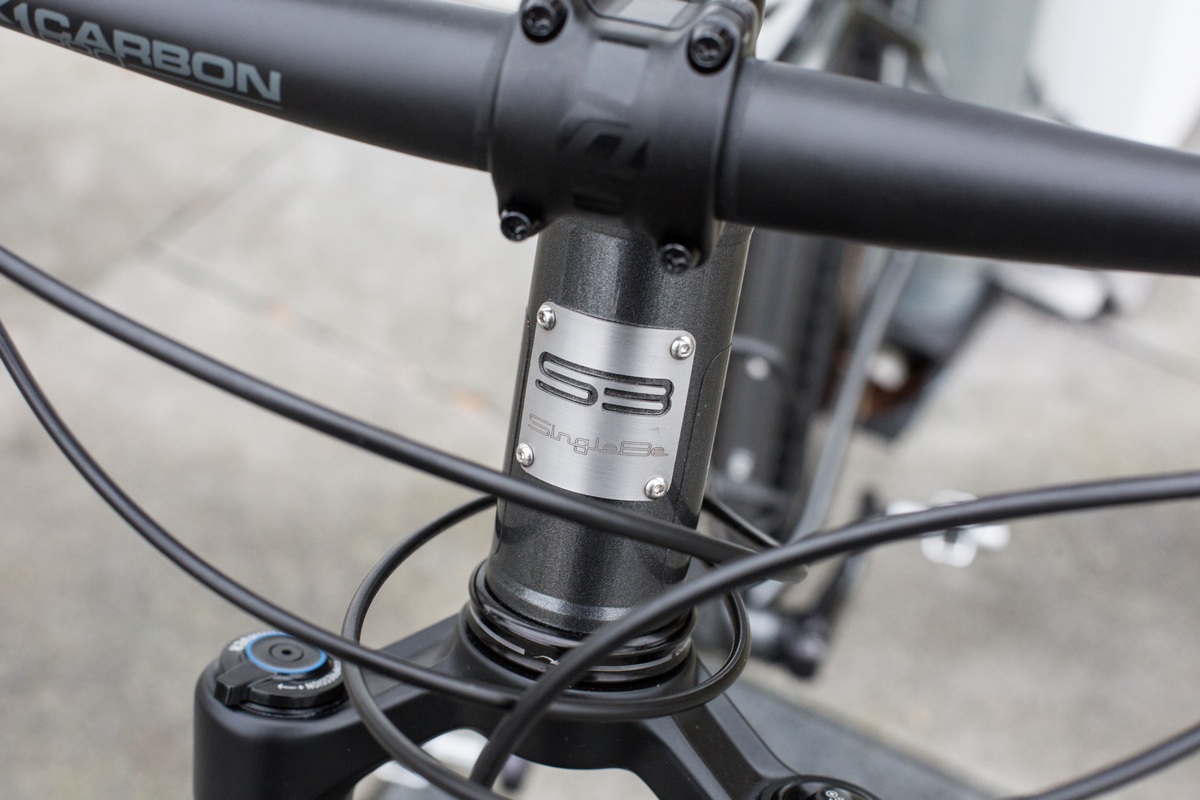

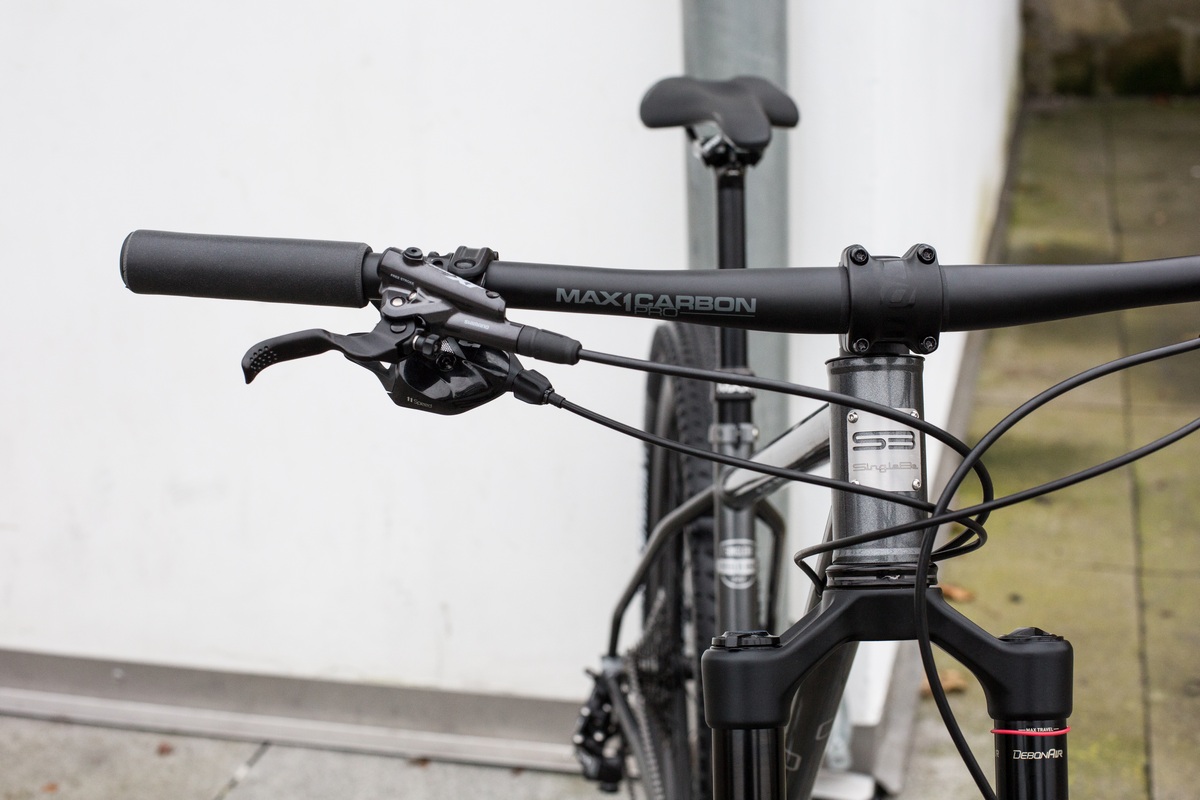

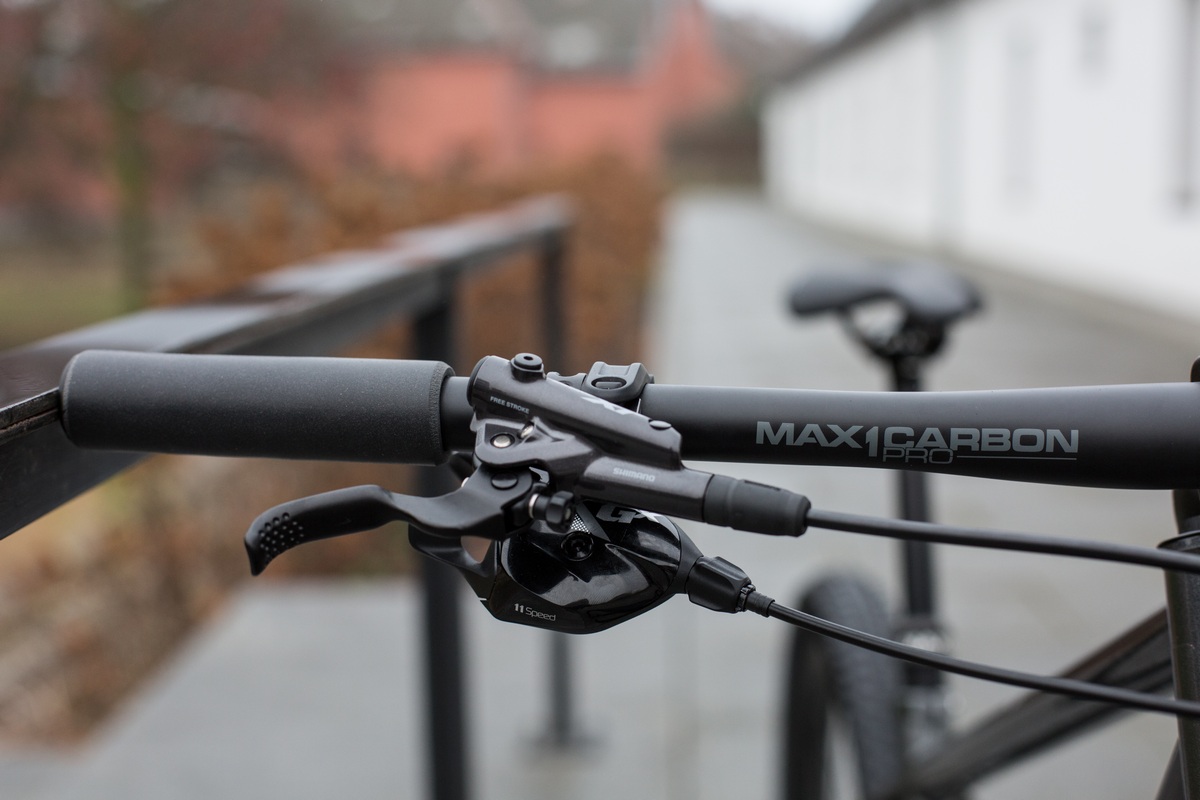

Thats clean look of the cocpit !

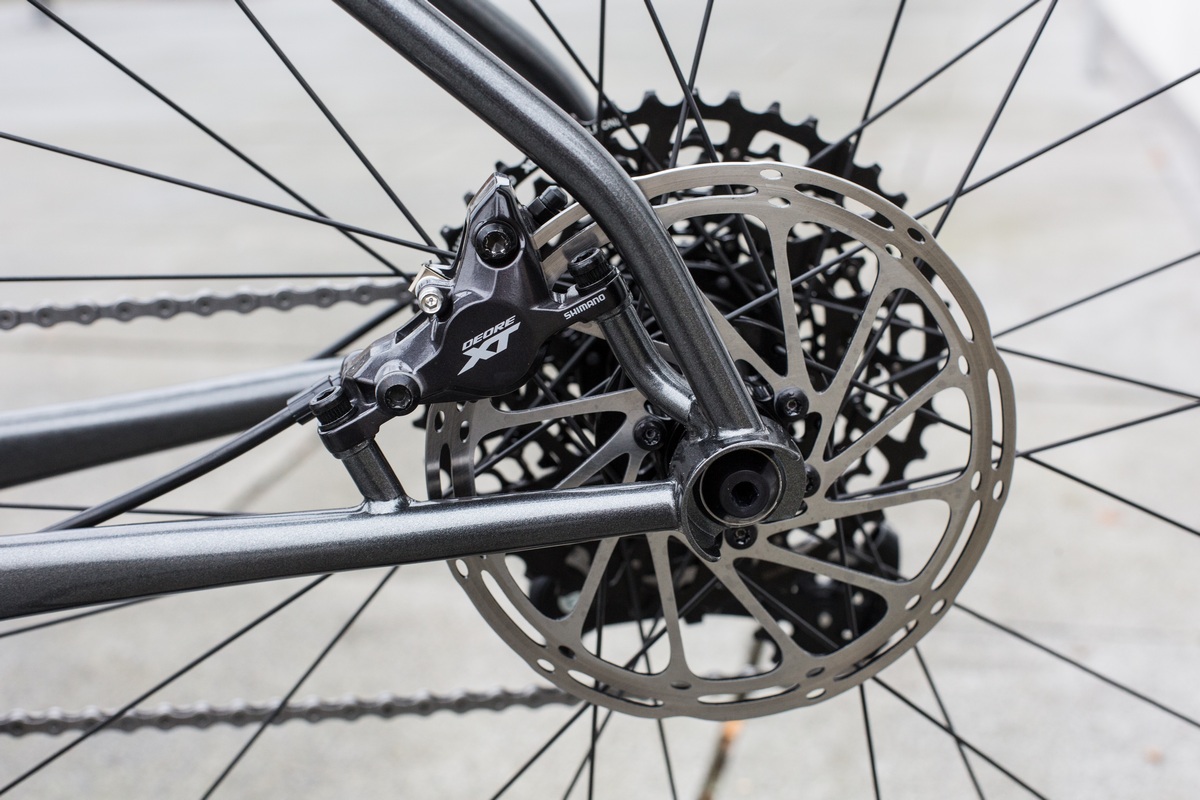

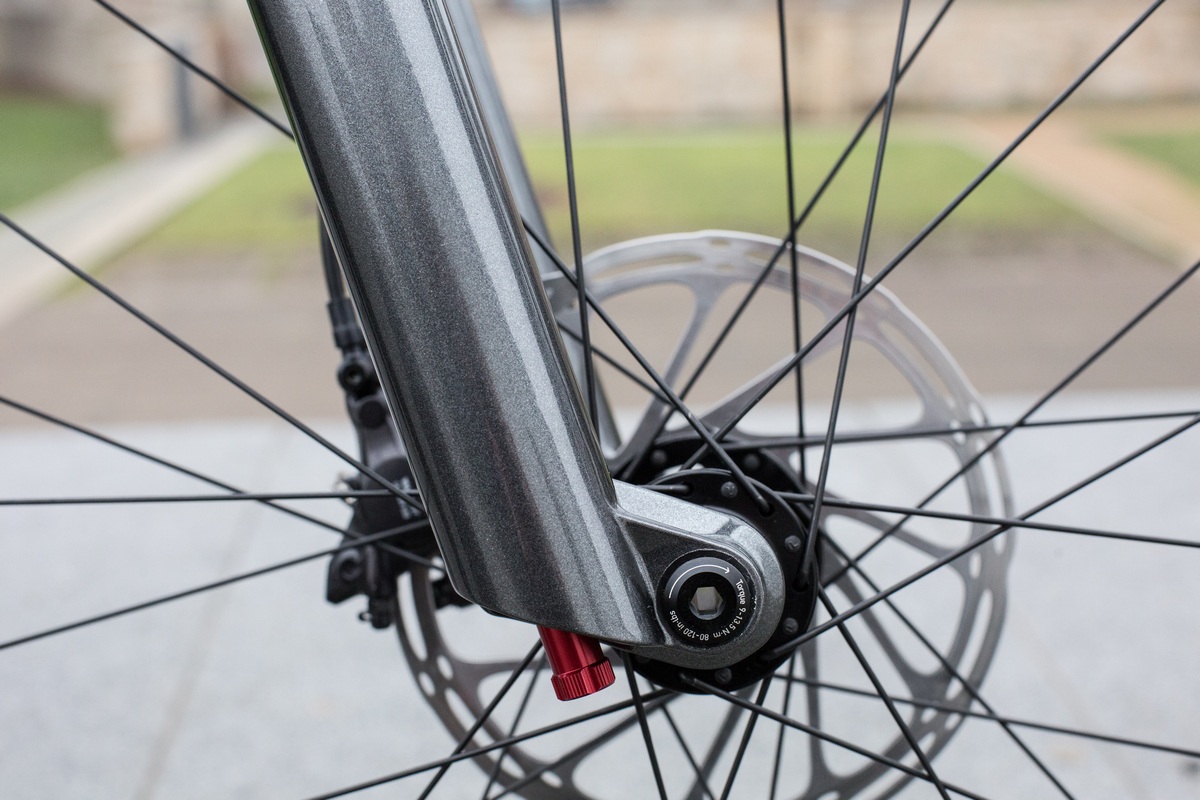

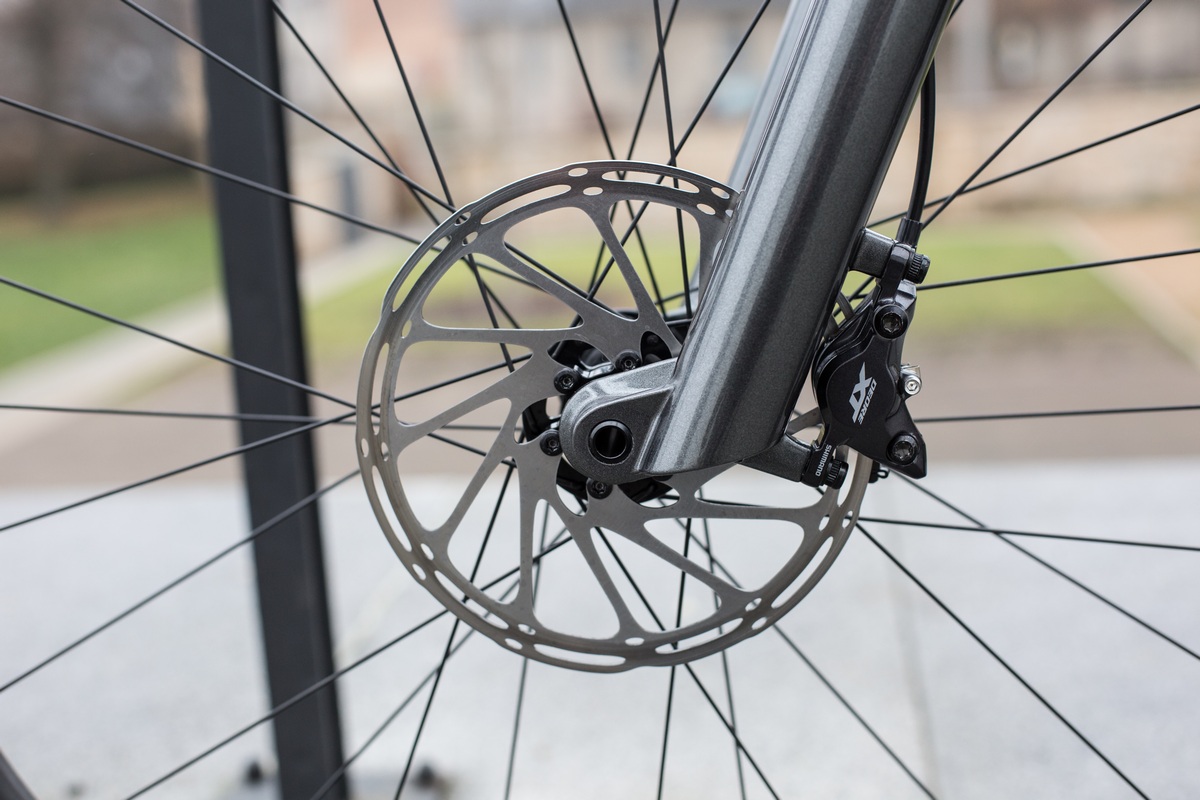

Sram rotors 180/160 mm, both calipers mounted directly to PM, without any need of an adapter.

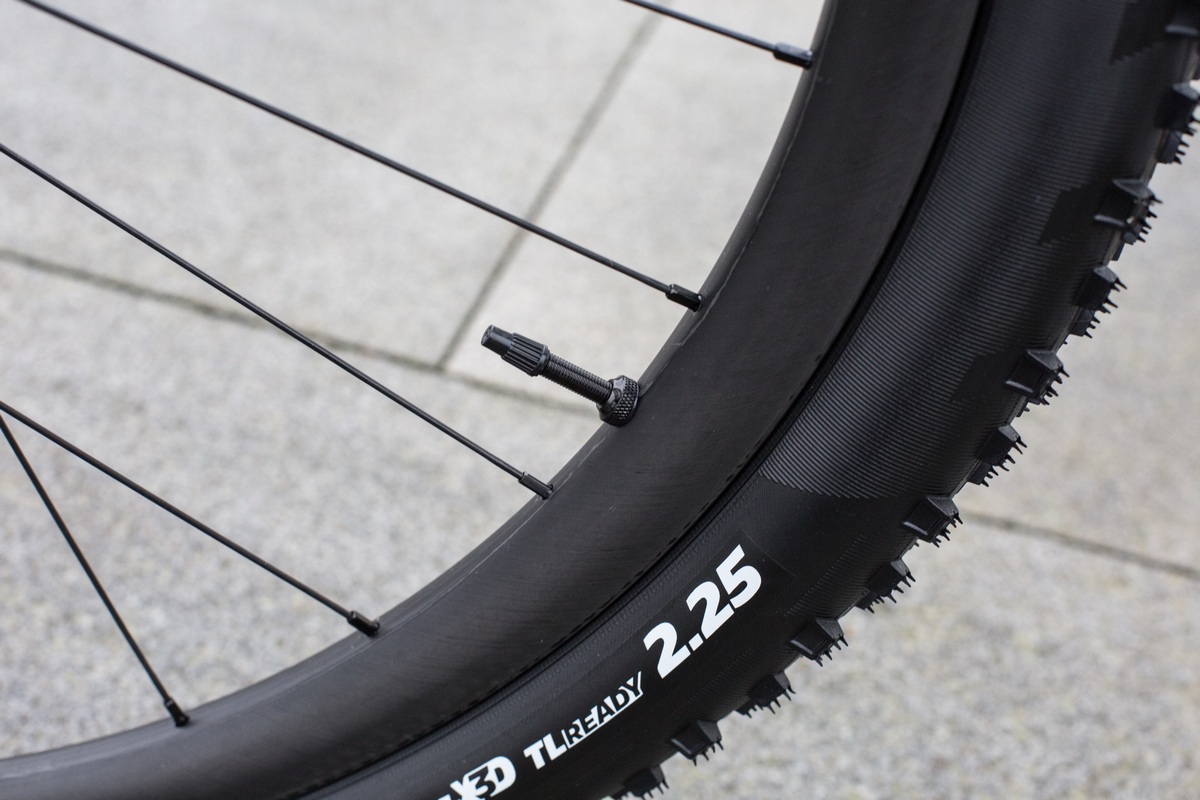

Light but strong Javax carbon rims, model RD230, 28 holes, and alu TLR valves installed.
| Frame | Reynolds 853 / Dedacciai ZeroEvo stays |
|---|---|
| Headset | Cane Creek 40/Slamset ZS44/28-EC44/40 |
| Fork | Rock Shox SID Select 35 120 mm 100x15 |
| Brakes | Shimano XT M8100 |
| Shifters | Sram GX 1x11 |
| RD mech | Sram GX 1x11 |
| Cassette | Sram 10-42 CG-1150 |
| Chain | Sram PC-1110 |

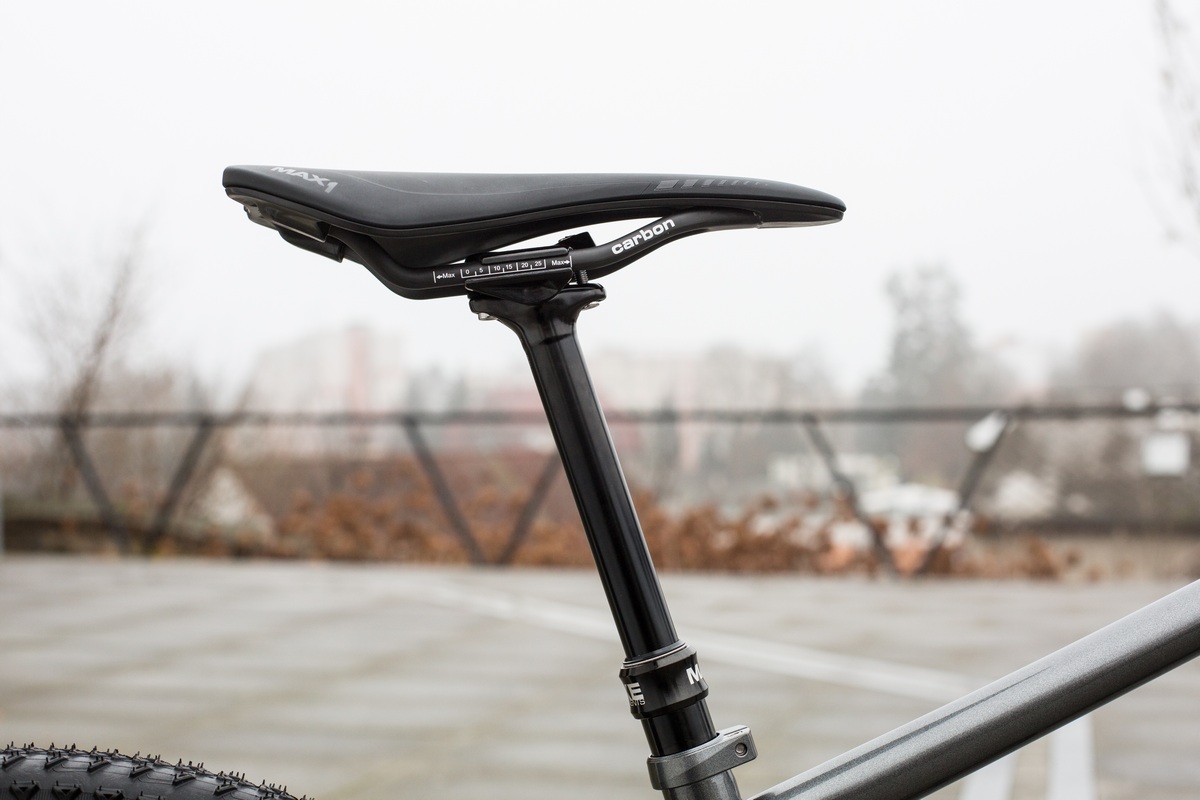

| Seatpost | Max1 170 mm travel 30.9 mm |
| Bars | Max1 Evo Carbon 720 |
| Stem | Syncros FL1.5 50 mm |
|---|---|
| Grips | silicon black |
| Front hub | Bitex BX211F 110x15 |
| Rear hub | Bitex BX211R 148x12 + XD driver 28H |

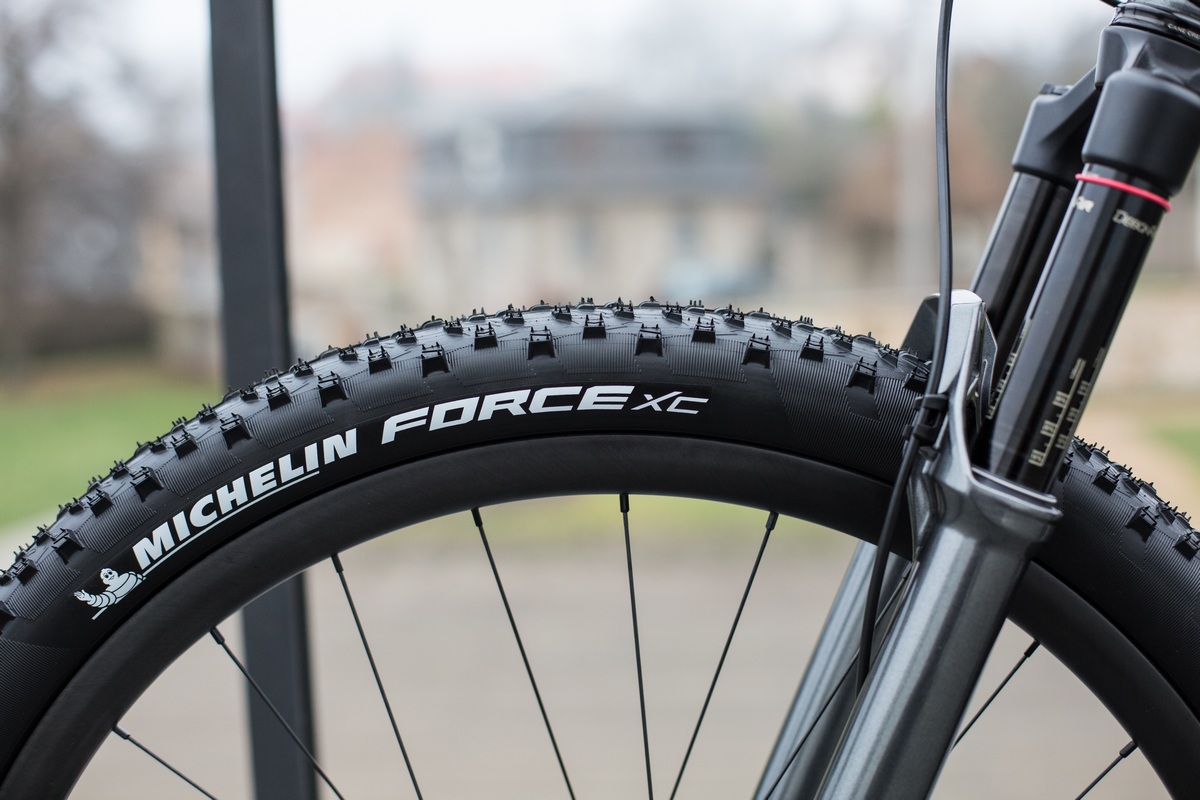

| Tires | Michelin Force XC Comp 2.25 TL |
| Rims | Javax RD230 28h carbon |
| Spokes | Pillar PSR2018 2.0/1.8 |

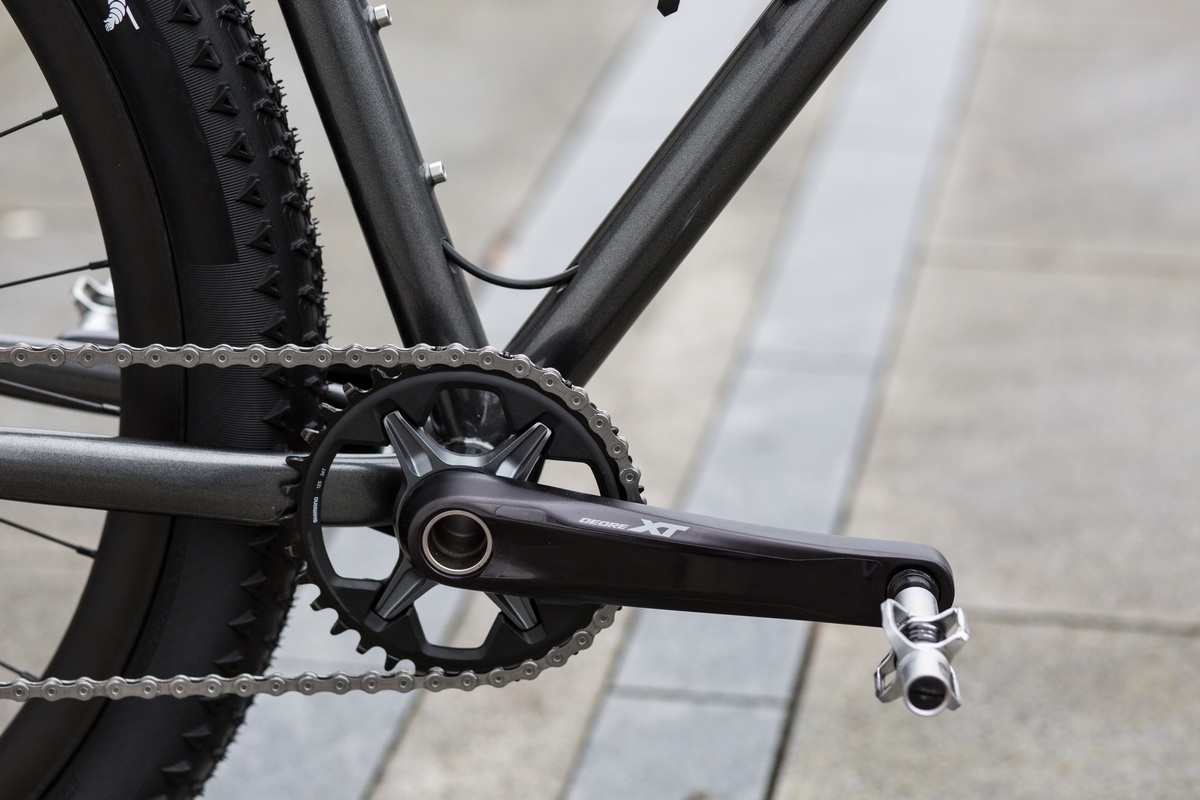

| Crankset | Shimano XT 34T Boost CL |
| Saddle | Max1 carbon Evo Carbon |
| Weight | 11 kg w/o pedals |

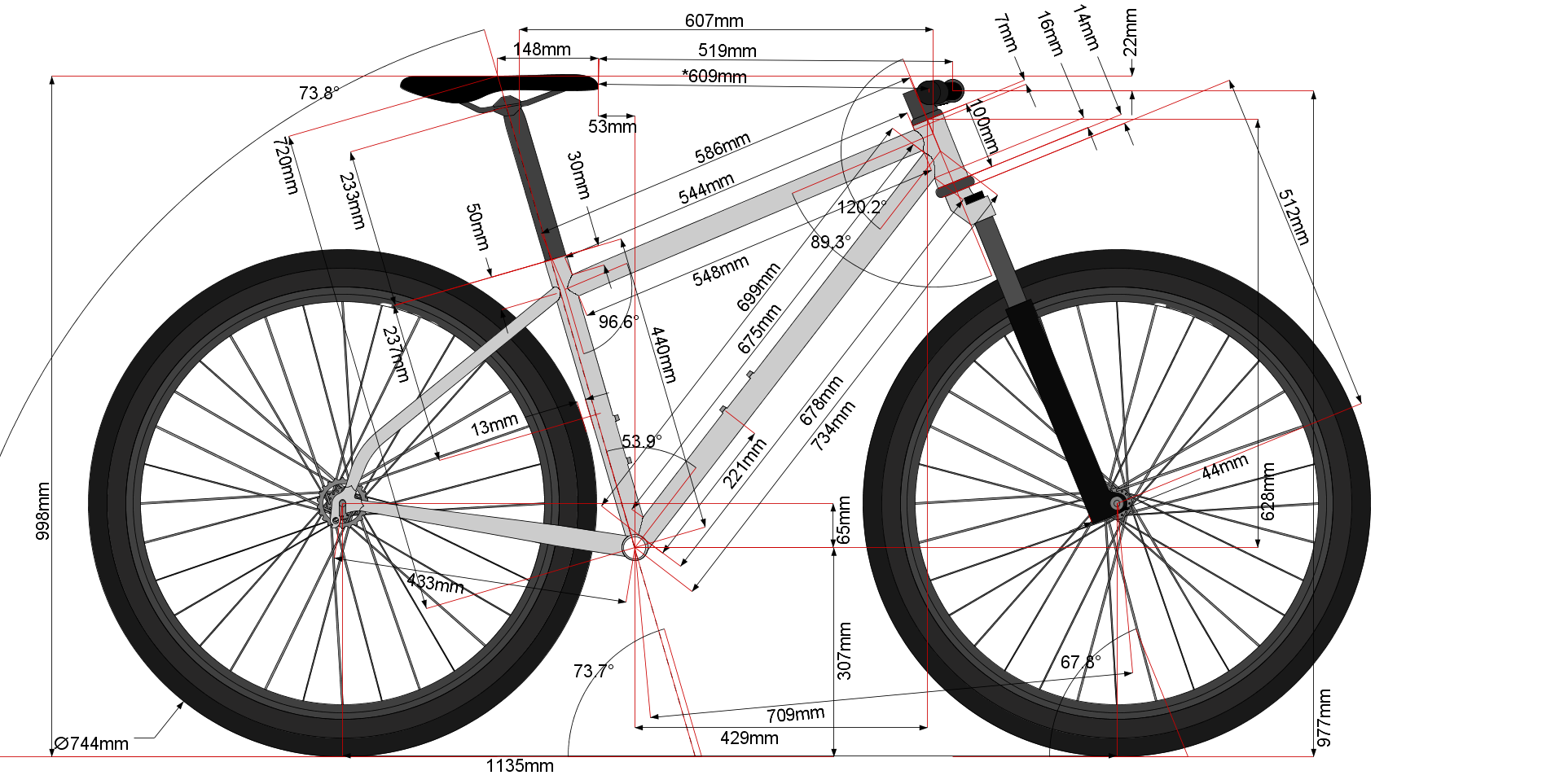

| TTA (B) | 586 mm |
|---|---|
| TTE (C) | 607 mm |
| HT (D) | 100 mm |
| ST (A) | 440 mm |
| CS (E) | 433 mm |
| HA (G) | 67.8° |
| SA (F) | 73.7° (73.8° effective) |
| BB drop | - 65 mm |
| BB height | 307 mm |
| Fork AC | 512 mm (120 mm - SAG 20 mm) |
| Wheelbase | 1135 mm |
| Stack | 628 mm |
| Reach | 429 mm |
