Závodní rám z materiálu Dedacciai Zero, s kónickou hl. trubku od stejné značky a se sedlovou trubkou pro 31.6 mm sedlovku. Zadní patky od kultovního dodavatele Paul USA. Váha pod 1.9 kg s velkou pevností tepelně zpracovaných trubek Dedacciai Zero a Dedacciai Zero Superleggera.
„Hi Tom, I received the framset today.
I could write down all the superlatives about the quality of the weld, finish, details, paint and above all your very kind and great service but I gather you would get tired reading it.
So I’ll just tell you that you’ve got a new regular customer.“
„Hi Tom, I did a 140km ride on the bike. After a testdrive of just a few hundred meters down the street it was the first proper ride of the bike.
Geometry, ride quality, handling is all super. Even after some hours in the saddle you won’t get surprised by the bike. It handles very well in deep sand. Very predictable. Had the rearwheel in the most forward position and still had enough room for the WTB Nano 40’s. Braking is good because of the big seatstays. In all, very succesfull project. My love for singlespeed’s has grown again. What a bike!“
Materiál | Dedacciai Zero HT, tapered hl. trubka |
---|---|
Hlavové složení | integrované |
Střed | BSA, CrMo, 68mm |
Brzdy | catilever/V-brake |
Vedení lanek a hadiček vnitřkem | venkem |
Max. šíře pláště | 52 mm |
---|---|

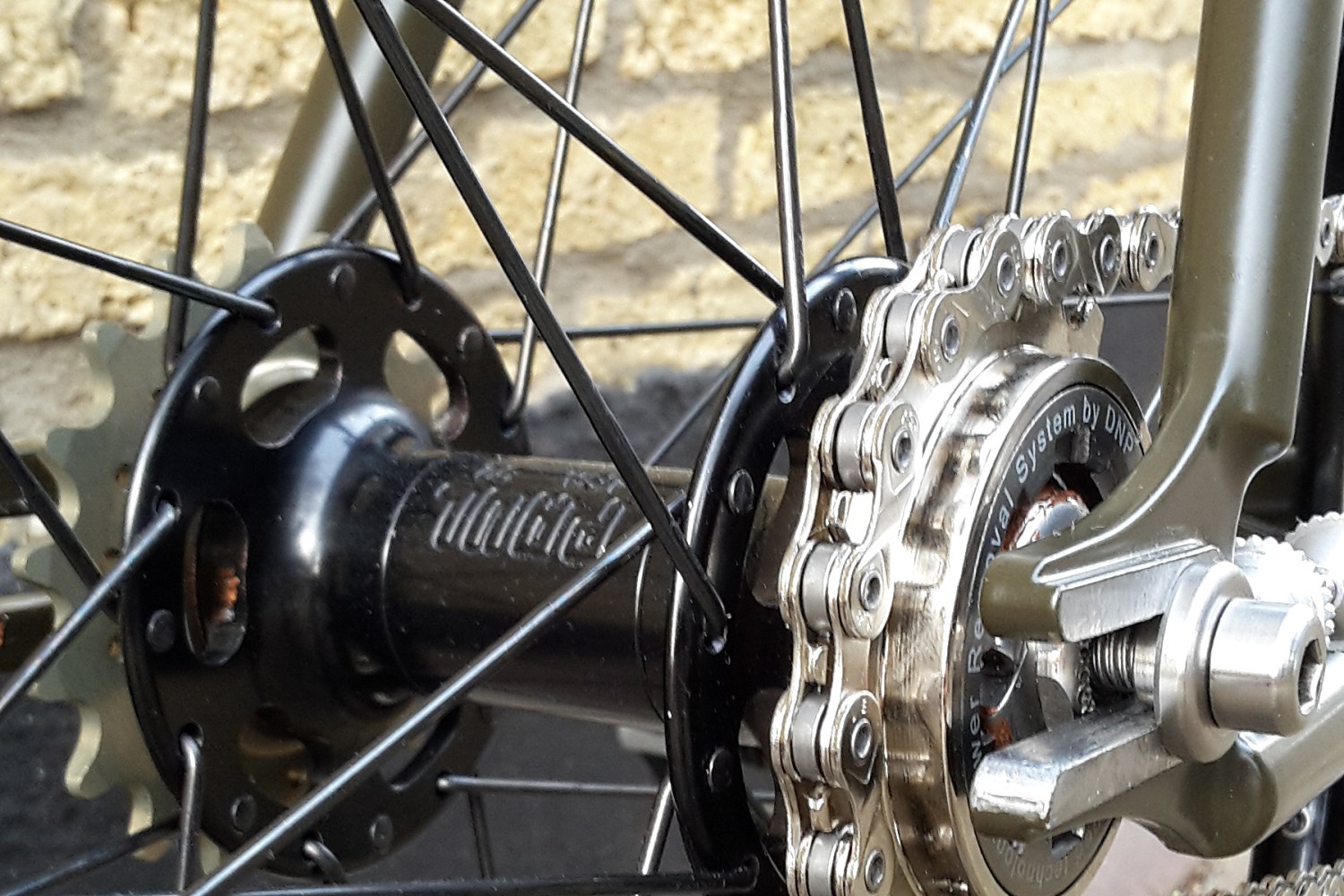

Patky | Paul, horizontální nastavitelné |
Barva | RAL 6022, matný |
Váha | 1880 gr |

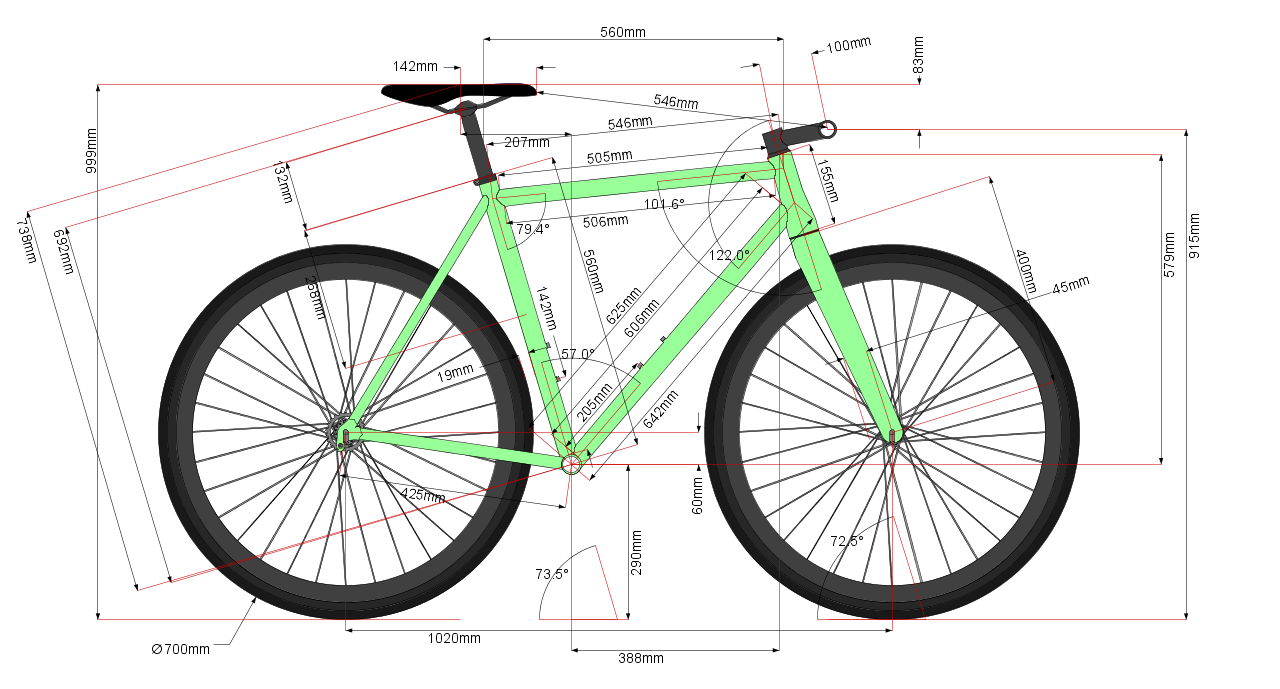

Horní rámová trubka - aktuální (B) | 546 mm |
---|---|
Horní rámová trubka - efektivní (C) | 560 mm |
Hlavová trubka (D) | 155 mm |
Sedlová trubka (A) | 560 mm |
Zadní stavba (E) | min 425 mm |
Úhel hlavové tr. (G) | 72.5° |
Úhel sedlové tr. (F) | 73,5° |
Úroveň středu | - 60 mm |
Výška středu (700x38c) | 290 mm |
Předpokl. výška vidlice | 400 mm |
Rozvor | 1020 mm |
