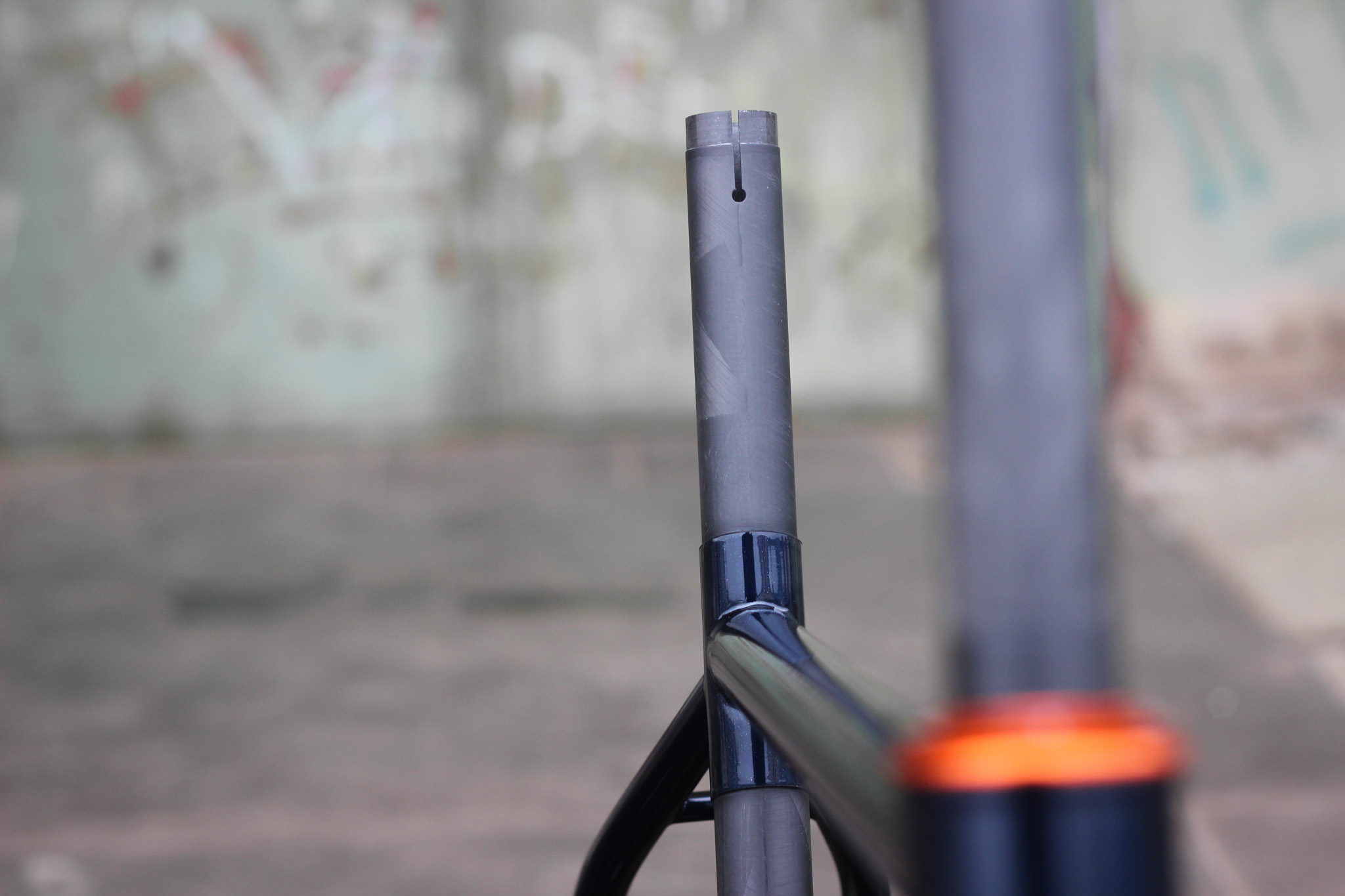

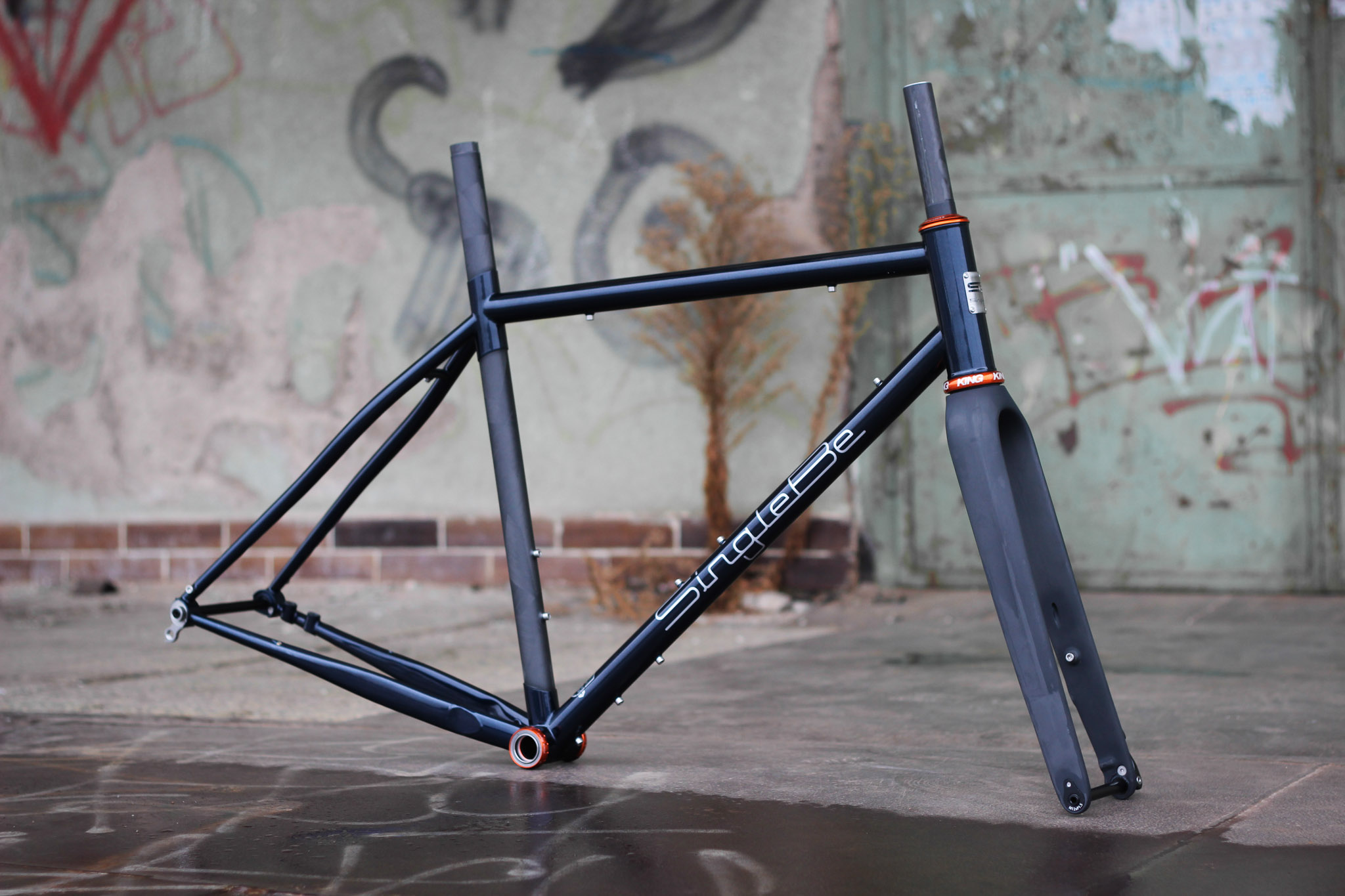

Reynolds 853 steel frame with integrated carbon custom seat tube.

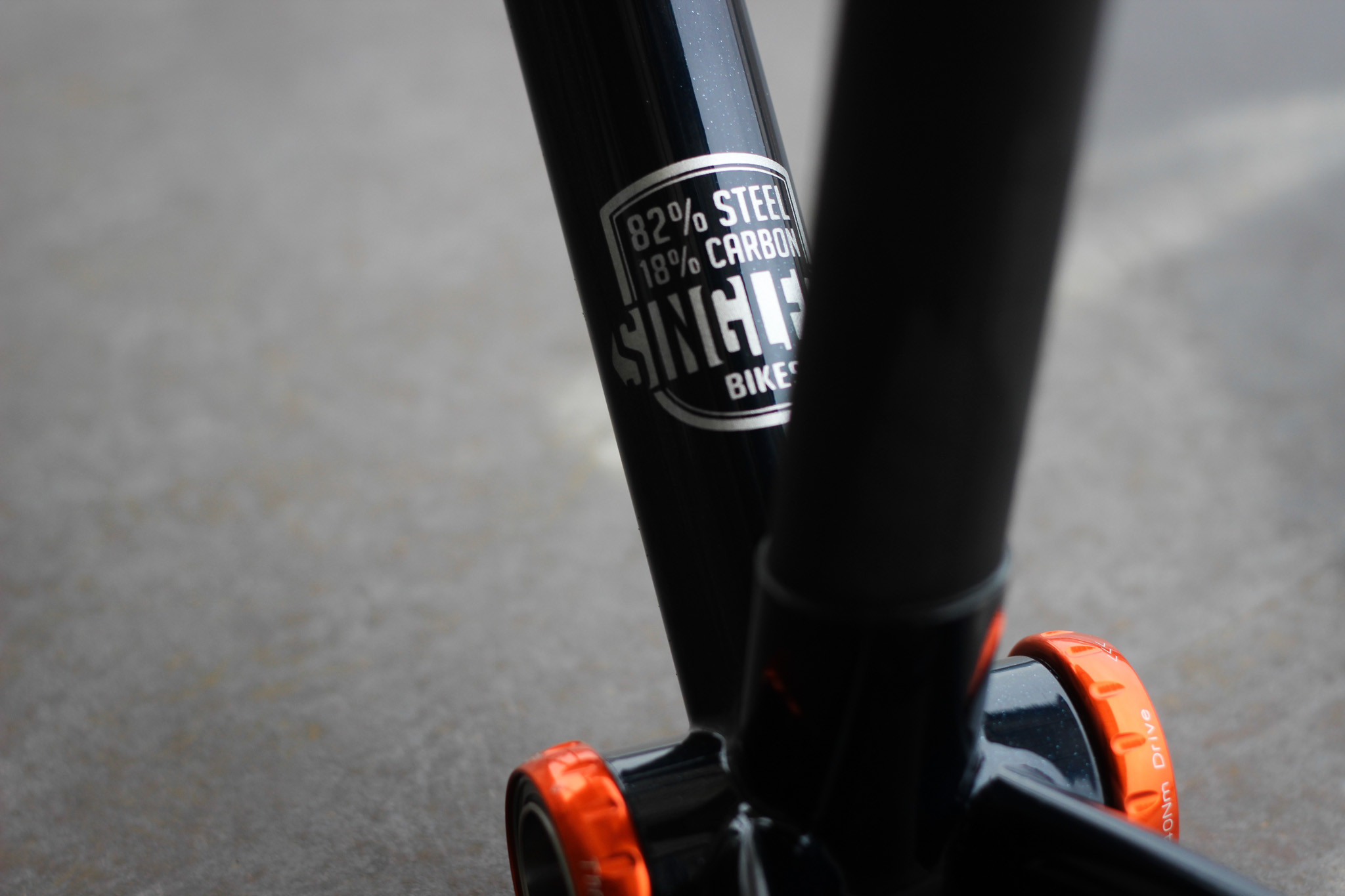

Calculated approx. based on tube lengths ; )

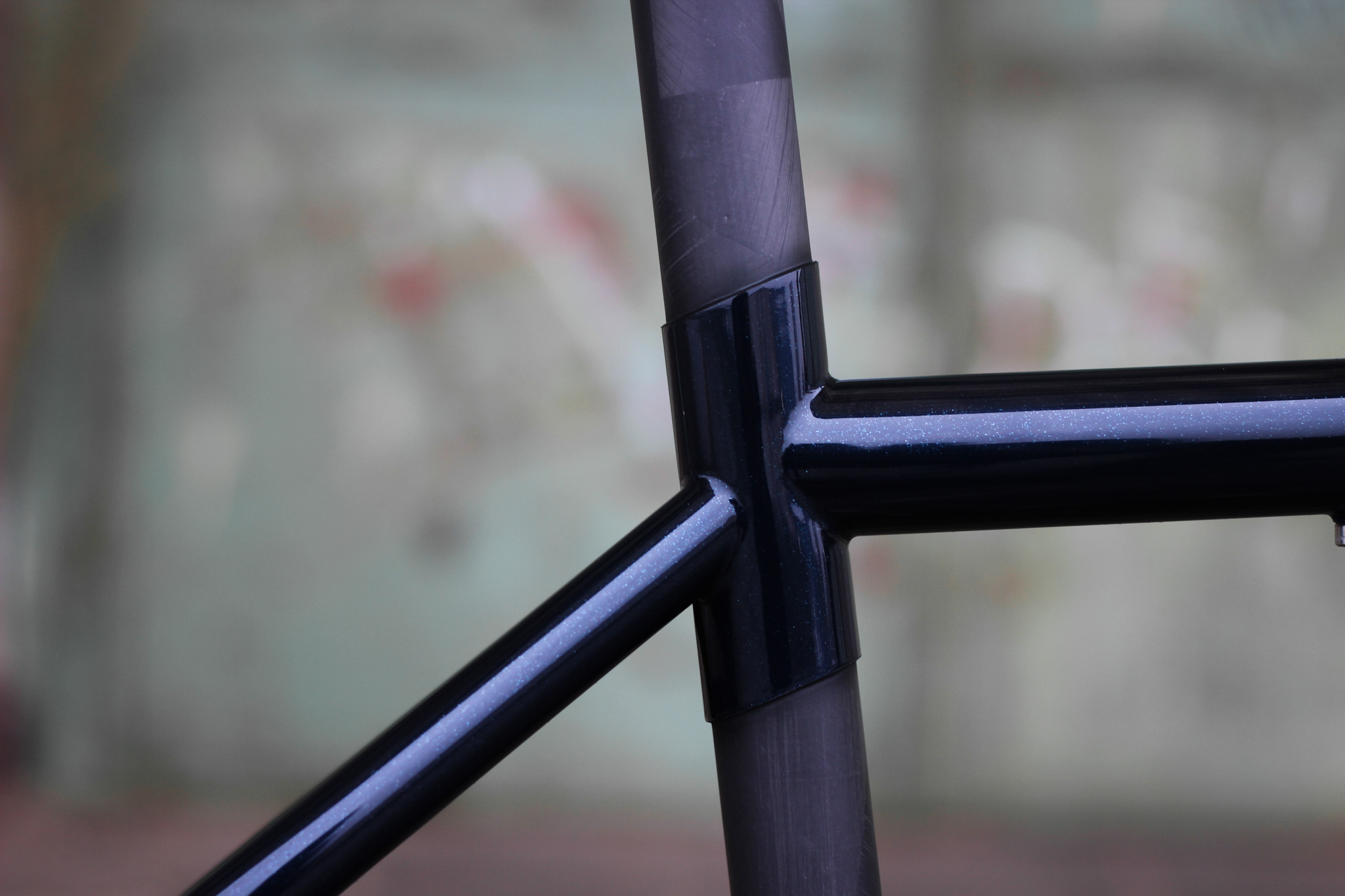

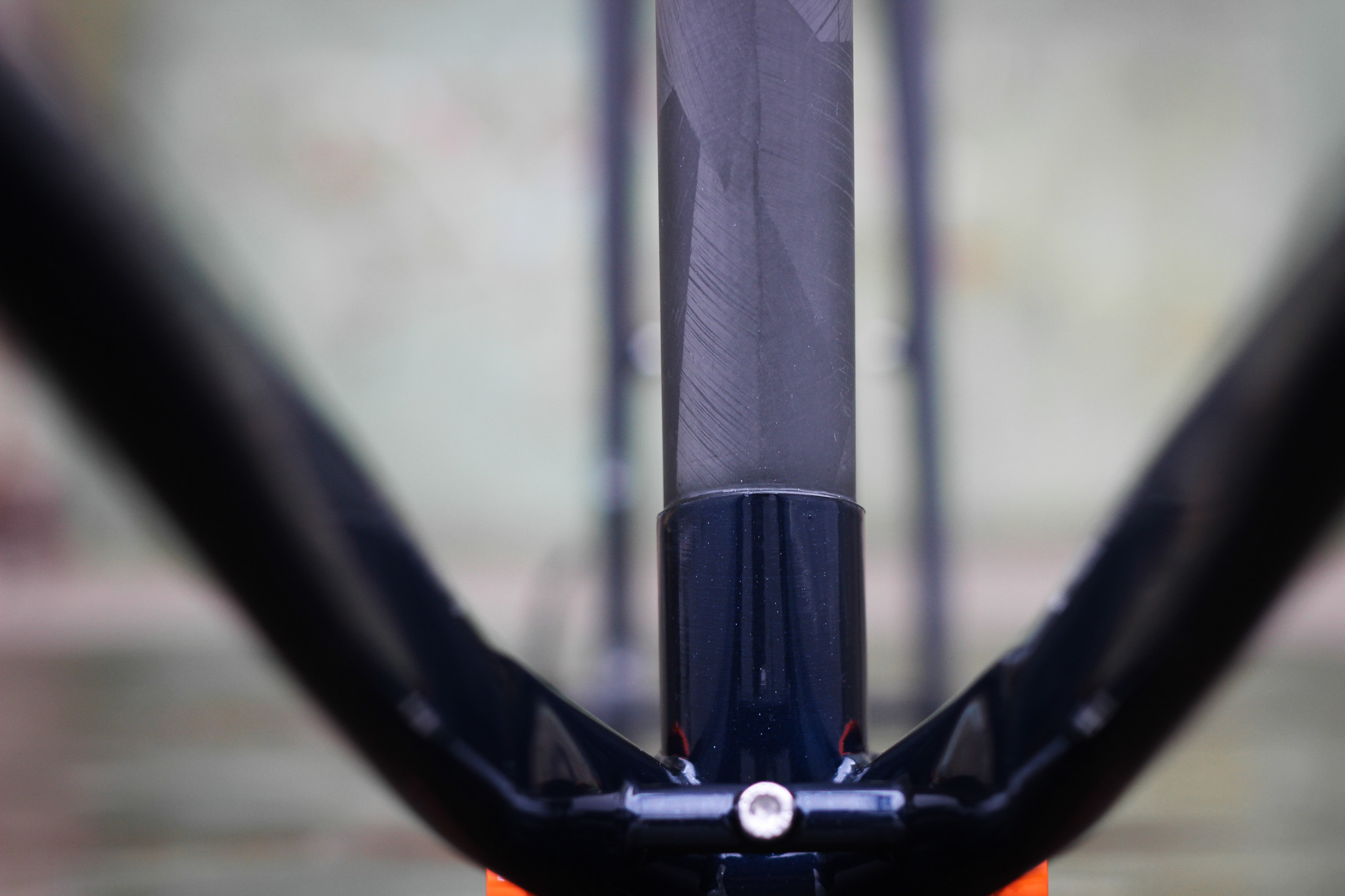

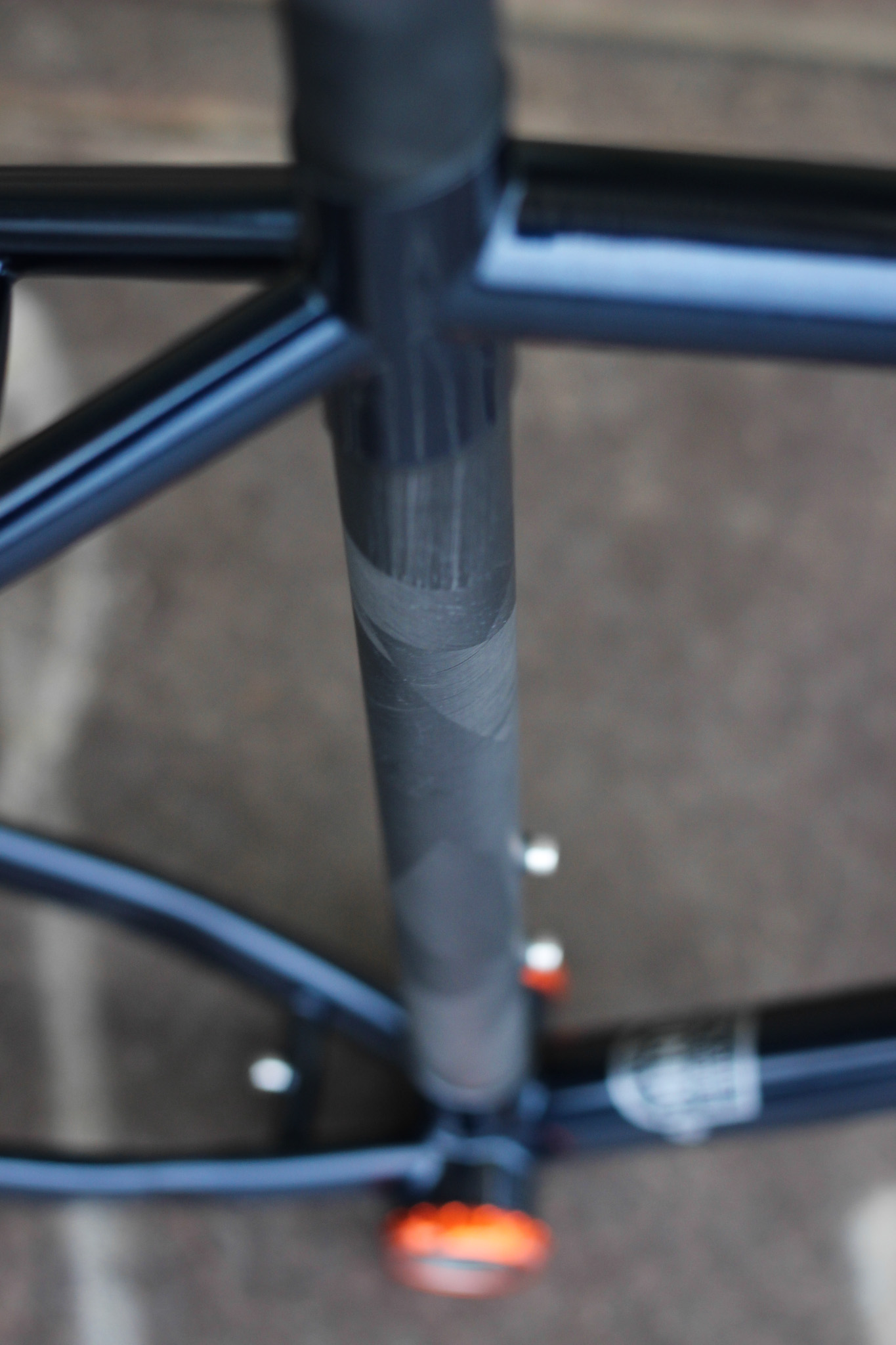

Although customer asked for matter finish for carbon parts of the frame, you can still easily see that nice carbon layer structure.
When the sun goes out then this will be nice sparkling effect, silver and blue flakes under the clear coat.

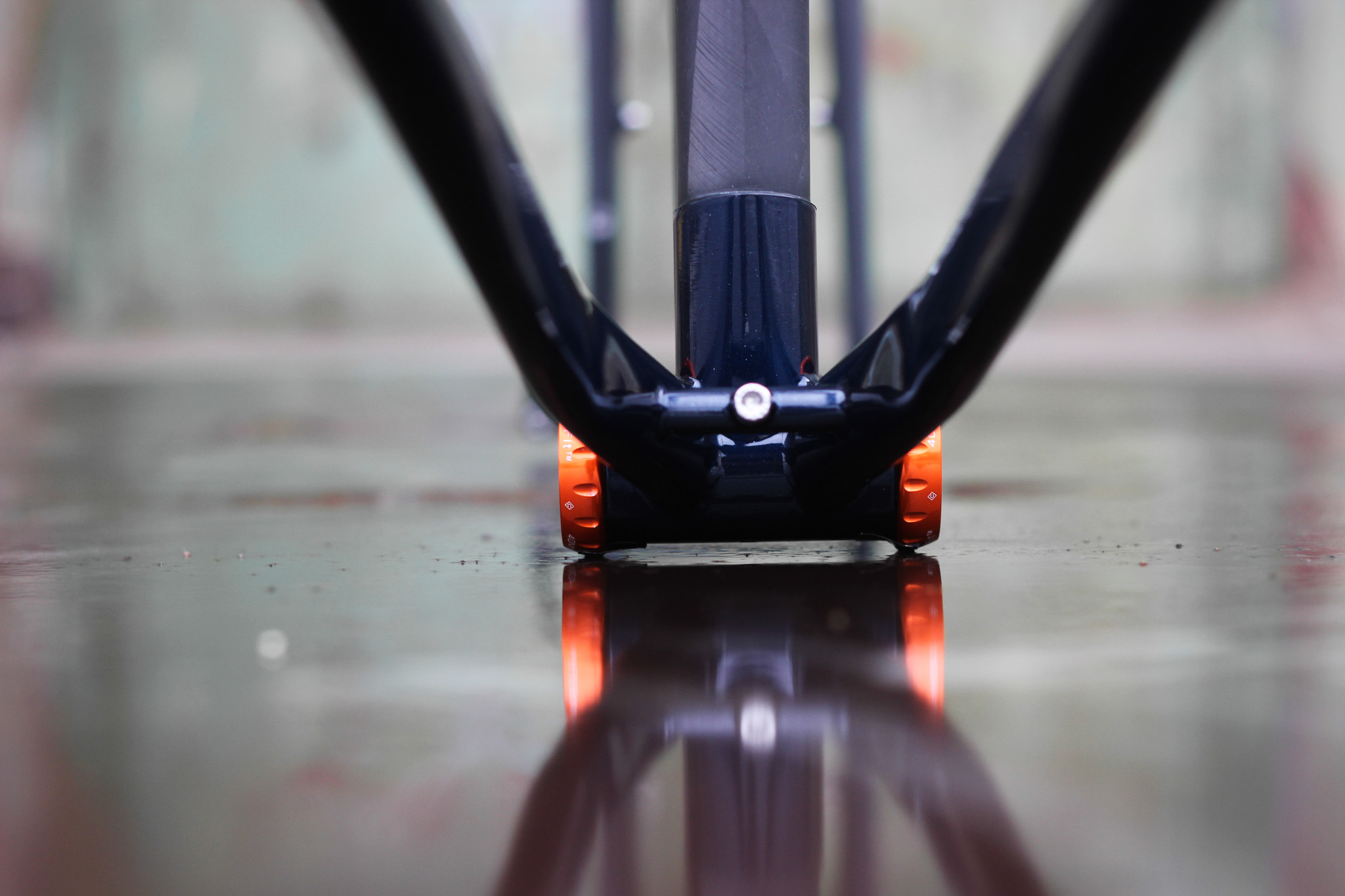

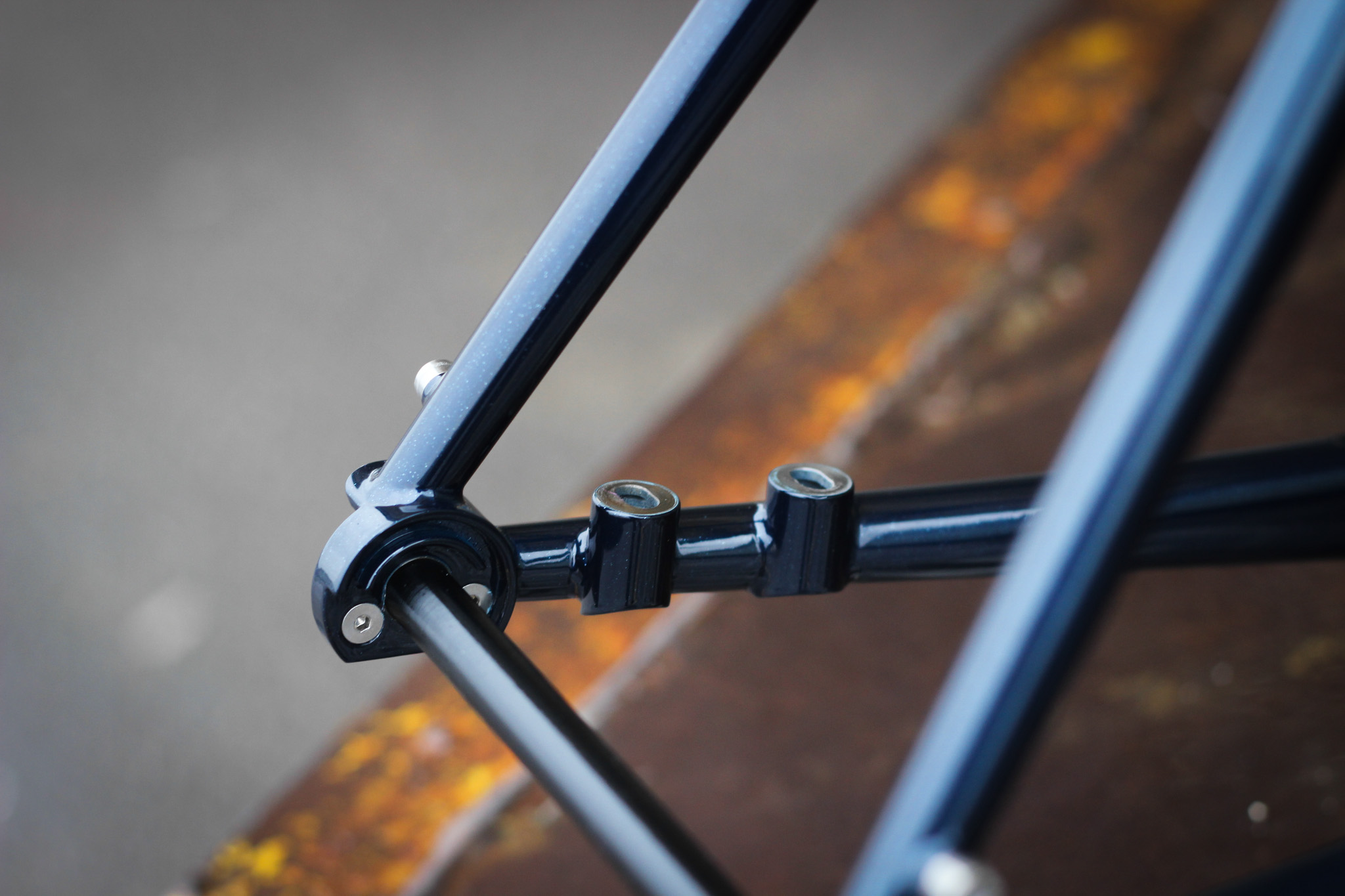

Flat mount brake mount can accept any road disk group set.

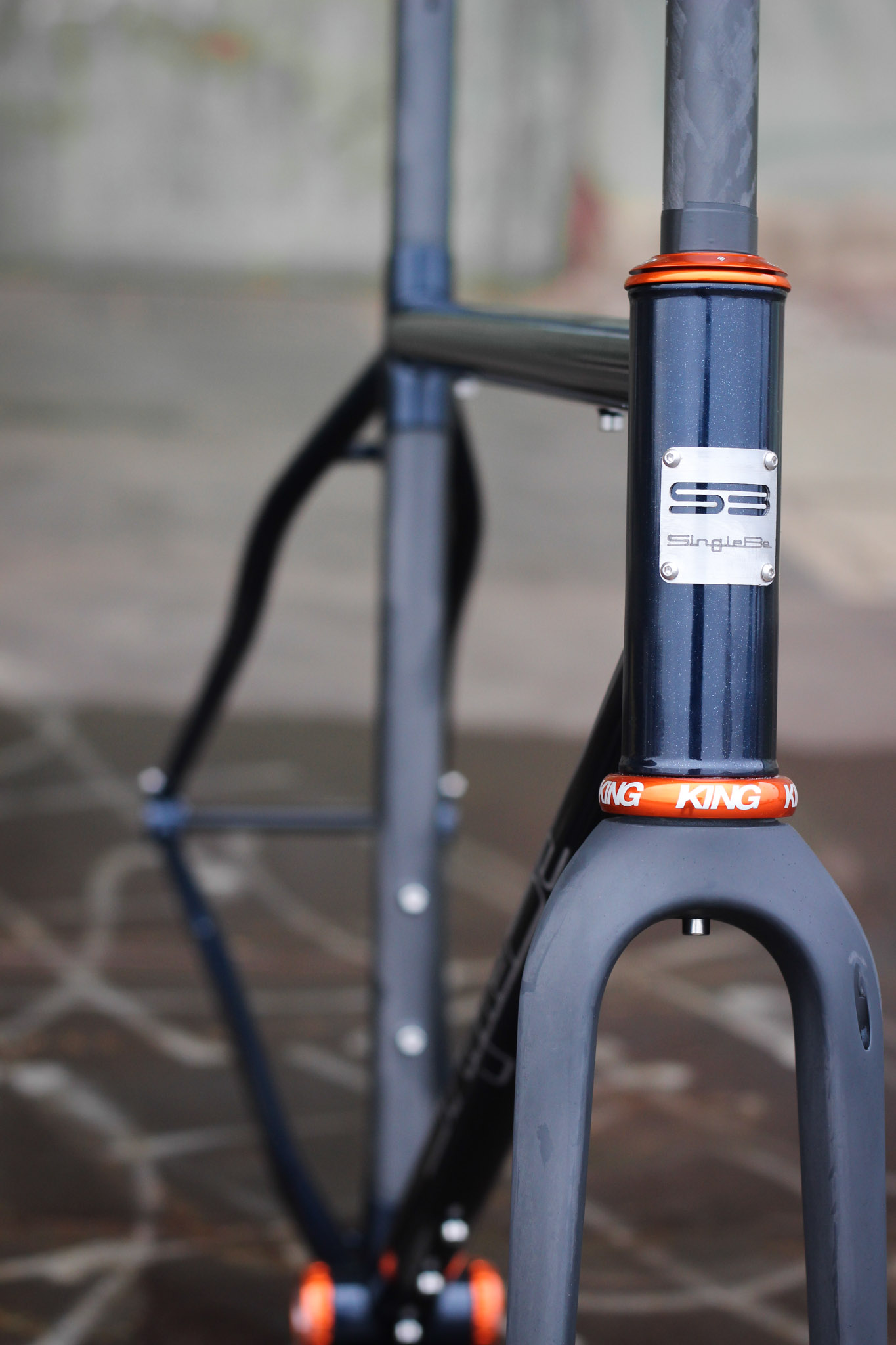

Customized Trigon gravel front fork with pretty nice tire clearance. And Chris King in mango make super nice colour combination.
Overall sexy look.
| Frame steel | Reynolds 853 / Dedacciai ZeroUno CX / Custom carbon ST |
|---|---|
| Headset | Chris King InSet 7 mango |

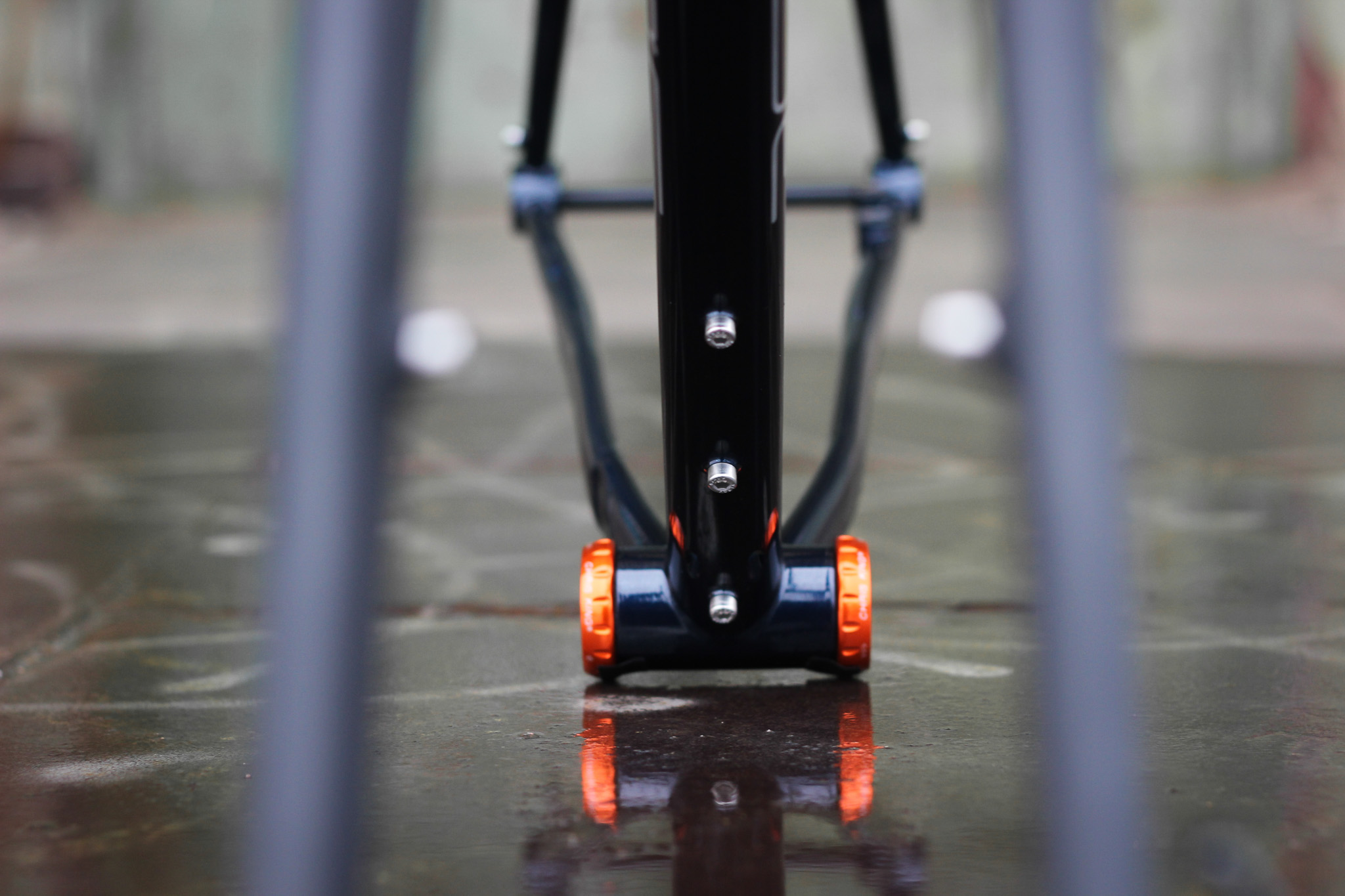

| BB | BSA, 73, CK Thread Fit + Conversion kit for SRAM Road |
| Cable routings | vnitřní skrze vnitřní mosazné trubičky |
| Max tire size | 700x42C / 650bx2.0 |
|---|---|

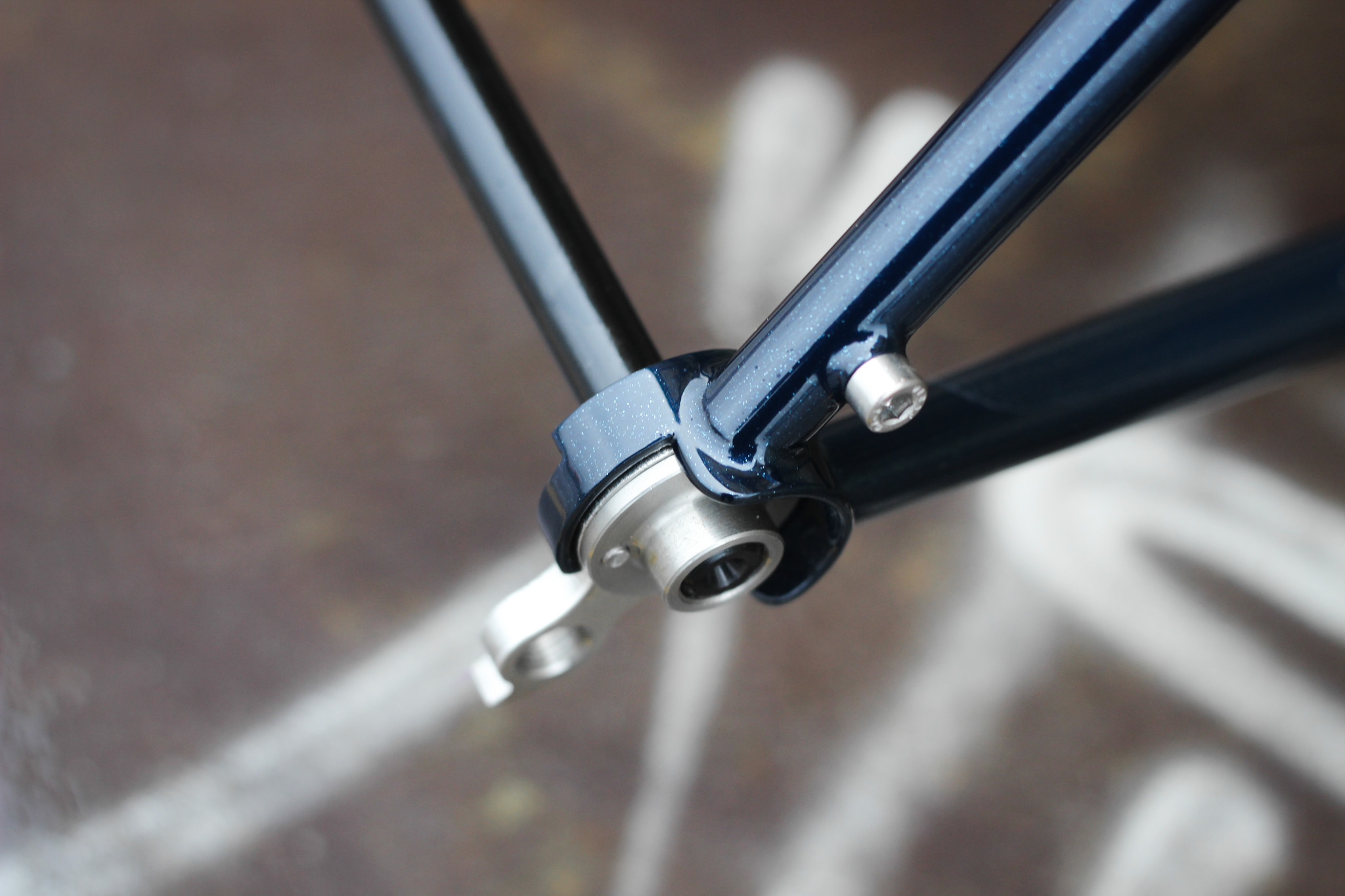

| Dropouts | 142x12, SingleBe AL axle |
| Drive compatibility | 1x11, Road crankset, 42T |
| Colour | dark candy blue + metal flakes, glossy/matte finish |

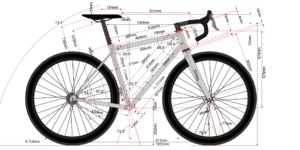

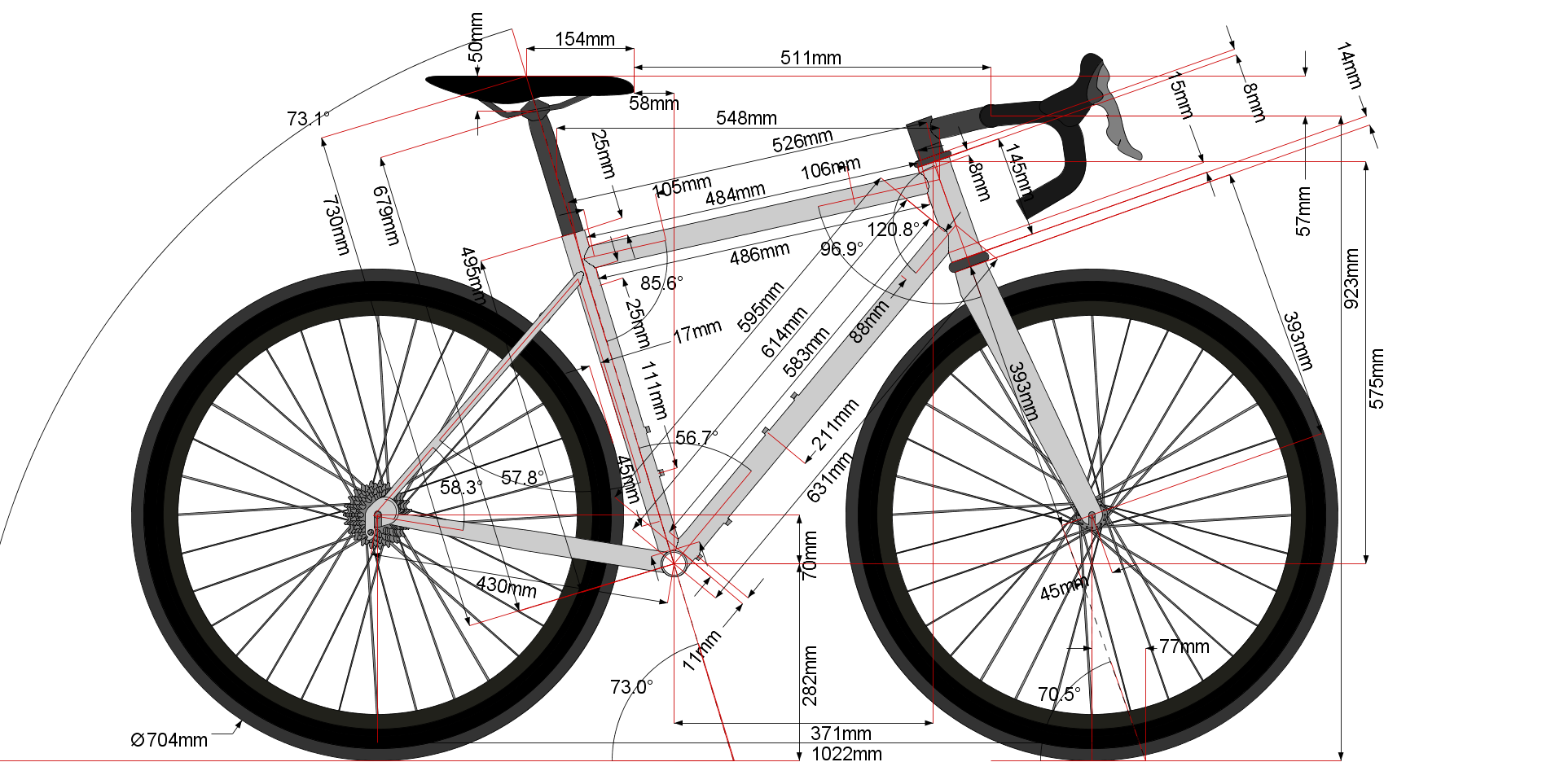

| TTA | 526 mm |
|---|---|
| TTE | 548 mm |
| HT | 145 mm |
| ST | virtuální 495 mm / reálná 630 mm |
| CS | 430 mm |
| HA | 70.5° |
| SA | 73° |
| BB drop | 70 mm |
| BB height | 282 mm |
| Fork AC | 393 mm |
| Wheelbase | 1022 mm |
