Forks

SingleBe rigid forks

We offer also rigid steel forks from SAE4130 nobutted steel with a segmented fork crown or from Reynolds 631/853 and Dedacciai for unicrown forks.

Here you can find all types of crowns, dropouts and fork legs.

Crowns

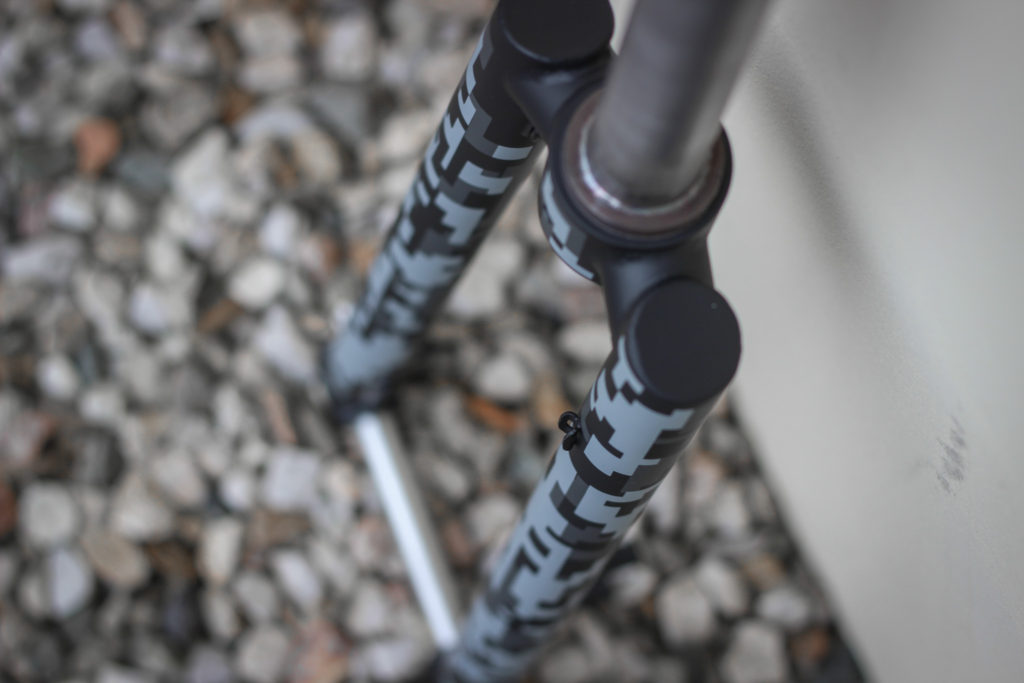

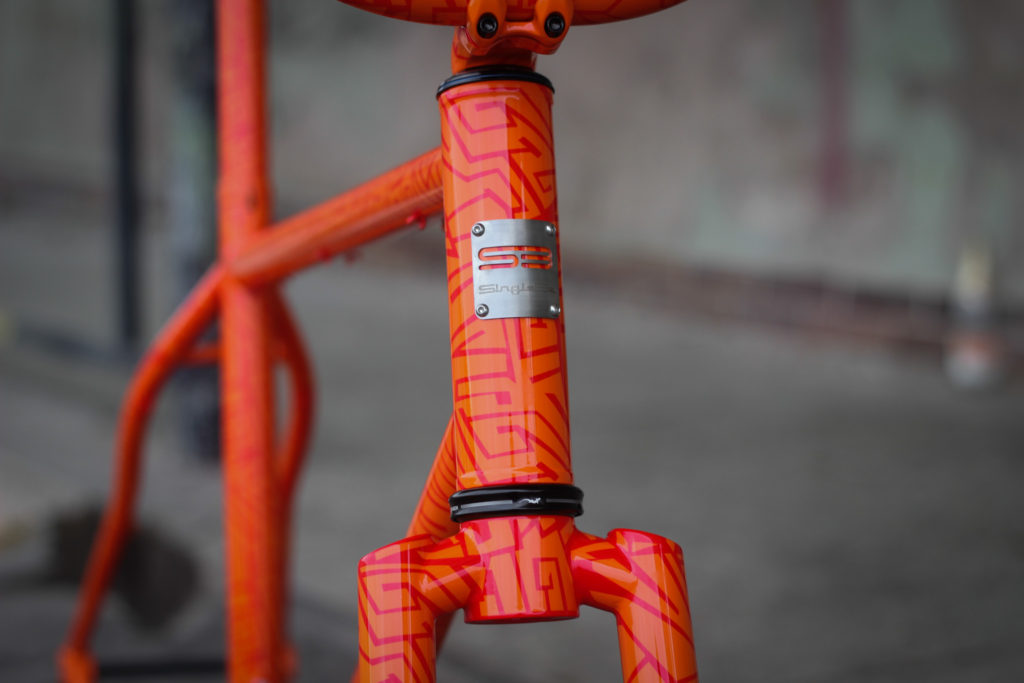

TA46 – For tapered headset, OD. 46 – crown is compatible with tapered headset bearings 39,8 mm (1.5″). Outside dimaeter is 46 mm.

singlebe-steel-fork-tapered-crown-46

TA56 – For tapered headset, OD. 56 – crown is compatible with tapered headset bearings 39,8 mm (1.5″). Outside dimaeter is 56 mm.
singlebe-steel-fork-tapered-crown-56

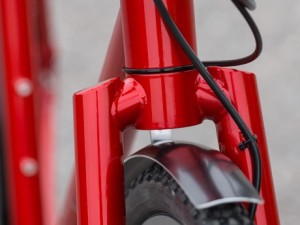

SE46 – For semiintegrated headset, OD. 46 – crown compatible with semiintegrateed headset with crown ring for 30,0 mm (1 a 1/8″). Crown outside diameter is 46 mm.
singlebe-steel-fork-semiintegrated-crown-46-2

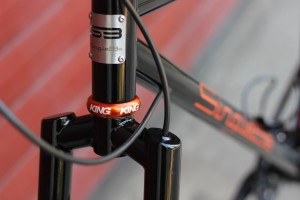

AH34 – For classic A-head headset, OD. 34 – crown is compatible with normal ahead headset with a crown ring 30,0 mm (1 a 1/8″). Crown outside diameter is 34 mm.
singlebe-steel-fork-ahead

Dropouts

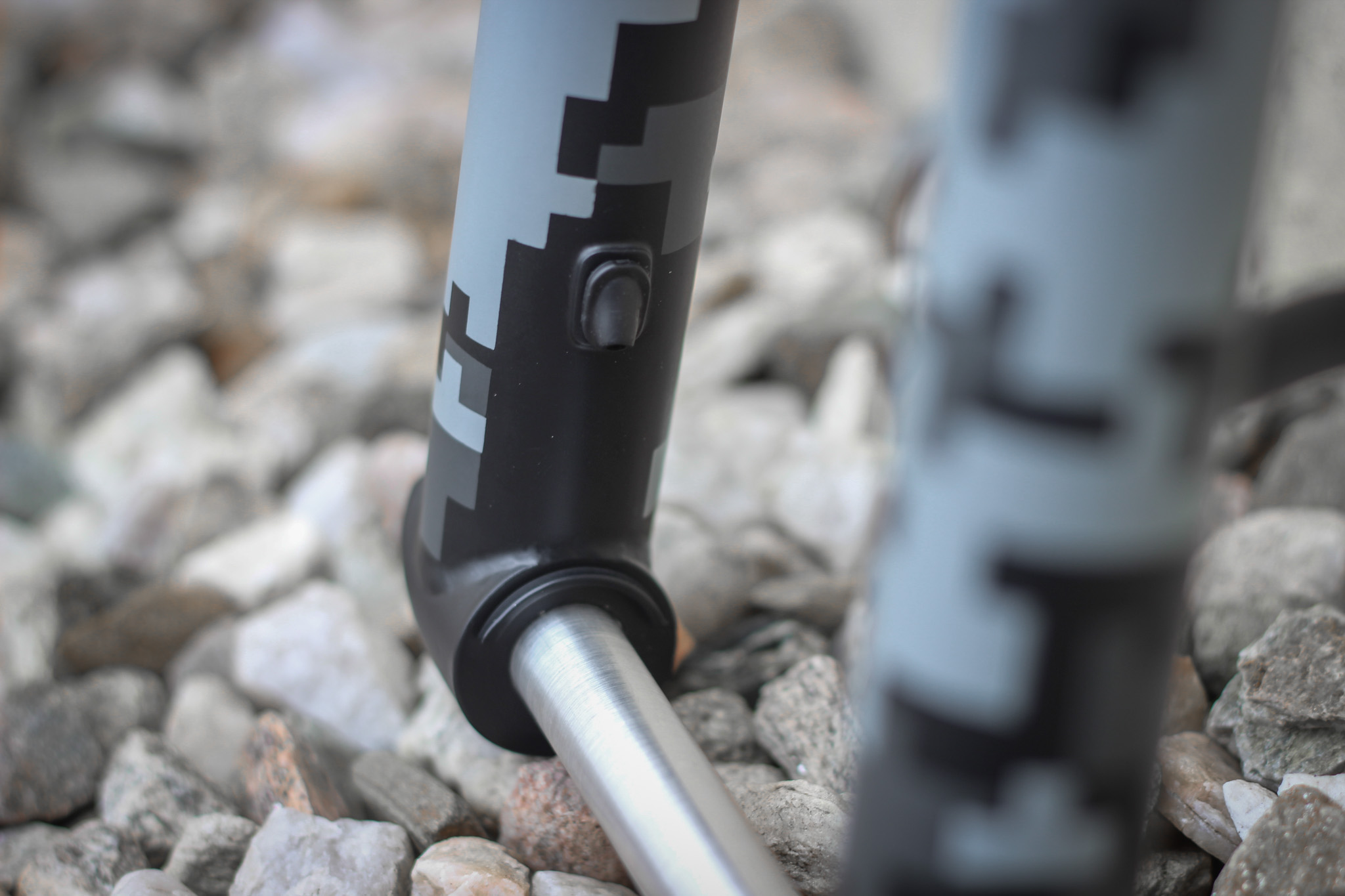

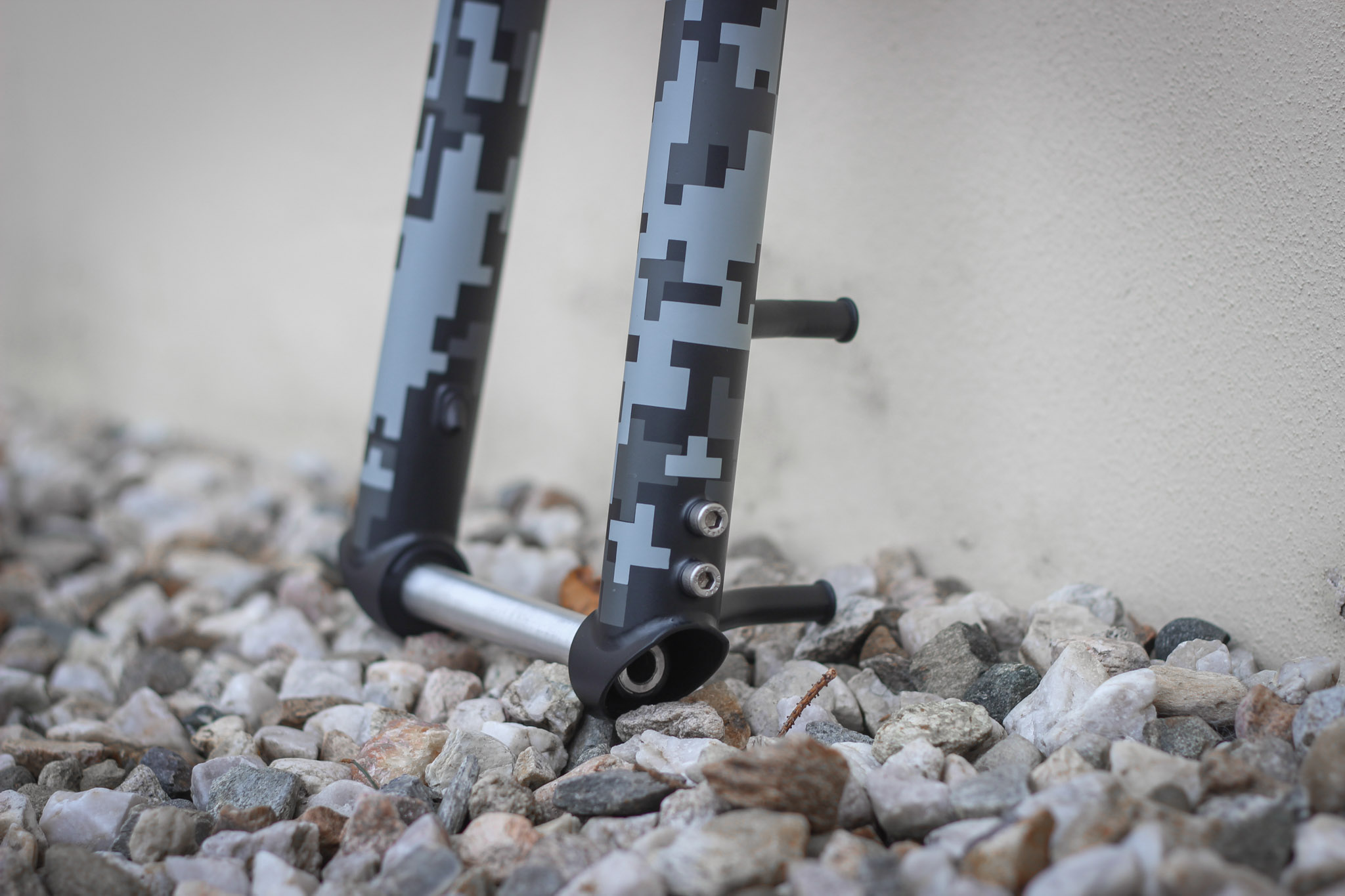

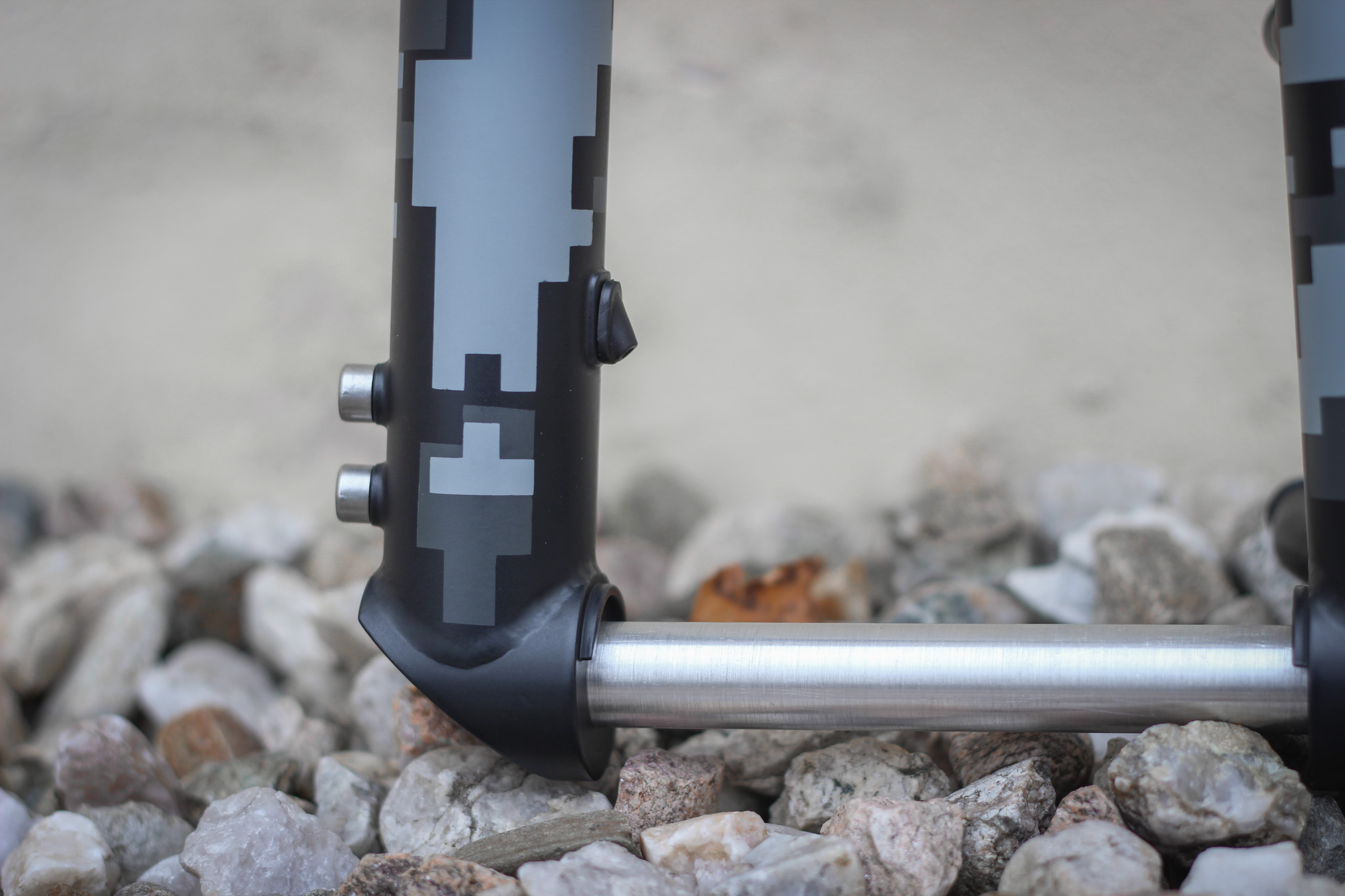

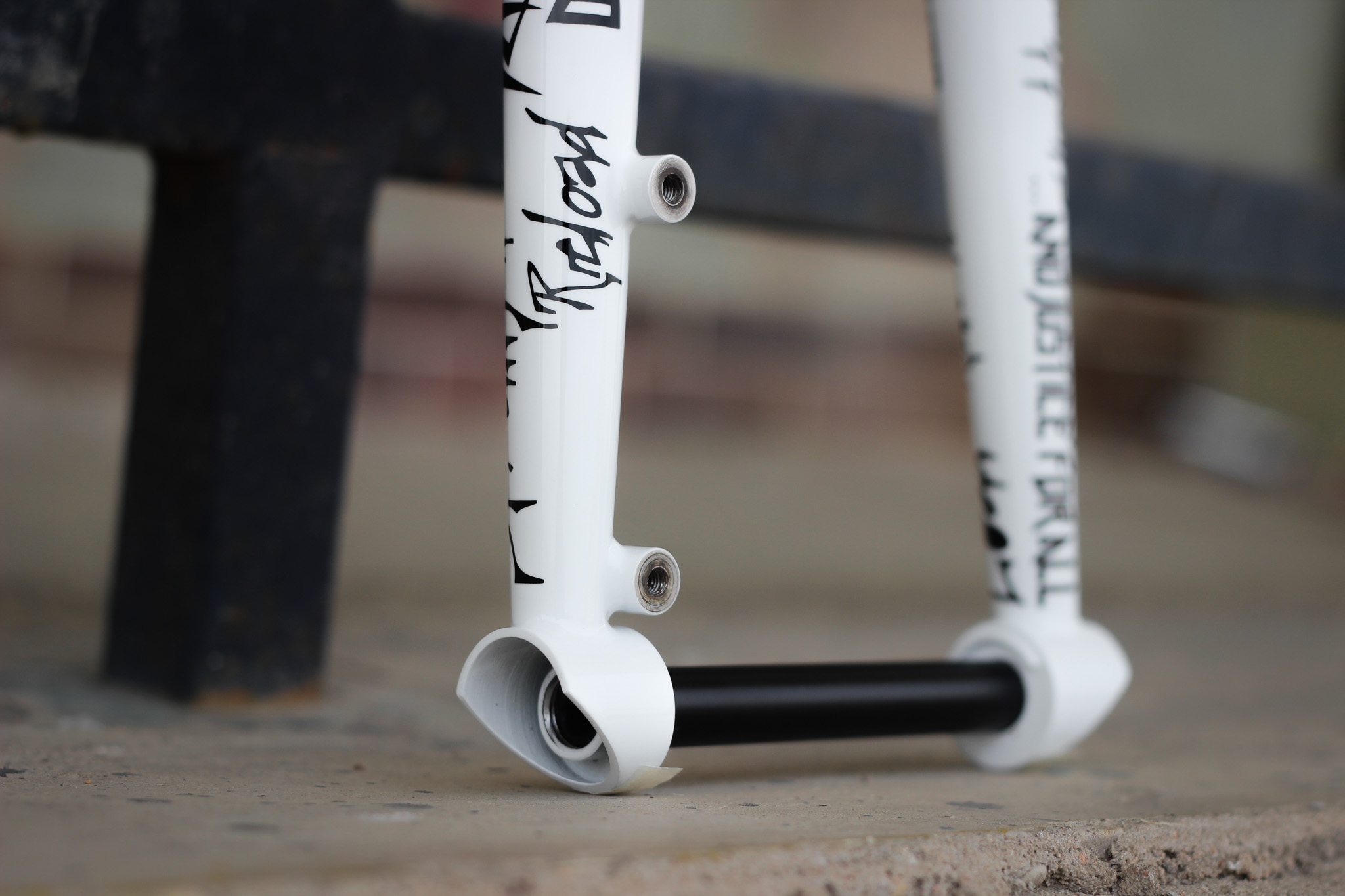

TA15 – Dropouts for thru axle 100×15 or 110×15 (Boost) – these dropouts are for hubs with a 15 mm thru axle. Hub spacing 100 or 110 mm (Boost). It is delivered together with SingleBe Alu axle 100×15 or 110×15.

singlebe-fork-dropouts-100x15

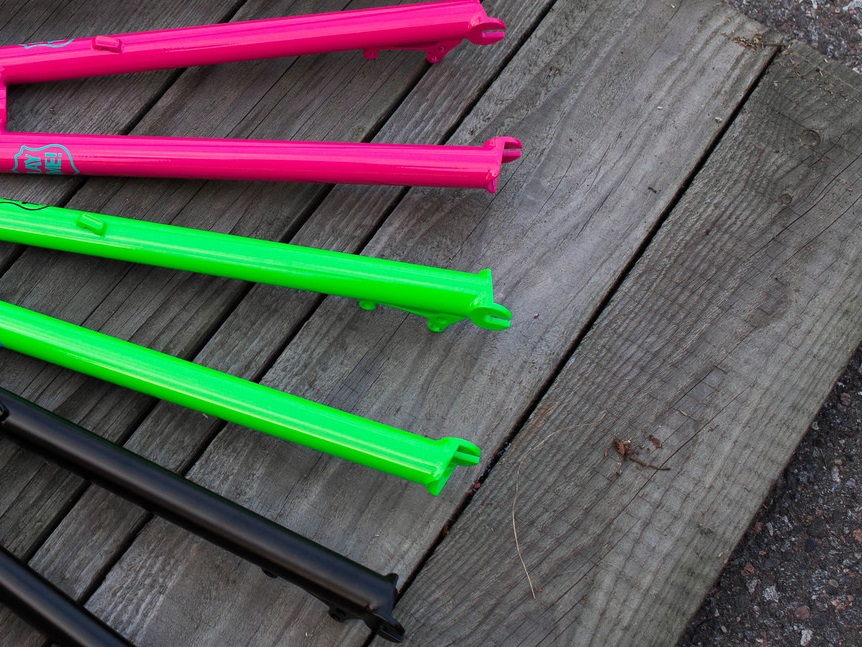

QR9 – Dropouts for QR hubs– dropouts which are compatible with normal front hubs with quick release

singlebe-fork-qr

Fork legs

Straight – straight fork legs from SAE4130 steel, diameter 30 mm. Tire clearance could be specified 50 – 100 mm (from cross to “27.5+/29+”). Fork length A-C max 490 mm.

singlebe-steel-fork-tapered-crown-56

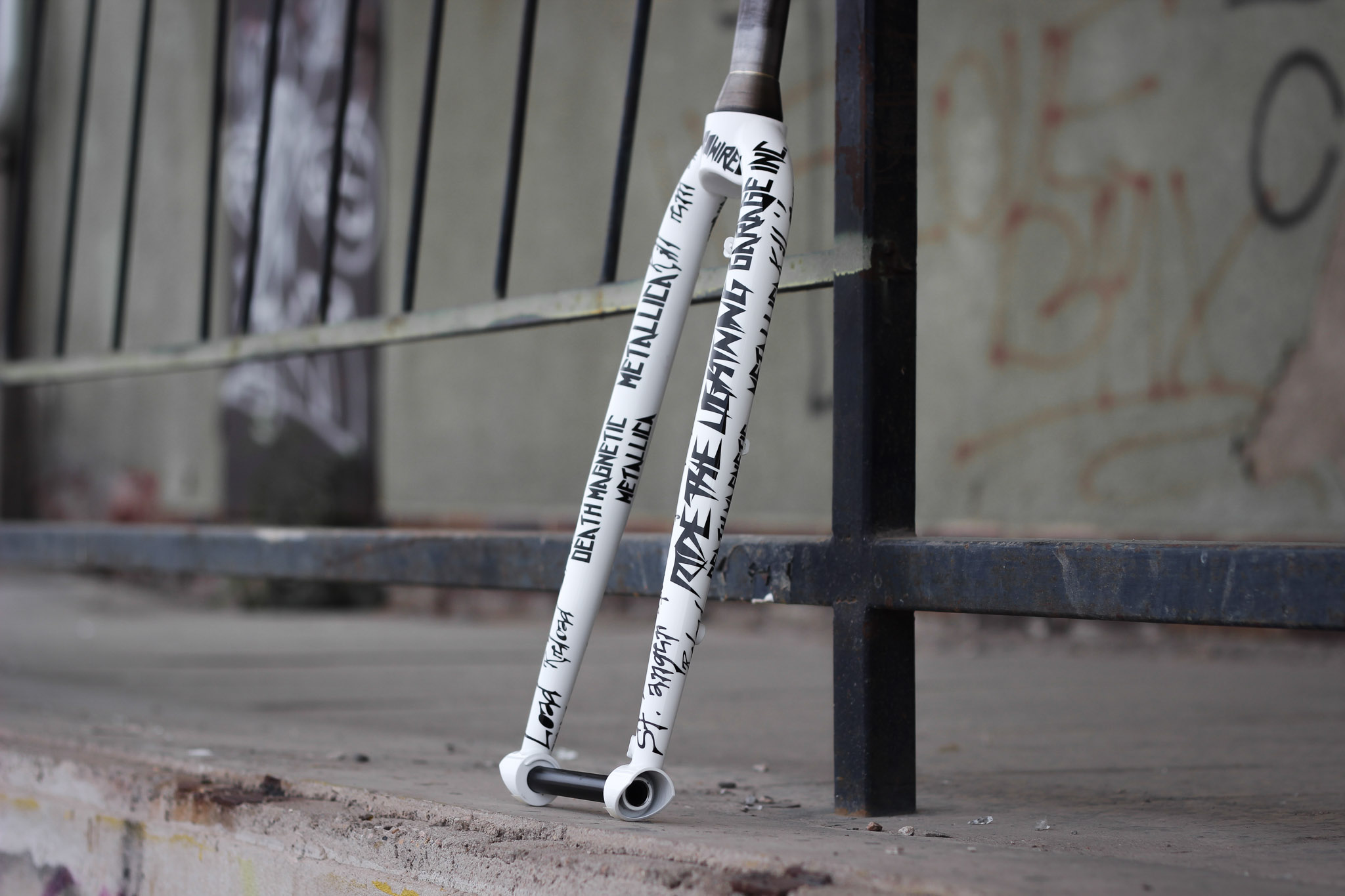

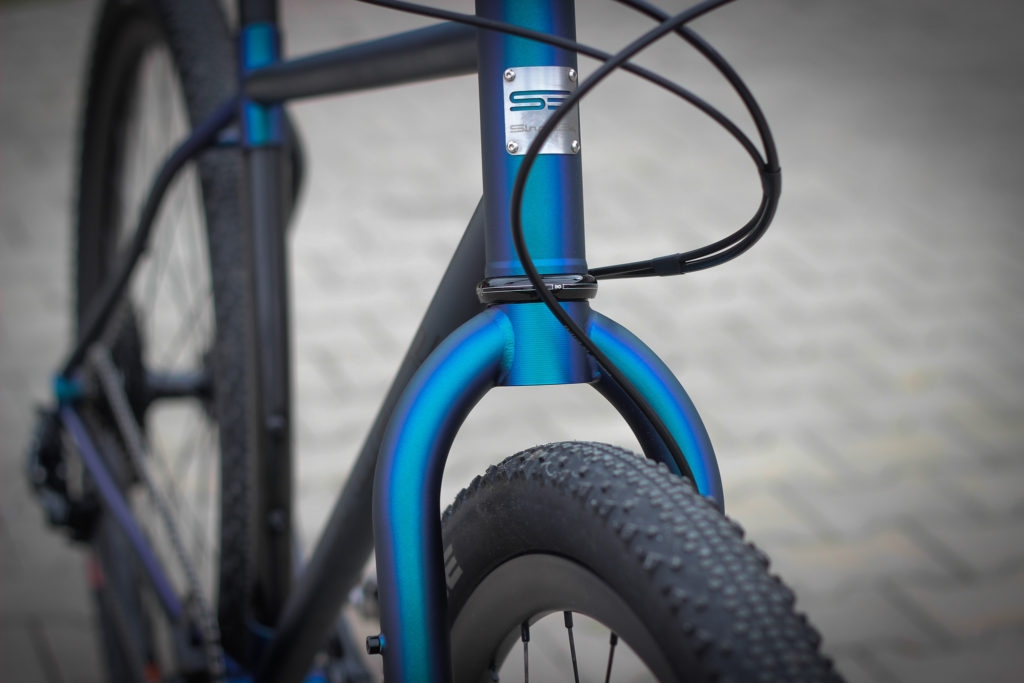

Bent (unicrown)– bent unicrown legs from Reynolds (631,853) for MTB and Road/Cross forks, an alternative is also Dedacciai unicrown legs (but available only to build cross/road forks)

singlebe-steel-fork-unicrown-legs
